Diesel Generator Sets

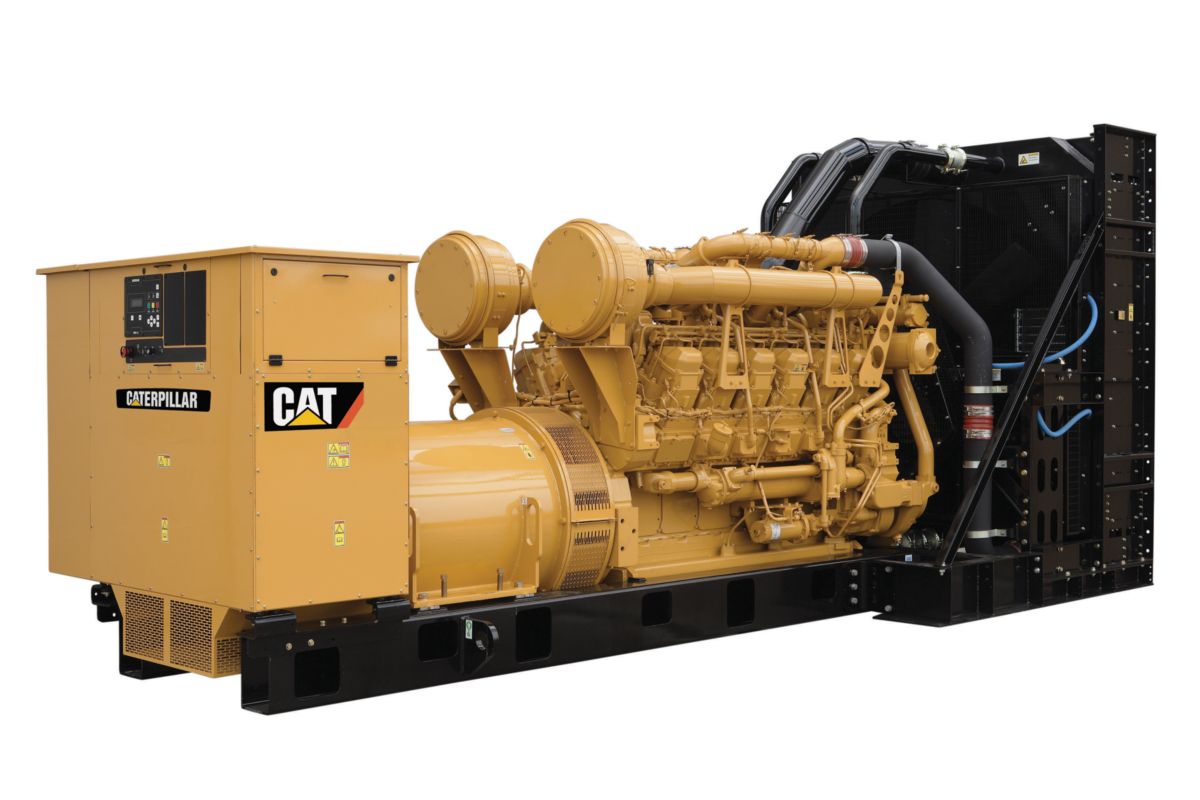

3512B Diesel Generator Set

Request A Quote
US
Metric

Overview

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Generator Set Specifications

Minimum Rating
1230 ekW (1320kVA)
Maximum Rating
1500 ekW (1875 kVA)
Voltage
220 to 13800 Volts
Frequency
50 or 60 Hz
Speed
1500 or 1800 RPM

Generator Set Configurations

Emissions/Fuel Strategy
Low Fuel Consumption, Low Emissions

Engine Specifications

Engine Model
3512B TA, V-12, 4-Stroke Water-Cooled Diesel
Bore
6.69 in
170.00 mm
Displacement (Std)
3161.03 in3
51.80 L
Displacement (HD)
3573.55 in3
58.56 L
Stroke (Std)
7.48 in
190.00 mm
Stroke (HD)
8.46 in
215.00 mm
Compression Ratio
14.0:1 Std 15.5:1 HD
Aspiration
TA
Governor Type
Adem™3
Fuel System
Electronic Unit Injection
Features

Cat™ Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

    • Generator

  • Matched to the performance and output characteristics of Cat engines
  • Industry leading mechanical and electrical design
  • Industry leading motor starting capabilities
  • High Efficiency

    • Cat EMCP Control Panel

    The EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP4 is a scalable control platform designed to ensure reliable generator set operation, providing extensive information about power output and engine operation. EMCP4 systems can be further customized to meet your needs through programming and expansion modules.

    Design Criteria

    The generator set accepts 100% rated load in one step per NFPA 110 and meets ISO 8528-5 transient response.

    UL 2200 / CSA - Optional

  • UL 2200 listed packages
  • CSA Certified
  • Certain restrictions may apply.
  • Consult with your Cat® Dealer.

    • Single-Source Supplier

    Fully prototype tested with certified torsional vibration analysis available

    World Wide Product Support

    Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products

    Standard Equipment
    • Air Inlet
      • Air Cleaner
    • Cooling
      • Package mounted radiator (except C175)
    • Exhaust
      • Exhaust flange outlet
    • Fuel
      • Primary fuel filter with integral water separator
      • Secondary fuel filter
      • Fuel priming pump
    • Generator
      • Matched to the performance and output characteristics of Cat engines
      • IP23 Protection
    • Power Termination
      • Bus Bar
    • Control Panel
      • EMCP 4 Genset Controller
    • General
      • Paint - Caterpillar Yellow except rails and radiators gloss black
    Optional Equipment
    • Exhaust
      • Exhaust mufflers
    • Generator
      • Anti-condensation heater
      • Internal excitation (IE)
      • Permanent magnet excitation (PMG)
      • Oversize and premium generators
    • Power Termination
      • Circuit breakers, UL listed
      • Circuit breakers, IEC compliant
    • Control Panels
      • EMCP 4.2
      • EMCP 4.3
      • EMCP 4.4
      • Generator temperature monitoring & protection
      • Load share module
      • Digital I/O module
      • Remote monitoring software
    • Mounting
      • Rubber anti-vibration mounts
      • Spring-type vibration isolator
      • IBC isolators
    • Starting/Charging
      • Battery chargers
      • Oversize batteries
      • Jacket water heater
      • Heavy-duty starting system
      • Charging alternator
      • Air starting motor with control and silencer
    • General
      • The following options are based on regional and product configuration:
      • Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
      • UL 2200 package
      • EU Certificate of Conformance (CE)
      • CSA Certification
      • EEC Declaration of Conformity
      • Enclosures: sound attenuated, weather protective
      • Automatic transfer switches (ATS)
      • Integral & sub-base fuel tanks
      • Integral & sub-base UL listed dual wall fuel tanks
