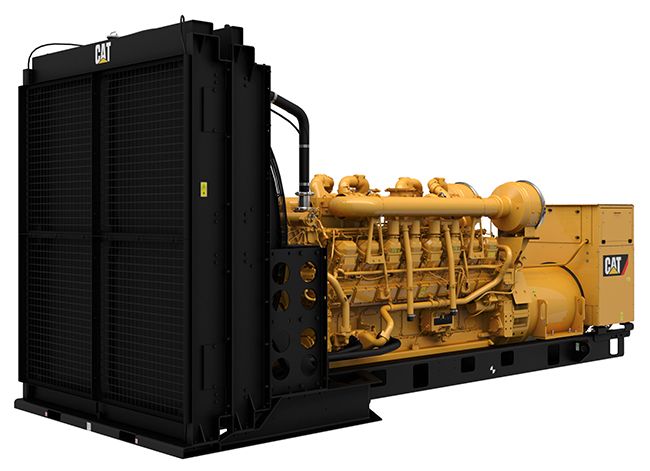

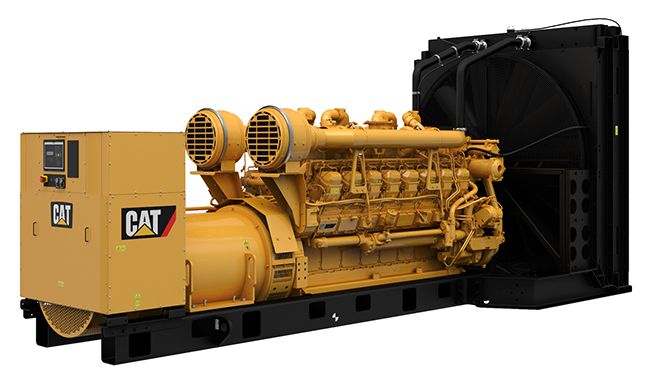

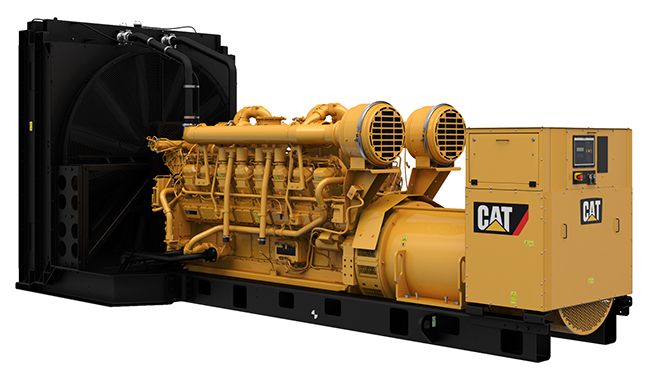

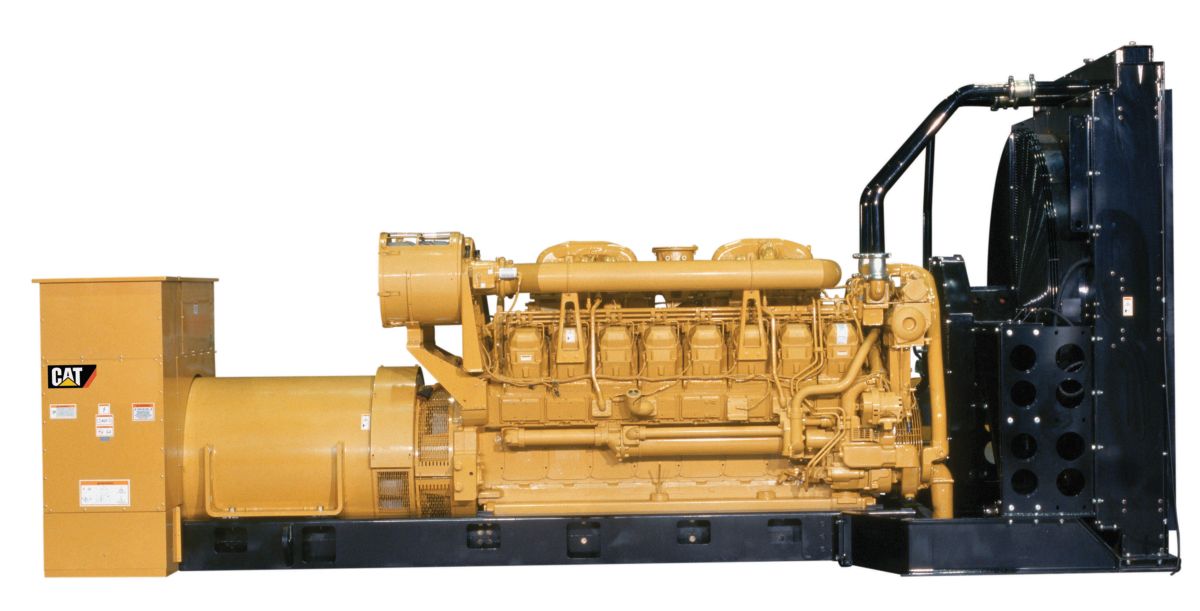

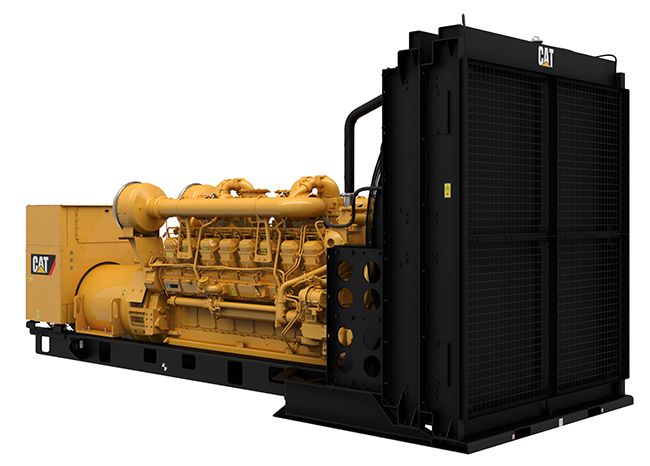

3516B Generator Set

Request A Quote
US
Metric

Overview

The 3516B generator set has been developed for a wide range of applications, from emergency standby installations such as healthcare and datacenters to continuously powering remote installations. The packages can be optimized for performance that matters to you with either low emissions or low fuel consumption versions available. Backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty, Cat generator sets will provide the reliability and durability you expect.

Generator Set Specifications

Minimum Rating
1750 kVA
Maximum Rating
2500 kVA
Voltage
400 to 11,000 Volts
Frequency
50 Hz
Speed
1500 rpm
Duty Cycle
Standby, Prime, Continuous
Emissions/Fuel Strategy
Low Fuel Consumption, Low Emissions

Engine Specifications

Engine Model
3516B TA, V-16, 4-Stroke Water-Cooled Diesel
Displacement - HD
4764.73 in³
78.08 l
Displacement - Std
4210.64 in³
69.00 l
Fuel System
Electronic unit injection
Aspiration
TA
Governor Type
Adem™3
Compression Ratio
14.0:1 Std 15.5:1 HD
Bore
6.69 in
170.00 mm
Stroke - HD
8.46 in
215.00 mm
Stroke - Standard
7.48 in
190.00 mm
Air Inlet
Single element canister style with service indicator
Exhaust Flange Size
203.2 mm (8.0 in)

Dimensions

Length - Maximum
233.40 in
5928.00 mm
Width - Maximum
90.00 in
2286.00 mm
Height - Maximum
93.20 in
2367.00 mm
Dry Weight - Genset (maximum)
31900.00 lb
0.00 kg
Features

Design Criteria

The generator set accepts 100% rated load in one step per NFPA 110 and meets ISO 8528-5 transient response.

Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

    • Generator

  • Matched to the performance and output characteristics of Cat engines
  • Industry leading mechanical and electrical design
  • Industry leading motor starting capabilities
  • High Efficiency

    • Single-Source Supplier

    Fully prototype tested with certified torsional vibration analysis available

    World Wide Product Support

    Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products

    UL 2200 / CSA - Optional

  • UL 2200 listed packages
  • CSA Certified
  • Certain restrictions may apply.
  • Consult with your Cat® Dealer.

    • Optional Equipment
    • Engine Options
      • Air Cleaner: [ ] Single element air cleaners [ ] Dual element air cleaners [ ] Heavy duty air cleaners
      • Muffler: [ ] Industrial Grade
      • Batteries: [ ] Standard (1400 CCA) [ ] Heavy Duty (2800 CCA)
      • Starting Motors: [ ] Standard [ ] Heavy Duty
      • Battery Charger: [ ] 10A [ ] 20A [ ] 35A
      • Starting Aids: [ ] 220V 50 Hz Jacket Water Heater
      • Vibration Isolator: [ ] Rubber anti-vibration mounts (90% efficient) [ ] Spring type anti-vibration mounts (95% efficient)
    • Control System
      • Controller: [ ] EMCP 4.2 [ ] EMCP 4.3 [ ] EMCP 4.4
      • Local annunciator module: [ ] NFPA 110 [ ] Custom
      • Remote annunciator module: [ ] NFPA 110 [ ] Custom
      • Additional Options: [ ] Expansion I/O module [ ] Remote monitoring software
    • Alternators
      • Temperature Rise (over 40°C ambient): [ ] 150°C [ ] 125°C [ ] 105°C [ ] 80°C
      • Winding: [ ] Random [ ] Form
      • Excitation: [ ] Permanent Magnet (PM) excited [ ] Internally Excited (IE)
      • Alternator attachments: [ ] Anti-condensation heaters [ ] Generator stator and bearing temperature monitoring & protection
    • Power Termination
      • Power Termination: [ ] Bus Bar [ ] Circuit Breaker
      • Circuit Breaker rating: [ ] 2000A [ ] 2500A [ ] 3200A [ ] 4000A
      • Circuit breaker trip unit: [ ] LSI [ ] LSIG [ ] LSIG-P
      • Circuit breaker operation: [ ] Electrical
    • Extended Service Contract (ESC)
      • Extended Service Contract (ESC): [ ] 2 Year [ ] 3 Year [ ] 5 Year
