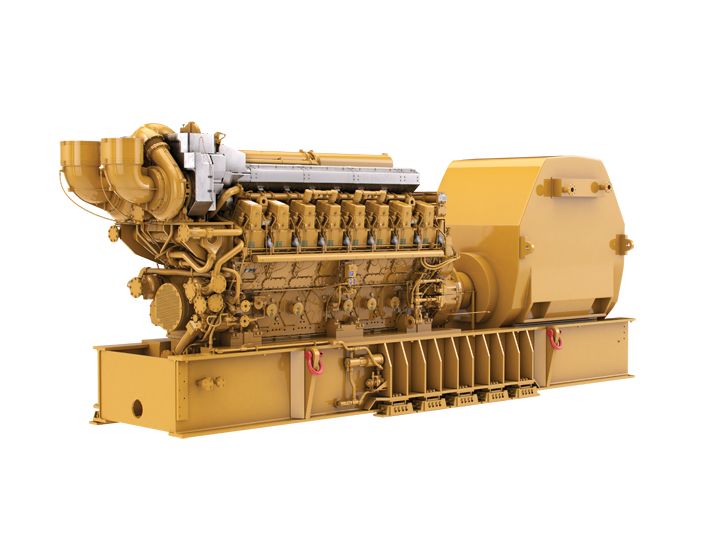

3616 Generator Set (Medium Speed)
US
Metric
Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Generator Set Specifications
Minimum Rating
3350 ekW
Maximum Rating
5320 ekW
Frequency
60 Hz
Speed
720 & 900 rpm
Emissions/Fuel Strategy
Low Fuel Consumption
Engine Specifications
Engine Model
3616 V-16,4-Stroke Water-Cooled Diesel
Bore
11.00 in
280.00 mm
Displacement
1127.00 in3
18.50 L
Total Displacement
18032.00 in³
296.00 l
Stroke
11.80 in
300.00 mm
Compression Ratio
13:01
Aspiration
TA
Governor Type
Generator Set Monitoring System (GMS)
Fuel System
Direct unit injection
Aspiration
TA
Fuel System
Direct unit injection
Bore
11.00 in
280.00 mm
Displacement
18032.00 in³
296.00 l
Stroke
11.80 in
300.00 mm
Generator Set Dimensions
Length - Maximum
404.00 in
10261.70 mm
Width - Maximum
99.62 in
2530.30 mm
Height - Maximum
156.60 in
3977.70 mm
Dry Weight - Genset (maximum)
141840.00 lb
64470.00 kg
Generator Set Specifications
Duty Cycle
Prime, Continuous
Features
Cat Diesel Engine
Generator
World Wide Product Support
Full Range of Attachments
Standard Equipment
- Air Inlet System
- Air Cleaner
- Aftercooler, fresh water, corrosion resistant coated (air side)
- Breather, crankcase, top-mounted
- Turbocharger, watercooled, engine oil lubricated
- Air inlet shutoff
- Cooling System
- Three-bundle oil cooler
- Jacket Water Thermostats
- Water Temperature Regulator
- Engine coolant water drains
- Front Mounted Turbos
- Exhaust System
- Dry, Gas Tight, Exhaust Manifold
- 457 mm (18 in) Cat bolt pattern
- Includes Adapter, Flexible Exhaust Fitting
- Fuel System
- Simplex or Duplex
- Generator System
- Custom Generator per Generator Data Sheet completed by Dealer
- Governor System
- UG Actuator
- Lube System
- Service Side Engine mounted on Cylinder Block Inspection Covers
- Centrifugal Oil Filters with Single Shutoff
- Oil Filler and Dipstick
- Oil Pressure Regulating Valve
- Wet Oil Sump. Includes engine-driven main Lubrication & Oil pumps, Oil Lines and Oil Pan
- Crankcase Explosion Relief Valves
- Mounting System
- Damper, Torsional Vibration
- Engine and Generator Mounting
- Starting / Charging System
- Line Group for Single Point Custom Connection
- Two Motors, engine mounted at rear, on left side
- Air Silencer
- Vane Type Air Starter
- General:
- Gear driven Pumps: Fuel, Oil, Jacket Water, Aftercooler / Oil Cooler Water
- Paint, Caterpillar Yellow
Optional Equipment
- Air Inlet System
- Heavy Duty Air Cleaner
- Soot Filter
- Boost Control Valve
- Vertical Support Bracket
- Air Inlet Adapter
- Air cleaner Louver Assembly
- Cooling System
- Cooling System Aids
- Auxiliary Water Pump
- Heat Exchanger for Single Circuit
- Expansion Tank
- Heating Aids
- Exhaust System
- Flexible Exhaust Fittings
- Weld Flange and Related Hardware
- Fuel System
- Duplex Primary Fuel Strainer
- Fuel Priming Pump
- Fuel System Connections
- Generator System
- 3 Phase, Six Leads, WYE
- Anti-condensation Space Heaters
- Winding Temperature Detectors
- Bus Bar Connections
- Class F Insulation
- Governor System
- 723 Plus
- Electronic / Actuators
- EGB Actuator
- Digital Programmers
- 230 UA
- Battery Backup / Power Supply
- Lube System
- Lube ANSI Adapter (Emergency connection)
- Oil Pan Drain Valve
- Mounting System
- Isolator
- Non-vertically Restrained
- Vertically Restrained
- Spring Type Vibration Isolator
- Starting / Charging System
- Pressure Reducing Valve
- Compressed Air Flex Hose
- Turbine Type Air Starters
- Redundant Air Starters
- General:
- Custom Paint Colors
