C15 Generator Set
Overview
Generator Set Specifications
Engine Specifications
Generator Set Dimensions
Engine Specifications
Generator Set Specifications

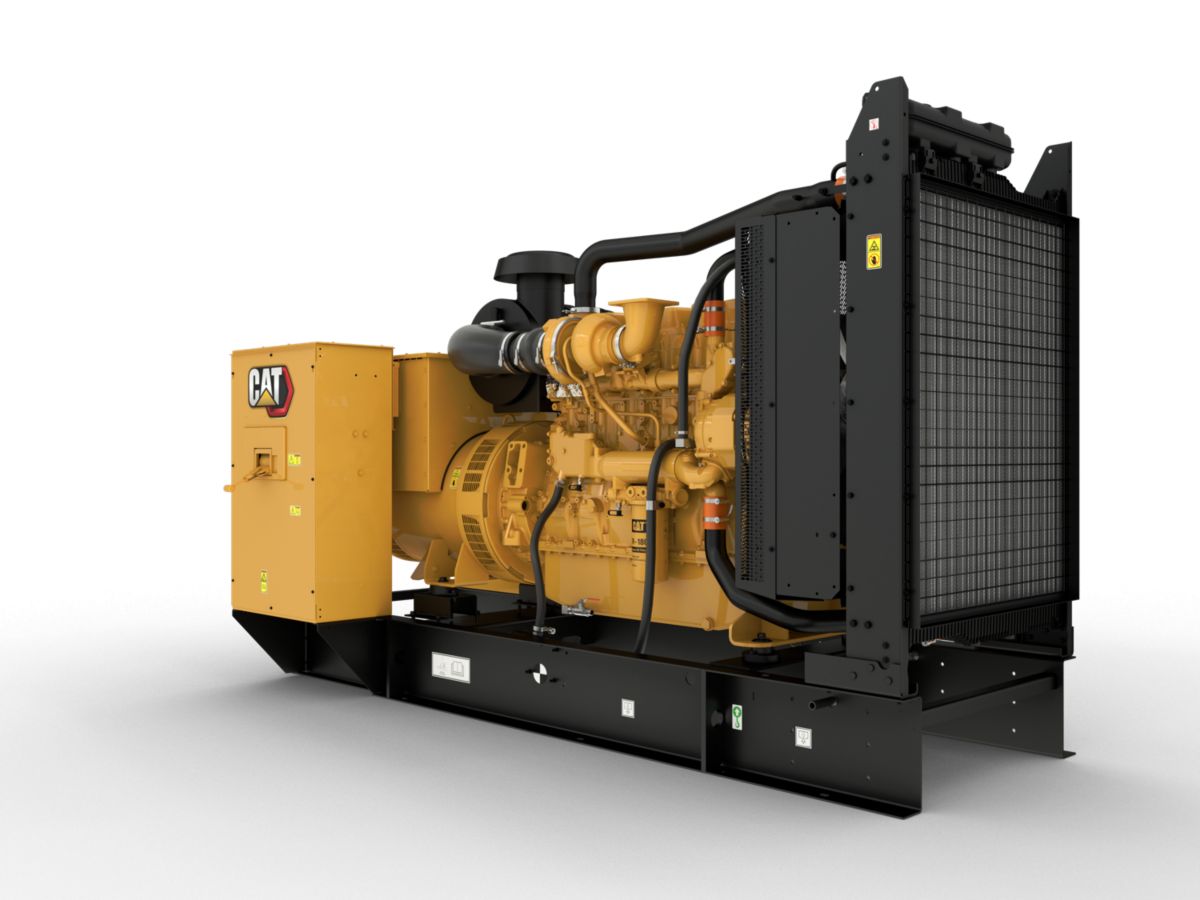

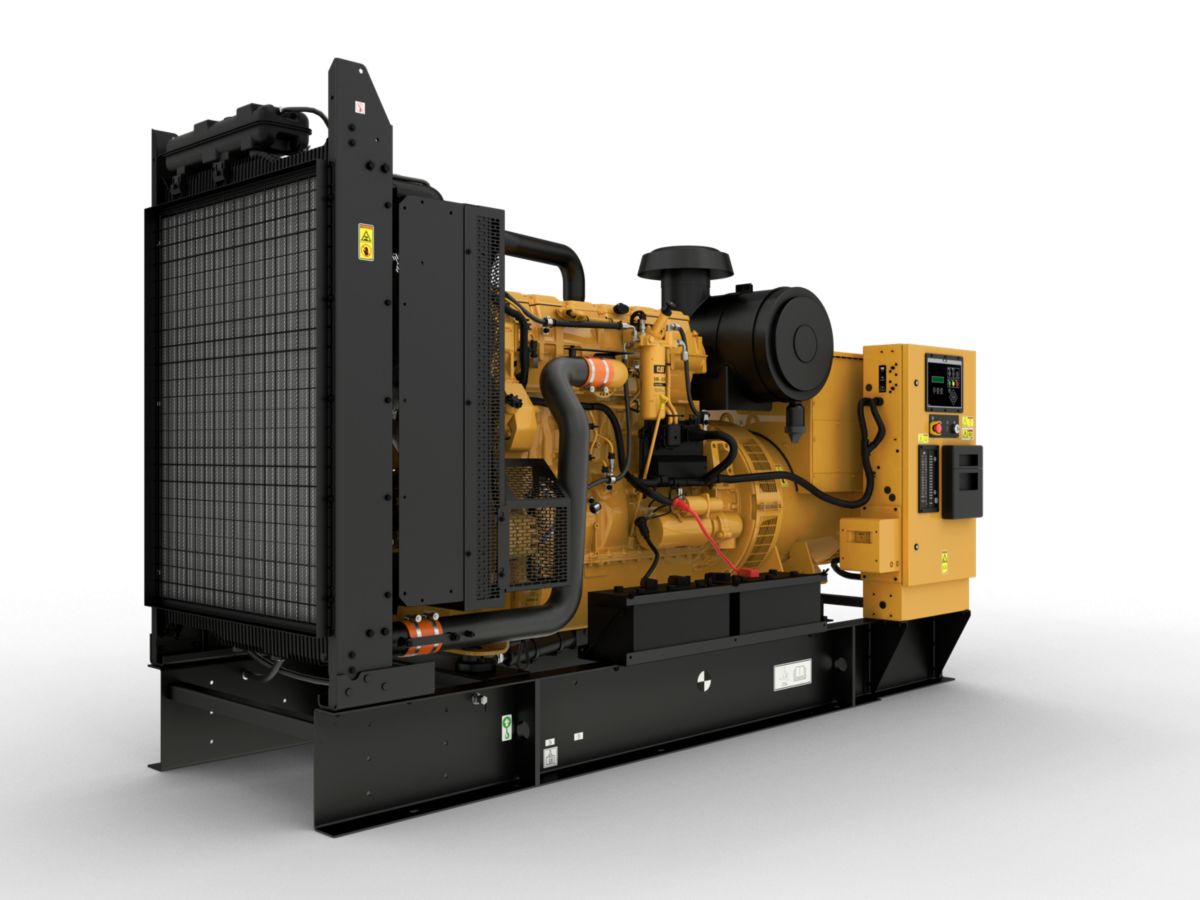

Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
- Air System
- Turbocharger
- Air Cleaner - Non Canister disposable paper filter
- Aftercooler core
- Air Inlet
- Air Cleaner
- Control Panel
- EMCP 4.2
- EMCP 4 Genset Controller
- Cooling
- Package mounted radiator
- Cooling System
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Caterpillar Extended Life Coolant
- Radiator and cooling fan with guard
- Exhaust
- Base, formed steel with single wall integral 8-hour fuel tank
- Standard open set fuel tank / base supplied
- Exhaust flange outlet
- Fuel
- Primary fuel filter with integral water separator
- Secondary fuel filter
- Fuel priming pump
- Fuel System
- Engine fuel transfer pump
- Flexible fuel lines
- Fuel cooler
- Fuel priming pump
- Primary fuel filter w/integral water separator & secondary filter
- Generator
- IP23 Protection
- Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
- Matched to the performance and output characteristics of Cat engines
- Power Termination
- Bus Bar
- Mounting
- Rubber vibration isolators
- Generator and Attachments
- Segregated low voltage (AC/DC) wiring panel
- Optional LC frame generator - IP23 Protection
- Power center, IP22
- Mandatory Option circuit breaker, IEC, 3 pole, mounted in power centre
- Integrated Voltage Regulator
- A frame generator - IP21 Protection
- Governing System
- Cat Electronic Governor (ADEM A4).
- Lube System
- Oil drain valves
- Oil cooler
- Mounting System
- Captive linear vibration isolators between base and engine-generator includes lifting provisions and termination points for coolant and lube oil drain lines
- Starting/Charging
- 24 Volt battery with rack and cables
- 24 volt starting motor
- Batteries
- General
- Engine and alternator pre paint, Caterpillar yellow
- Paint - Caterpillar Yellow except rails and radiators gloss black
- Air Inlet System
- Single element air cleaner
- Dual element air cleaner
- Exhaust
- Industrial, Residential, Critical Mufflers
- Certifications
- Global certification for CIS
- EU certificate of conformance
- Generator
- Anti-condensation heater
- Excitation: [ ] Permanent Magnet Excited (PM) [ ] Internally Excited (IE)
- Oversize and premium generators
- Circuit breakers
- 4 Pole (IEC-100% rated) circuit breakers - Package mounted
- Power terminal strip
- 4 Pole (IEC-100% rated) circuit breakers - Motorised
- Shunt trip for IEC circuit breaker
- Pad-lockable circuit breaker device
- Auxiliary contacts, circuit breaker
- 3 Pole (IEC-100% rated) circuit breakers - Motorised
- 3 Pole (IEC-100% rated) circuit breakers - Package mounted
- Power Termination
- Circuit breakers, IEC compliant
- Circuit breakers, UL listed
- Control Panels
- Remote annunciator
- Local alarm horn
- Local annunciator
- Oil temperature displays
- EMCP 4.3, EMCP 4.4
- Volt free contacts
- Protective devices: Earth fault relay ; Earth leakage ground fault relay ; Overload shutdown via breaker ; Low fuel level alarm ; Low fuel level shutdown ; High fuel level alarm ; Fuel level sensor
- Starting/Charging
- Charging alternator
- Battery chargers
- Oversize batteries
- Heavy-duty starting system
- Jacket water heater
- Cooling System
- Low coolant temperature alarm
- Stone guards
- Radiator duct flange
- Enclosures

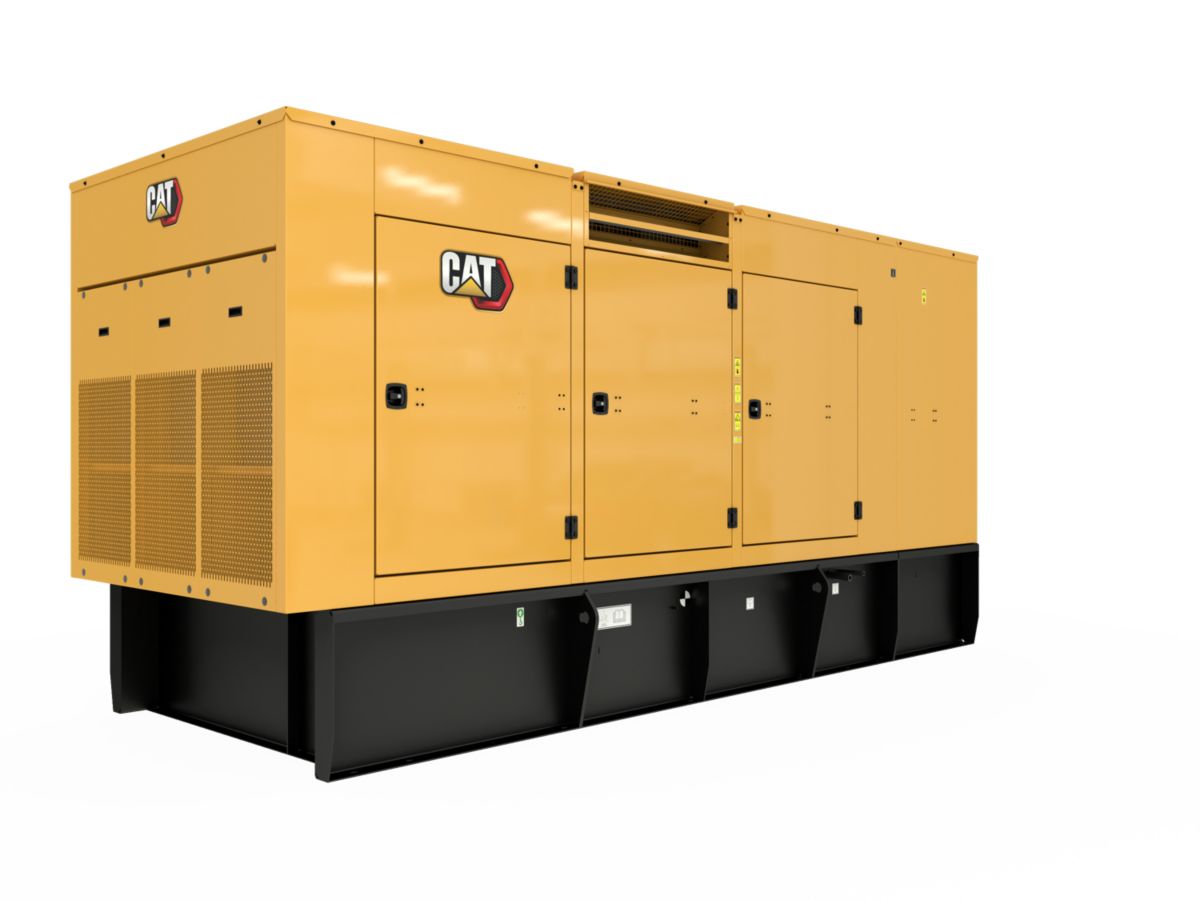

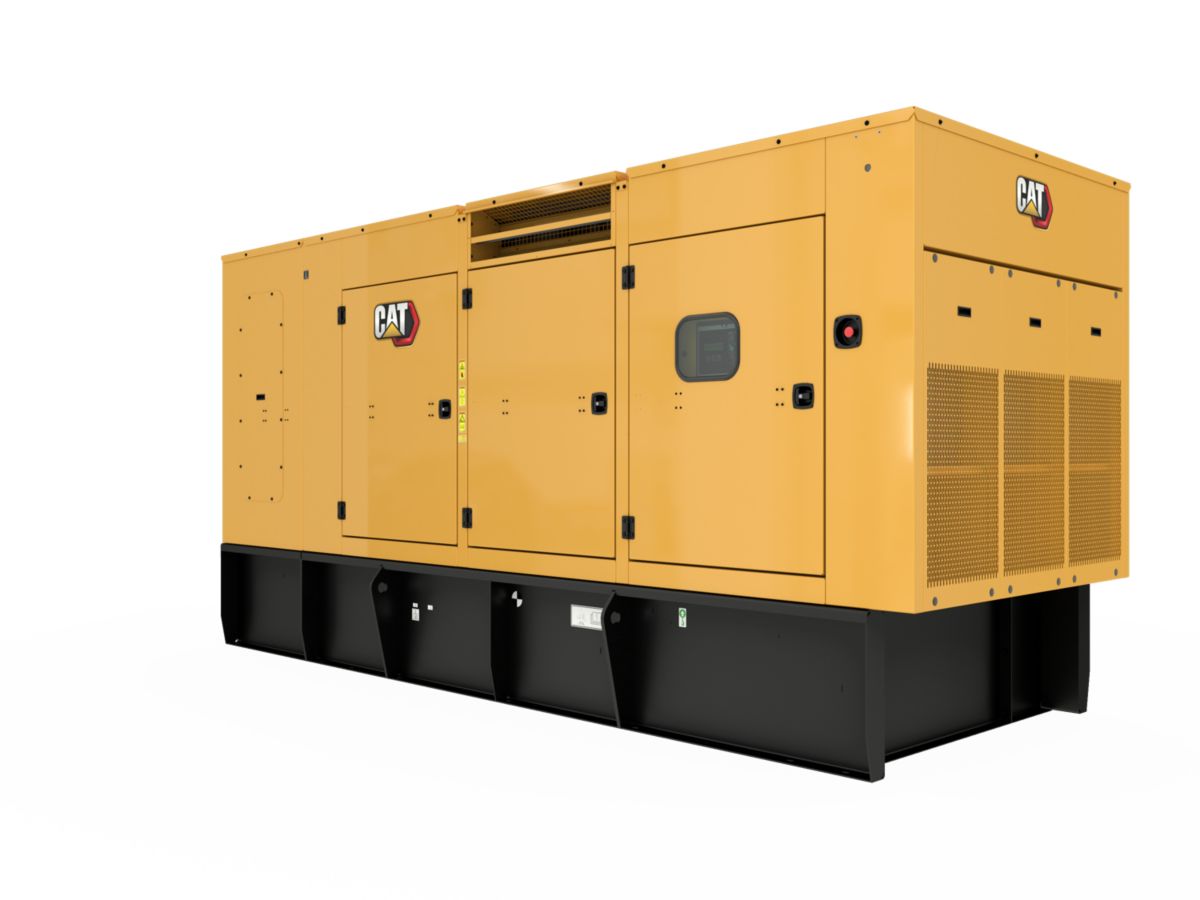

- Sound attenuated enclosures
- High ambient sound attenuated enclosures
- Exhaust System
- Engine mounted muffler
- 6 and 8 inch elbow kit
- Manifold and turbocharger guard
- End in / End out mufflers - 10, 25 and 35 dBA attenuation
- 6 and 8 inch flange GP
- Flexible exhaust fittings
- Fuel System
- Fuel transfer system controls
- Manual fuel transfer pump
- Dual wall fuel tank base
- General
- Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
- Sound attenuated, weather protective or high ambient weather protective enclosure
- EU Certificate of Conformance (CE)
- Single or dual wall integral fuel tanks
- CSA Certification
- EEC Declaration of Conformity
- Narrow, Wide or Skid Base
- Integral & sub-base UL listed dual wall fuel tanks
- Automatic transfer switches (ATS)
- UL 2200 package
- The following options are based on regional and product configuration:
- Single or dual wall sub-base fuel tanks
- Generator and Attachments
- Oversize LC frame generator
- Oversize A frame generator
- CIP a frame generator
- LC frame generator
- LC frame CIP generator
- Ingress protection
- Permanent magnet generator
- Space heaters
- Lube System
- Manual sump pump
- Mounting System
- Narrow skid base - replaces standard fuel tank base
- Special Test / Reports
- PGS Test report @ 1.0 power factor
- PGS Test report @ 0.8 power factor
- Starting / Charging System
- 5 Amp single battery charger
- Battery disconnect switch
- Jacket water heater
