C4.4 Generator Set
Overview
Generator Set Specifications
Engine Specifications
Generator Set Dimensions
Engine Specifications
Generator Set Specifications
Engine Specifications
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
R-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
- Air Inlet System
- Air cleaner; light duty with disposable element
- Cooling System
- Radiator and cooling fan with guards
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
- Control Panel
- EMCP 4.1
- Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose
- Fuel System
- Standard open set fuel tank / base supplied base, formed steel with single wall integral 8-hour fuel tank
- Generator
- Voltage regulator (single phase sensing)
- 12 Leads
- IP23 protection
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- Segregated low voltage (AC/DC) wiring panel
- Tower panel, IP22, bottom cable entry
- Governing System
- Mechanical and electrical governing system - model dependent
- Lube System
- Oil drain line with valve
- Lubricating oil
- Mounting System
- Termination points for coolant and lube oil drain lines
- Includes lifting provision and drag points
- Captive linear vibration isolators between base and engine-generator
- Starting/Charging System
- 24V battery with rack and cables
- Batteries
- General
- Engine and alternator pre-paint, Caterpillar yellow
- Alternator System
- Permanent magnet
- R frame auxilliary winding
- Anti-condensation heater
- R frame auxilliary winding
- Quadrature droop kit
- LC frame alternator with coastal insulation protection
- 3 phase sensing
- Circuit Breakers
- Circuit Breaker Upgrades - 4 Pole circuit reaker to 250A, 400A and 630 A
- Cooling System
- Low coolant level shutdown
- Coolant heater
- Low coolant temp alarm
- Control Panel Options
- EMCP 4.2
- Control panel heater
- Earth leakage (2 wire only)
- Panel mounted audible alarm
- Volt free contacts
- Emergency stop with key
- Battery charger
- Overload shutdown via breaker
- Speed adjust potentiometer
- Voltage adjust potentiometer
- Enclosures

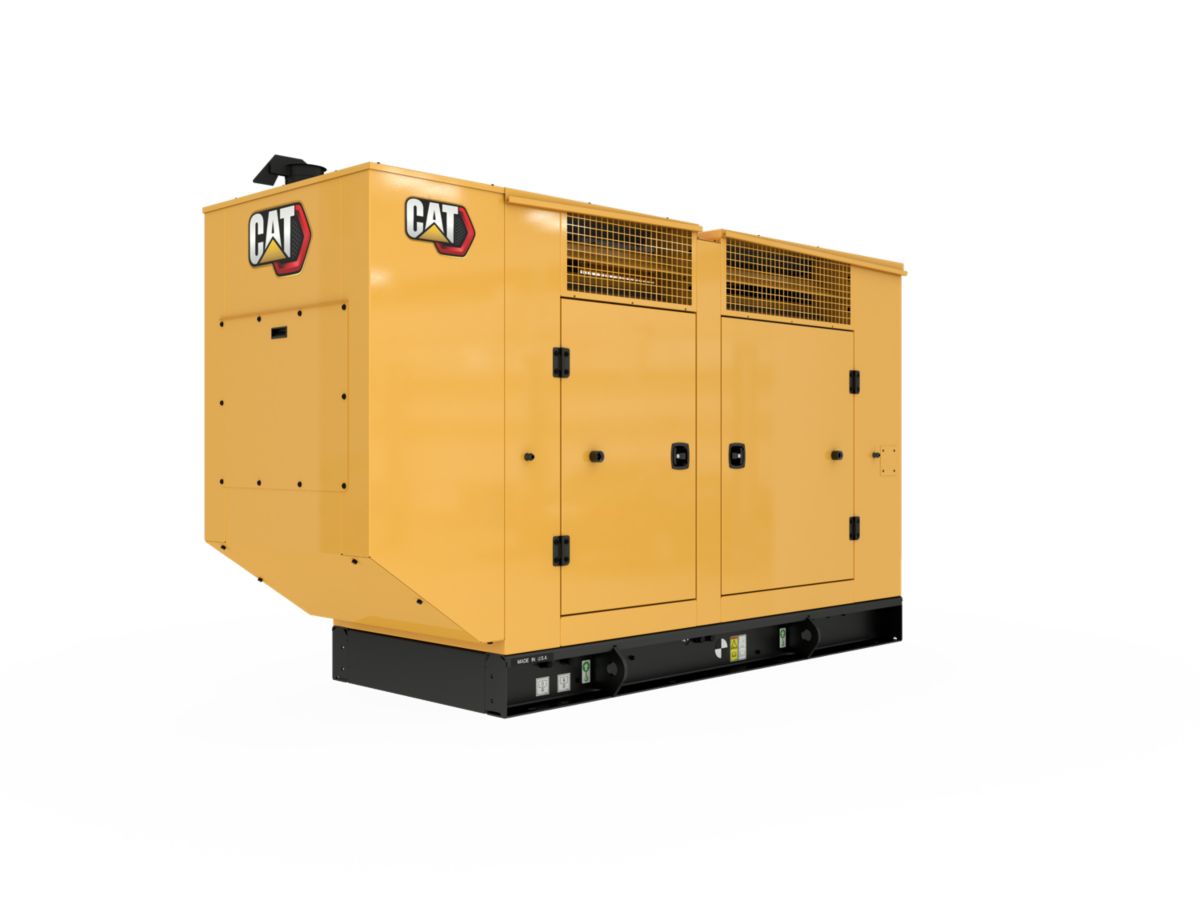

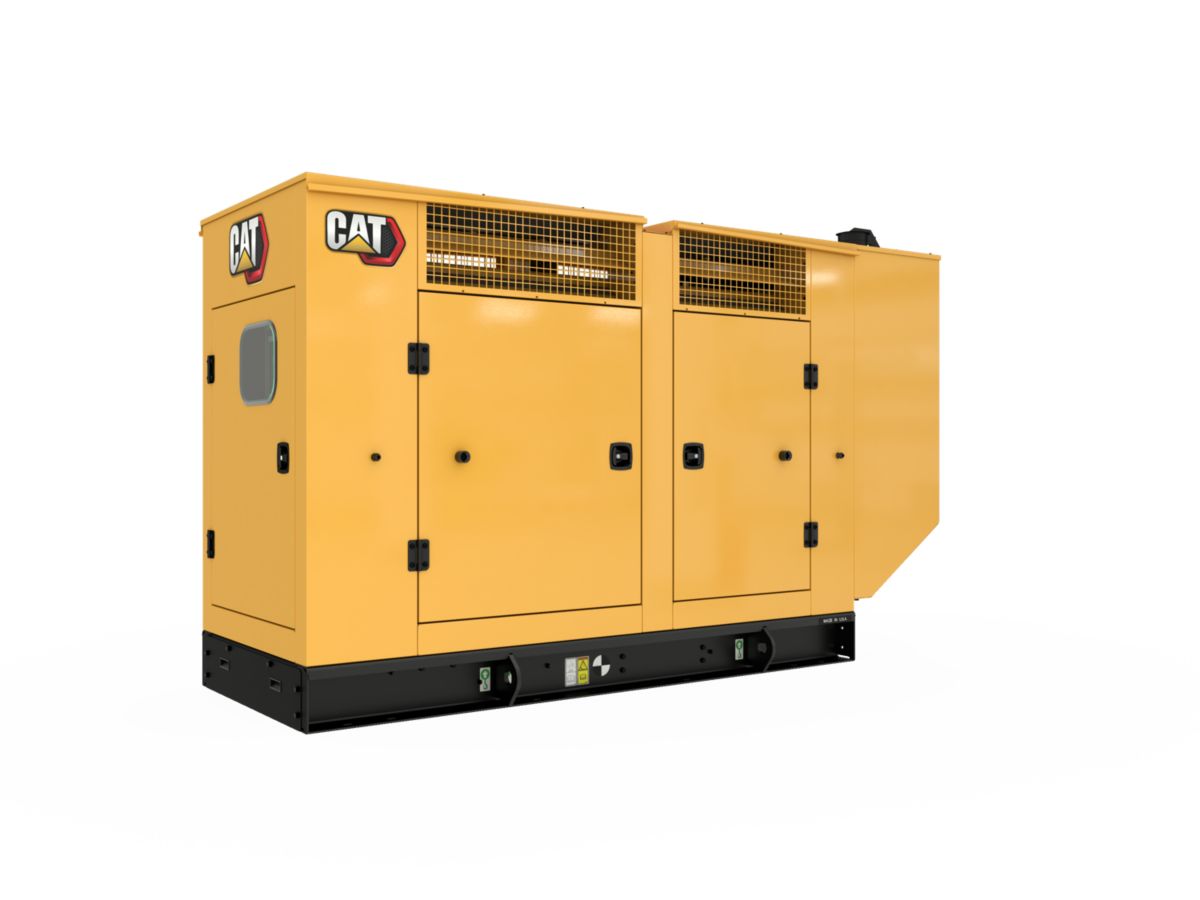

- Sound attenuated Level 2 enclosure
- Sound attenuated Level 1 (galv)
- Rental pack - CAE rental option only
- European Certifications
- Upgrade to STD set for CE
- Fuel System
- Skidbase for CALG enclosure sets
- Low fuel level alarm
- Open set narrow base
- Low fuel level shutdown
- Compact skidbase for open set
- High fuel level alarm
- Bunded fuel tank
- Global Certifications
- Certification for CIS
- Mounting Options
- Electronic governor
- Industrial silencer
- External single point lift - enclosure
- Battery removal
- Silencer installation kit
- Special Packing/Inspectons for Shipment
- PGS test report @ 0.8 power factor
- PGS test report @ 1.0 power factor
- General - Accessories / Miscellaneous
- Packing case - compact set
- Packing case - canopied set
- Stone guards / rad trans flange
