DE1100 GC
US
Metric
Overview

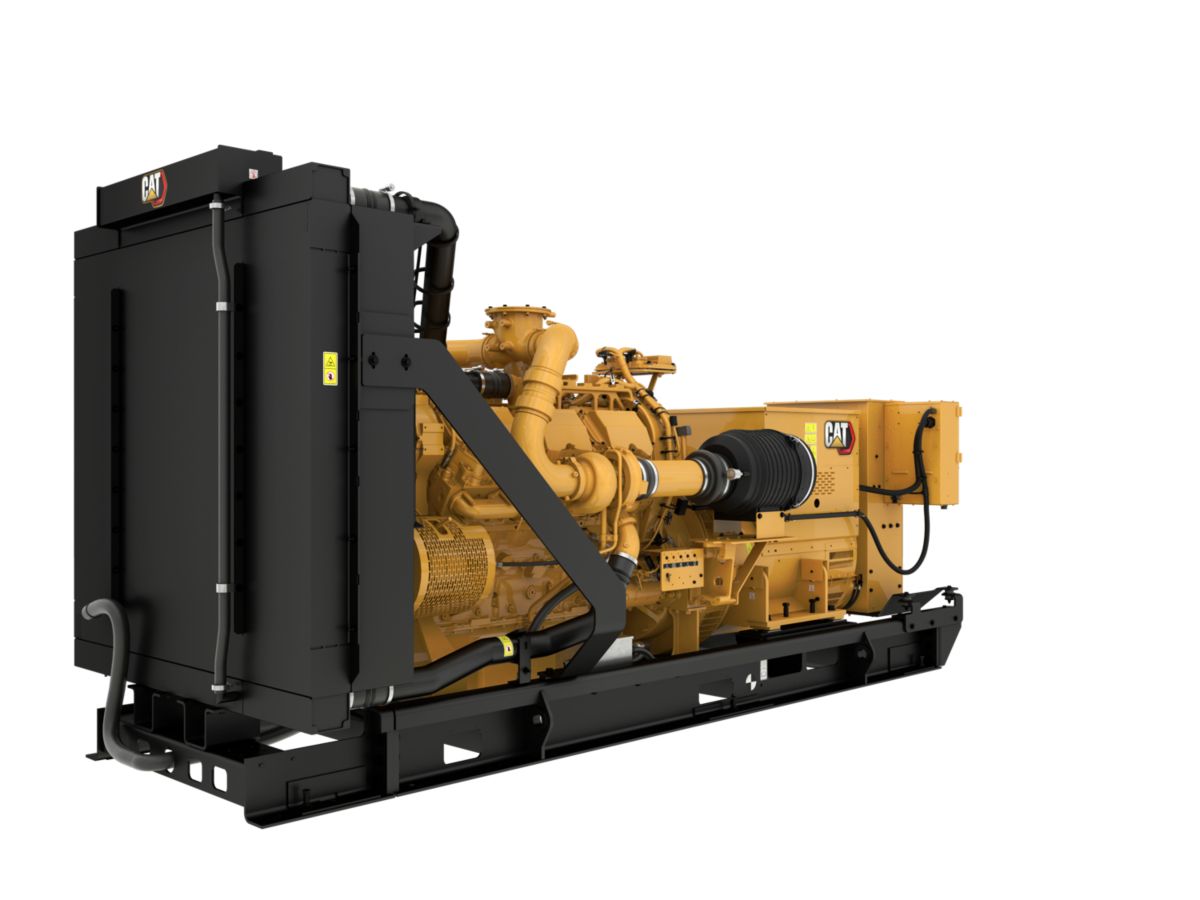

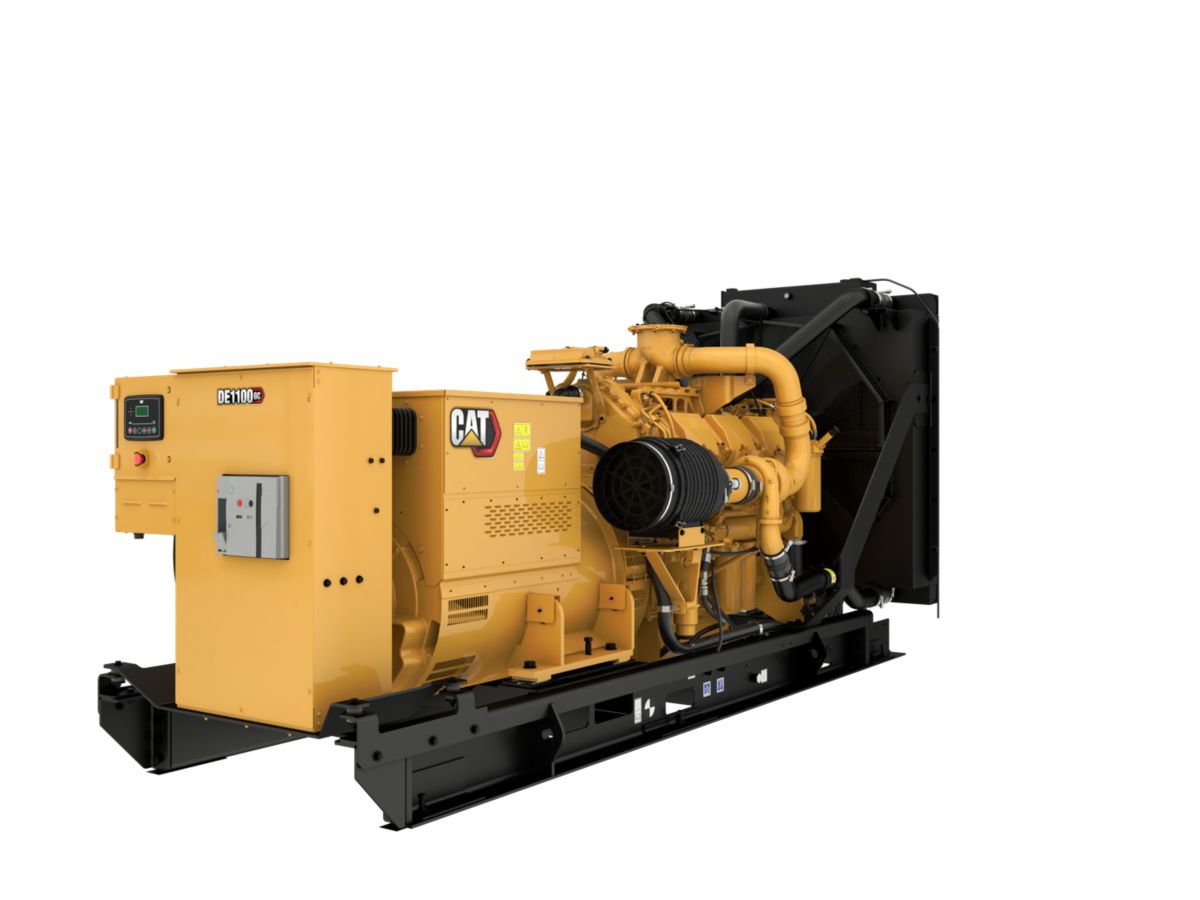

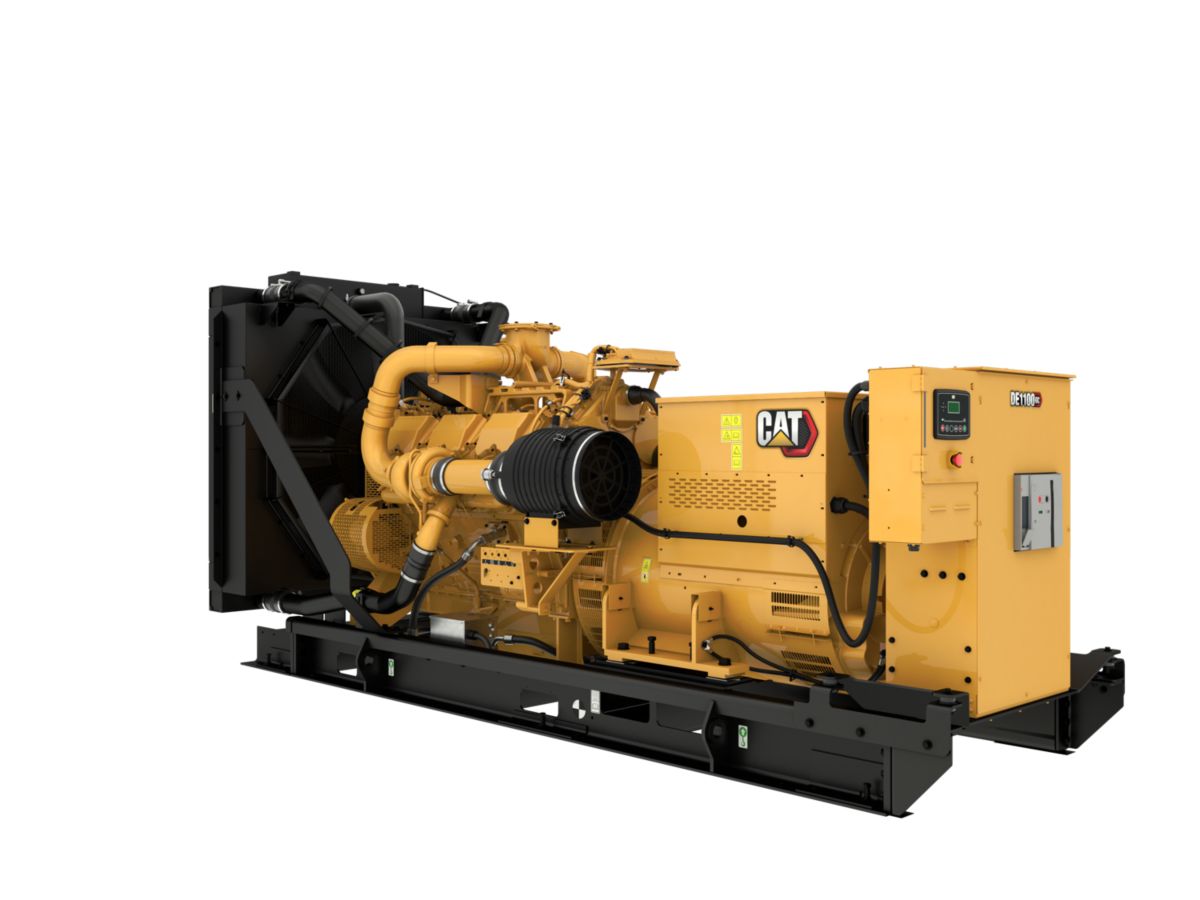

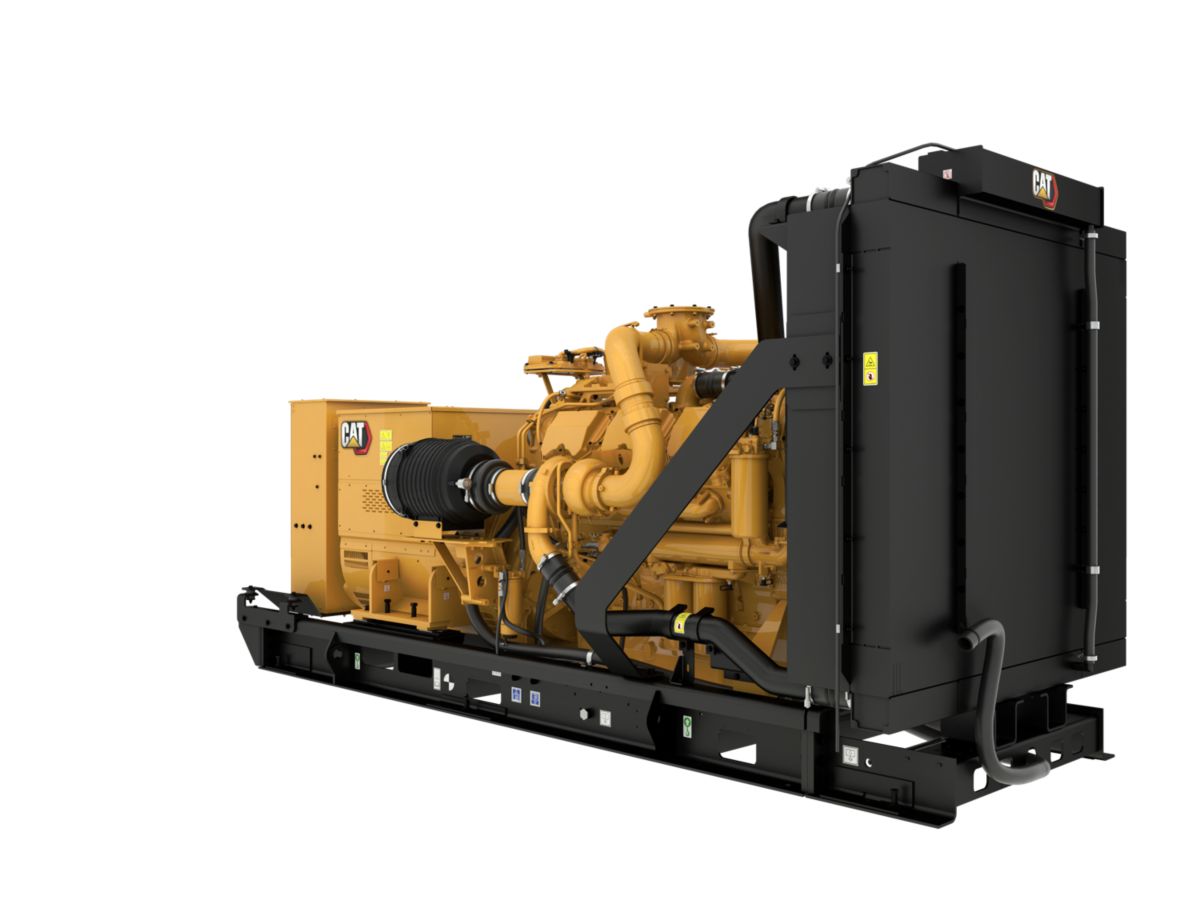

1100 kVA Generator Set for Standby applications
Generator Set Specifications
Minimum Rating
1100 kVA
Maximum Rating
1100 kVA
Emissions/Fuel Strategy
Low Fuel Consumption
Voltage
400 Volts
Frequency
50 Hz
Speed
1500 rpm
Duty Cycle
Standby
Engine Specifications
Engine Model
C32 TA, V-12, 4-Stroke Water-Cooled Diesel
Bore
5.71 in
145.00 mm
Stroke
6.38 in
162.00 mm
Displacement
1958.86 in³
32.10 l
Compression Ratio
15.0:1
Aspiration
TA
Fuel System
MEUI
Governor Type
Adem™A4
Generator Set Dimensions
Length - Minimum
161.90 in
4111.00 mm
Length - Maximum
161.90 in
4111.00 mm
Width - Minimum
71.80 in
1823.00 mm
Width - Maximum
71.80 in
1823.00 mm
Height - Minimum
85.10 in
2162.00 mm
Height - Maximum
85.10 in
2162.00 mm
Dry Weight - Genset (minimum)
14770.00 lb
6700.00 kg
Dry Weight - Genset (maximum)
14770.00 lb
6700.00 kg
Features
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR500 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP1.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- Low Fuel Consumption
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Standard Equipment
- Cooling System
- Radiator
- Control Panel
- GCCP1.3
Optional Equipment
- Control Panels
- Remote monitoring software
- Starting/Charging
- Jacket water heater
- General
- Single element or dual element air cleaner,
- Circuit breaker panel, based on regional and product configuration
