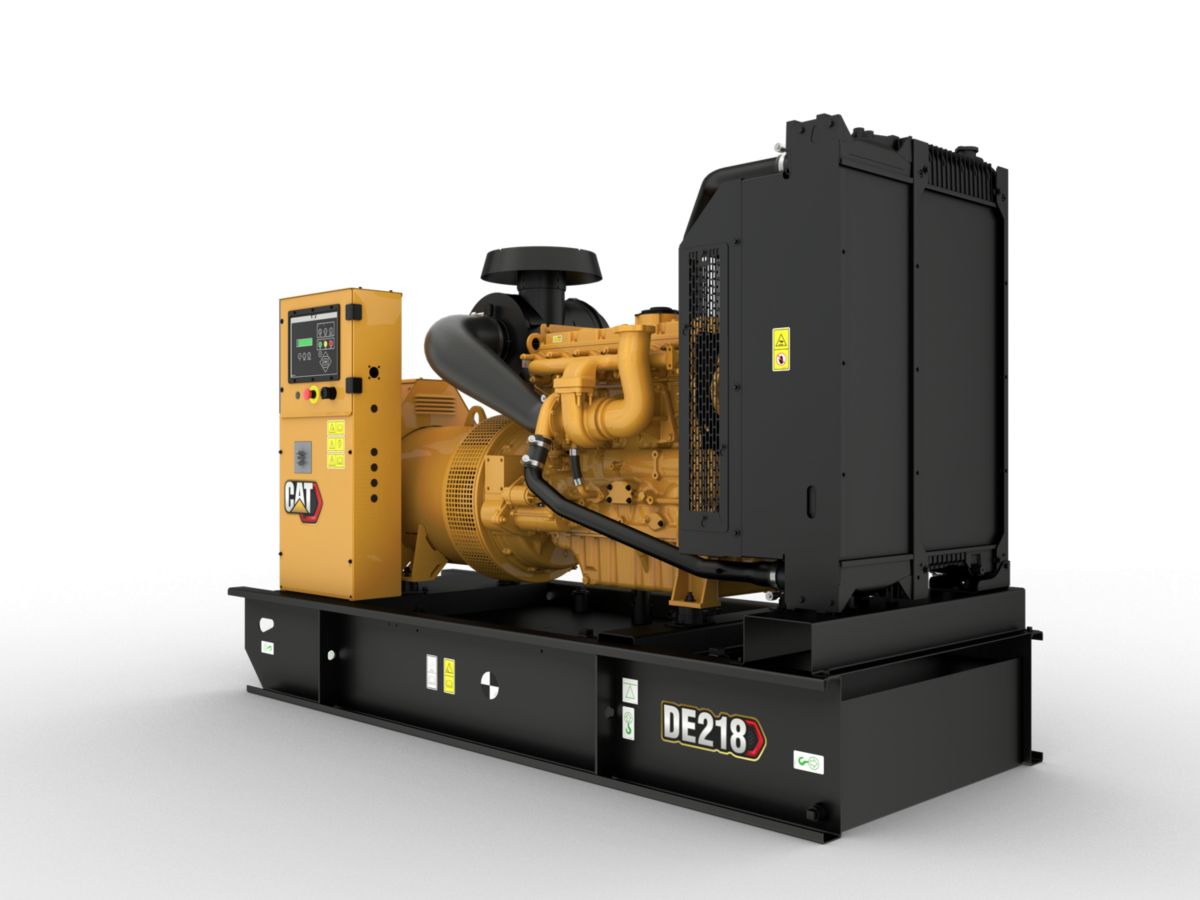

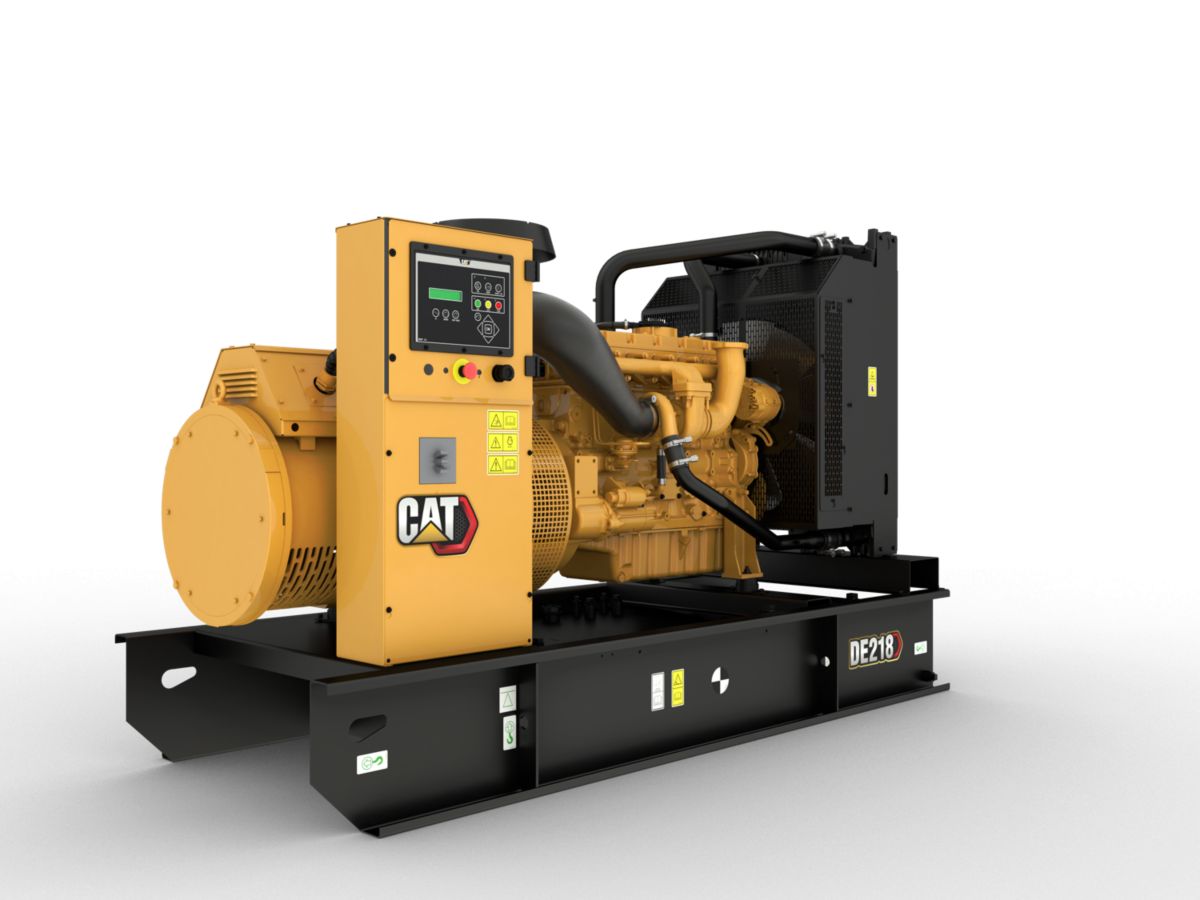

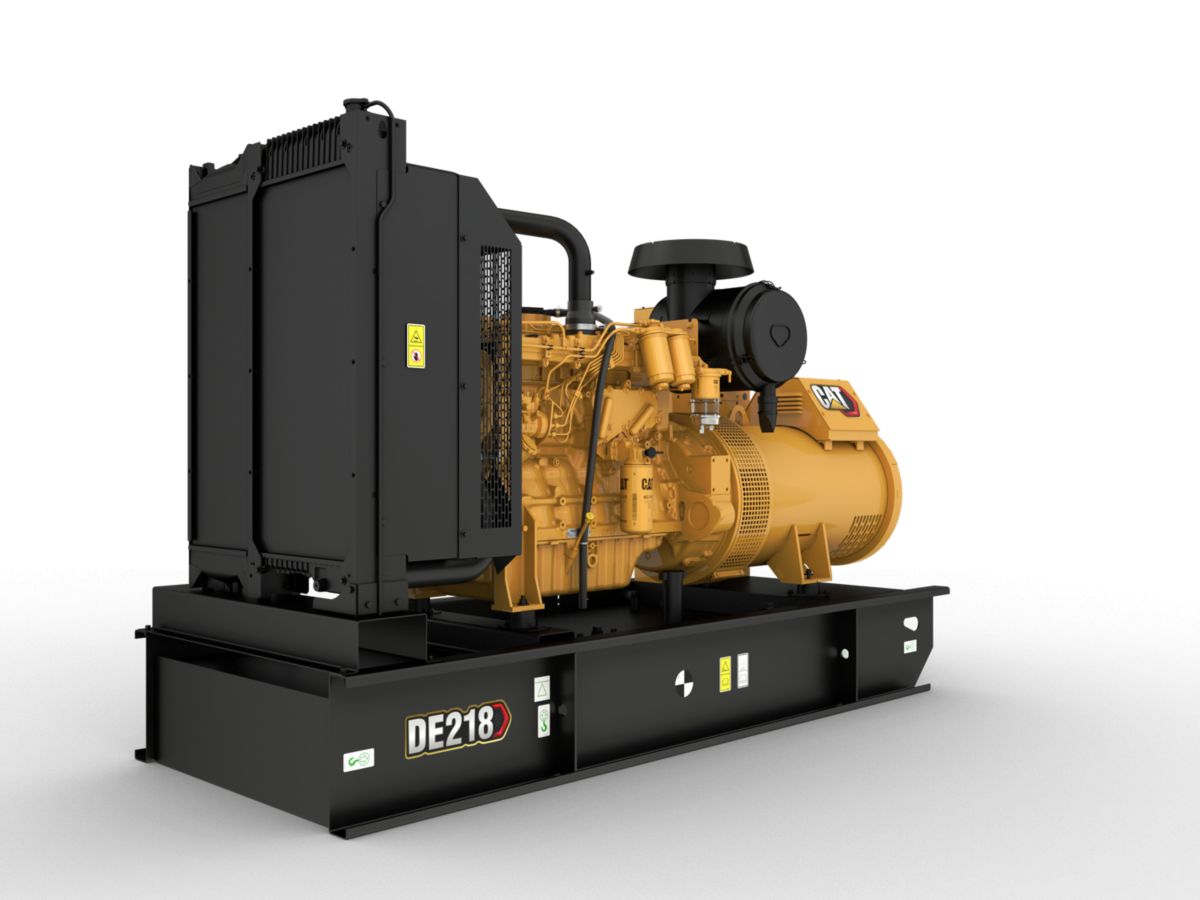

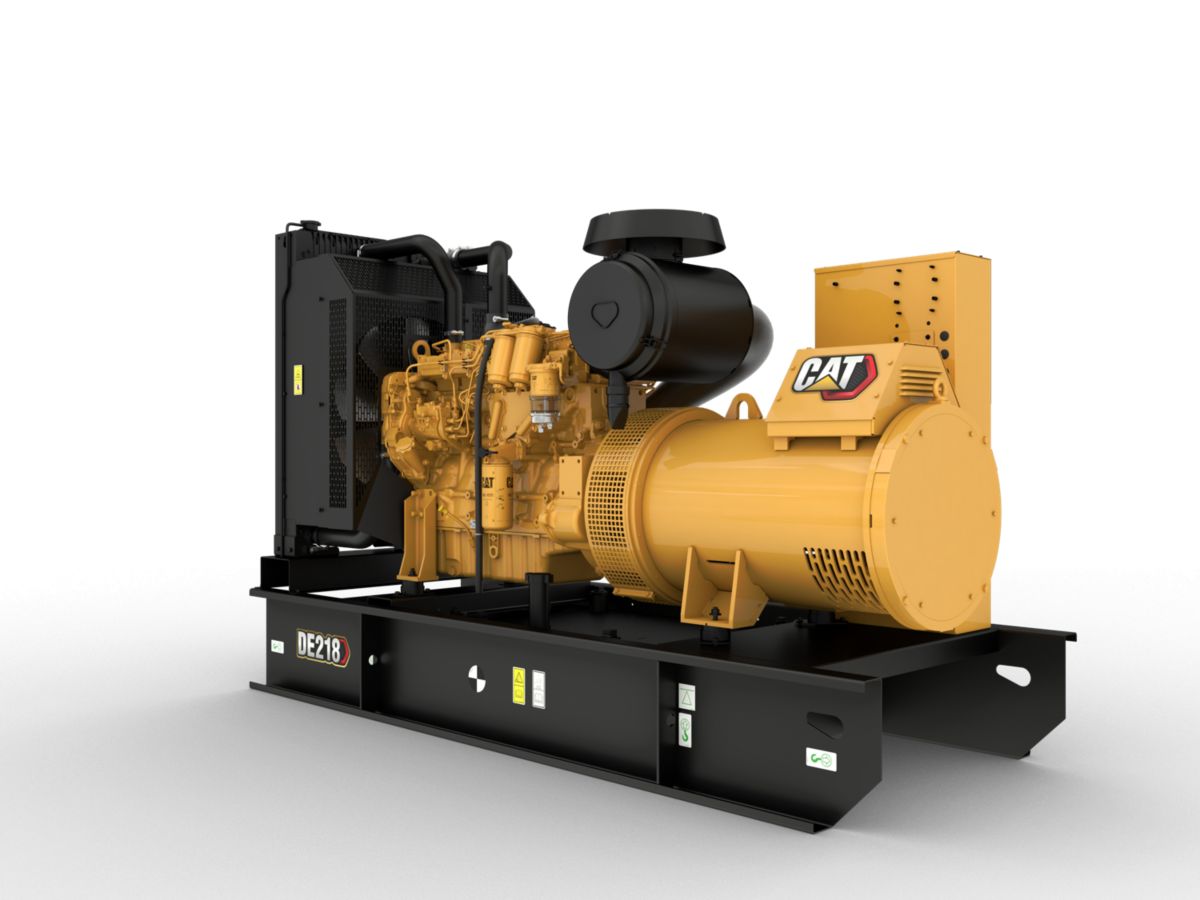

DE218AE0 (60 Hz) Generator Set
US
Metric
Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Generator Set Specifications
Minimum Rating
157.0 ekW
Maximum Rating
174.0 ekW
Emissions/Fuel Strategy
Non-Certified Emissions
Voltage
220 to 380 Volts
Frequency
60 Hz
Speed
1800 rpm
Duty Cycle
Standby, Prime
Engine Specifications
Engine Model
Cat® C7.1
Bore
4.10 in
105.00 mm
Stroke
5.30 in
135.00 mm
Displacement
427.80 in³
7.00 l
Compression Ratio
16.0:1
Aspiration
Turbocharged
Fuel System
Direct Injection
Governor Type
Mechanical
Generator Set Dimensions
Length - Maximum
98.80 in
2510.00 mm
Width - Maximum
1010.00 mm
39.80 in
Height - Maximum
64.60 in
1640.00 mm
Dry Weight - Genset (maximum)
3446.00 lb
1563.00 kg
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-3 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
GTA Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Fully prototype tested with certified torsional vibration analysis available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Standard Equipment
- Engine
- C7.1, Inline 4 Cylinder, 4 Stroke Diesel
- Control panel
- EMCP 4.1 control panel
- Governing system
- Mechanical Governor
- Alternator
- GTA Frame Standard Alternator
- Fuel Storage
- Single Wall 8 Hour Tank
- Enclosure
- Modular Easy Access Acoustic Enclosure
- Air, Cooling & Exhaust
- Enclosure Silencer
- General
- Engine and alternator pre-paint, Caterpillar yellow
