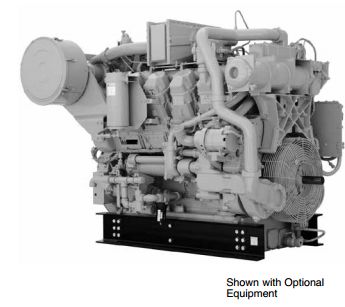

Cat® G3508 Industrial Gas Engine
Overview
General
Power Rating
Engine Dimensions - Approximate
Engine Dimensions (Approximate. Final dimensions dependent on selected options)
Power Rating
General
Engine Dimensions - Approximate
Emissions
Ratings are NSPS site compliant capable with customer-supplied aftertreatment. For specific emission information, please consult your local Cat Dealer.
Engine Design
- Proven reliability and durability
- Ability to burn a wide spectrum of gaseous fuels
- Robust diesel strength design prolongs life and lowers owning and operating costs
- Broad operating speed range
Advanced Digital Engine Management
ADEM A3 control system providing integrated ignition, speed governing, protection, and controls, including detonation-sensitive variable ignition timing. ADEM A3 has improved: user interface, display system, shutdown controls, and system diagnostics.
Lean Burn Engine Technology
Lean-burn engines operate with large amounts of excess air. The excess air absorbs heat during combustion reducing the combustion temperature and pressure, greatly reducing levels of NOx. Lean-burn design also provides longer component life and excellent fuel consumption.
Ease of Operation
Side covers on block allow for inspection of internal components
Full Range of Attachments
Large variety of factory-installed engine attachments reduces packaging time
Quality
Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including S•O•SSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the CatIndustrial Service Distributor (ISD) program
- Air Inlet System
- Remote air inlet adapters
- Charging System
- Battery chargers
- Cooling System
- Jacket water thermostats and housing — full opentemperature 98°C (208°F)
- Jacket water pump — gear driven, centrifugal,non-self-priming
- Aftercooler water pump — gear driven, centrifugal,non-self-priming
- Aftercooler core for sea-air atmosphere
- Aftercooler thermostats and housing — full opentemperature 35°C (95°F)
- Aftercooler — raw water, cleanable
- Exhaust System
- Exhaust manifolds — watercooled
- Flywheels & Flywheel Housings
- SAE No. 00 flywheel
- SAE No. 00 flywheel housing
- SAE standard rotation
- Fuel System
- Gas pressure regulator
- Natural gas carburetor
- Fuel gas shut-off valve (24V DC)
- Instrumentation
- Advisor panel
- Advisor interconnect harness
- Lubrication System
- Crankcase breathers — top mounted
- Oil cooler
- Oil filter — RH
- Oil pan — shallow
- Oil sampling valve
- Turbo oil accumulator
- Mounting System
- Rails, engine mounting
- Power Take-Offs
- Front housing — two-sided
- Front lower LH accessory drive
- Protection System
- Electronic shutoff system
- Gas shutoff valve
- General
- Paint — Cat yellow
- Vibration damper and guard
- Air Inlet System
- Remote air inlet adapters
- Charging System
- Battery chargers
- Cooling System
- Aftercooler core
- Thermostatic valves
- Connections
- Expansion and overflow tank
- Water level switch gauge
- European Certifications
- European Union certifications
- Exhaust System
- Flexible fittings
- Elbows
- Flanges
- Flange and exhaust expanders
- Mufflers
- Fuel System
- Fuel filter
- Instrumentation
- Customer communication modules
- Lubrication System
- Oil filters — duplex
- Oil pan drain
- Oil level regulator
- Sump pumps
- Lubricating oil
- Mounting System
- Rails
- Vibration isolators
- Power Take-Offs
- Auxiliary drive shaft
- Auxiliary drive pulleys
- Front stub shaft
- Pulleys
- Protection System
- Gas valve
- Explosion relief valves
- Starting System
- Air pressure regulator
- Air silencer
- JW heaters
- Battery sets (24-volt dry)
- Battery accessories
- General
- Flywheel guard removal
- Engine barring group
- Premium 8:1 pistons
