Gas Generator CG132B-16

Request A Quote
CG132B-16

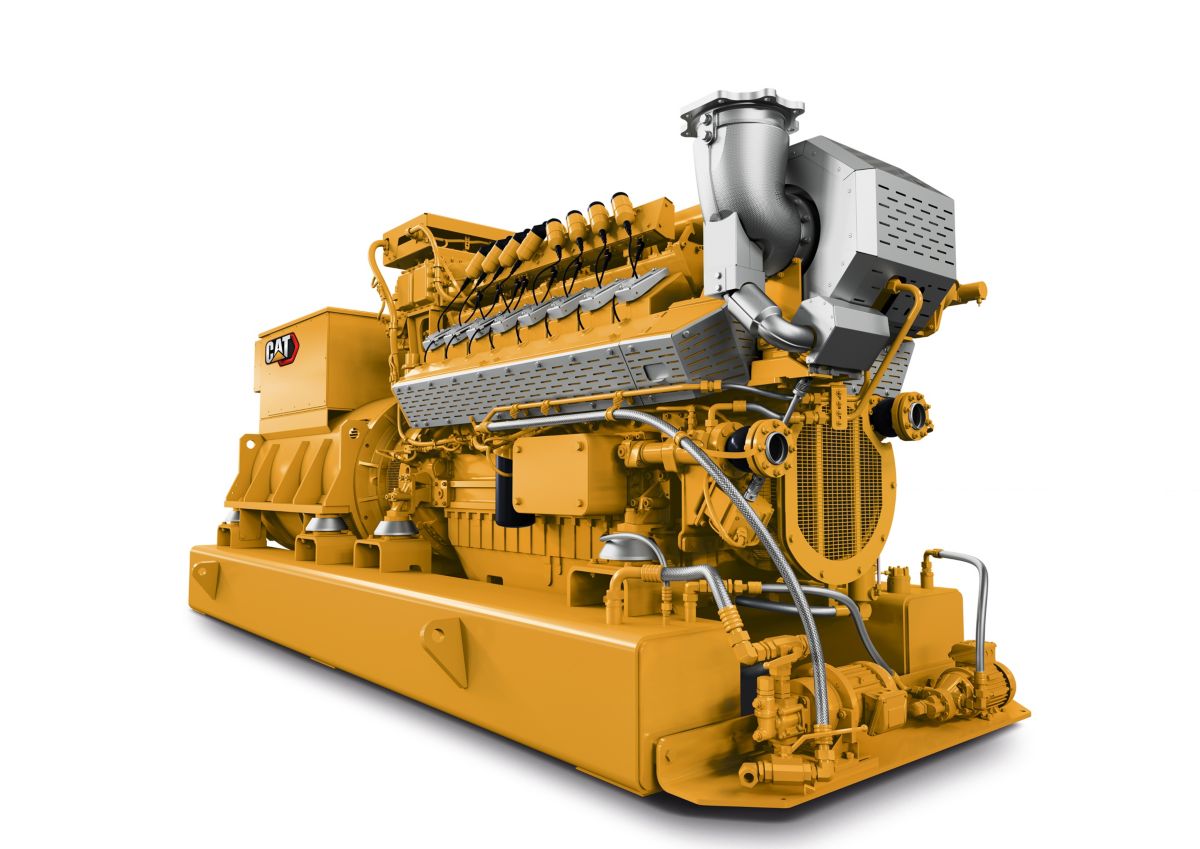

Front Right View

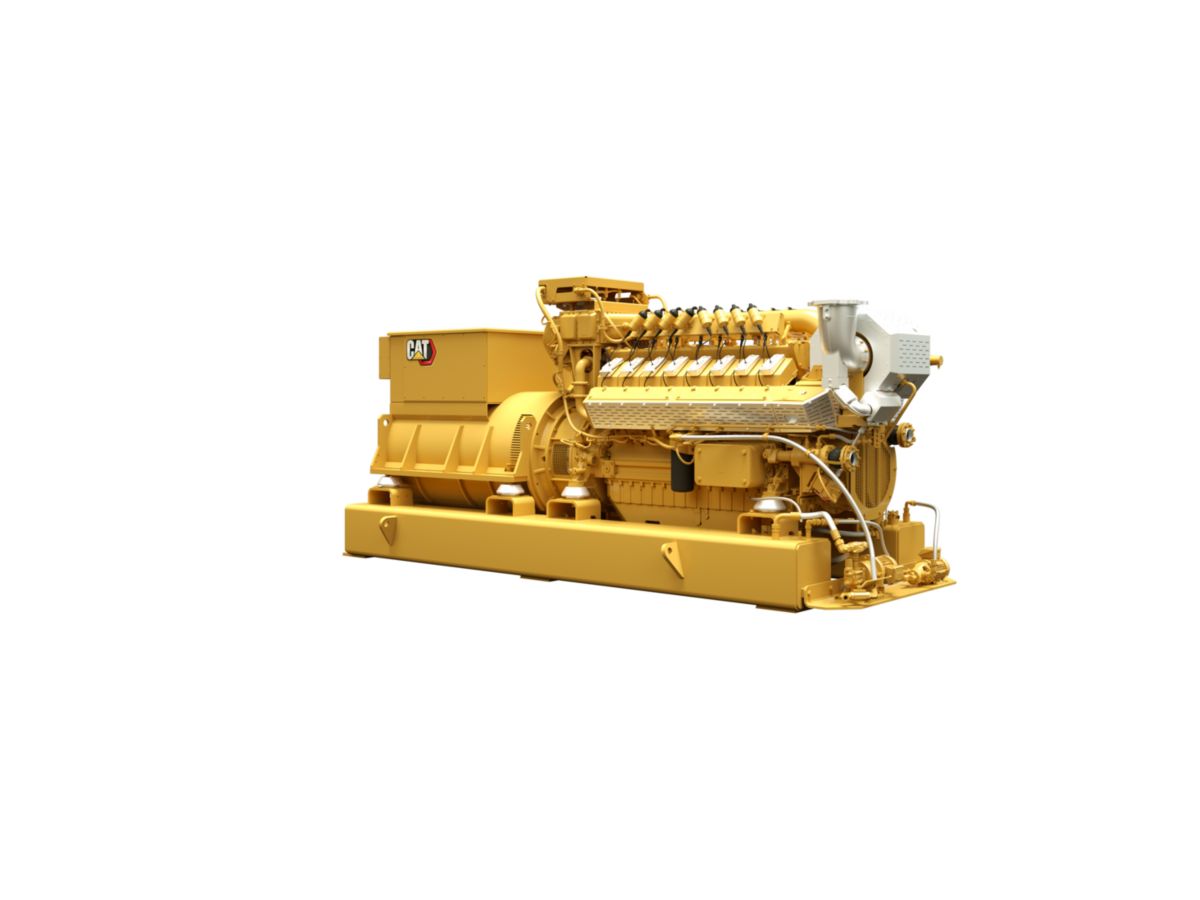

Front Left View

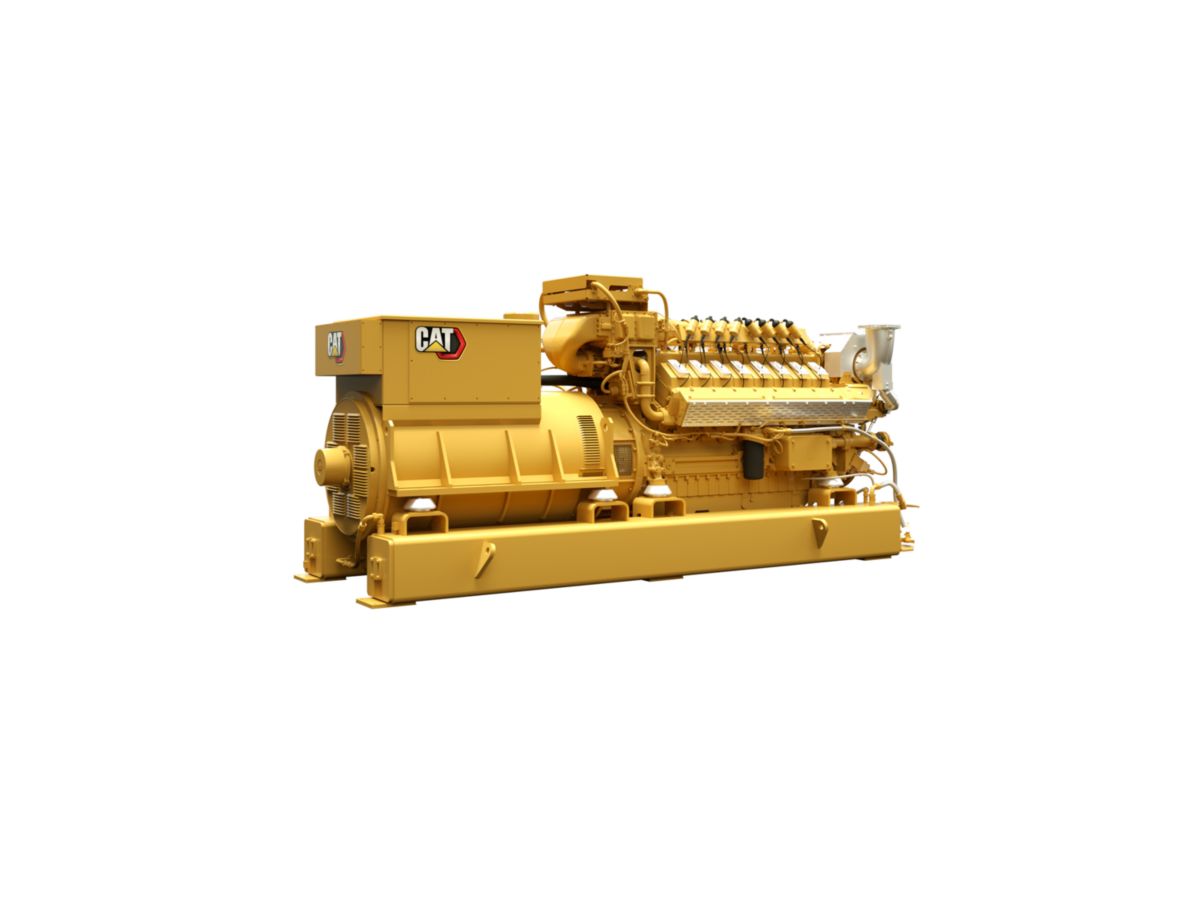

Right Rear View

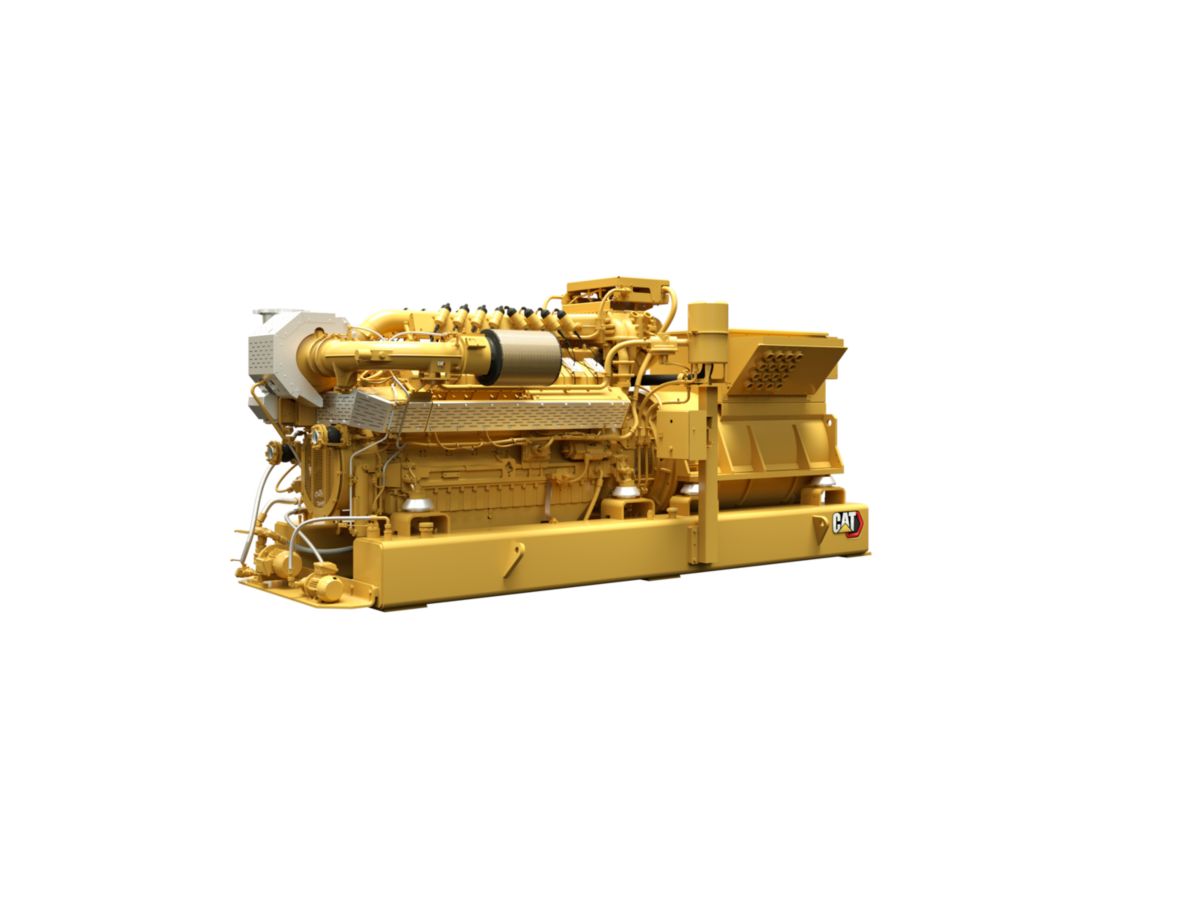

Left Rear View
US
Metric

Overview

The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.<br>
<br>
Highly efficient with low operating and installation costs and lubricant consumption, the Cat CG132B gas generator set is available with outputs from 400kW to 1000kW and comes with the Total Plant and Energy Management (TPEM) system.

Generator Set Specifications

Natural Gas Rating
1000
Maximum Continuous Rating
1000 ekW @1.0pf
Fuel Type
Natural Gas
Maximum Electrical Efficiency
41.00%

Gas Generator Sets Specification

Maximum Standby Rating
800 kW

Generator Set Specifications

Frequency
50 Hz
RPM
1500 rpm

Engine Specifications

Aspiration
TA
Bore
5.20 in
132.00 mm
Displacement
2135.80 in³
35.00 l
Engine Model
CG132B
Stroke
6.30 in
160.00 mm

Generator Set Dimensions

Length
165.00 in
4200.00 mm
Width
70.00 in
1780.00 mm
Height
85.00 in
2150.00 mm
Dry Weight - Genset
17791.00 lb
8070.00 kg

Engine Specifications

Aspiration
TA
Features

Lower Operating Costs

Smaller footprint

Cat Total Electronic Management System

Flexible Fuel Usage

Standard Equipment
  • Air Inlet
    • One-element single-stage air cleaner with enclosure and sevice indicator
    • Turbocharger with a water-cooled bearing case for all cylinder
  • Control Panels
    • TPEM (Total Plant & Energy Management System)
  • Cooling
    • Flange connections for JW inlet and outlet
    • Electrical jacket water and aftercooler coolant pump
    • Jacket water and SCAC thermostats
    • flange connections for JW inlet and outlet
    • Cat flanges on SCAC circuit
    • ANSI/DN customer flange connections for JW inlet and outlet
  • Exhaust
    • Exhaust waste gate for the CG132B-16
    • Closed crankcase ventilation system
    • PEARL/Low resistence exhaust system
  • Fuel system
    • Pre-chamber spark plugs
    • Independently controlled cylinder monitoring and ignition system
    • Electronic fuel metering valve
  • Generator
    • Anti-condensation space heater
    • Reactive droop
    • 3-phase sensing and KVAR/PF control
    • Busbar connections
    • grid code generator
    • closed-coupled generator result in no torque transmission to the base frame
    • Reactive droop
    • Winding temperature detectors
  • Starting/Charging
    • 24V starting motors
    • Battery disconnect switch
  • General
    • Crankshaft vibration damper and guard
Optional Equipment
  • Air Inlet
    • Air cleaner with precleaner
    • Mounting stand
  • Cooling
    • CHP skid
