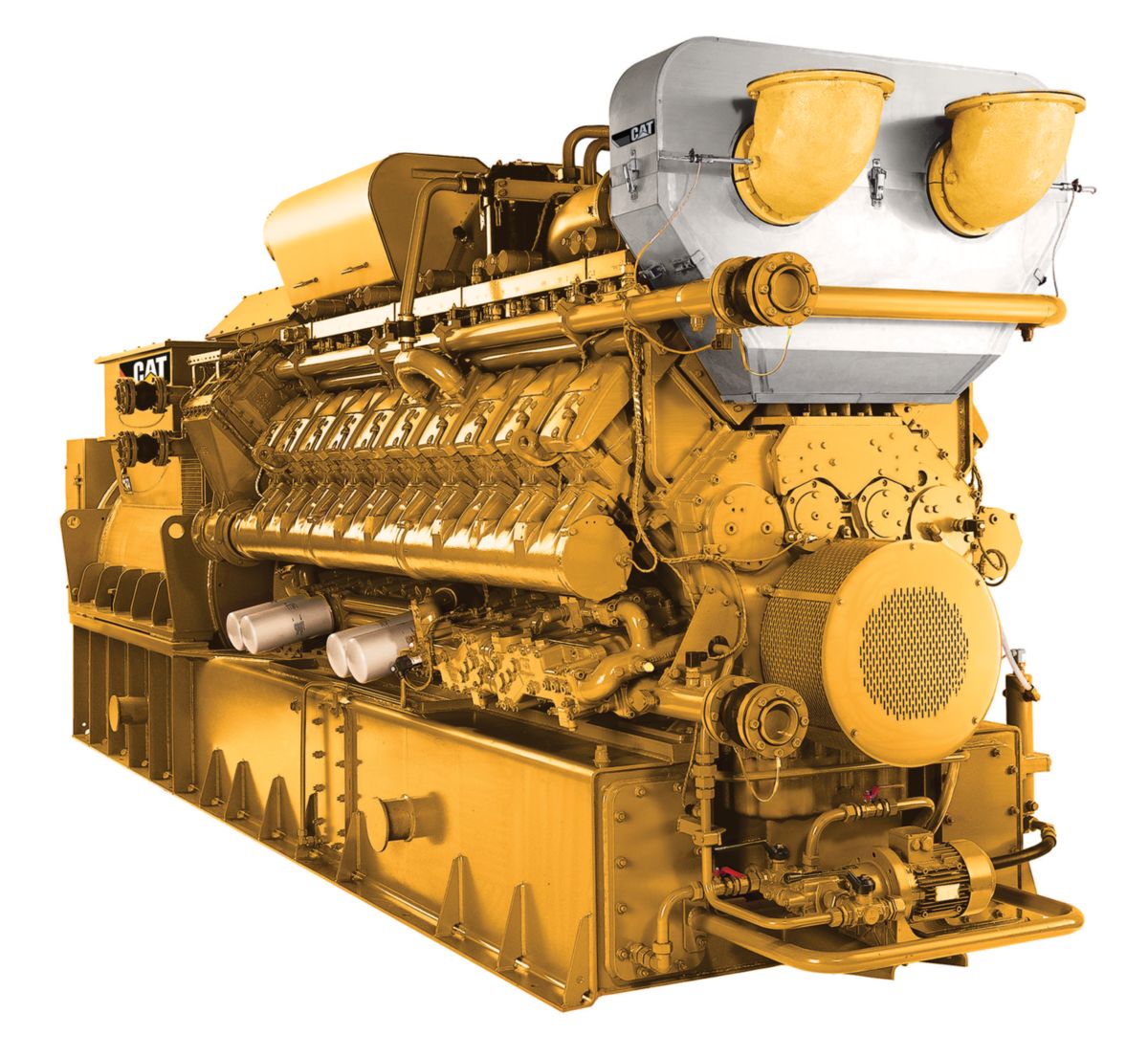

CG170-20 Gas Generator Set
US
Metric
Overview
Generator Sets Specification
Maximum Continuous Rating
2000 ekW
Generator Set Specifications
Fuel Type
Natural Gas, Biogas, Coal Gas
Generator Sets Specifications
Maximum Electrical Efficiency
43.7%
Maximum Standby Rating
2000
Frequency
50 Hz
RPM
1500 rpm
Engine Specifications
Aspiration
TA
Bore
6.70 in
170.00 mm
Displacement
3240.00 in³
53.10 l
Engine Model
CG170-20
Stroke
7.70 in
195.00 mm
Generator Set Dimensions
Length
294.00 in
7467.60 mm
Width
67.00 in
1710.00 mm
Height
86.00 in
2190.00 mm
Dry Weight - Genset
43651.10 lb
19800.00 kg
Engine Specifications
Aspiration
TA
