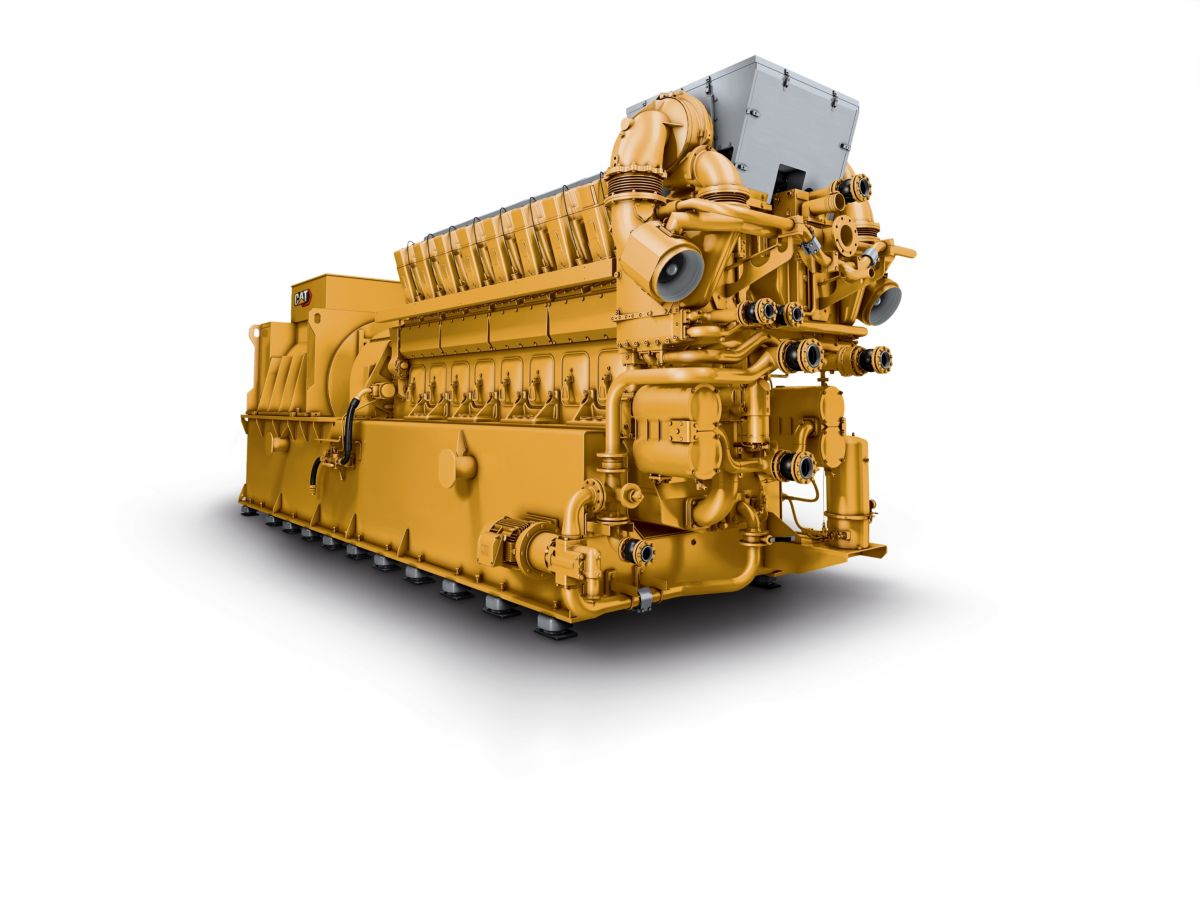

CG260-16 Gas Generator Set
US
Metric
Overview
Generator Set Specifications
Maximum Continuous Rating
4300 / 4000 ekW @1.0pf
Fuel Type
Natural Gas, Biogas, Coal Gas, Associated Gas, Synthesis Gas
Maximum Electrical Efficiency
44.1 / 43.8%
Maximum Standby Rating
4500 ekW
Frequency
50 / 60 Hz
RPM
1000 / 900 rpm
Engine Specifications
Aspiration
TA
Bore
10.20 in
260.00 mm
Displacement
16586.00 in³
271.80 l
Engine Model
CG260-16
Stroke
12.60 in
320.00 mm
Generator Set Dimensions
Length
371.00 in
9420.00 mm
Width
110.00 in
2794.00 mm
Height
133.00 in
3390.00 mm
Dry Weight - Genset
117505.00 lb
53299.40 kg
Engine Specifications
Aspiration
TA
Features
High Reliability
- Anti-knock control and cylinder balancing protect the engine from overload and ensure reliable operation
- State-of-the-art turbocharger A140 with Wastegate ensures full performance even under high temperatures and higher altitudes
- Higher reliability and lower maintenance costs due to open combustion chamber technology
High Availability, High Profitability
- Miller valve timing and optimized compression ratios ensure high efficiency and low fuels costs
- More profit for your plant
- Long maintenance intervals and general overhaul only after 80,000 oh allow an operation of 10 years without general overhaul
- Flexible fields of application also with fluctuating gas qualities due to Total Electronic Management (TEM)
Optimized Lubrication Consumption
- Savings of up to 4,000 liters of lube oil per year compared to comparable gensets<\li>
- Improved components reduce lube oil consumption<\li>
- Lower operating costs due to 30% lower lube oil consumption in comparison to similar products<\li>
Standard Equipment
- Air Inlet
- One-element single-stage air cleaner with enclosure and sevice indicator
- Turbocharger with a water-cooled bearing case for all cylinder
- Control Panels
- TEM (Total Electronic Management)
- Cooling
- flange connections for JW inlet and outlet
- Jacket water and SCAC thermostats
- Electrical jacket water and aftercooler coolant pump
- Exhaust
- Exhaust waste gate for the CG260-16
- Closed crankcase ventilation system
- Fuel system
- Electronic fuel metering valve
- Independently controlled cylinder monitoring and ignition system
- Pre-chamber spark plugs
- Generator
- Busbar connections
- Closed-coupled generator result in no torque transmission to the base frame
- Reactive droop
- 3-phase sensing and KVAR/PF control
- Grid code generator
- Anti-condensation space heater
- Winding temperature detectors
- Starting/Charging
- Compressed air engine start
- General
- Crankshaft vibration damper and guard
Optional Equipment
- Cooling
- CHP skid
