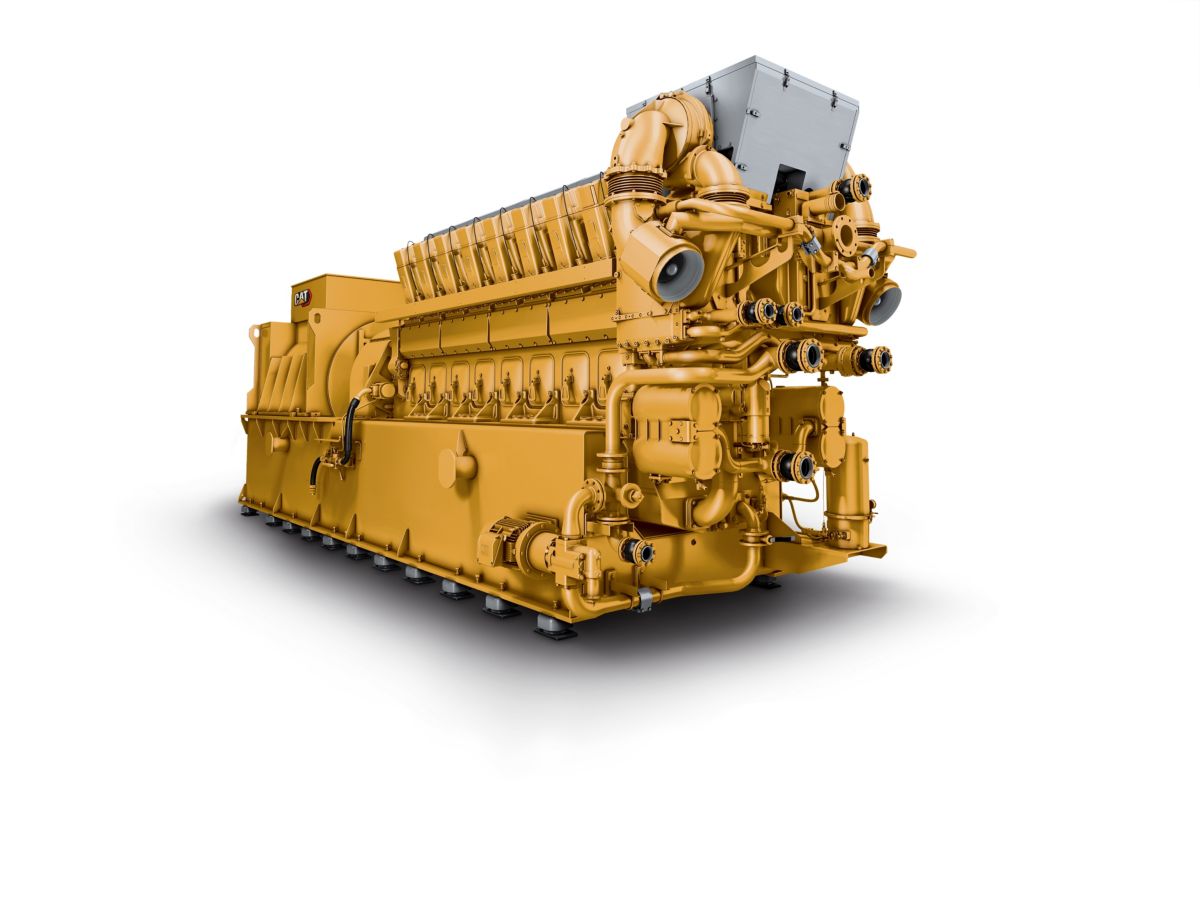

CG260-16 Gas Generator Set
US
Metric
Overview
Generator Set Specifications
Maximum Continuous Rating
4500 / 4050 ekW @1.0pf
Fuel Type
Natural Gas
Maximum Electrical Efficiency
44.60 / 44.3%
Maximum Standby Rating
4500 ekW
Frequency
50 / 60 Hz
RPM
1000 / 900 rpm
Engine Specifications
Engine Model
CG260-16
Displacement
16586.00 in³
271.80 l
Stroke
12.60 in
320.00 mm
Bore
10.20 in
260.00 mm
Aspiration
TA
Generator Set Dimensions
Length
371.00 in
9420.00 mm
Width
110.00 in
2794.00 mm
Height
133.00 in
3390.00 mm
Dry Weight - Genset
117505.00 lb
53299.40 kg
