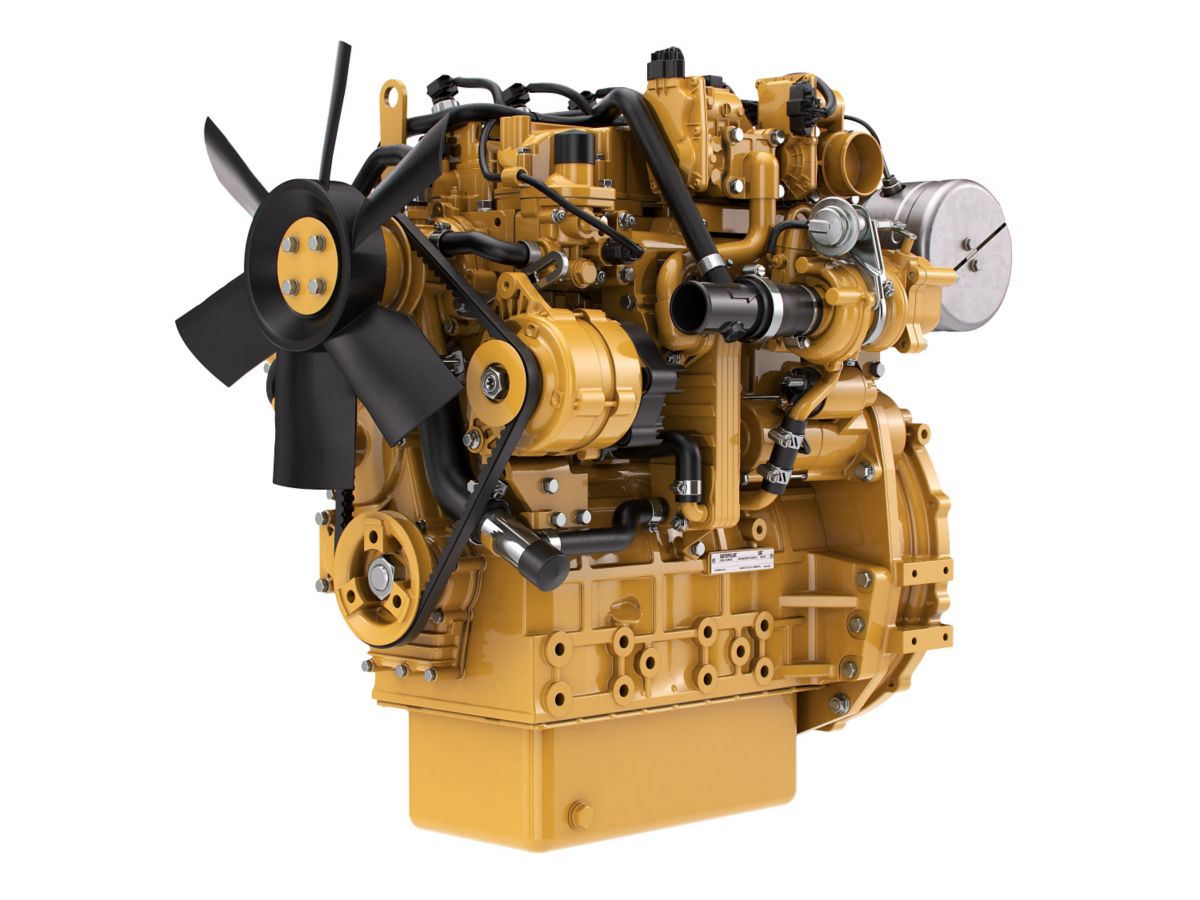

Cat® C2.2 Diesel Engine

Request A Quote
US
Metric

Overview

The new electronic Cat® C2.2 Industrial Diesel Engines, with common rail fuel system, deliver impressive performance throughout a wide speed range with exceptional power density. Ultracompact package size and extensive options make them ideal for agriculture, aerial lifts, compressors, construction, general industrial, irrigation equipment, material handling, mobile earthmoving equipment, mobile light towers, turf and landscaping, underground mining equipment, and welders.

Power Rating

Minimum Power
60.00 HP
45.00 kW
Maximum Power
74.00 HP
55.00 kW
Rated Speed
2800 rpm

Emission Standards

Emissions
U.S. EPA & CARB Tier 4 Final, EU Stage V

General

Engine Configuration
In-Line 4, 4-Stroke-Cycle Diesel
Bore
84 mm (3.3 in)
Stroke
100 mm (3.9 in)
Displacement
2.2 L (135 in³)
Aspiration
Turbocharged (T) or Turbocharged-Aftercooled (TA)
Compression Ratio
17.0:1
Combustion System
Direct Injection
Rotation from Flywheel End
Counterclockwise
Cooling System - Capacity
4.3 L (4.5 qt)
Lube System - Refill
9.3 L (9.8 qt)

Engine Dimensions - Approximate

Height
757 mm (29.8 in)
Length
807 mm (31.7 in)
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
242 kg (533.5 lbs)
Width
535 mm (21.0 in)

Aftertreatment Dimensions - Approximate

Diameter
155 mm (6.1 in)
Length
408.4 mm (16.07 in)
Weight
5.8 kg (12.79 lb)

Power Rating

Maximum Torque
199.00 lb-ft @ 1600 rpm
270.00 Nm @ 1600 rpm

Engine Dimensions - Approximate

Height
30.20 in
766.00 mm
Width
20.80 in
529.00 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
509.00 lb
231.00 kg
Length
31.70 in
807.00 mm

General

Bore
3.30 in
84.00 mm
Stroke
3.90 in
100.00 mm
Displacement
135.00 in³
2.20 l

Aftertreatment Dimensions

Weight
12.80 lb
5.80 kg
Length
16.10 in
408.00 mm

Aftertreatment Dimensions*

Diameter
6.10 in
155.00 mm

General

Aftertreatment
DOC+DPF
Features

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

High Performance

Substantial torque rise delivers impressive performance throughout a wide speed range while maintaining low operating costs.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Broad Application Range

Industry leading ratings and options for compact construction equipment, material handling, and other industrial applications. The engine is designed to require no special training or operation, which makes it particularly suitable for machines that are used in rental fleets.

Package Size

Ultra-compact package size and high power density ensures ease of installation. It also allows machine manufacturers to develop smaller machines, with low weight for transport, tight turning circles for productivity, and good sight lines for safety.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including S•O•S℠ sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
  • Control System
    • Alternator 12 volt 85 amp
    • Starter motor 12 volt
    • Glow plug starting aid, delivers heat directly to cylinder for best starting performance in cold weather
    • Electronic control unit - chassis mounted
    • Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
    • Wiring harness connectors and sensors are waterproof and designed to withstand harsh off-highway environments
  • Flywheels and Flywheel Housing
    • SAE No. 4 standard flywheel housing
    • Choice of flywheel weight and bolting pattern to accommodate a range of industry-standard hydraulic pumps and transmissions
  • Fuel System
    • 2000 bar high-pressure common rail system
    • Proprietary fuel filters to ensure engine protection through correct service procedures, along with water-in-fuel detection, ensures maximum machine up-time for the operator
  • Lube System
    • Alternative oil fillers
    • Spin-on lube oil filter
  • Power Take Off (PTO)
    • SAE A PTO drive
  • General
    • Cast iron engine block
    • Cast iron exhaust manifold
    • Gradeability 35° continuous
    • Paint: Cat yellow
  • U.S. EPA Tier 4 Final, EU Stage IIIB Aftertreatment/Clean Emissions Control Equipment
    • Diesel Oxidation Catalyst (DOC)
