Industrial Diesel Engines - Highly Regulated

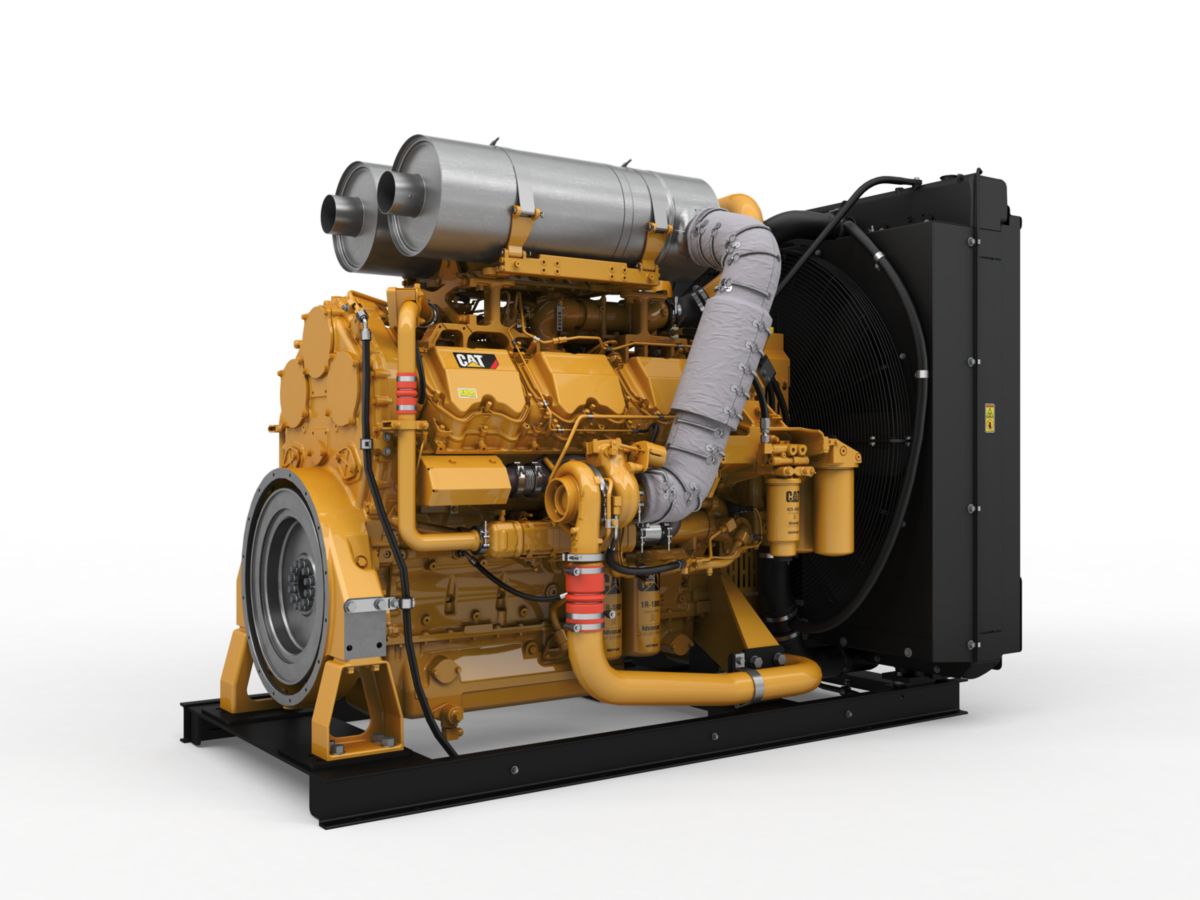

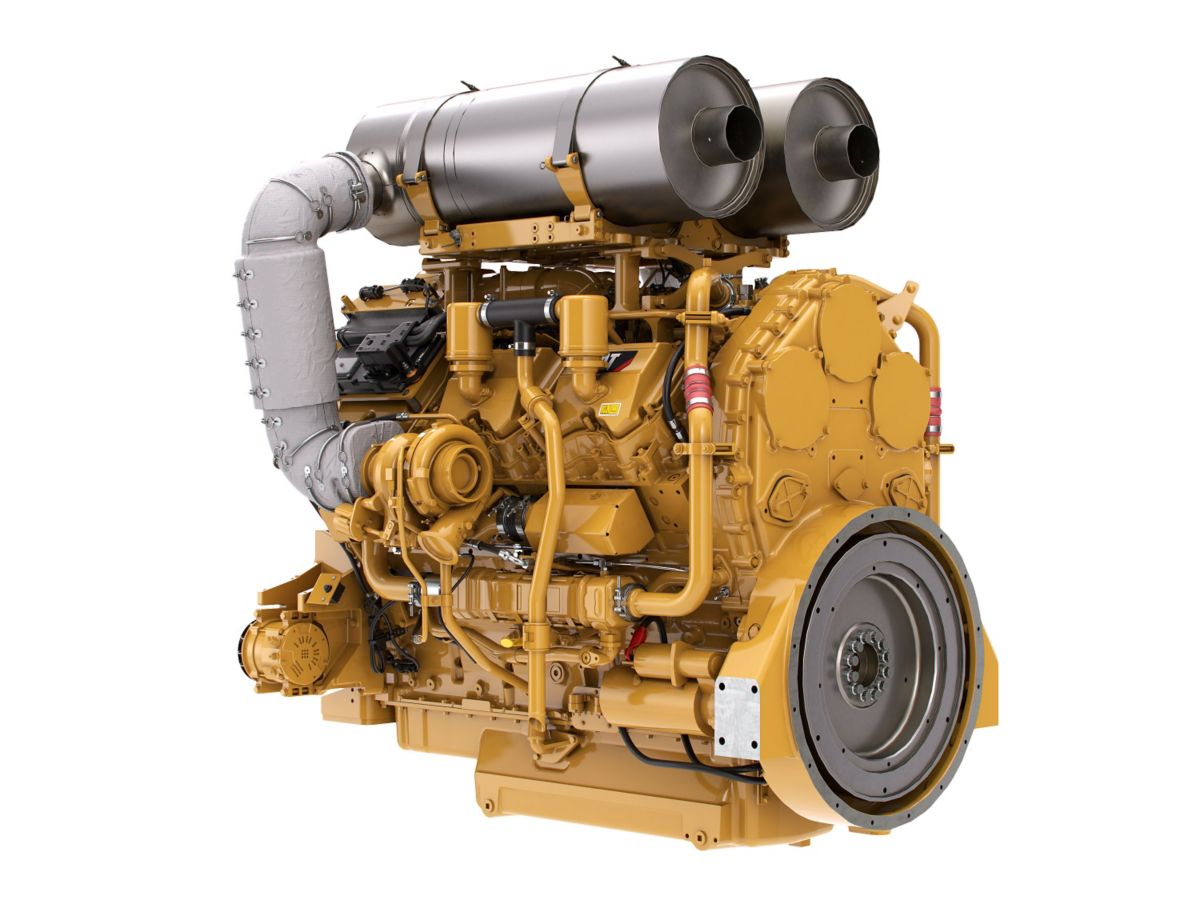

Cat® C27 Diesel Engine

Request A Quote
US
Metric

Overview

The Cat® C27 Industrial Diesel Engine is offered in ratings ranging from 597-783 bkW (800-1050 bhp) @ 1800 rpm. These ratings meet U.S. EPA Tier 4 Final emission standards.

Power Rating

Maximum Power
1050.00 HP
783.00 kW
Maximum Torque
3448.00 lb-ft @ 1200 rpm
4674.00 Nm @ 1200 rpm
Rated Speed
1800 rpm
Minimum Power
800.00 HP
597.00 kW

Emission Standards

Emissions
U.S. EPA Tier 4 Final

General

Engine Configuration
V-12
Bore
5.40 in
137.20 mm
Stroke
6.00 in
152.40 mm
Displacement
1649.50 in³
27.00 l
Compression Ratio
16.0:1
Aspiration
Twin Turbocharged-Aftercooled (TTA)
Combustion System
Direct Injection
Rotation from Flywheel End
Counterclockwise
Aftertreatment
DOC

Engine Dimensions - Approximate

Length
73.80 in
1874.00 mm
Width
63.00 in
1600.00 mm
Height
53.90 in
1370.00 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
6625.00 lb
3004.00 kg
Features

Installation

It may be big, but the power-dense Cat C27 is a fully-configurable common core engine that makes installation across a wide variety of applications simple. With options like rear-mounted turbos and engine-mounted aftertreatment, it's now easier than ever to install. And becuase the C27 is DEF-free, there's even more room to maneuver under the hood.

Advanced Features

Say goodbye to DEF, thermal management and engine regeneration with the Cat C27. Thanks to advances in Caterpillar's technology, the larger-than-life engine is practically maintenance free.

Ideal Applications

Industrial and construction applications such as: Dredges • Chippers • Grinders • Emergency water pumps • Rock drills

Total Cost of Ownership

Carefully crafted for efficiency, the Cat C27 fuel consumption is optimized to meet the demanding operating cycles of just about any machine. And with no DEF to worry about, owners can save on parts and maintence costs while also remaining maintenance-free for the life of the engine.

Cat Dealer Product Support

Superior dealer service and support, scheduled maintenance and a five year warranty: it’s what Cat C27 owners network can expect with their new engine.

Safety

Featuring a clean emissions module, the Cat C27 uses DOC, DPF and SCR technologies to keep the engine—and the air around it—cleaner, not only making for a more efficient machine, but also a safer job site.

Standard Equipment
  • Air Inlet System
    • Turbocharged
    • Air-to-Air Aftercooled
  • Control System
    • Electronic control system
    • Over-foam wiring harness
    • Automatic altitude compensation
    • Power compensated for fuel temperature
    • Configurable software features
    • Engine monitoring system SAE J1939 broadcast and control
  • Cooling System
    • Thermostats and housing, vertical outlet
    • Jacket water pump, centrifugal
    • Water pump, inlet
  • Exhaust System
    • Exhaust manifold, dry
    • Optional exhaust outlet
  • Flywheels and Flywheel Housing
    • Choice of SAE No. 0 or SAE No. 1 flywheel housing
  • Fuel System
    • MEUI injection
    • Fuel filter, secondary (2 micron)
    • Fuel transfer pump
    • Electronic fuel priming
  • Lube System
    • Open crankcase ventilation system
    • Oil cooler
    • Oil filler
    • Lube oil filter
    • Rear sump oil pan
    • Oil dipstick
    • Gear driven oil pump
  • General
    • Paint: Caterpillar yellow, with optional colors available at request
    • Vibration damper
    • Lifting eyes
