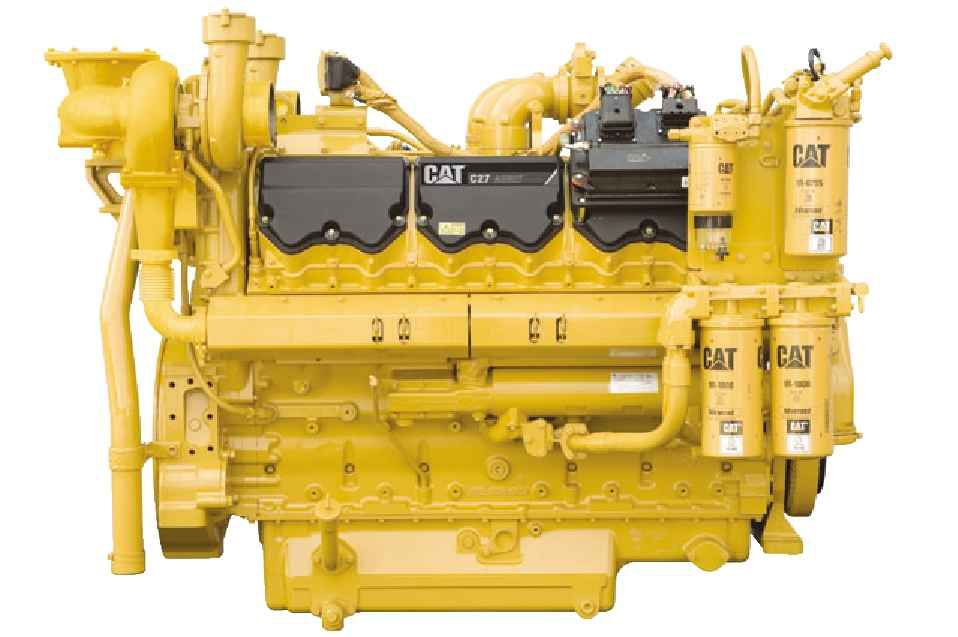

Cat® C27 Industrial Diesel Engine

Request A Quote
US
Metric

Overview

The Cat® C27 Industrial Diesel Engine is offered in ratings ranging from 597-858 bkW (800-1150 bhp) @ 1800-2100 rpm. These ratings meet U.S. EPA Tier 2 equivalent emission standards. Industries and applications powered by these high powered engines include Bore/Drill Rigs, Chippers/Grinders, Construction, Cranes, Dredgers, Forestry, Hydraulic Power Units, Irrigation Equipment, Material Handling, Mobile Earthmoving Equipment, Paving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers.

Power Rating

Maximum Power
1150.00 HP
858.00 kW
Maximum Torque
3876.00 lb-ft @ 1400 rpm
5255.00 Nm @ 1400 rpm
Rated Speed
1800-2100 rpm
Minimum Power
800.00 HP
597.00 kW

Emission Standards

Emissions
U.S. EPA Tier 2 Equivalent

General

Engine Configuration
V-12, 4-Stroke-Cycle Diesel
Bore
5.40 in
137.00 mm
Stroke
6.00 in
152.00 mm
Displacement
1649.50 in³
27.03 l
Compression Ratio
16.5:1
Aspiration
Turbocharged Aftercooled (TA)
Combustion System
Direct Injection
Rotation from Flywheel End
Counterclockwise
Aftertreatment
-

Engine Dimensions - Approximate

Length
75.50 in
1917.00 mm
Width
57.60 in
1464.00 mm
Height
51.90 in
1319.00 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
6495.00 lb
2946.00 kg
Features

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Package Size

Exceptional power density enables standardization across numerous applications. Multiple installation options minimize total package size. Ideal for equipment with narrow engine compartments.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
  • Air Inlet System
    • Twin Turbocharged Aftercooled
    • Air-to-Air Aftercooled
  • Control System
    • Electronic governing, PTO speed control
    • Programmable ratings
    • Automatic altitude compensation
    • Power compensation for fuel temperature
    • Programmable low and high idle and total engine limit
    • Electronic diagnostics and fault logging
    • Engine monitoring system SAE J1939 broadcast and control
    • ADEM™ A4 Electronic Control Unit (ECU)
  • Cooling System
    • Thermostats and housing, vertical outlet
    • Jacket water pump, centrifugal
    • Water pump, inlet
  • Exhaust System
    • Exhaust manifold, dry
    • Optional exhaust outlet
  • Flywheels and Flywheel Housing
    • SAE No. 1 flywheel housing
  • Fuel System
    • MEUI injection
    • Fuel filter, secondary (2 micron)
    • ACERT™ Technology
    • Fuel transfer pump
    • Fuel priming pump
  • Lube System
    • Crankcase breather
    • Oil cooler
    • Oil filler
    • Lube oil filter
    • Front sump oil pan
    • Oil dipstick
    • Gear driven oil pump
  • General
    • Vibration damper
    • Lifting eyes
    • Cold start capability to -20° C (-4° F)
    • Paint: Caterpillar yellow, with optional colors available at request
