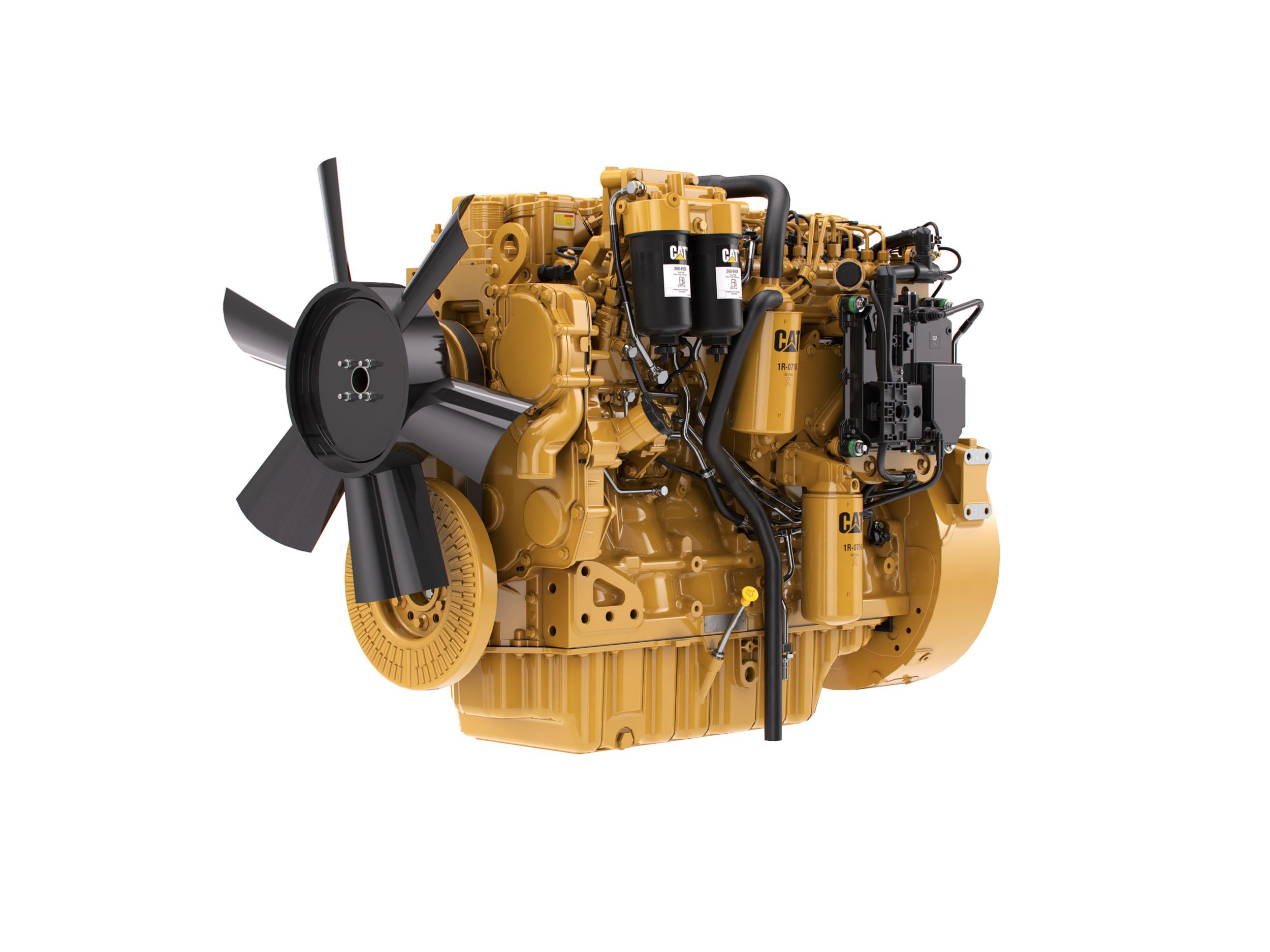

Cat® C7.1 Diesel Engine

Request A Quote
US
Metric

Overview

The Cat® C7.1 Industrial Diesel Engine is offered in ratings ranging from 116-205 bkW (156.2 bhp-275 bhp) @2200 rpm. These ratings meet China Stage II, U.S. EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. Industries and applications powered by C7.1 ACERT engines include: Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers and Underground Mining Equipment.

Power Rating

Minimum Power
156.20 bhp
116.50 bkW
Maximum Power
275.00 bhp
205.00 bkW
Rated Speed
2200 rpm

Emission Standards

Emissions
China Nonroad III, U.S. EPA Tier 3 Equivalent, EU Stage IIIA Equivalent

General

Engine Configuration
In-Line 6, 4-Stroke-Cycle Diesel
Bore
105 mm (4.1 in)
Stroke
135 mm (5.3 in)
Displacement
7.01 L (427.7 in³)
Aspiration
Turbocharged Aftercooled (TA)
Rotation (from flywheel end)
Counterclockwise

Engine Dimensions (Approximate. Final dimensions dependent on selected options)

Length
929 mm (35.5 in)
Width
725 mm (28.5 in)
Height
835 mm (32.87 in)
Weight, Net Dry (Basic Operating Engine Without Optional Attachments)
524 kg (1155 lb)

Power Rating

Minimum Power
155.60 HP
116.00 kW
Maximum Power
275.00 HP
205.00 kW
Rated Speed
2200-2500 rpm

Emission Standards

Emissions
China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA

General

Engine Configuration
In-Line 6, 4-Stroke-Cycle Diesel
Bore
105 mm (4.1 in)
Stroke
135 mm (5.3 in)
Aspiration
Turbocharged Aftercooled (TA)
Displacement
7.01 L (427.7 in³)
Rotation from Flywheel End
Counterclockwise

Engine Dimensions - Approximate

Height
835 mm (32.87 in)
Length
929 mm (35.5 in)
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
524 kg (1155 lb)
Width
725 mm (28.5 in)

General

Bore
4.10 in
105.00 mm
Stroke
5.30 in
135.00 mm
Displacement
427.70 in³
7.01 l

Engine Dimensions - Approximate

Width
26.30 in
668.00 mm
Height
32.20 in
817.00 mm
Length
36.60 in
929.00 mm

Power Rating

Maximum Torque
774.00 lb-ft @ 1400 rpm
1050.00 Nm @ 1400 rpm

Engine Dimensions - Approximate

Weight - Net Dry - Basic Operating Engine Without Optional Attachments
1115.00 lb
506.00 kg

General

Aftertreatment
-
Features

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

High Performance

Series turbocharging with smart wastegate available on specific ratings for fast response, high power, and increased torque.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Fuel & Oil

Tier 4 Interim or Tier 4 Final, Stage IIIB or Stage IV engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 15 ppm sulfur, and new oil formulations to support the new technology. Cat® engines are designed to accommodate B20 biofuel. Your Cat dealer can provide more information regarding fuel and oil.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Package Size

Exceptional power density enables standardization across numerous applications. Multiple installation options minimize total package size. Ideal for equipment with narrow engine compartments.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
  • Air Inlet
    • Standard air cleaners
  • Control System
    • Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments, flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
  • Cooling System
    • Top tank temperature 108°C (226°F) as standard to minimize cooling pack size, 50:50 water glycol mix, detailed guidance on cooling system design and validation available to ensure machine reliability
  • Exhaust System
    • Diesel particulate filter and regeneration system supplied, with a range of inlet and outlet options
  • Flywheels and Flywheel Housing
    • Wide choice of drivetrain interfaces, including SAE1, SAE2 or SAE3 configurations
  • Fuel System
    • Electronic high pressure common rail, ACERTTM Technology, innovative filter design to ensure maximum protection of the engine.
  • Lube System
    • Wide choice of sumps for different applications
  • Power Take Off
    • SAE A or SAE B flanges on left-hand side. Right- hand side twin PTO also available. Engine power can also be taken from the front of the engine on some applications, factory fitted compressors are also available.
  • General
    • Paint: Caterpillar yellow, with optional colors available at request
