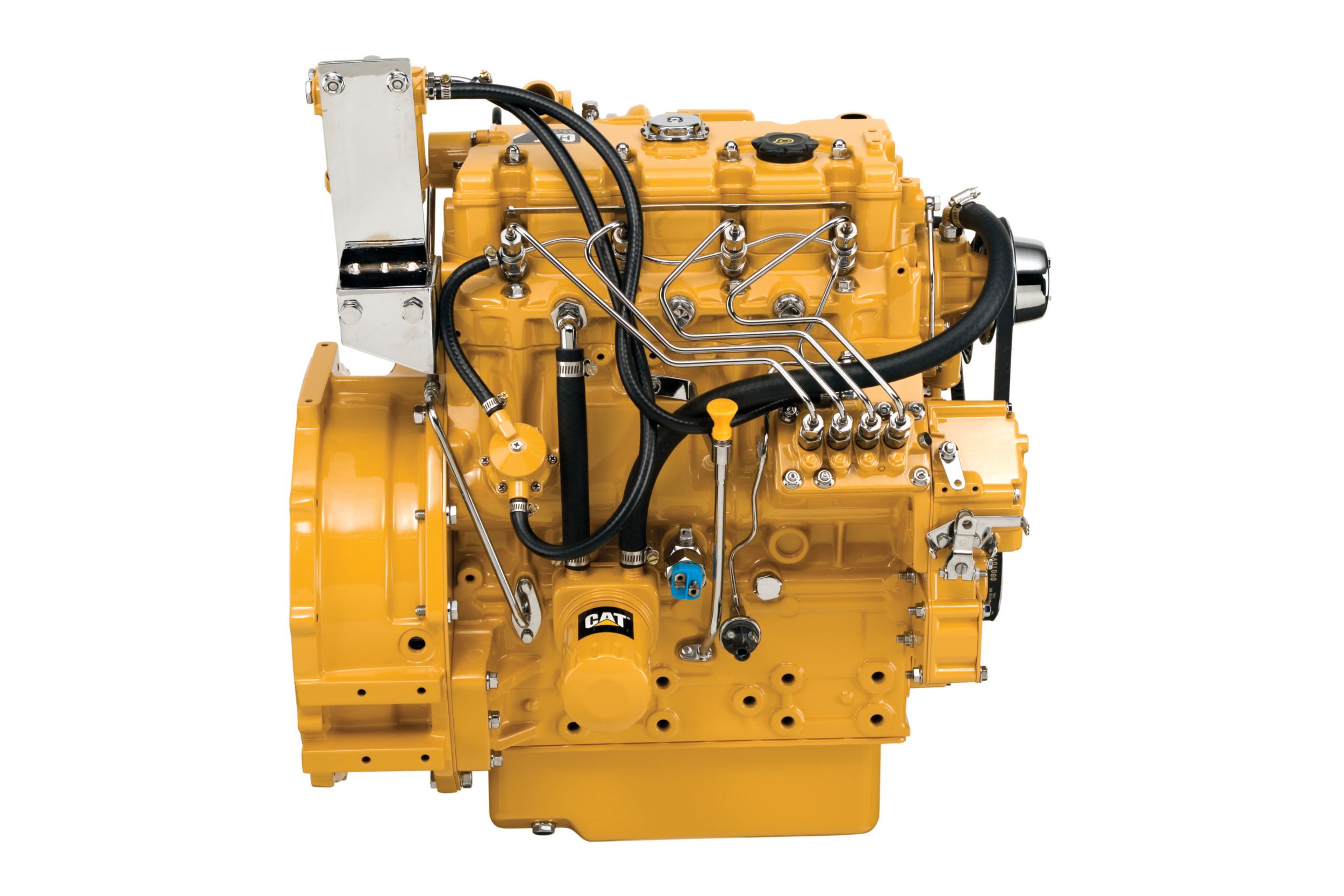

Cat® C2.2 Diesel Engine

Request A Quote
US
Metric

Overview

The Cat® C2.2 Industrial Diesel Engine is offered in ratings ranging from 31-49.3 bkW (41.6-66.1 bhp) @ 2200-3000 rpm. These ratings meet EU Stage IIIA (U.S. EPA Tier 4 Interim equivalent) emission standards. Industries and applications powered by C2.2 engines include: Agriculture, Aerial Lifts, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, General Industrial, Irrigation Equipment, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Light Towers, Mobile Sweepers, Paving Equipment, Pumps, Trenchers, Turf and Landscaping, Underground Mining Equipment and Welders.

Power Rating

Minimum Power
41.60 bhp
31.00 bkW
Maximum Power
66.10 bhp
49.30 bkW
Rated Speed
2200-3000 rpm

Emission Standards

Emissions
U.S. EPA Tier 4 Interim Equivalent

General

Engine Configuration
Inline 4, 4-Stroke-Cycle Diesel
Bore
84 mm (3.3 in)
Stroke
100 mm (3.9 in)
Displacement
2.216 L (135 in³)
Aspiration
Naturally Aspirated (NA), Turbocharged (T) or Turbocharged Aftercooled (TA)
Compression Ratio
23.3:1
Combustion System
Indirect Injection
Rotation (from flywheel end)
Counterclockwise
Lube System (refill)
10.6 L (11.2 qt)

Engine Dimensions (Approximate. Final dimensions dependent on selected options)

Length
660-664 mm (26-26.14in)
Width
459-531 mm (18.1-21 in)
Height
725 mm (28.5 in)
Weight, Net Dry (Basic Operating Engine Without Optional Attachments)
184-194 kg (406-427.7 lb)

Power Rating

Minimum Power
41.60 HP
31.00 kW
Maximum Power
66.00 HP
49.20 kW
Rated Speed
2200-3000 rpm

Emission Standards

Emissions
U.S. EPA Tier 4 Interim Equivalent

General

Engine Configuration
Inline 4, 4-Stroke-Cycle Diesel
Bore
84 mm (3.3 in)
Stroke
100 mm (3.9 in)
Aspiration
Naturally Aspirated (NA), Turbocharged (T) or Turbocharged Aftercooled (TA)
Displacement
2.216 L (135 in³)
Compression Ratio
23.3:1
Combustion System
Indirect Injection
Rotation from Flywheel End
Counterclockwise
Lube System - Refill
10.6 L (11.2 qt)

Engine Dimensions - Approximate

Height
676-698 mm (26.6-27.5 in)
Length
662 mm (26.0 in)
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
184-194 kg (406-427.7 lb)
Width
464-489 mm (18.3-19.3 in)

General

Bore
3.30 in
84.00 mm
Stroke
3.90 in
100.00 mm
Displacement
135.00 in³
2.22 l

Engine Dimensions - Approximate

Width
19.30 in
489.00 mm
Height
27.50 in
698.00 mm
Length
26.00 in
662.00 mm

Power Rating

Maximum Torque
153.00 lb-ft @ 1800 rpm
208.00 Nm @ 1800 rpm

Engine Dimensions - Approximate

Weight - Net Dry - Basic Operating Engine Without Optional Attachments
427.70 lb
194.00 kg

General

Aftertreatment
-
Features

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

High Performance

Substantial torque rise delivers impressive performance throughout a wide speed range while maintaining low operating costs.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Package Size

Ultra-compact package size ensures ease of installation as well as exceptional power density.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
  • Air Inlet System
    • Inlet manifold with choice of inlets.
  • Control System
    • Alternator 12 volt 65 amp
    • Starter motor 12 volt
    • Glow plug starting aid
  • Cooling System
    • Belt-driven coolant pump
    • Coolant temperature switch
    • Choice of cooling fans
  • Flywheels and Flywheel Housing
    • SAE No. 7 1/2, SAE No. 8 or SAE No. 10 flywheel
    • Choice of SAE No. 4 or standard backplate flywheel housing
  • Fuel System
    • Fuel injection pump
    • Spin-on fuel filter
    • Electronic Shut-off Solenoid (ESOS)
  • Lube System
    • Alternative oil fillers
    • Spin-on lube oil filter
    • Lube oil pressure switch
    • Lube oil sump
  • General
    • Cast iron, engine block
    • Cast iron exhaust manifold--side outlet
    • Cold start capability to -20° C (-4° F)
    • Gradeability 35° continuous
    • Paint: Caterpillar yellow, with optional colors available at request
