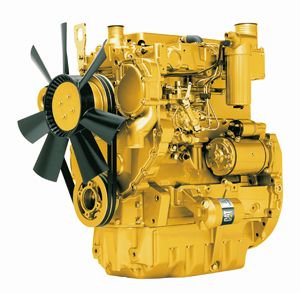

Cat®3054C Industrial Diesel Engine

Request A Quote
US
Metric

Overview

Cat® 3054C Industrial Diesel Engines offer the perfect balance of durability, fuel efficiency and low emissions. Extensively tested on the job, these engines use a range of mechanical fuel systems and advanced control systems to deliver maximum uptime in the harshest environment. They have proven they can handle the toughest applications and deliver superior performance that exceeds the expectations of the most demanding users. Industries and applications powered by 3054C engines include: Agriculture, Aerial Lifts, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Harvesters, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers, Turf and Landscaping and Underground Mining Equipment. 3054C engines, with ratings: 52-97 bkW (69.7-130 bhp) @ 2000-2400 rpm, meet U.S. EPA Tier 2 equivalent and EU Stage II equivalent emission standards and are available for non-regulated areas.

Power Rating

Minimum Power
69.70 bhp
52.00 bkW
Maximum Power
130.00 bhp
97.00 bkW
Rated Speed
2200-2400 rpm

Emission Standards

Emissions
U.S. EPA Tier 2 Equivalent, EU Stage II Equivalent

General

Engine Configuration
Inline 4, 4-Stroke-Cycle Diesel
Bore
105 mm (4.13 in)
Stroke
127 mm (5.0 in)
Displacement
4.4 L (269 in³)
Aspiration
Naturally Aspirated (NA), Turbocharged (T) or Turbocharged Aftercooled (TA)
Compression Ratio
16.2:1
Combustion System
Direct Injection
Rotation (from flywheel end)
Counterclockwise
Lube System (refill)
11 L (11.6 qt)

Engine Dimensions (Approximate. Final dimensions dependent on selected options)

Length
663 mm (26.1 in)
Width
470-620 mm (18.5-24.4 in)
Height
775-810 mm (30.5-31.9 in)
Weight, Net Dry (Basic Operating Engine Without Optional Attachments)
291-306 kg (640-674.6 lb)

Power Rating

Minimum Power
69.70 HP
52.00 kW
Maximum Power
130.00 HP
97.00 kW
Rated Speed
2200-2400 rpm

Emission Standards

Emissions
U.S. EPA Tier 2 Equivalent, EU Stage II Equivalent

General

Engine Configuration
Inline 4, 4-Stroke-Cycle Diesel
Bore
105 mm (4.13 in)
Stroke
127 mm (5.0 in)
Aspiration
Naturally Aspirated (NA), Turbocharged (T) or Turbocharged Aftercooled (TA)
Displacement
4.4 L (269 in³)
Compression Ratio
16.2:1
Combustion System
Direct Injection
Rotation from Flywheel End
Counterclockwise
Lube System - Refill
11 L (11.6 qt)

Engine Dimensions - Approximate

Height
775-810 mm (30.5-31.9 in)
Length
663 mm (26.1 in)
Weight - Net Dry - Basic Operating Engine Without Optional Attachments
291-306 kg (640-674.6 lb)
Width
470-620 mm (18.5-24.4 in)

General

Bore
4.10 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
269.00 in³
4.40 l

Engine Dimensions - Approximate

Width
24.40 in
620.00 mm
Length
26.10 in
663.00 mm
Height
31.90 in
810.00 mm

Power Rating

Maximum Torque
369.00 lb-ft @ 1400 rpm
500.00 Nm @ 1400 rpm

Engine Dimensions - Approximate

Weight - Net Dry - Basic Operating Engine Without Optional Attachments
674.60 lb
306.00 kg

General

Aftertreatment
-
Features

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Package Size

Ideal for equipment with narrow engine compartments. Multiple installation options minimize total package size.

Quality

Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
  • Air Inlet System
    • Inlet manifold with choice of inlets.
  • Control System
    • Alternator
    • Starter motor
    • Control Panel
    • Glow plug starting aid
  • Cooling System
    • Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
    • 50:50 water glycol mix
  • Flywheels and Flywheel Housing
    • SAE No. 3 flywheel housing
    • Flywheel and starter rings
  • Fuel System
    • Fuel filter positions
  • Lube System
    • Lubricating oil filters and breathers
    • Oil filter positions
    • Lube oil sump
  • Power Take Off
    • SAE B Power Take Off (PTO)
  • General
    • Timing case and gear-driven auxiliaries
    • Belt-driven auxiliaries
    • Engine mountings
    • Gauges
    • Displays
    • Power and torque curve tailoring
    • Paint: Caterpillar yellow, with optional colors available at request
