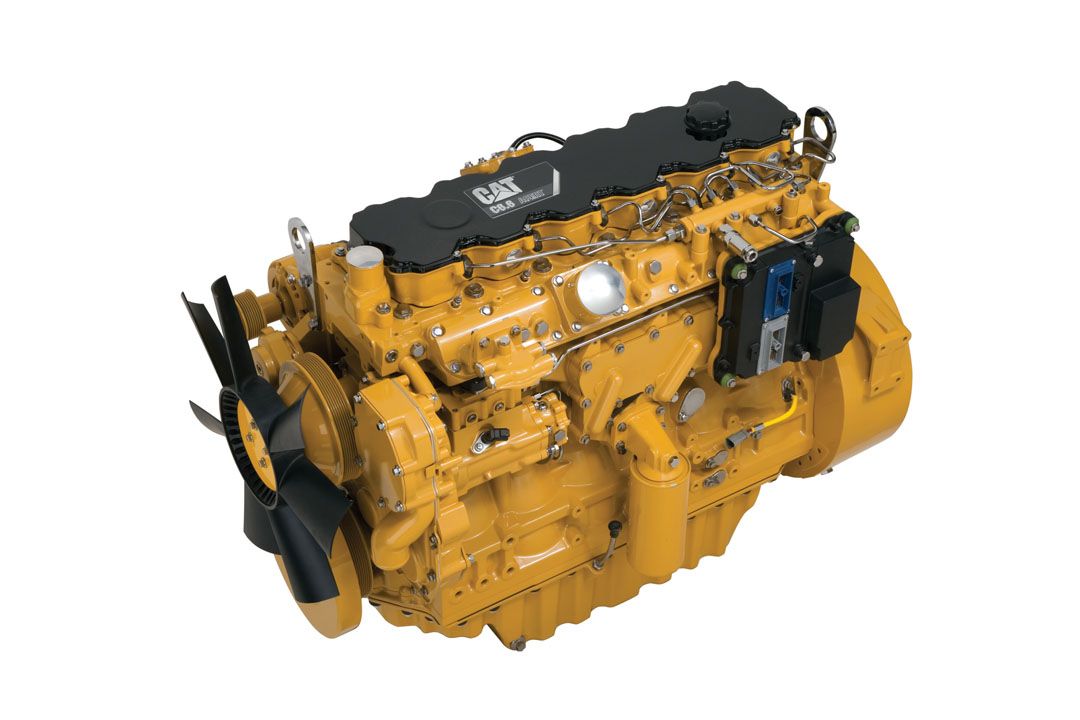

Cat® C6.6 ACERT™ Diesel Engine
US
Metric
Overview
The Cat® C6.6 ACERT Industrial Diesel Engine is offered in ratings ranging from 89-205 bkW (119-275 bhp) @ 2200-2500 rpm. These ratings meet U.S. EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. Industries and applications powered by C6.6 ACERT engines include: Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Harvesters, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers and Underground Mining Equipment.
Power Rating
Minimum Power
119.00 bhp
89.00 bkW
Maximum Power
275.00 bhp
205.00 bkW
Rated Speed
2200-2500 rpm
Emission Standards
Emissions
U.S. EPA Tier 3 Equivalent, EU Stage IIIA Equivalent
General
Engine Configuration
Inline 6, 4-Stroke-Cycle Diesel
Bore
105 mm (4.13 in)
Stroke
127 mm (5.0 in)
Displacement
6.6 L (402.8 in³)
Aspiration
Turbocharged Aftercooled (TA)
Compression Ratio
16.2:1
Combustion System
Direct Injection
Rotation (from flywheel end)
Counterclockwise
Engine Dimensions (Approximate. Final dimensions dependent on selected options)
Length
929 mm (36.6 in)
Width
668 mm (26.3 in)
Height
797 mm (31.4 in)
Weight, Net Dry (Basic Operating Engine Without Optional Attachments)
506 kg (1116 lb)
Features
Emissions
Meets U.S. EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. Available using U.S. EPA Flexibility or EU Flexibility, and for other regulated and non-regulated areas.
Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.
Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.
Package Size
Ideal for equipment with narrow engine compartments. Multiple installation options minimize total package size.
Quality
Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.
World-class Product Support Offered Through Global Cat Dealer Network
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
- Air Inlet System
- Turbocharged
- Air-to-Air Aftercooled
- Control System
- Electronic governing, PTO speed control
- Programmable ratings
- Automatic altitude compensation
- Power compensation for fuel temperature
- Programmable low and high idle and total engine limit
- Electronic diagnostics and fault logging
- Engine monitoring system SAE J1939 broadcast and control
- ADEM™ A4 Electronic Control Unit (ECU)
- Cooling System
- Thermostats and housing, vertical outlet
- Jacket water pump, centrifugal
- Water pump, inlet
- Exhaust System
- Exhaust manifold, dry
- Optional exhaust outlet
- Flywheels and Flywheel Housing
- Choice of SAE No. 2 or SAE No. 3 flywheel housing
- Fuel System
- Electronic high pressure common rail
- Fuel filter, secondary (2 micron)
- ACERT™ Technology
- Fuel transfer pump
- Fuel priming pump
- Lube System
- Crankcase breather
- Oil cooler
- Oil filler
- Lube oil filter
- Front sump oil pan
- Oil dipstick
- Gear driven oil pump
- General
- Vibration damper
- Lifting eyes
- Cold start capability to -20° C (-4° F)
- Paint: Caterpillar yellow, with optional colors available at request
