Cat® C3.4B Industrial Power Unit

Request A Quote
US
Metric

Overview

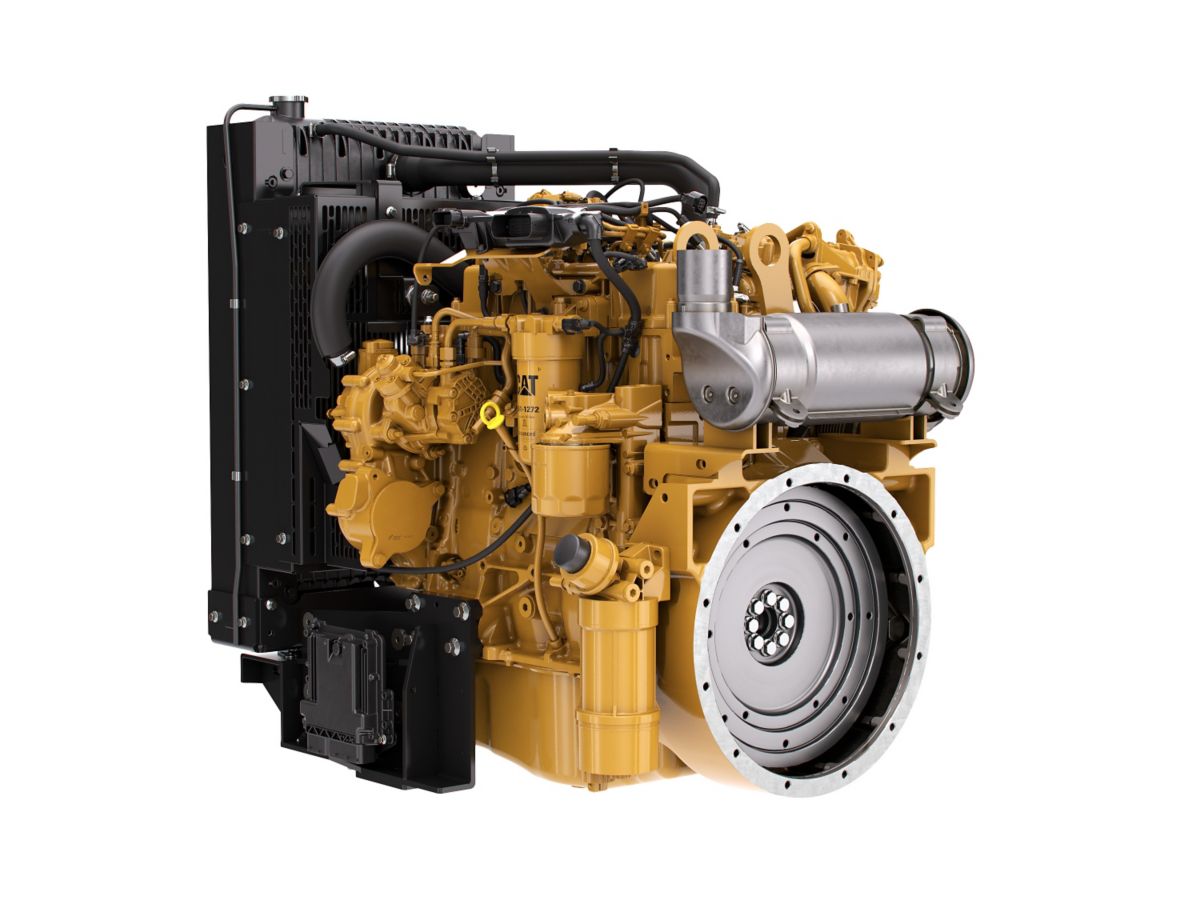

The Cat® C3.4B Industrial Power Unit is offered at 75-86 bkW (100-115 bhp), which meets U.S. EPA Tier 4 Final, EU Stage IV emission standards. Conveniently pre-configured for a wide range of applications, the Cat Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Power Rating

Minimum Power
100.00 bhp
74.50 bkW
Maximum Power
115.00 bhp
86.00 bkW
Rated Speed
2200

Emission Standards

Emissions
U.S. EPA Tier 4 Final, EU Stage IV nonroad emission standards. U.S. EPA Tier 4 Interim Equivalent or EU Stage IIIB Equivalent ratings also available using EPA or EU Flex Provisions.

General

Engine Configuration
In-Line 4, 4-Stroke-Cycle Diesel
Bore
99 mm (3.9 in)
Stroke
110 mm (4.3 in)
Displacement
3.4 L (207.5 in³)
Aspiration
Turbocharged Aftercooled (TA)
Compression Ratio
17:1
Rotation (from flywheel end)
Counterclockwise

Power Unit Dimensions - Approximate

Length
1252 mm (49.3 in)
Width
705 mm (27.7 in)
Height
1033 mm (40.7 in)
Weight - Approximate, Net Dry - Standard Configuration Without Oil, Cooling, Clutch, Compressor, A/C
407 kg (897 lb)

Aftertreatment Dimensions - Approximate

DOC Length
320 mm (12.6 in)
DOC Weight
15 kg (33 lb)
DOC Diameter
196 mm (7.7 in)
SRC Length
520 mm (20.47 in)
SCR Weight
20 kg (44 lb)
SCR Diameter
251 mm (9.88 in)

Power Rating

Minimum Power
100.00 HP
74.50 kW
Maximum Power
115.00 HP
86.00 kW
Rated Speed
2200

Emission Standards

Emissions
U.S. EPA Tier 4 Final

General

Engine Configuration
In-Line 4, 4-Stroke-Cycle Diesel
Bore
99 mm (3.9 in)
Stroke
110 mm (4.3 in)
Displacement
3.4 L (207.5 in³)
Aspiration
Turbocharged Aftercooled (TA)
Compression Ratio
17.0:1
Rotation from Flywheel End
Counterclockwise

Aftertreatment Dimensions - Approximate

SRC Length
520 mm (20.47 in)

Power Rating

Maximum Torque
310.00 lb-ft @ 1400 rpm
420.00 Nm @ 1400 rpm

General

Bore
3.90 in
99.00 mm
Stroke
4.30 in
110.00 mm
Displacement
207.50 in³
3.40 l

Power Unit Dimensions

Weight
897.00 lb
407.00 kg
Width
27.70 in
705.00 mm
Height
49.30 in
1033.00 mm
Length
40.70 in
1252.00 mm

General

Aftertreatment
DOC+SCR
Features

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

High Performance

Leading-edge technology provides significant improvements in power, torque, fuel consumption and response. Technology includes single smart wastegated turbo systems, durable high pressure common rail technology, and closed circuit breathing system.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Fuel & Oil

Tier 4 Interim or Tier 4 Final, Stage IIIB or Stage IV engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 15 ppm sulfur, and new oil formulations to support the new technology. Cat engines are designed to accommodate B20 biofuel. Your Cat dealer can provide more information regarding fuel and oil.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOS℠ sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
  • Air Inlet System
    • Standard air cleaners
  • Control System
    • Full electronic control system
    • Fully integrated, engine-mounted electronic control unit
    • Waterproof connectors and wiring looms
    • Flexible and configurable software features and J1939 standard communications I/O
  • Flywheels and Flywheel Housing
    • SAE3 configuration
  • Fuel System
    • Engine-mounted fuel filters
    • Electronic high pressure common rail fuel pump and injectors
  • Lube System
    • Lubricating oil filters and breathers
  • General
    • Cold start capability to -20° C (-4° F)
    • Paint: Caterpillar yellow, with optional colors available at request
  • U.S. EPA Tier 4 Final, EU Stage IV Aftertreatment/Clean Emissions Control Equipment
    • Diesel Oxidation Catalyst (DOC)
    • Selective Catalytic Reduction (SCR)
    • SCR Auxiliaries are available in a range of tanks and heated lines
