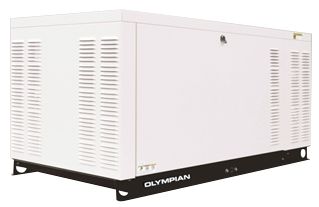

G200LG6 Gas Generator Set
US
Metric
Overview
The range of Olympian™ generator sets provides reliable energy solutions for every business, every need. Olympian generators can be installed as the prime power source or standby service. They deliver dependable, clean, economical power – even in the most demanding conditions – and are available in a wide range of configurations with optional equipment.
Gas Generator Sets Specification
Standby
200 kW (250 kVA) 60hz
Generator Set Specifications
Fuel Type
Natural Gas
Gas Generator Sets Specification
Prime
180 kW (225 kVA) 60hz
Generator Set Specifications
Frequency
60 Hz
RPM
1800 rpm
Engine Specification
Engine Model
G200LG6
Engine Specifications
Bore
5.31 in
135.00 mm
Stroke
6.50 in
165.00 mm
Displacement
864.71 in³
14.17 B
Aspiration
TA
Generator Set Dimensions
Length
127.95 in
3250.00 mm
Width
52.93 in
1344.50 mm
Height
67.37 in
1711.20 mm
Dry Weight - Genset
5756.00 lb
2610.90 kg
Engine Specifications
Engine Model
G200LG6
