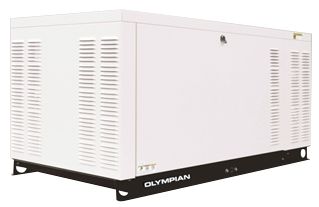

GEUG16-1 Gas Generator Set
US
Metric
Overview
The range of Olympian™ generator sets provides reliable energy solutions for every business, every need. Olympian generators can be installed as the prime power source or standby service. They deliver dependable, clean, economical power – even in the most demanding conditions – and are available in a wide range of configurations with optional equipment.
Gas Generator Sets Specification
Standby
250 kW (313 kVA) 60hz
Generator Set Specifications
Fuel Type
Natural Gas
Gas Generator Sets Specification
Prime
225 kW (281 kVA) 60hz
Generator Set Specifications
Frequency
60 Hz
RPM
1800 rpm
Engine Specification
Engine Model
G250LG6
Engine Specifications
Bore
5.31 in
135.00 mm
Stroke
6.50 in
165.00 mm
Displacement
864.71 in³
14.17 B
Aspiration
TA
Generator Set Dimensions
Length
138.74 in
3524.10 mm
Width
57.60 in
1463.10 mm
Height
68.04 in
1728.30 mm
Dry Weight - Genset
6364.00 lb
2887.00 kg
Engine Specifications
Engine Model
G250LG6
