GEP169-1
US
Metric
Overview

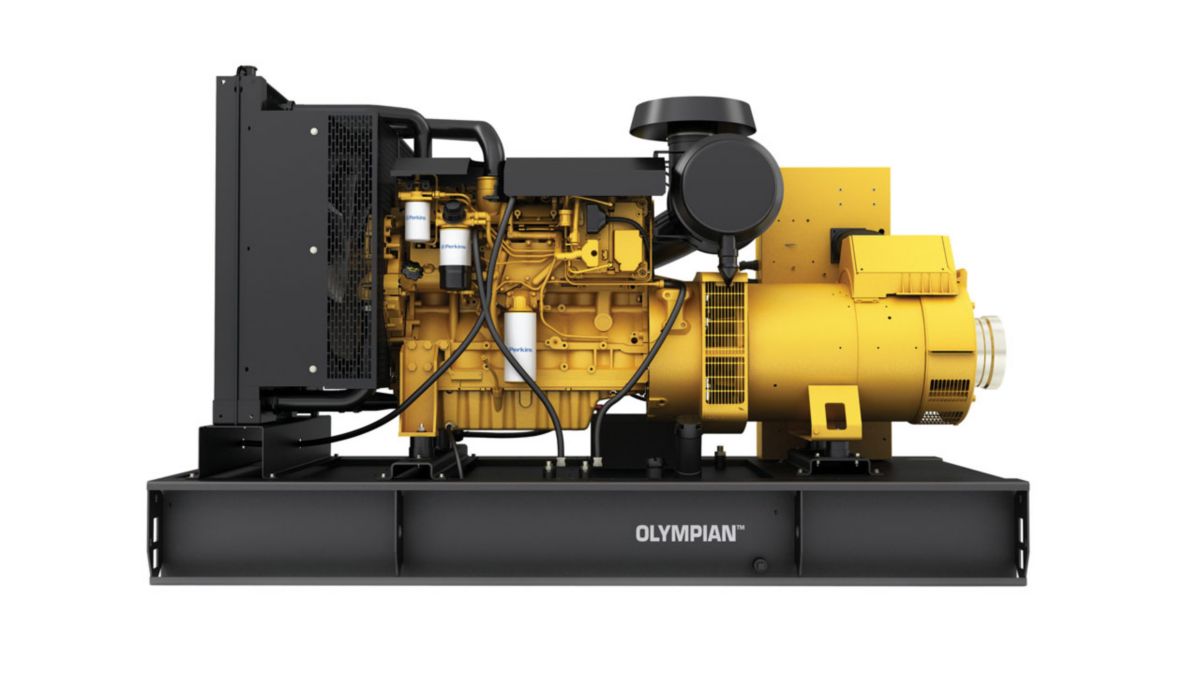

The range of Olympian™ generator sets provides reliable energy solutions for every business, every need. Olympian generators can be installed as the prime power source or standby service. They deliver dependable, clean, economical power – even in the most demanding conditions – and are available in a wide range of configurations with optional equipment.
Generator Set Specifications
Standby
50 hz: 119.6 kW (149.5 kVA) 60hz: 135.0 kW (168.8 kVA)
Prime
50 hz: 108.0 kW (135.0 kVA) 60hz: 120.0 kW (150.0 kVA)
Voltage
380/220 to 220/127 Volts
Frequency
50 or 60 Hz
Speed
1500 or 1800 RPM
Emissions/Fuel Strategy
Not Certified
Engine Specifications
Engine Model
Perkins™ 1006TAG
Compression Ratio
17.0:1
Aspiration
TA
Governor Type
Electronic
Displacement
365.50 in³
6.00 B
Stroke
5.00 in
127.00 mm
Bore
3.90 in
100.00 mm
Recommended Fuel
Class A2 Diesel or BSEN590
