GEP56-1
US
Metric
Overview

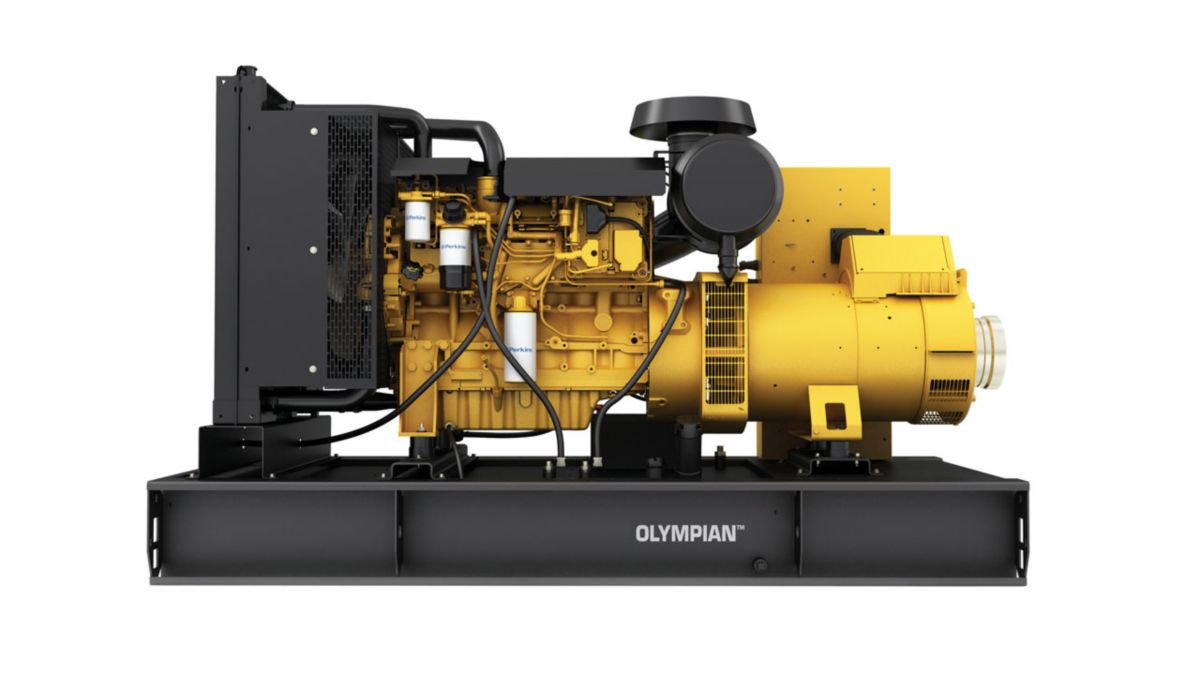

The range of Olympian™ generator sets provides reliable energy solutions for every business, every need. Olympian generators can be installed as the prime power source or standby service. They deliver dependable, clean, economical power – even in the most demanding conditions – and are available in a wide range of configurations with optional equipment.
Generator Set Specifications
Standby
50 hz: 39.4.0 kW (49.2 kVA) 60hz: 45.0 kW (56.3 kVA)
Prime
50 hz: 36.0 kW (45.0 kVA) 60hz: 40.0 kW (50.0 kVA)
Voltage
380/220 to 220/127 Volts
Frequency
50 or 60 Hz
Speed
1500 or 1800 RPM
Emissions/Fuel Strategy
Not Certified
Engine Specifications
Engine Model
Perkins™ 1103A-33TG1
Compression Ratio
17.25:1
Aspiration
TA
Governor Type
Mechanical
Bore
4.10 in
105.00 mm
Displacement
201.40 in³
3.30 B
Stroke
5.00 in
127.00 mm
Recommended Fuel
Class A2 Diesel or BSEN590
