GEP75-1
US
Metric
Overview

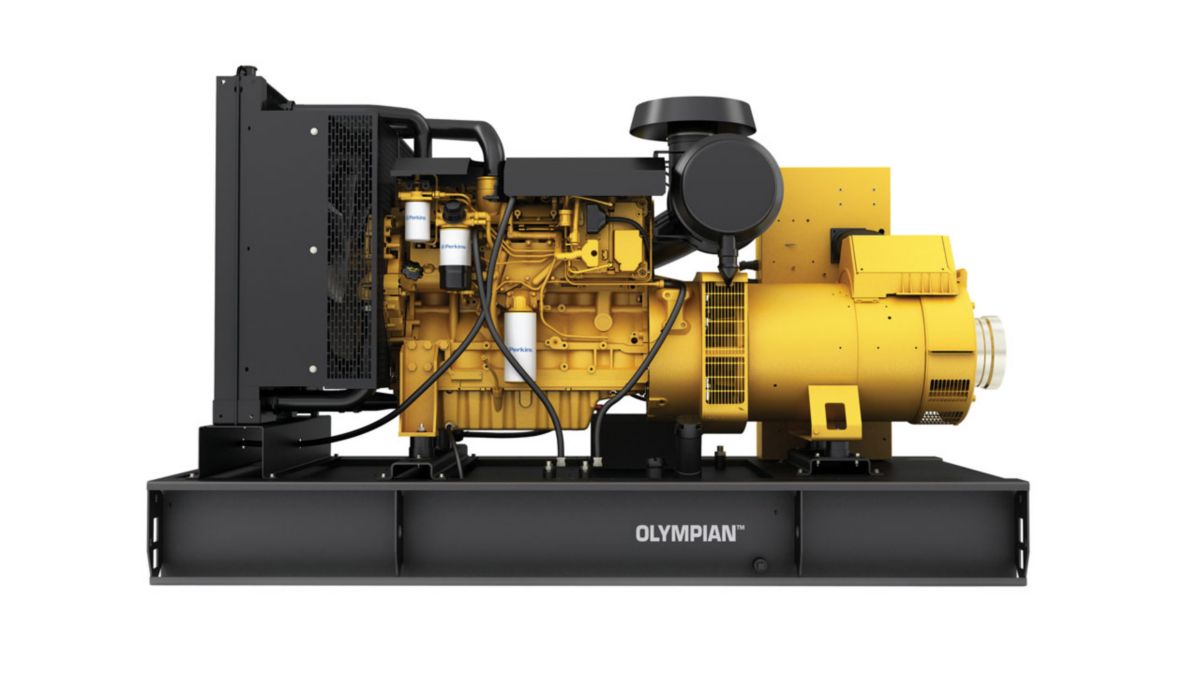

The range of Olympian™ generator sets provides reliable energy solutions for every business, every need. Olympian generators can be installed as the prime power source or standby service. They deliver dependable, clean, economical power – even in the most demanding conditions – and are available in a wide range of configurations with optional equipment.
Generator Set Specifications
Standby
50 hz: 52.0 kW (65.0 kVA) 60hz: 60.0 kW (75.0 kVA)
Prime
50 hz: 48.0 kW (60.0 kVA) 60hz: 55.0 kW (68.8 kVA)
Voltage
380/220 to 220/127 Volts
Frequency
50 or 60 Hz
Speed
1500 or 1800 RPM
Emissions/Fuel Strategy
Not Certified
Engine Specifications
Engine Model
Perkins™ 1103A-33TG2
Compression Ratio
17.25:1
Aspiration
TA
Governor Type
Mechanical
Bore
4.10 in
105.00 mm
Displacement
201.40 in³
3.30 B
Stroke
5.00 in
127.00 mm
Recommended Fuel
Class A2 Diesel or BSEN590
