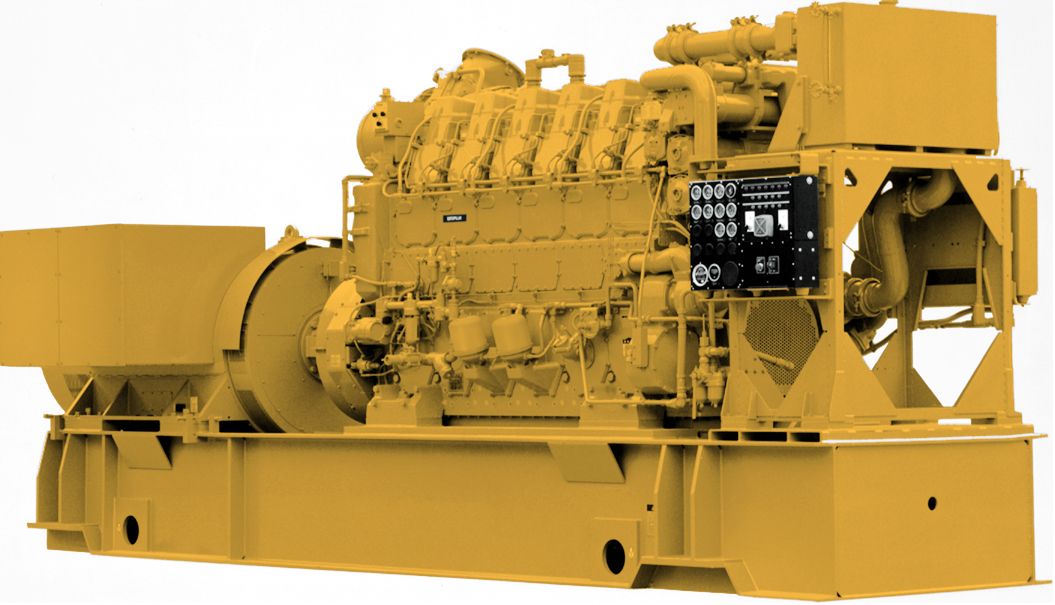

3606 Generator Set (Medium Speed)
US
Metric
Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Generator Set Specifications
Minimum Rating
1650 ekW
Maximum Rating
2000 ekW
Frequency
60 Hz
Speed
900 rpm
Emissions/Fuel Strategy
Low Fuel Consumption
Engine Specifications
Engine Model
3606 I-6,4-Stroke Water-Cooled Diesel
Bore
11.00 in
280.00 mm
Displacement
1127.00 in3
18.50 L
Total Displacement
6762.00 in³
111.00 l
Stroke
11.80 in
300.00 mm
Compression Ratio
13:01
Aspiration
TA
Governor Type
Generator Set Monitoring System (GMS)
Fuel System
Direct unit injection
Aspiration
TA
Fuel System
Direct unit injection
Bore
11.00 in
280.00 mm
Displacement
111.00 in³
6762.00 l
Stroke
11.80 in
300.00 mm
Generator Set Dimensions
Height - Maximum
156.60 in
3977.70 mm
Length - Maximum
404.00 in
10261.70 mm
Generator Set Specifications
Duty Cycle
Standby, Prime, Continuous
Generator Set Dimensions
Width - Maximum
99.62 in
2530.30 mm
Dry Weight - Genset (maximum)
74970.00 lb
34070.00 kg
Features
Cat Diesel Engine
SR5 Alternator
World Wide Product Support
Full Range of Attachments
Standard Equipment
- Air Inlet System
- Breather, crankcase, top-mounted
- Aftercooler, fresh water, corrosion resistant coated (air side)
- Turbocharger, watercooled (720 rpm and HFO), engine oil lubricated
- Air inlet shutoff
- Cooling System
- Jacket water thermostats
- Engine coolant water drains
- Water temperature regulator
- Exhaust System
- 457 mm (18 in) Cat bolt pattern
- Includes adapter, Flexible exhaust fitting
- Dry, gas tight, exhaust manifold
- Fuel System
- Simplex or Duplex
- Generator System
- Custom generator per generator data sheet completed by dealer
- Governor System
- UG actuator
- Lube System
- Centrifugal oil filters with single shutoff
- Oil pressure regulating valve
- Service side engine mounted on cylinder block inspection covers
- Oil filler and dipstick
- Crankcase explosion relief valves
- Wet oil sump. Includes engine-driven main lubrication & oil pumps, Oil Lines and Oil Pan
- Mounting System
- Damper, torsional vibration
- Engine and generator mounting
- Starting / Charging System
- Vane type air starter
- One motor, engine mounted at rear, on left side
- Air silencer
- Line group for single point custom connection
- General:
- Paint, Caterpillar yellow
- Gear driven pumps: Fuel / Oil / Jacket water / Aftercooler / Oil cooler water
Optional Equipment
- Air Inlet System
- Air inlet adapter
- Air cleaner
- Vertical support bracket
- Heavy duty air cleaner
- Boost control valve
- Air cleaner louver assembly
- Soot filter
- Cooling System
- Heating aids
- Cooling system aids
- Expansion tank
- Auxiliary water pump
- Exhaust System
- Weld flange and related hardware
- Flexible exhaust fittings
- Fuel System
- Duplex primary fuel strainer
- Fuel priming pump
- Fuel system connections
- Generator System
- Class F insulation
- 3 Phase, six Leads, WYE
- Busbar connections
- Anti-condensation space heaters
- Winding temperature detectors
- Governor System
- EGB actuator
- 723 Plus
- Electronic / actuators
- Battery backup / Power supply
- Digital programmers
- 2301 A load share
- Lube System
- Oil pan drain valve
- Lube ANSI adapter (Emergency connection)
- Mounting System
- Vertically restrained
- Isolator
- Spring type vibration isolator
- Non-vertically restrained
- Starting / Charging System
- Compressed air flex hose
- Pressure reducing valve
- General:
- Custom paint colors
