ATC-100 CONTROLLER
US
Metric
Overview
The ATC-100 is a comprehensive and multifunctional microprocessor-based ATS controller. It is a compact and self-contained panel-mounted device that is designed to replace traditional relay and solid-state logic panels.The ATC provides both fixed and jumper-selectable settings to allow for a range of applications. It operates from all system voltages between 120 and 480 Vac, single-phase and three phase at 50 or 60 Hz. The ATC-100 monitors the condition of the three-phase line to line voltage and the frequency of both the utility and generator power sources. It can also be set up for single-phase operation. The ATC-100 provides the necessary intelligence to ensure that the transfer switch operates properly through a series of selectable sensing and timing functions.
Technical Summary
Rating Range
120 to 480V, single phase and three phase @ 50/60 Hz
Transfer Type
Switch application dependent
Switch Type
Switch application dependent
ATC Controller Specifications
Input Control Voltage
95 to 145 Vac 50/60 Hz
Voltage Measurements of Utility
VAB generator VAB
VBC generator VBC
VCA generator VCA
VBC generator VBC
VCA generator VCA
Voltage Measurement Range
0 to 575 Vac rms (50/60 Hz)
Voltage Measurement Accuracy
± 1% of full scale
Frequency Measurements Of
Generator
Frequency Measurement Range
40 Hz to 70 Hz
Frequency Measurement Accuracy
±0.3 Hz over the measurement range
Undervoltage Dropout
80% of the nominal system voltage
Undervoltage Pickup
90% of the nominal system voltage
Underfrequency Dropout Range
90% of the nominal system frequency
Underfrequency Pickup Range
95% of the nominal system frequency
Overfrequency Dropout Range
115% of the nominal system frequency
Overfrequency Pickup Range
110% of the nominal system frequency
Operating Temperature Range
–20 to +70°C (–4 to +158°F)
Storage Temperature Range
–30 to +85°C (–22 to +185°F)
Operating Humidity
0 to 95% relative humidity (noncondensing)
Operating Environment
Resistant to ammonia, methane, nitrogen, hydrogen and hydrocarbons
Generator Start Relay
5A, 1/6 hp @ 250 Vac Vac 5A @ 30 Vdc with a 150W maximum load
K1, K2 Relays
10A, 1–3 hp @ 250 Vac
10A@30 Vdc
Applicable Testing
UL-recognized component
UL 1008, UL 991 Environmental IEC 61000-4-2, 61000-4-3, 61000-4-4,
UL 1008, UL 991 Environmental IEC 61000-4-2, 61000-4-3, 61000-4-4,
Applicable Testing Continued
61000-4-5, 61000-4-6, 61000-4-11
CISPR 11, Class B
FCC Part 15, Class B
CSS 22.2-178
CISPR 11, Class B
FCC Part 15, Class B
CSS 22.2-178
Enclosure Compatibility
NEMA 1, NEMA 3R and NEMA 12
UV-resistant ATC-100 faceplate
UV-resistant ATC-100 faceplate
Technical Summary
Rating Range
120 to 480V, single phase and three phase @ 50/60 Hz
Transfer Type
Switch application dependent
Switch Type
Switch application dependent
ATC Controller Specifications
Enclosure Compatibility
NEMA 1, NEMA 3R and NEMA 12
UV-resistant ATC-100 faceplate
UV-resistant ATC-100 faceplate
Features
Performance Features
- Source 1 sensing:
- Undervoltage / underfrequency
- Overfrequency
- Source 2 sensing:
- Undervoltage / Overfrequency
- Controller settings via jumpers located at the rear of the unit

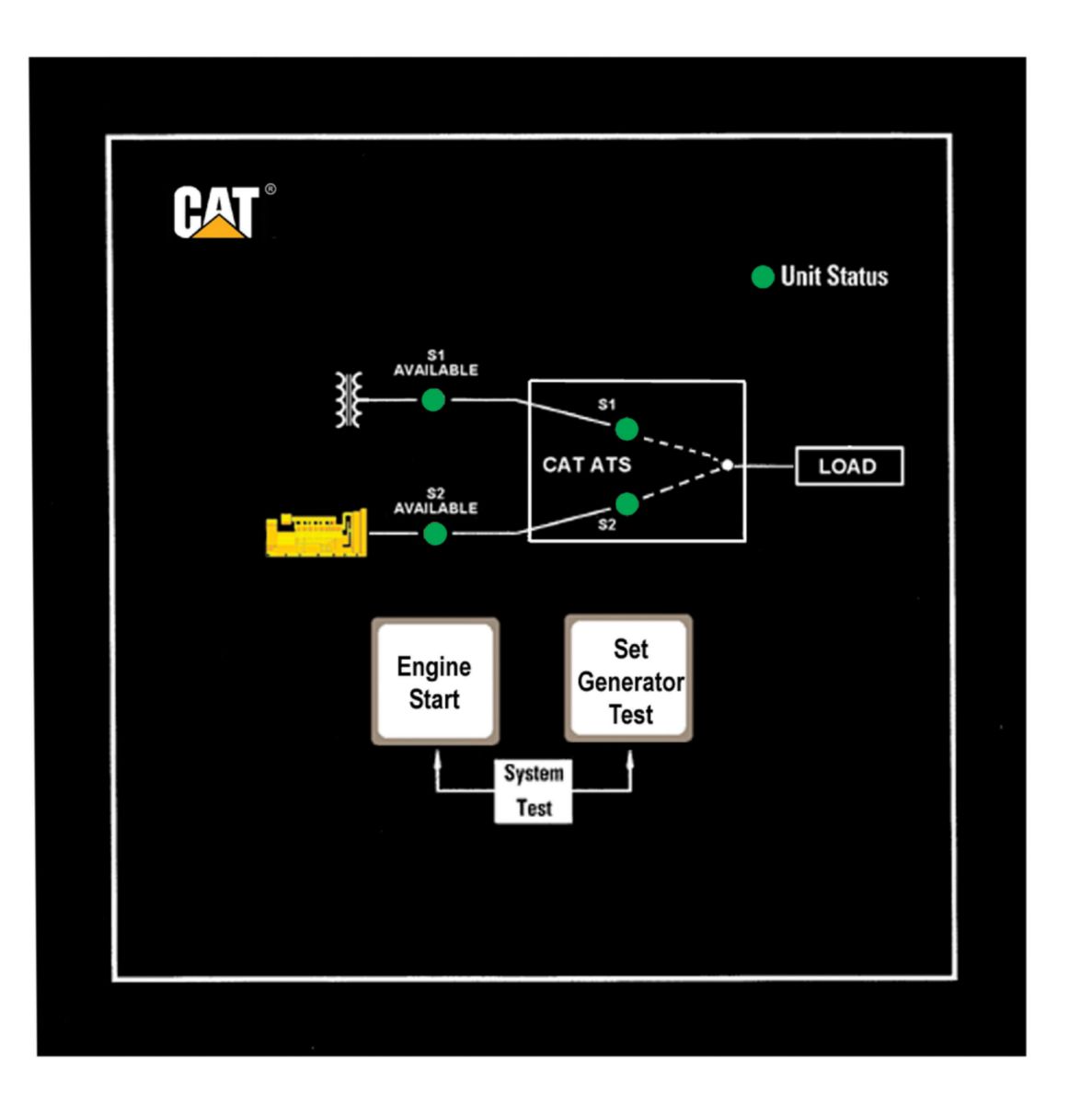

- Mimic diagram with source available and connected LED indication
- System test pushbutton
- Plant Exerciser - Selectable day, off, 7, 14 or 28 day intervals with fixed 15 minute run time
- Monitor utility and generator power source voltages and generator power source frequency
- Provides undervoltage protection of the utility and generator power sources
- Provides underfrequency and overfrequency protection of the generator power source
- Permits easy customer setup
- Permits system testing
- In-phase transition
