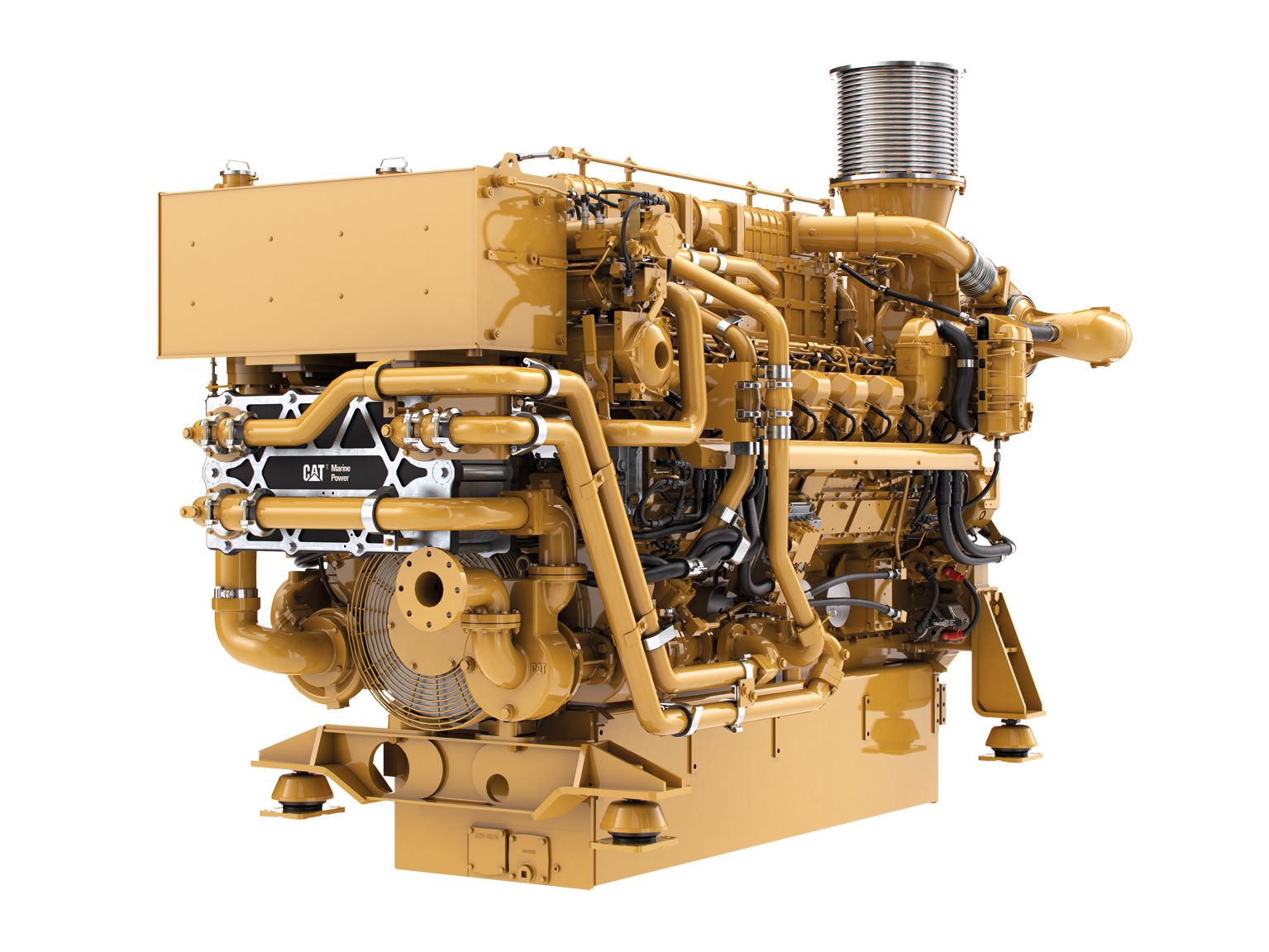

3516E Marine Auxiliary Engine (U.S. EPA Tier 4 Final)

US
Metric

Overview

The 3516E marine auxiliary engine is now available in a wide range of ratings that meet U.S. EPA Tier 4 Final and IMO III marine emissions regulations. As the commercial marine industry adjusts their operations to meet EPA Tier 4 and IMO III emissions standards, Caterpillar Marine has introduced a solution built to maximize performance while meeting regulations. Caterpillar's combination of a fuel-efficiency-optimized engine and a selective catalytic reduction (SCR) aftertreatment system is a solution that not only reduces NOx emissions, but can also lower a customer's owning and operating costs in the process.

Power Rating

Power Range
787-3175 bhp (587-2368 bkW)

Engine Specifications

Configuration
Vee 16, 4-Stroke-Cycle Diesel
Aspiration
TA
Bore
6.69 in
170.00 mm
Stroke
8.46 in
215.00 mm
Displacement
4765.00 in3
78.00 L
Rotation from Flywheel End
Counterclockwise
Emissions
U.S. EPA Tier 4 Final, IMO III

Dimensions & Weights

Length
146.60 in
3724.00 mm
Minimum Width
72.80 in
1850.00 mm
Maximum Width
87.90 in
2230.00 mm
Height
90.90 in
2309.00 mm
Dry Weight
22060.00 lb
10006.00 kg
945-1122 kg (2083-2474 lbs)

Power Rating

Power Range
787-3175 bhp (587-2368 bkW)

Engine Specifications

Aspiration
TA
Emissions
U.S. EPA Tier 4 Final, IMO III
Bore
6.69 in
170.00 mm
Displacement
4765.00 in³
78.00 l
Stroke
8.46 in
215.00 mm

Dimensions & Weights

Dry Weight
22060.00 lb
10006.00 kg
Minimum Width
72.80 in
1850.00 mm
Maximum Width
87.90 in
2230.00 mm
Features

Emissions

Utilizes SCR Technology to enable U.S. EPA Tier 4 Final emission regulations compliance while lowering operational costs, IMO III emissions compliant

Utilizes closed loop air assisted DEF dosing control strategy

Highest efficiency mixing and control to lower operational costs, extends emissions useful life, ensures compliance, flexibility regarding urea quality

Advanced Engine Combustion Design

Advanced engine combustion design process utilizing optimum configurations and cylinder geometry for maximum engine efficiency

Enhanced control of fuel injection

Enhanced control of fuel injection optimized through crank timing and the latest A5 ECM technology

Enhanced Fuel Delivery

Optimal fuel injector nozzle geometry and electronic injection control for improved fuel delivery

Increased Durability and Higher Engine Duty Cycle Capability

Strengthened cylinder heads and valves for increased durability and peak cylinder pressure capability resulting in higher engine duty cycle capability

Caterpillar Warranty

Industry-leading warranty coverage for factory packaged components

Global Dealer Network

No matter where or when, our extensive global dealer network is ready to provide support

Standard Equipment
  • Air Inlet System
    • Corrosion-resistant aftercooler core
  • Control System
    • Dual A5 engine control modules with electronic unit injection and low pressure fuel system
  • Cooling System
    • Auxiliary fresh water pump
    • Gear Driven, centrifugal jacket water pump with 40% more capacity
  • Exhaust System
    • Dual turbochargers with water-cooled bearings and heat shields
  • Fuel System
    • Duplex Fuel and Oil Filtration
  • General
    • Vibration damper and guard
    • Meets SOLAS regulations
Optional Equipment
  • Plate-type heat exchanger with integrated SCAC and JW Water expansion tanks
  • Special appearance packages with chrome covers
  • Marine society certifications
  • Power take-off
  • Certified marine alarm and protection safety system
  • Standard instrument panel with color touchscreen display
  • Mounting rails and trunnion mount options
  • Engine mounted fuel cooler (SCAC Water Cooled)
  • Sea water pump with 25% more capacity for cooling auxiliary vessel equipment
  • Closed crank case ventilation
