Cat Electric Drive Motors for Gas Compression

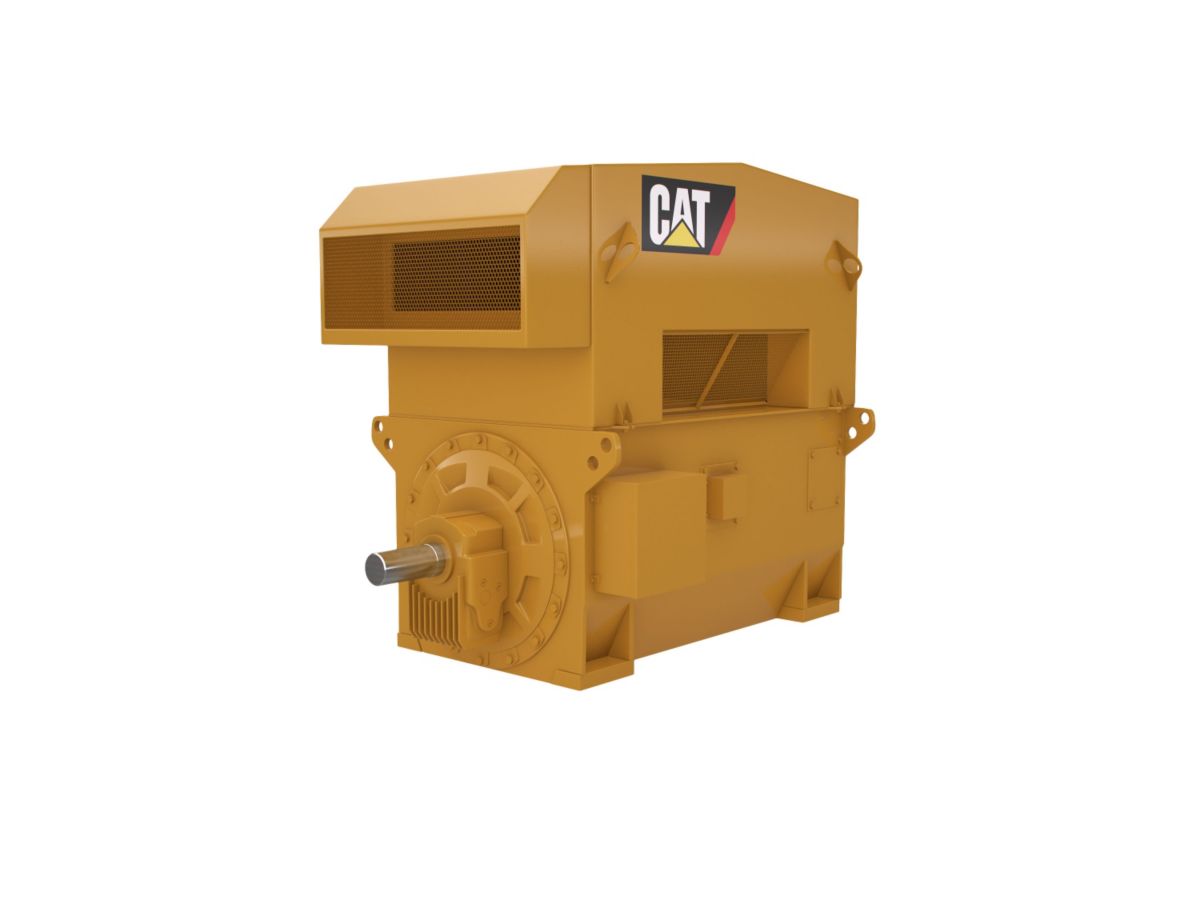

CN1566 Electric Motor

Request A Quote
CN1566
US
Metric

Overview

Get power built for your most demanding gas compression applications. Every Cat® electric motor is tested at each stage of production to make sure it performs reliably under load and according to your process requirements. High operating efficiency and low operating costs come with low noise levels and no emissions. Cat electric motors for gas compression are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.

Electric Motor Specifications

Electric Motor Type
Squirrel Cage Induction Motor
Number of Poles
6.00
6.00
Full Load Speed
1189.00 r/min
1189.00 r/min
Voltage/Frequency
4000V ± 10%/60 Hz
Type of EX-Protection
Class 1 Division 2 Group A,B,C,D T3 (NEC or CEC)
Mounting Designation
F1 or F2
Enclosure Type/Method of Cooling
WP-II
Insulation
Class F
Service Factor
1.15 SF (1.0 VFD)
Standards
NEMA MG1
Maximum Ambient Temperature
104.00 °F
40.00 °C
Maximum Altitude - Before Derate
3000.00 ft
1000.00 m
Duty
Continuous
Temperature Rise
Class B at rated load
Connection of Stator Winding
Star
Full Load Current
202 Amps
Locked Rotor Amps
500% Code E
Locked Rotor Torque
60%
No Load Current
67 Amps
Rated Torque
6625.00 lb/ft
8982.00 N·m
Shaft
5.10 in
130.00 mm
Standard Equipment
  • Bearings
    • Bearing RTDs for temperature monitoring
    • Insulated non-drive end bearings to reduce bearing currents
    • Anti-friction on 1500 hp (optional)
  • Rotors
    • Designed for minimal vibration
    • Dynamic balancing at full operational speed
    • Fabricated copper squirrel cages
    • Oversized, forged, keyless shaft
    • AISI 4140/DIN42CrMo4 shaft
  • Stators
    • Radial air ducts ensure uniform and efficient cooling
    • Vacuum pressure impregnated with specially formulated epoxy resin
    • 2X RTDS per Phase
    • Space heater
    • Welded and machined stator core retains its rigidity throughout motor life to ensure a sealed and homogeneous insulation system that results in high dielectric strength, excellent heat transfer and the elimination of hazardous internal partial discharges
Optional Equipment
  • Oversized Terminal Box
  • Surge Protection
  • Differential CTs
  • Differential Pressure Switch
  • Oil Sump Heater and Controller
  • Star Point Convection in Terminal Box
  • Blower Motor Cooling
  • Right-hand or Left-hand (F1 or F2) Main Terminal Box Location
