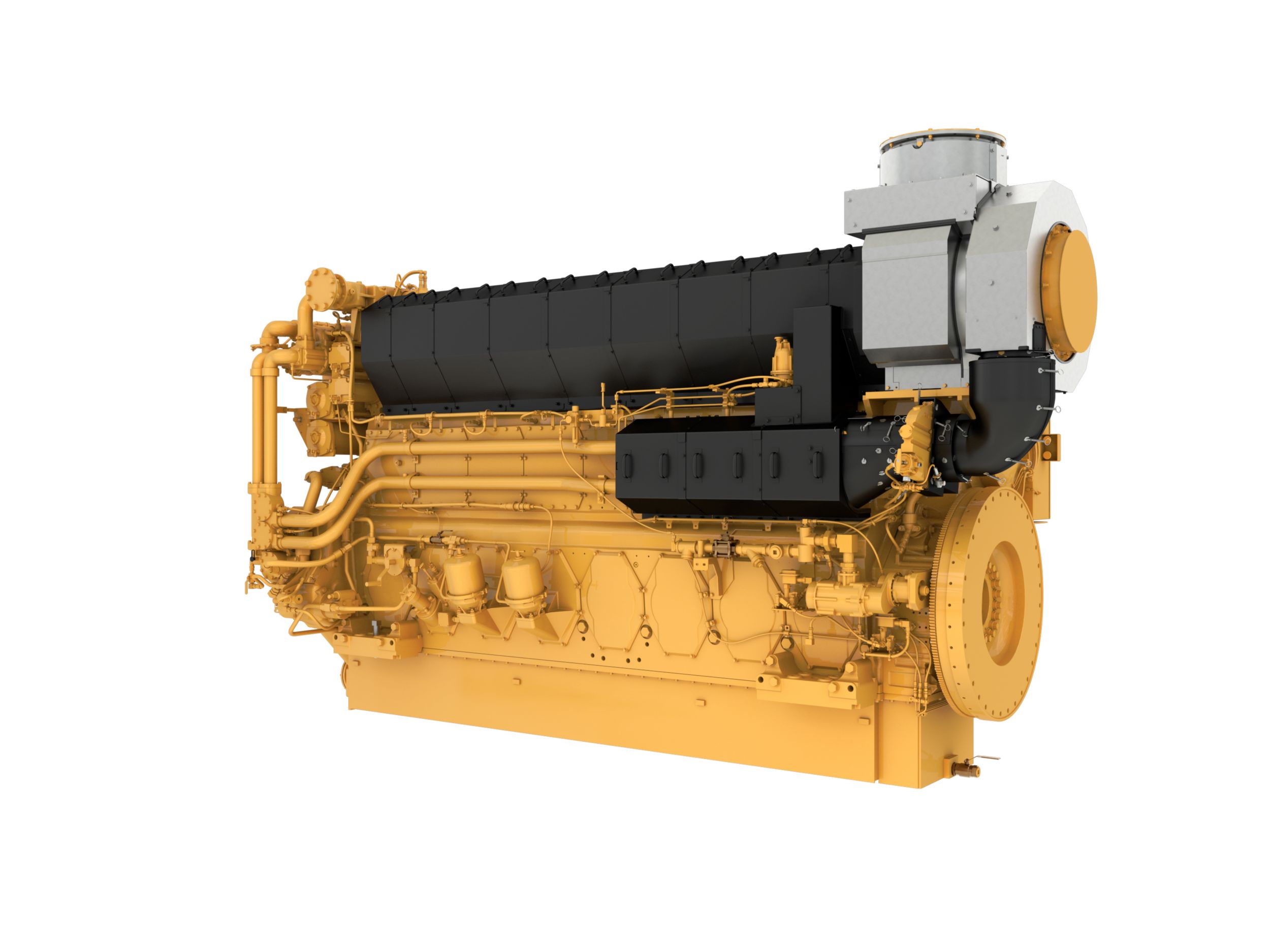

Cat C280-8 Propulsion Engine

Request A Quote
US
Metric

Overview

Building on the durability and reliability of the C280 engine platform, Caterpillar is pleased to offer the C280-8 engine line. The core components are the same as the existing C280, including the latest in EUI fuel system capabilities and state-of-the-art ADEM™ A3 Electronic Control Unit (ECU) features. Caterpillar® products continue to deliver more available power while delivering outstanding fuel efficiency. You can also count on long maintenance intervals and worldwide Caterpillar parts and service availability. All C280-8 engines ratings are IMO II compliant. Engines rated at 2460 bkW and 2710 bkW, with aftertreatment, are IMO III/EPA Tier 4 compliant.

Power Rating

Power Range
3084-3393 bhp (2300-2530 bkW)

Engine Specifications

Speed Range
900 rpm
Configuration
In-line 8, 4-Stroke-Cycle Diesel
Aspiration
TA
Bore
11.00 in
280.00 mm
Stroke
11.80 in
300.00 mm
Displacement
9031.00 in3
148.00 L
Rotation from Flywheel End
Counterclockwise or clockwise
Emissions
IMO II

Dimensions & Weights

Length
195.00 in
4953.00 mm
Width
71.00 in
1803.00 mm
Height
104.00 in
2642.00 mm
Dry Weight
41800.00 lb
19000.00 kg

Power Rating

Power Range
3084-4023 bhp (2300-3000 bkW)

Engine Specifications

Speed Range
900 - 1000 rpm
Emissions
IMO II, IMO III/EPA Tier 4
Aspiration
TA
Bore
11.00 in
280.00 mm
Stroke
11.80 in
300.00 mm
Displacement
9031.00 in³
148.00 l

Dimensions & Weights

Dry Weight
41800.00 lb
19000.00 kg

Engine Specifications

Configuration
In-line 8, 4-Stroke-Cycle Diesel
Application
Workboat
Features

A3 ECU

• CAN J1939 data link • Waterproof connectors • Maintenance-free • Backup ECU for redundant governing

Electronic Advantages:

• Load feedback • Programmable droop • Adjustable gain • Adjustable fuel/air ratio control • Histograms of engine operation • Cat Messenger display presents diagnostics and other engine parameters

Data Advantages through J1939 Link:

• Engine speed • Boost pressure • Throttle position • Fuel consumption rate • Inlet manifold temperature • Diagnostic codes and events • Configuration • Desired engine speed • Battery voltage • Engine load • Lifetime totals — engine hours, fuel burned, idle fuel, idle hours • Trip totals — average fuel rate, idle fuel, idle hours, engine hours, fuel burned, trip reset

Customer Interface Panel

• Interfaces with standard Cat® Marine Monitoring System (PLC in Price List) • Provides visual indication of ECU functionality • Accepts 4 — 20 mA or PWM remote throttle speed input • Marine alarm and protection

Electronic Unit Injectors

• “Drop-in” installation • No threaded fuel connections • High pressure inside injector only • Does not require double wall fuel lines or leak collection device • Injector synchronization not required

Standard Equipment
  • General
    • LH and RH service availability
  • Air Inlet System
    • Aftercooler, fresh water, corrosion resistant coated (air side)
    • Crankcase breathers, top mounted
    • Single turbocharger, rear-mounted, engine oil lubricated
    • Air inlet adapter - Straight / 90 degree / 35 degree
  • Control System
    • Dual Caterpillar ADEM A4 Electronic Engine Control Modules
    • Rigid Wiring Harness
    • Aftercooler/oil cooler and jacket water pumps (gear driven)
  • Cooling System
    • Engine coolant water drains
    • Single Circuit / Separate Circuit Aftercooler
  • Exhaurt System
    • Dry, gas tight, exhaust manifold
  • Exhaust System
    • Turbo speed sensors - overspeed protection
  • Fuel System
    • Fuel transfer pump, gear driven
    • Duplex Fuel filters
    • Electronically Controlled Unit Injectors
  • Instrumentation
    • CAT Alarm & Protection System
  • Lube System
    • Oil pump, gear driven
  • Lube Systems
    • 2 element oil cooler, engine mounted
    • Duplex centrifugal oil filter - engine mounted
    • Prelube pump - air / electric
  • Protection System
    • Crankcase explosion relief valves
Optional Equipment
  • Exhaust System
    • Exhaust manifold shielding - soft
  • Cooling System
    • Jacket Water Heaters
  • Fuel System
    • SOLAS shielding
  • Lube System
    • Front and rear oil pan drains
    • Wet sump
    • SOLAS shielding
  • Protection System
    • Oil mist detector
    • Cylinder pressure relief valves
    • Cylinder pressure relief valves
