Overview

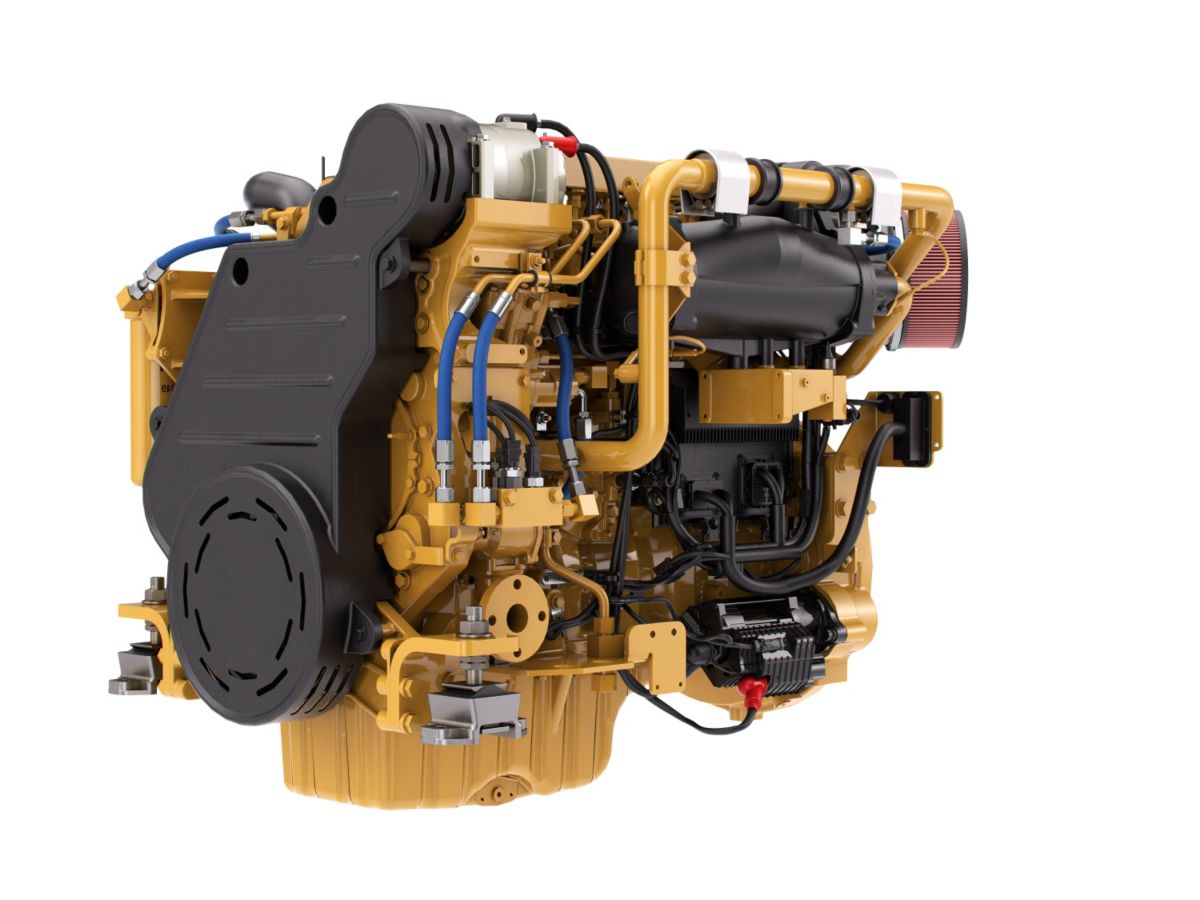

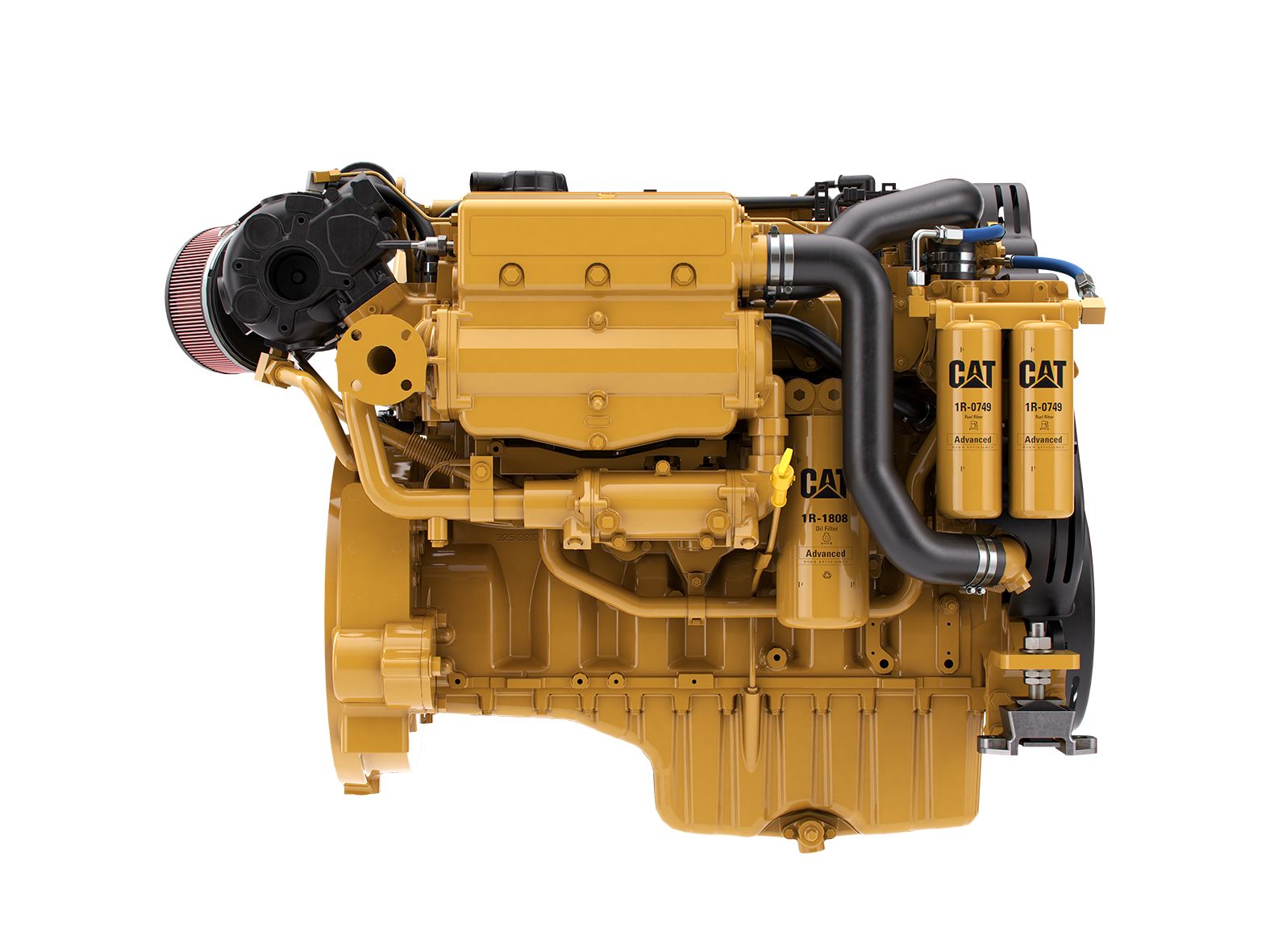

The C9.3 ACERT propulsion engine has a B rating of 375 bhp (280 bkW) at 1800 rpm, a C rating of 416 bhp (310 bkW) at 2100 rpm, and a D rating of 476 bhp (355 bkW) at 2300 rpm. The C9.3 propulsion, auxiliary, and generator set engines have a common rail fuel system for optimal combustion and lower emissions. Cooling system options for the propulsion and auxiliary engines include heat exchanger with sea water aftercooling, and keel with combined circuit or separate circuit aftercooling. The genset packages are available with heat exchanger, keel, or radiator cooling. These products are EPA Tier 3 and IMO II certified. In addition the propulsionengine ratings are EU Stage IIIA certified and auxiliary and gen sets are also CCNR Stage II certified.

Power Rating

Power Range
375-476 bhp (280-355 bkW)

Engine Specifications

Speed Range
1800-2300 rpm
Configuration
In-line 6, 4-Stroke-Cycle Diesel
Aspiration
TA
Bore
4.53 in
115.00 mm
Stroke
5.87 in
149.00 mm
Displacement
568.00 in3
9.30 L
Rotation from Flywheel End
Counterclockwise
Emissions
EPA Tier 3 Commercial, IMO II, EU IW

Dimensions & Weights

Length of Engine
57.20 in
1452.00 mm
Width of Engine
38.50 in
978.00 mm
Height
43.00 in
1093.00 mm
Engine Dry Weight (approx.)
945-1122 kg (2083-2474 lbs)

Power Rating

Power Range
375-476 bhp (280-355 bkW)

Engine Specifications

Speed Range
1800-2300 rpm
Emissions
EPA Tier 3 Commercial, IMO II, EU IW
Aspiration
TA
Bore
4.53 in
115.00 mm
Stroke
5.87 in
149.00 mm
Displacement
568.00 in³
9.30 l

Dimensions & Weights

Engine Dry Weight - Approximate
945-1122 kg (2083-2474 lbs)
Length - Engine
57.20 in
1452.00 mm
Width - Engine
38.50 in
978.00 mm
Features

Electronic Control System

Electronic control system provides industry-leading torque and throttle response at low speeds, while maintaining fuel efficiency at high speeds

Fuel System

Common rail fuel system enables optimum combustion and low emissions

Superior Serviceability

RH and LH locations for fuel and oil filters and dipstick improves serviceability

Displays

Compatible with Cat® displays and available remote-mounted display panel with start, stop, and engine diagnostics

Electrical System

12V or 24V electrical system

Marine Certifications

Marine classifi cation society certifi cates: ABS, BV, CCS, CRS, DNV, GL, IRS, KR, LR, NK, PRS, RINA, RS

Standard Equipment
  • Watercooled turbocharger and exhaust manifold
  • Electronic control system
  • Thermostats and housing
  • Gear-driven sea water pump (self-priming)
  • Common rail fuel system
  • Shell and tube type jacket water heat exchanger
  • Corrosion-resistant sea water aftercooler
  • Engine oil cooler
  • Vibration damper and guard
  • Primary fuel filters
Optional Equipment
  • Dual starting motors
    • 24V electric and air
    • 24V electric (2)
