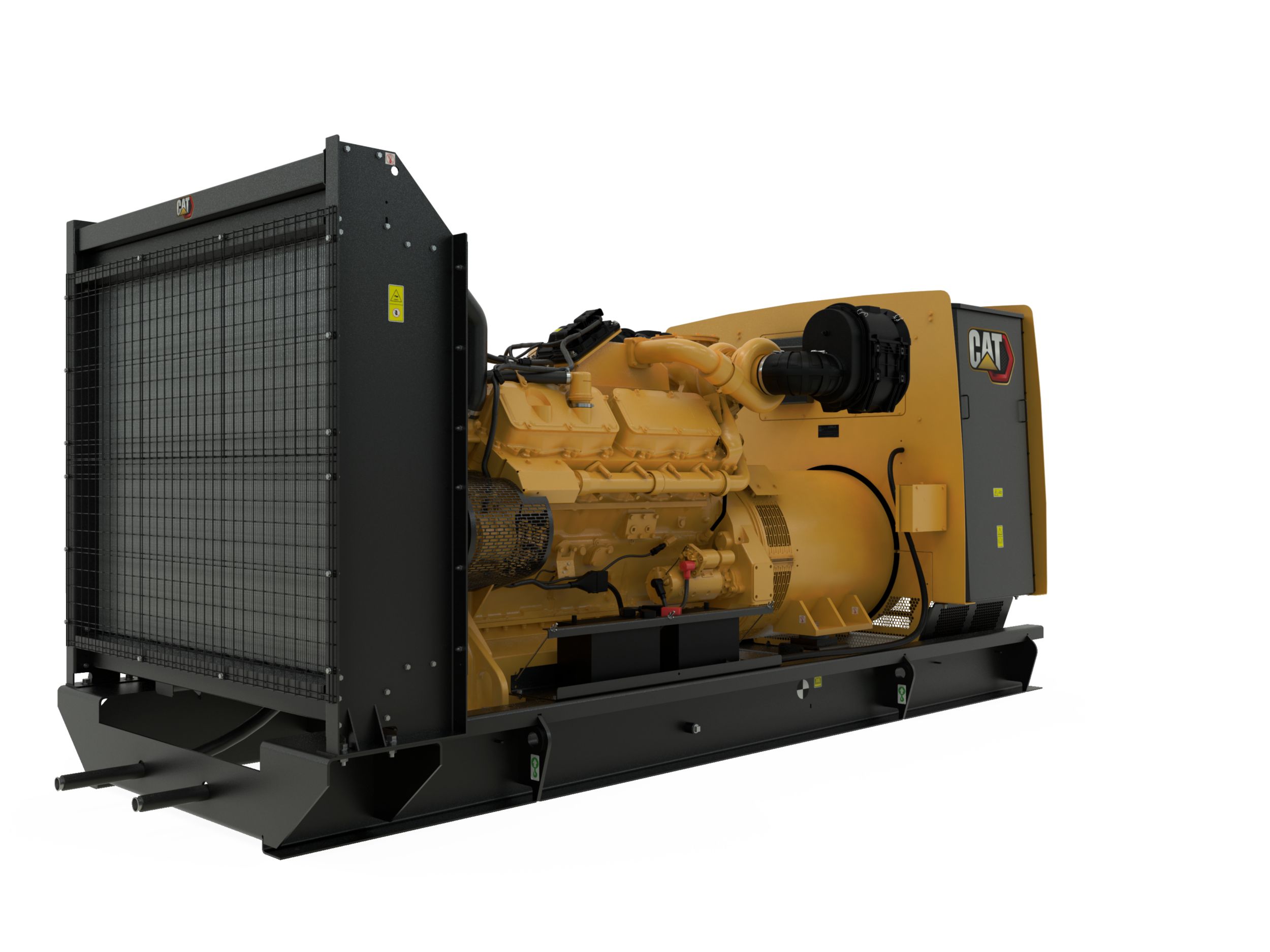

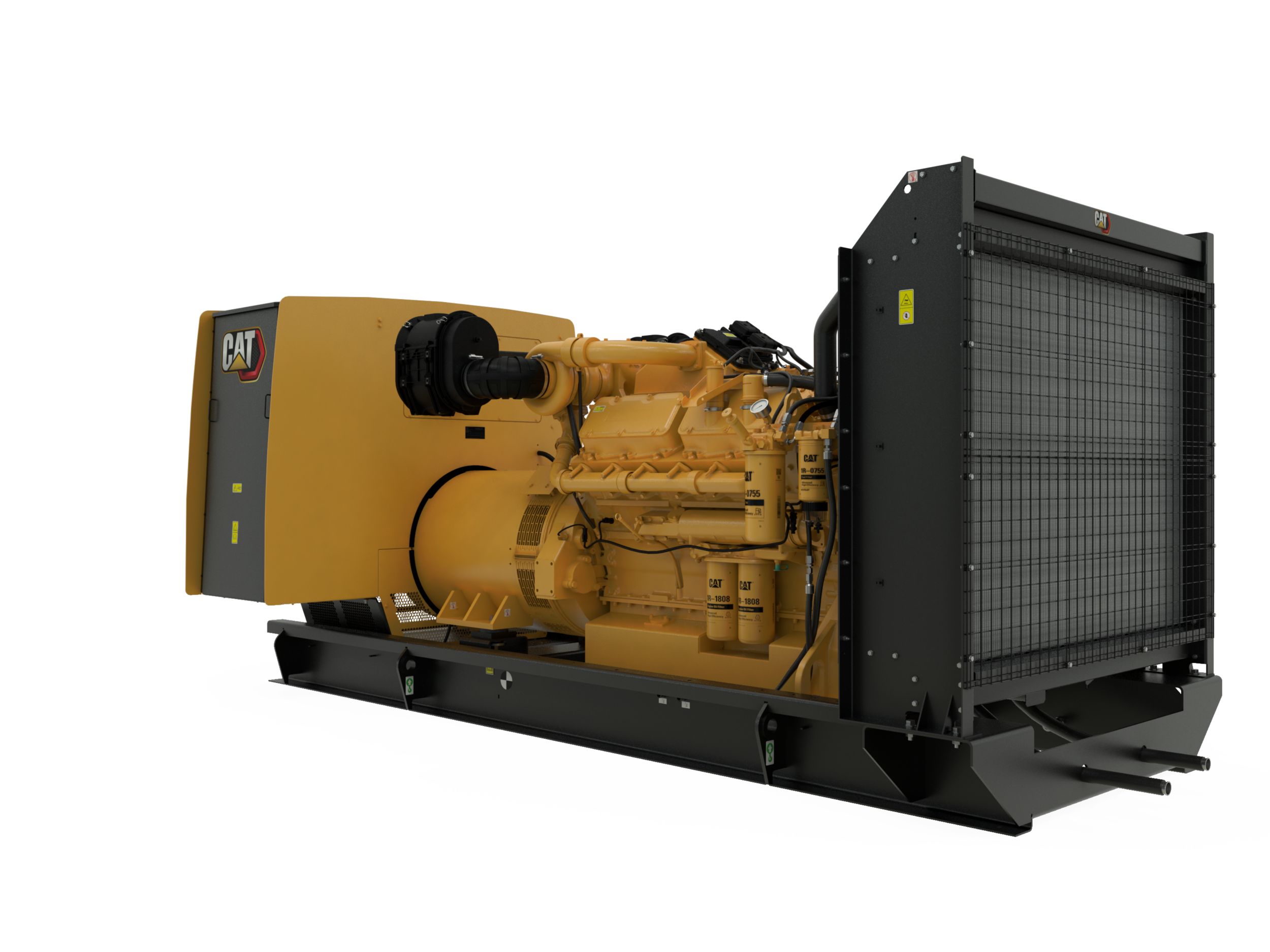

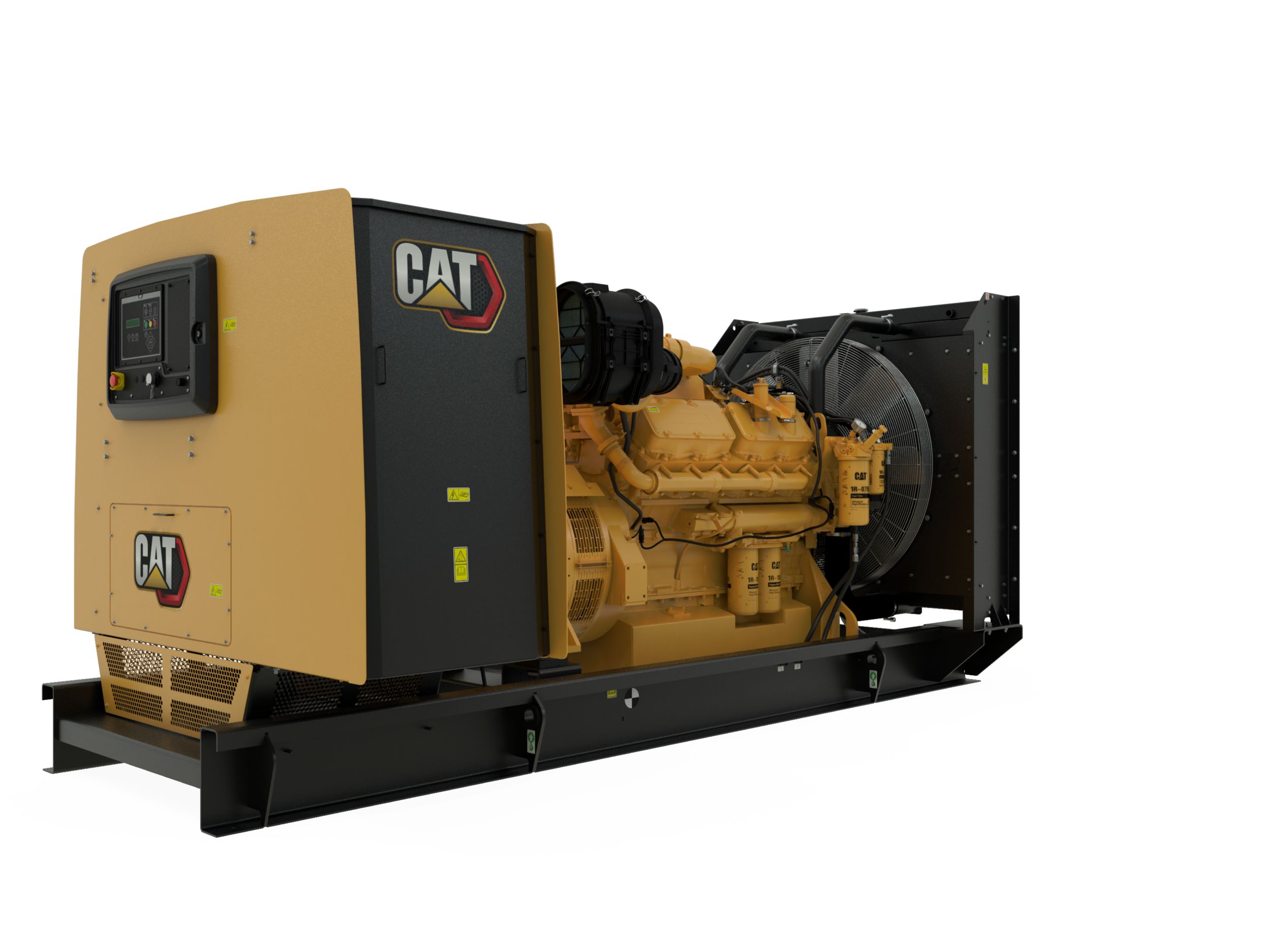

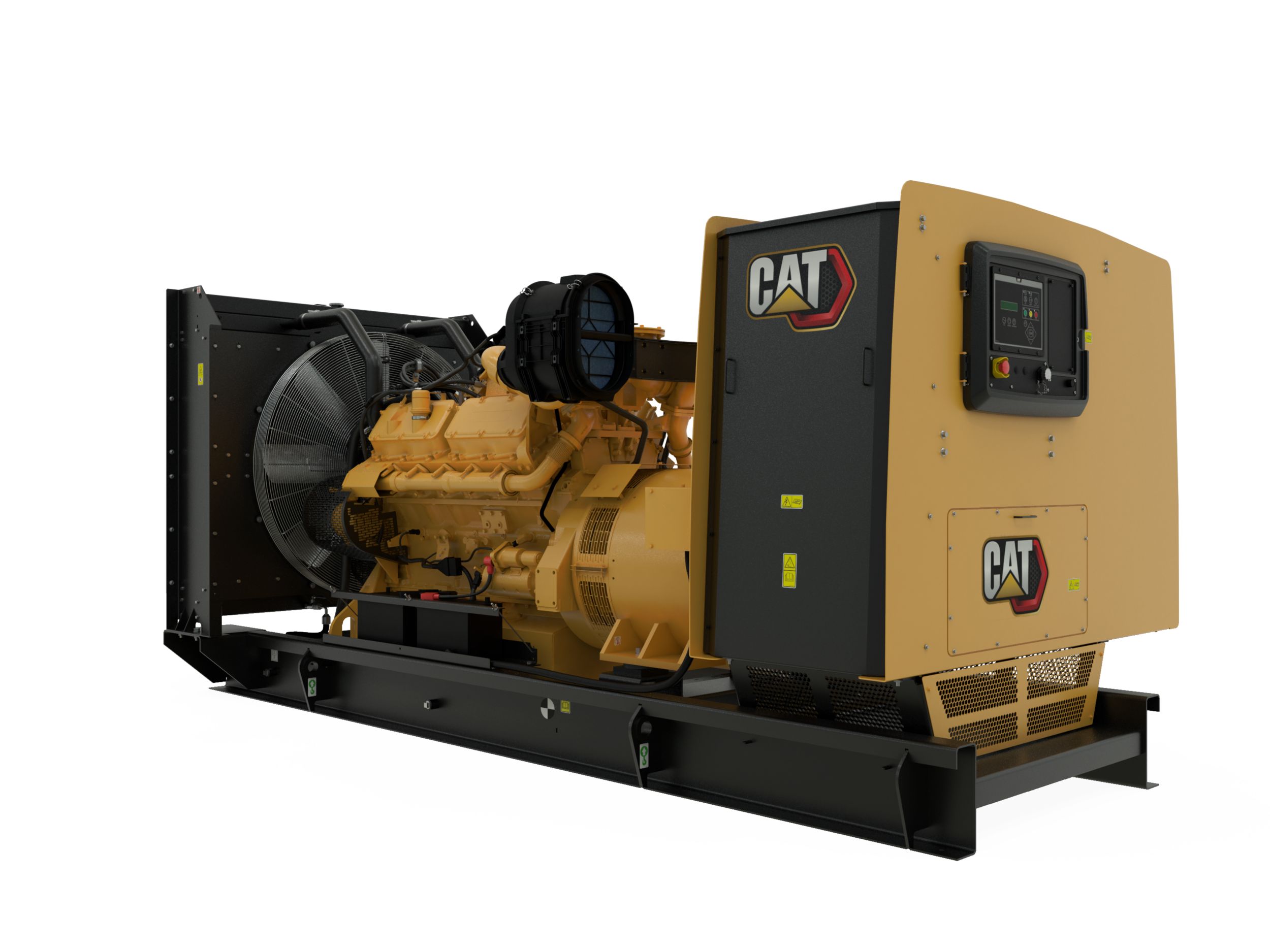

3412C | 750 ekW 60 Hz Generator Set
US
Metric
Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Generator Set Specifications
Standby Rating
750 ekW
Prime Power Rating
680 ekW
Emissions/Fuel Strategy
Low BSFC
Voltage
220 to 480 Volts
Frequency
60 Hz
Speed
1800 rpm
Duty Cycle
Standby, Prime
Engine Specifications
Engine Model
3412C TA, V-12, 4-Stroke Water-Cooled Diesel
Bore
5.40 in
137.20 mm
Stroke
6.00 in
152.40 mm
Displacement
1648.86 in³
27.02 l
Compression Ratio
13:00:01
Aspiration
TA
Fuel System
Pump and Lines
Governor Type
ADEM™ A5
Generator Set Dimensions
Length - Maximum
162.40 in
4125.00 mm
Width - Maximum
78.30 in
1989.00 mm
Height - Maximum
75.00 in
1906.00 mm
Dry Weight - Genset (minimum)
5761.00 lb
12700.00 kg
Dry Weight - Genset (maximum)
13275.00 lb
6021.00 kg
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
SR500 Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP 4 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
One Safe Source
- Components used in the generator set are selected at the design stage to provide optimum package performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Standard Equipment
- Air Inlet System
- Air cleaner, single element canister type
- Single element canister type
- Control Panel
- Failure to start (overcrank)
- Emergency stop
- EMCP 4.2B
- Speed adjust
- Remote Serial annunciator
- Communications:
- Controls:
- Digital Indicator for:
- Engine cycle crank
- Voltage adjust
- Compatible with the following optional modules:
- Digital I/O module
- Overspeed
- Low coolant level
- Serial annunciator module data link
- Volts (L-L & L-N)
- Emergency stop pushbutton
- Generator temperature monitoring module
- Frequency (Hz)
- Run/auto/ stop/control
- DC volts
- High coolant temperature
- Oil pressure (psi, kPa or bar)
- Customer data link (Modbus RTU)
- RPM
- coolant temperature
- Amps (per phase & average)
- Operating hours.
- Local annunciator
- Low oil pressure
- Power factor (per phase & average)
- Remote CAN annunciator
- Low coolant temperature
- Accessory module data link
- Warning shutdowns:
- Cooling System
- Coolant drain line with valve
- Caterpillar extended life coolant
- Fan and belt guards
- Radiator with guard (sized for 50 degrees C)
- Exhaust System
- Stainless steel exhaust flex with ANSI style outlet flange
- Fuel System
- Primary and Secondary fuel filters
- Water separator
- Fuel priming pump
- Generator and Attachments
- 3 Phase sensing
- Class H insulation
- Busbar termination
- 12 Leads
- SR4B self excited
- Reactive droop
- Class F temperature rise
- VR6B voltage regulator
- 2:1 Volts/Hz
- Governing System
- Cat electronic governor
- Lube System
- Oil drain line with valve
- Oil filter
- Lubricating oil
- Mounting System
- Base, formed steel with linear vibration isolators between base and engine-generator
- Starting / Charging System
- 45 Amp Charging alternator
- Fuel shutoff solenoid
- 24 Volt starting motor
- Battery with rack, cables
- General
- Paint - Caterpillar yellow except rails and radiators gloss black
Optional Equipment
- Air Inlet System
- Air cleaner - single element
- Air cleaner - Dual element
- Air cleaner - Heavy element
- Certificates
- EU Certification
- Circuit breakers
- 3 Pole Circuit breakers with shunt trip
- Power terminal strip
- 4 Pole Circuit breakerswith shunt trip
- Control Panel
- Temperature monitoring package
- EMCP 4.3, EMCP 4.4
- Vandal proof panel door
- Common alarm/shutdown relay
- Generator running VFC
- Earth leakage Ground fault relay
- Cooling System
- Radiator removal
- Jacket water heater
- Radiator duct flange
- Exhaust System
- Through wall installation kit
- Manifold and turbocharger guards
- Muffler 35 dBA attenuation
- Muffler 10 dBA attenuation
- Elbow mounting kit
- Fuel System
- Automatic fuel transfer system
- Manual fuel transfer pump
- Generator and Attachments
- Oversize and premium generators
- Permanent magnet excitation (PMG)
- Anti-condensation heater
- Internal excitation (IE)
- Governing System
- Electronic load share
- Lube System
- Manual sump pump
- Mounting System
- Fuel tank base (1200 Ltr)
- Special Tests / Reports
- PGS Test report @ 1.0 power factor
- Factory witness test
- PGS Test report @ 0.8 power factor
- Starting / Charging system
- Battery chargers
- Oversize battery set
- Heavy duty starting system
- Battery disconnect switch
- Battery removal
- Enclosures
- DC lighting package
- Weather protective enclosure (WP)
- Sound attenuated enclosure (SA)
