Diesel Generator Sets

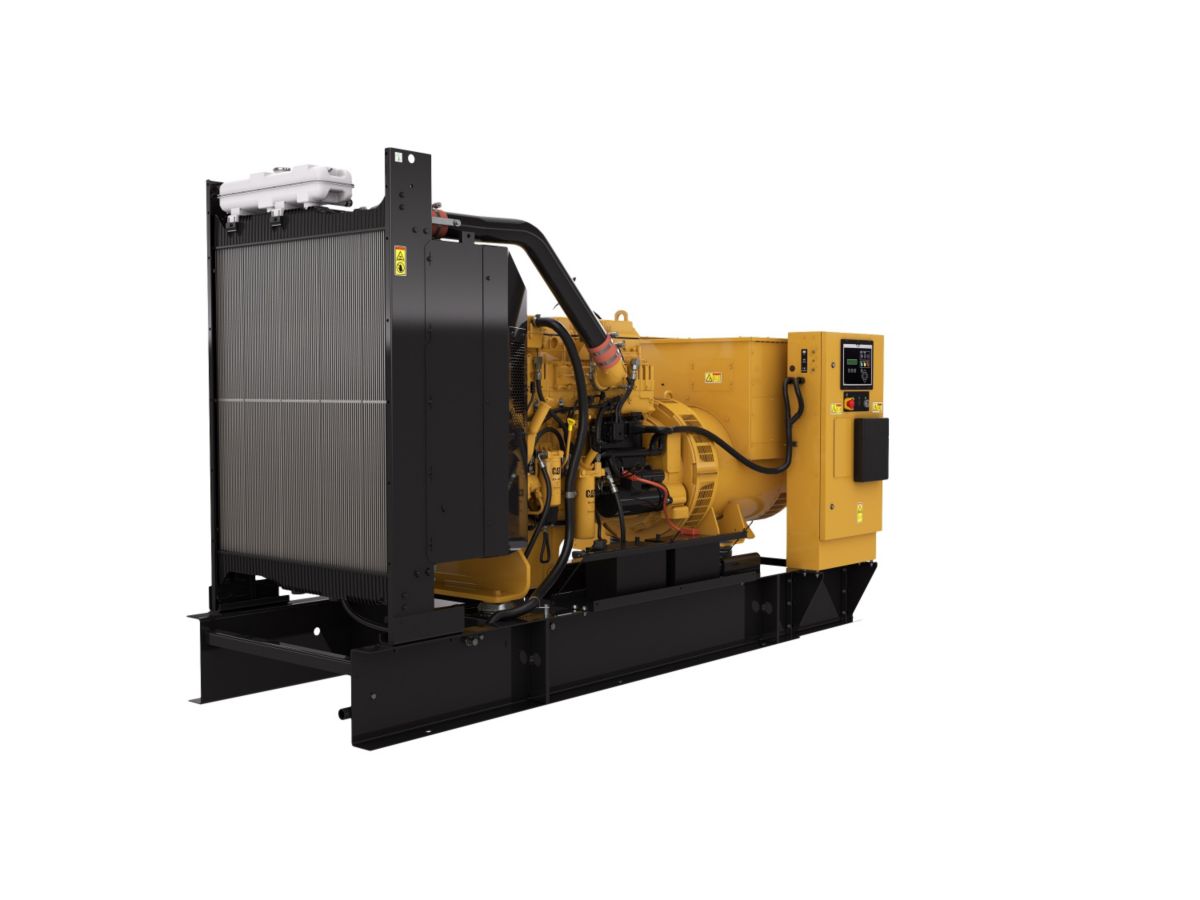

C13 Generator Set

Request A Quote
US
Metric

Overview

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Generator Set Specifications

Minimum Rating
320 ekW
Maximum Rating
400 ekW
Voltage
208 to 600 Volts
Frequency
60 Hz
Speed
1800 RPM

Generator Set Configurations

Emissions/Fuel Strategy
EPA Stationary Emergency Use

Engine Specifications

Engine Model
C13 ACERT In-line 6, 4-cycle diesel
Bore
5.12 in
130.00 mm
Displacement
763.00 in³
12.50 L
Stroke
6.20 in
157.00 mm
Compression Ratio
16.3:1
Aspiration
Turbocharged Air to Air Aftercooled
Governor Type
Adem™A4
Fuel System
MEUI
Features

Cat™ Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

    • Generator

  • Matched to the performance and output characteristics of Cat engines
  • Industry leading mechanical and electrical design
  • Industry leading motor starting capabilities
  • High Efficiency

    • Cat EMCP Control Panel

    The EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP4 is a scalable control platform designed to ensure reliable generator set operation, providing extensive information about power output and engine operation. EMCP4 systems can be further customized to meet your needs through programming and expansion modules.

    Design Criteria

    The generator set accepts 100% rated load in one step per NFPA 110 and meets ISO 8528-5 transient response.

    Single-Source Supplier

    Fully prototype tested with certified torsional vibration analysis available

    World Wide Product Support

    Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products

    Standard Equipment
    • Starting / Charging
      • 24-Volt electric starting motor
      • Charging alternator
    • Control System Controller
      • EMCP 4.2
    • Certification
      • EPA stationary emergency use
    • Base / Fuel Tank
      • Audio and visual fuel alarm
    • Protection
      • Safety Shutoff - High water temperature
      • Safety Shutoff - Low Oil Pressure
      • Safety Shutoff - Overspeed
      • Coolant Level Sensor
    Optional Equipment
    • Engine Air Cleaner
      • Single Element
      • Duel Element
      • Heavy Duty
    • Muffler
      • Industrial grade (10 dBA)
      • Residential and Critical grade (25 dBA)
    • Starting and Charging
      • Standard battery set
      • Oversize battery set
    • Control System Controller
      • EMCP 4.4
      • Local annunciator
      • Remote annunciator
      • Discrete I/O module
      • Device Server
      • Volt free contact
      • Earth (ground) fault relay
    • Generator
      • Excitation - Self
      • Excitation - Internal / AREP
      • Excitation - PMG
      • Oversize
      • Coastal protection (CIP)
      • Space heater control
      • Output Voltages
        • 600V
        • 480V
        • 240V
        • 220V
        • 208V
    • Power Termination
      • Power terminal strips
      • Circuit Breakers
        • 3-Pole 100% rated - Single (manual)
        • 3-Pole 100% rated - Single (motorised)
        • 3-Pole 100% rated - Dual (manual)
        • 3-Pole 100% rated - Third (manual)
        • External paralleling
        • Auxiliary contacts
        • Neutral bar

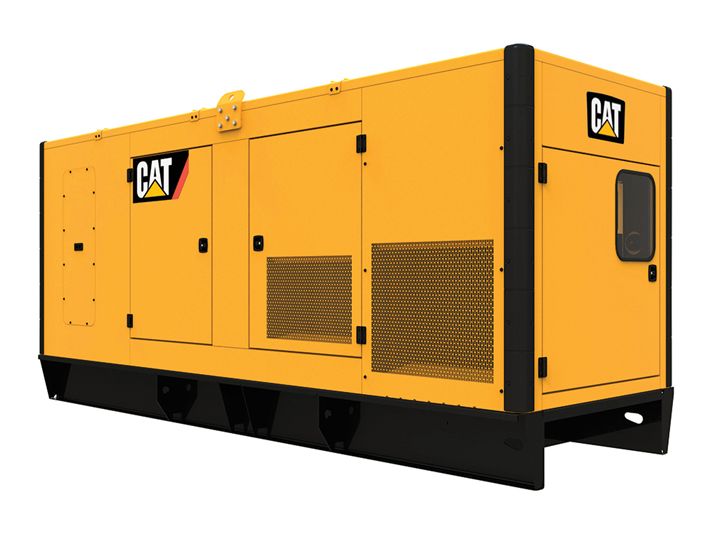

    • Enclosure
      • Weather protective
      • Sound attenuated
    • Certification
      • UL2200 listed
      • CSA 22.2
      • Certification of Compliance - IBC Seismic
      • Certification of Compliance - IBC Seismic and OSHPD
    • Extended Service Coverage
      • 2 Year
      • 3 Year
      • 4 Year
      • 5 Year
      • 10 Year
    • Base / Fuel Tank
      • Narrow skid
      • Wide / Standard
      • Sub tank base - UL and ULC listed
      • Integral tank base - UL AND ULC listed
      • Spill containment
      • Overfill prevention valve
