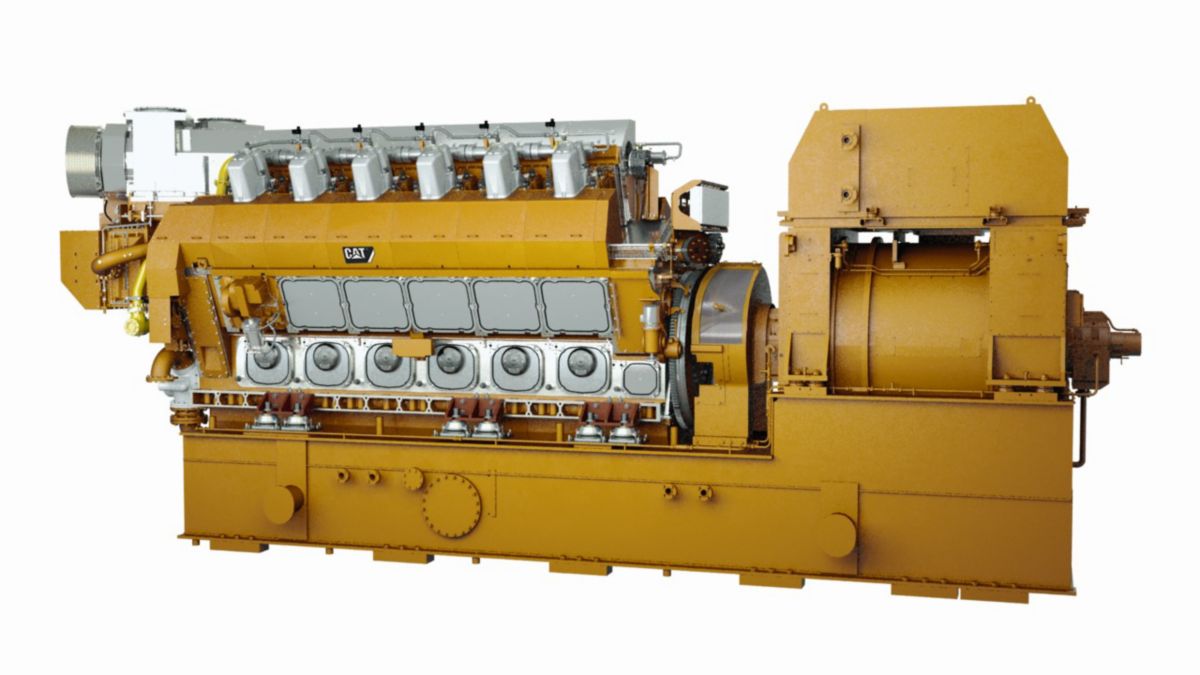

CM46DF (V-Type)
US
Metric
Overview
Caterpillar electric power stands for reliable energy supply. Especially during the energy system transformation, Cat generator sets close the energy gap caused by renewable energy source such as wind and photo voltaic. Short ramp up time, low operating costs and rapid maintenance times ensures a high availability according to the need of our customers. Combined heat /cool and power solutions allow our customers to maximize the efficiency and earnings paired with low emissions. Wherever power is needed around the globe, Caterpillar is able to support you with the best products and services to maximize your profit.
Generator Set Specifications
Genset Rating Range
10580 - 14110 kWe
Engine Specifications
Engine Rating Range
10800 - 14400 kW
Generator Set Specifications
Emission Level Up To
World bank emission certification (Stage 2)
Voltage
3000 to 13800 Volts
Engine Specifications
Engine Type
4-stroke-engine
Generator Set Specifications
Frequency At Speed
50 Hz @ 500 / 60 Hz @ 514
Engine Specifications
Configuration
12,16 cylinder
Fuel Type
Gas / diesel oil / heavy fuel oil (HFO) / crude oil
Generator Set Specifications
Aspiration
Turbocharged-aftercooled
Bore
18.11 in
460.00 mm
Stroke
24.02 in
610.00 mm
Engine Specifications
Specific Fuel Oil Consumption (WB I) Up To
0.41 Ib/kWh
184.00 g/kWh
Specific Fuel Oil Consumption (WB II) Up To
0.41 Ib/kWh
184.00 g/kWh
Specific Pilot Fuel Consumption (Only Dual Fuel) Up To
70.00
74.00
Specific Lube Oil Consumption
0.00 Ib/kWh
0.60 g/kWh
Specific Energy Consumption Up To
6893.00
7272.00
Generator Set Specifications
Normal Ramp Up To 100% Load
80 s
Emergency Ramp Up 10% To 100% Load
25 s
Engine Specifications
Mean Effective Pressure Up To
309.00 psi
21.30 bar
Generator Set Specifications
Genset Efficiency Up To
48.50%
Ready To Accept Loads (Preheated/Vented)
40 s
Engine Specifications
Swept Volume
6186.00 in³
101.40 l/cyl
Generator Set Dimensions
Length - Minimum
562.00 in
14280.00 mm
Length - Maximum
652.00 in
16565.00 mm
Width - Minimum
153.00 in
3890.00 mm
Width - Maximum
159.00 in
4027.00 mm
Height - Minimum
183.00 in
4659.00 mm
Height - Maximum
188.00 in
4773.00 mm
Dry Weight - Genset (minimum)
500449.00 lb
227.00 ton (US)
Dry Weight - Genset (maximum)
630521.00 lb
286.00 ton (US)
Generator Set Specifications
Minimum Rating
10580 kWe
Maximum Rating
14110 kWe
Emissions/Fuel Strategy
(WB) Cert stage 1 and 2
Duty Cycle
Prime, Continuous
Engine Specifications
Engine Model
CM46DF V-Type, 4-stroke-engine
Bore
18.11 in
460.00 mm
Stroke
24.02 in
610.00 mm
Aspiration
Turbocharged-aftercooled
Features
Reliable Operation
Control & Monitoring
Ease Of Installation
Ease Of Operation
Intelligent Simplicity
Ease Of Maintenance
Fuel
Emissions
Expertise & Experience
Standard Equipment
- Fuel System
- Ignition fuel oil module (only dual fuel (DF))
- Circulation module
- Separator module
- Pre-pressure module
- Engine ventilation module (only dual fuel (DF) and gas)
- Gas valve unit (GVU) (only dual fuel (DF) and gas)
- Lubricating Oil System
- Piping interface module
- Lube oil separator module
- Combined module: cooling water system and lube oil system
- Cooling Water System
- Combined module: see lube oil system
- Piping interface module
- Cooling water system with radiators
- Starting System
- Starting air compressor module
- Starting air receiver module
- Combustion Air System
- Air filter - pulse
- Air filter - pocket
- Air filter - oil bath
- Exhaust System
- Oxidation catalytic (Oxicat) converter system
- Exhaust gas ventilation module (only dual fuel (DF) and gas)
- Selective catalytic reduction (SCR) system
- Exhaust gas silencer
- Control & Monitoring System
- Motor control center module (MCC)
- Local control panel (LCP)
- Local data panel (LDP) / generator control panel (GCP)
- Gas leak detection per cylinder (only dual fuel (DF) and gas)
- Engine monitoring package
- Mounting System
- Elastic mounting - genset/engine
