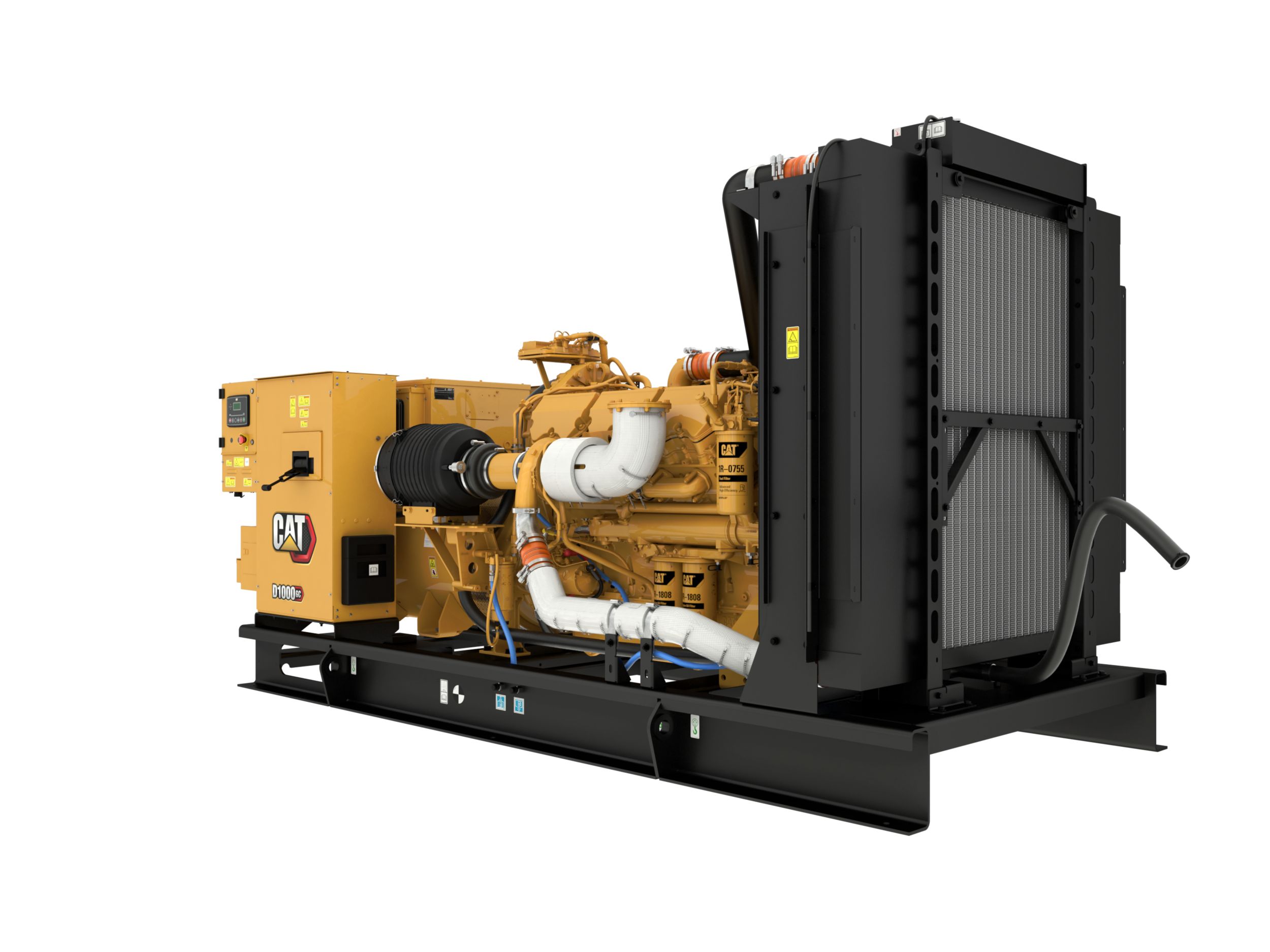

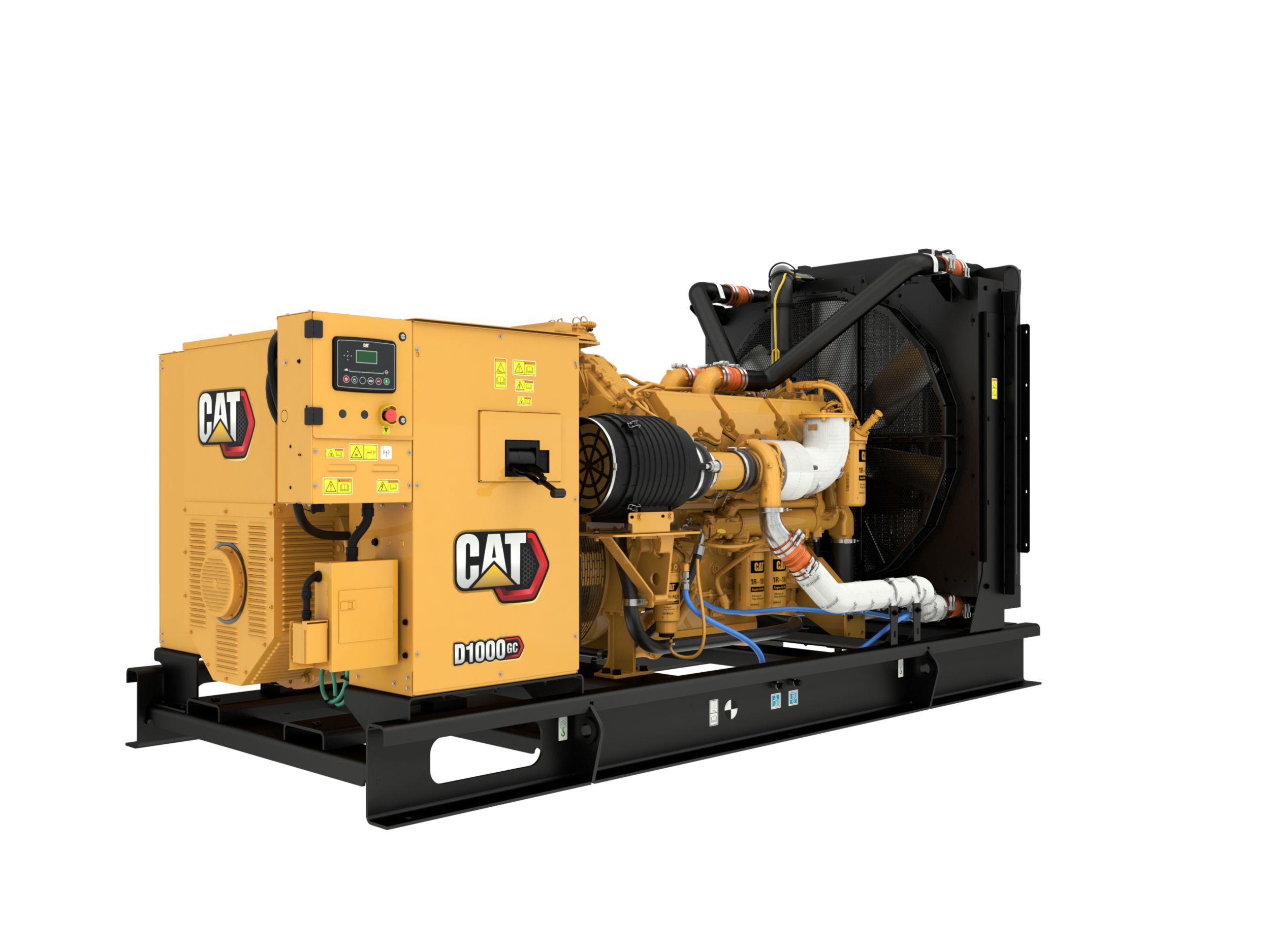

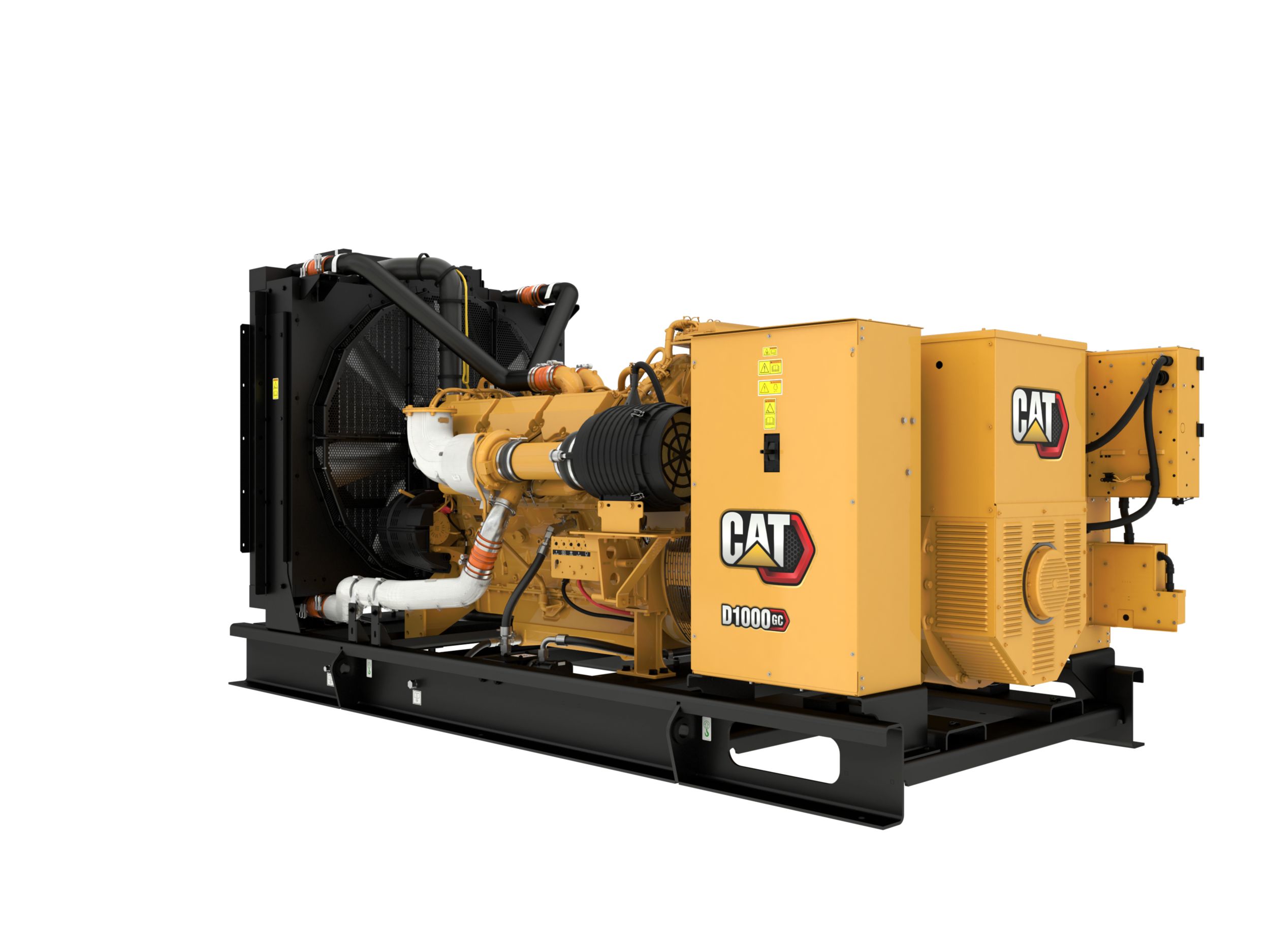

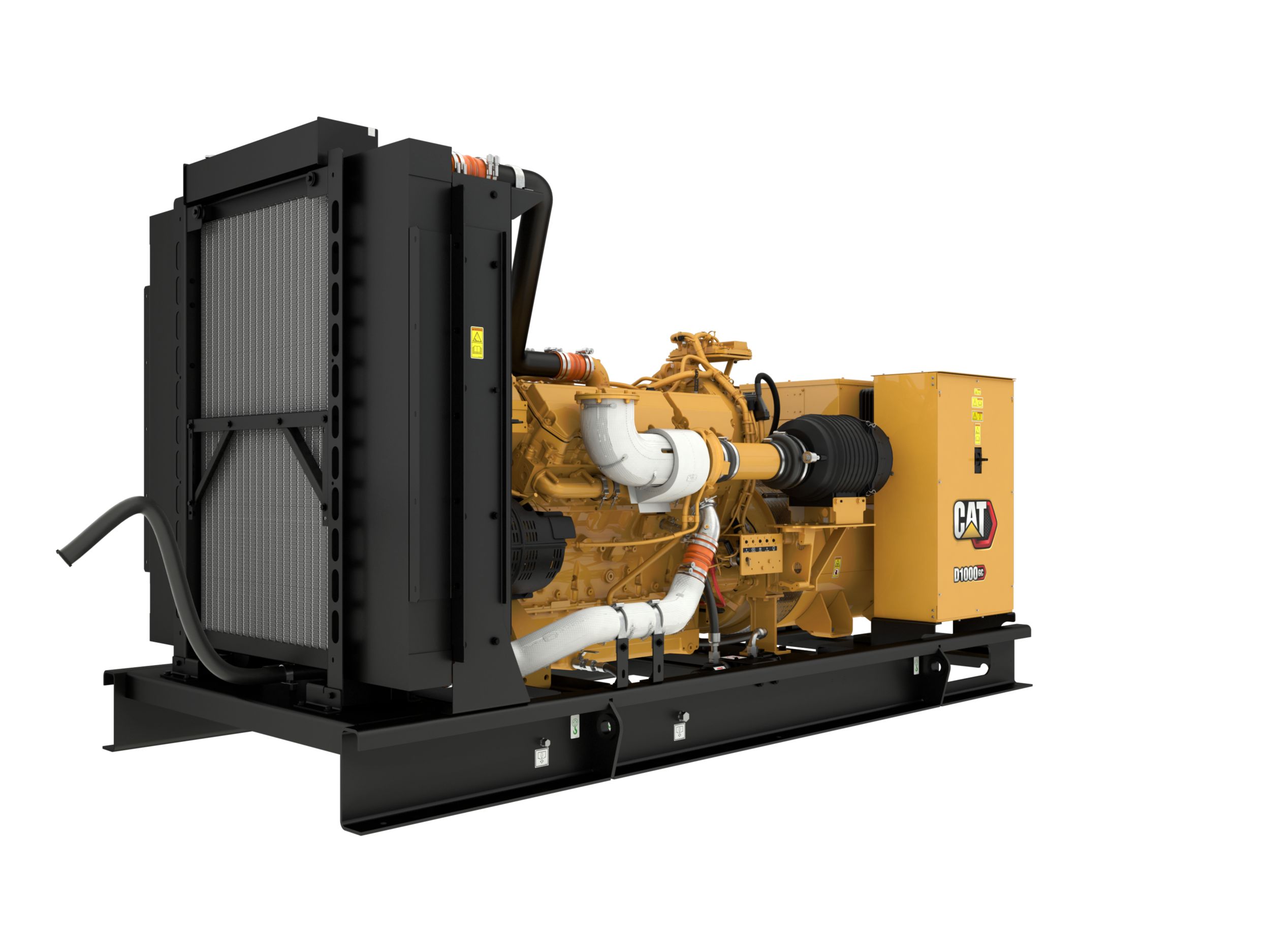

Diesel Generator Sets

D1000 GC

Request A Quote
US
Metric

Overview

1000 ekW Generator Set for Standby applications

Generator Set Specifications

Standby Rating
1000 ekW
Frequency
60 Hz
Emissions/Fuel Strategy
U.S. EPA Tier 2 Certified
Voltage
380 - 480 Volts
Speed
1800 rpm
Duty Cycle
Standby

Engine Specifications

Engine Model
C32B TA, V-12, 4-Stroke Water-Cooled Diesel
Bore
5.71 in
145.00 mm
Stroke
6.38 in
162.00 mm
Displacement
1958.86 in³
32.10 l
Compression Ratio
15.0:1
Aspiration
TA
Fuel System
EUI
Governor Type
Adem™A4

Generator Set Dimensions

Length - Minimum
164.30 in
4175.00 mm
Length - Maximum
164.30 in
4175.00 mm
Width - Minimum
73.10 in
1856.00 mm
Width - Maximum
73.10 in
1856.00 mm
Height - Minimum
87.30 in
2217.50 mm
Height - Maximum
87.30 in
2217.50 mm
Dry Weight - Genset (minimum)
14669.00 lb
6654.00 kg
Dry Weight - Genset (maximum)
14669.00 lb
6654.00 kg
Features

Worldwide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Cat Diesel Engine

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

SR500 Alternator

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation

GCCP1.2 Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Site-specific programming for specific customer requirements

Cooling System

  • Designed to operate in standard ambient temperatures up to 50°C (122°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities

Certifications


  • UL 2200 Listed
    •
  • IBC Certified

One Safe Source

  • Components used in the generator set are selected at the design stage to provide optimum package performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Standard Equipment
  • Control Panel
    • GCCP1.2
  • Cooling System
    • Radiator
Optional Equipment
  • Control Panels
    • Remote monitoring software
  • Starting/Charging
    • Jacket water heater
  • General
    • Single element or dual element air cleaner
    • Circuit breaker panel, based on regional and product configuration
