Diesel Generator Sets

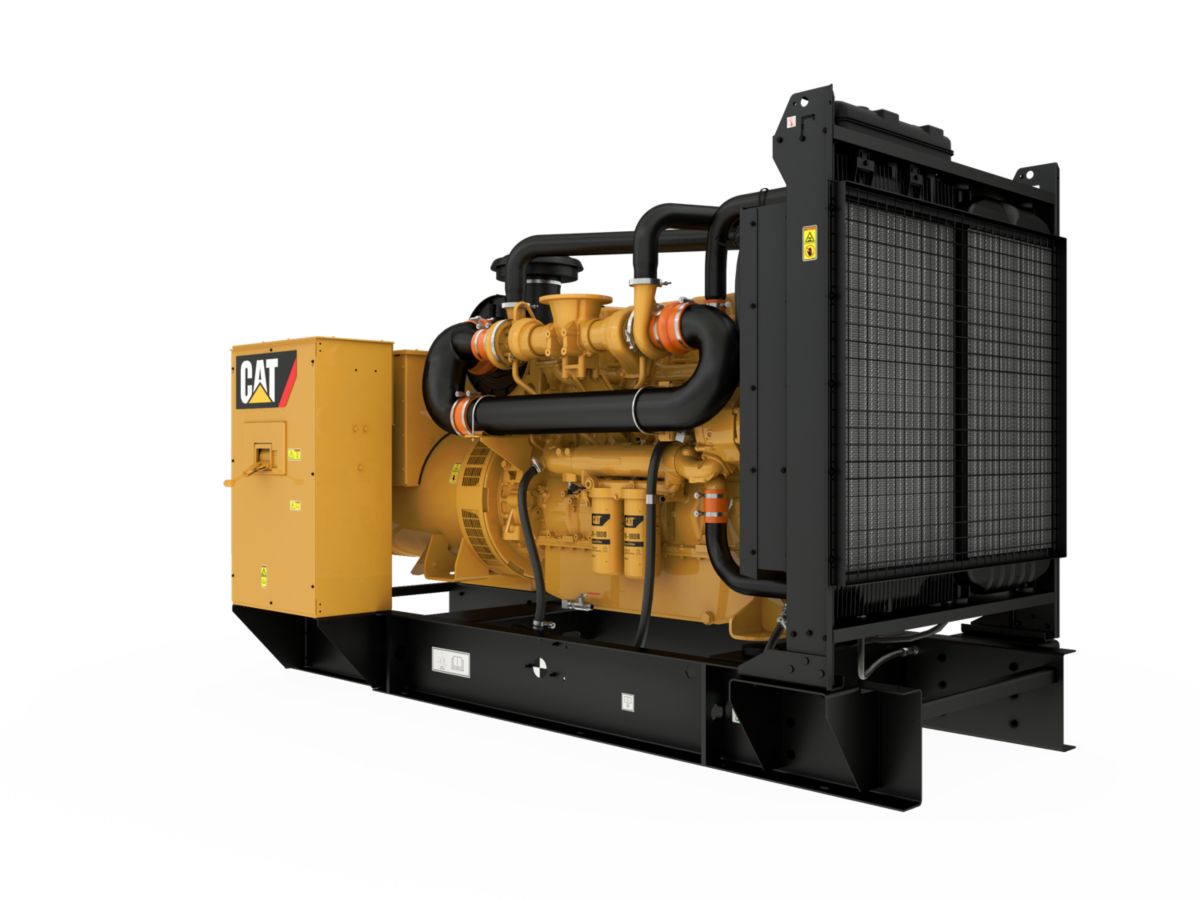

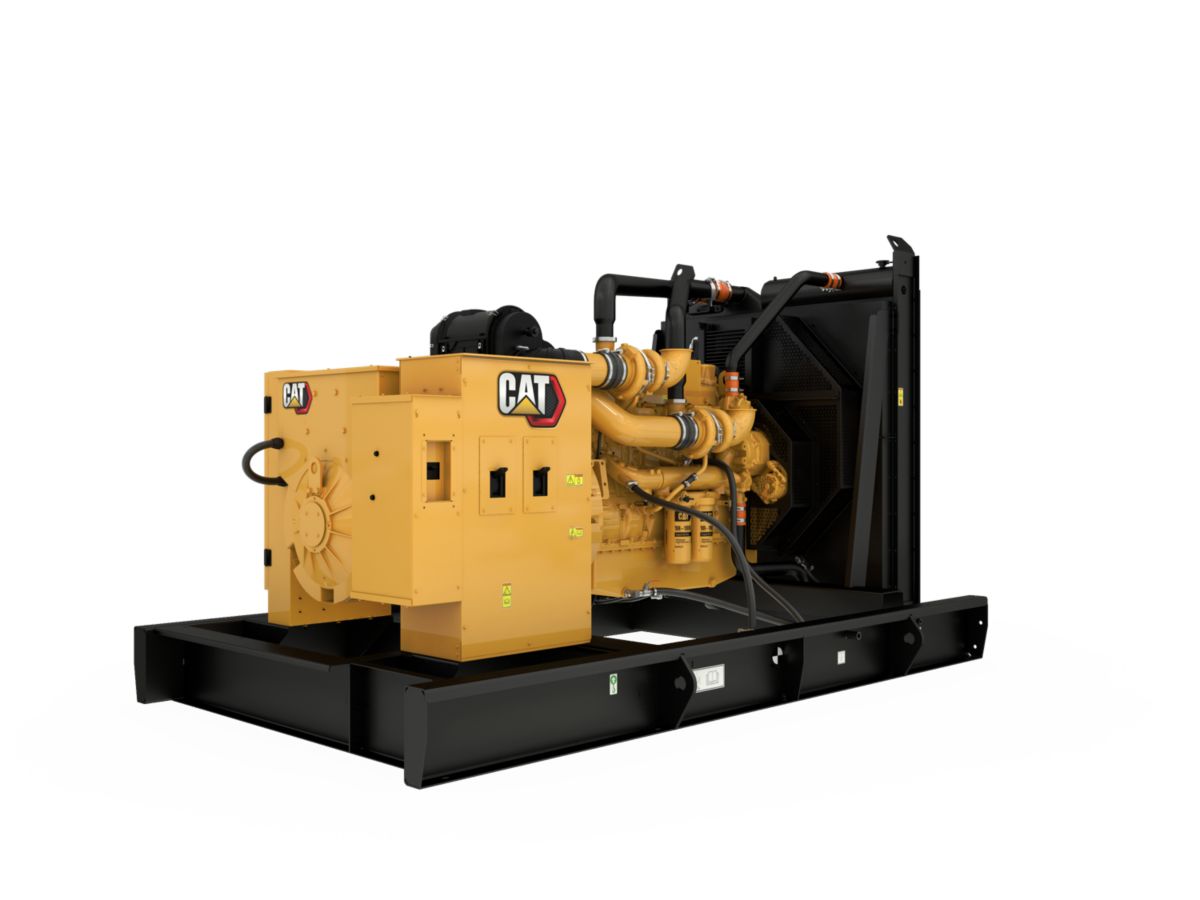

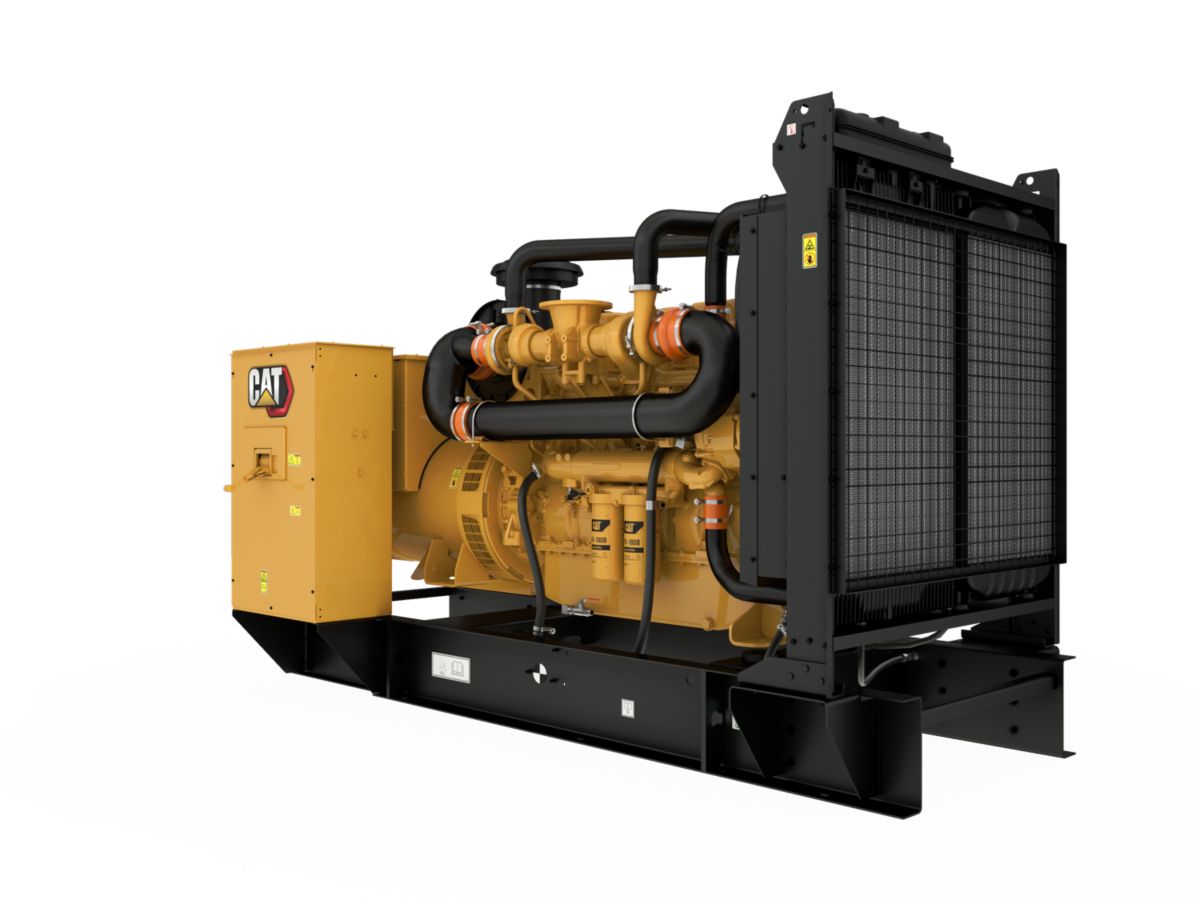

D550 GC/D600 GC (60 Hz) Generator Set

Request A Quote
US
Metric

Overview

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Generator Set Specifications

Minimum Rating
550 ekW
Maximum Rating
600 ekW
Emissions/Fuel Strategy
U.S. EPA Certified
Voltage
480 to 600 Volts
Frequency
60 Hz
Speed
1800 rpm
Duty Cycle
Standby

Engine Specifications

Engine Model
Cat® C18 ATAACTM In-line 6, 4-cycle diesel
Bore
5.71 in
145.00 mm
Stroke
7.20 in
183.00 mm
Displacement
1106.30 in³
18.10 l
Compression Ratio
14.5:1
Aspiration
Air to Air Aftercooled
Fuel System
Electronic unit injection
Governor Type
Electronic ADEM™ A4

Generator Set Dimensions

Length - Maximum
196.10 in
4980.00 mm
Width - Maximum
73.40 in
1865.00 mm
Height - Maximum
100.90 in
2563.00 mm
Features

Cat Generator Set Package

Cat Diesel Engine

SR500 Alternator

GCCP 1.2 Control Panel

Cooling System

Certifications

One Safe Source

World Wide Product Support

Standard Equipment
  • Air Inlet System
    • Air cleaner - Non-Canister, Disposable
    • Turbocharger
    • Aftercooler core
  • Control Panel
    • GCCP 1.2
  • Cooling System
    • Blower fan and fan drive with guards
    • Radiator, Package mounted.
    • Coolant drain valve.
    • Thermostats and housing.
    • Jacket water pump, gear driven, centrifugal
    • Radiator sight gauge
  • Exhaust System
    • Exhaust manifold; dry
  • Fuel System
    • Integral Tank Base, 24 Hrs, UL142
    • Engine fuel transfer pump
    • Fuel cooler
    • Fuel priming pump
    • Primary fuel filter w/integral water separator and secondary filter, spin on
  • Generator Set
    • All protective devices and control functions simulated and checked
    • Complete system designed & built at ISO 9001:2000 certified facilities
    • Factory tested to design specifications at full load conditions
  • Generators and Generator Attachments
    • 6 leads
    • Easy access to AVR and terminals
    • Voltage regulator (single phase sensing)
    • IP23 protection
    • Terminal Box, IP22 RHS Facing, Bottom Cable Entry
    • Standard winding protection for non-harsh environments with relative humidity ? 95%
    • Brushless, self-excited 2/3 pitch (600V uses Internal Excitation)
    • Insulation, Class H
  • Governing System
    • Cat Electronic Governor (ADEM A4)
  • Lube System
    • Shallow oil pan.
    • Fumes disposal to front of radiator.
    • Lubricating Oil, CK-4 (10W-30)
    • Oil filler and dipstick.
    • Oil cooler
    • Oil filter, spin on.
    • Oil drain with valve.
  • Mounting System
    • Includes lifting provisions and termination points for coolant and lube oil drain lines
    • Captive linear vibration isolators between base and engine-generator
  • Protection
    • Safety Shutoff - High water temperature
    • Safety Shutoff - Low Oil Pressure
    • Safety Shutoff - Overspeed
  • Starting/Charging System
    • 24-volt electric starting motor.
    • 24V,45 amp charging alternator.
  • General
    • Lifting Eyes
    • Parts Book
    • Vibration damper.
Optional Equipment
  • Air Inlet System
    • Air Cleaner (Non-Canister Disposable)
  • Bases, Mounting & Fuel Tanks
    • Integral Tank Base, 24 Hrs, UL142
    • Audio & Visual Fuel Alarm (@90% Fuel Level)
    • Overfill Prevention Valve
    • Wide Base - Skid
    • 5 gallon Spill Containment
    • Fuel Tank Fill Pipe & Lockable Cap
  • Circuit Breaker
    • 400A LSI
    • Auxiliary Contacts
    • 600A LSI
    • 1200A LSI
    • 800A LS/I
    • 1200A LS/I
    • 600A LS/I
    • 400A LS/I
    • 800A LSI
  • Exhaust System
    • 8" Muffler - 25 dBA Attenuation
    • Manifold & Turbocharger Guards
    • Flexible Exhaust Connection
  • Generator
    • Permanent Magnet Generator
    • Space Heater
  • Starting System
    • Battery Charger (UL Certified)
    • Oversize Battery Set, 1400 CCA, 200 amp/hr.
    • Standard Battery Set: 1000 CCA, 90 amp/hr.
    • Jacket Water Heater
  • Control System
    • Product Link Remote Monitoring hardware
    • Ground Fault Relay
    • 20A GFCI (Ground Fault Circuit Interrupter)
    • Audible Alarm Gp
    • Twist Release, Red Button Emergency Stop
    • 16 -light NFPA 99/110 Annunciator
    • Volt Free Contacts
    • 100A Load Center
    • Remote E-Stop button
    • Discrete I/O module
    • Earth (Ground) fault relay
    • Volt free contact
    • Local annunciator
    • Annunciators box
  • Circuit Breakers
    • Single LSI motorised Circuit Breaker
    • Neutral bar (208V)
    • Single LSI motorised circuit breaker
    • Auxiliary contacts
  • Enclosures

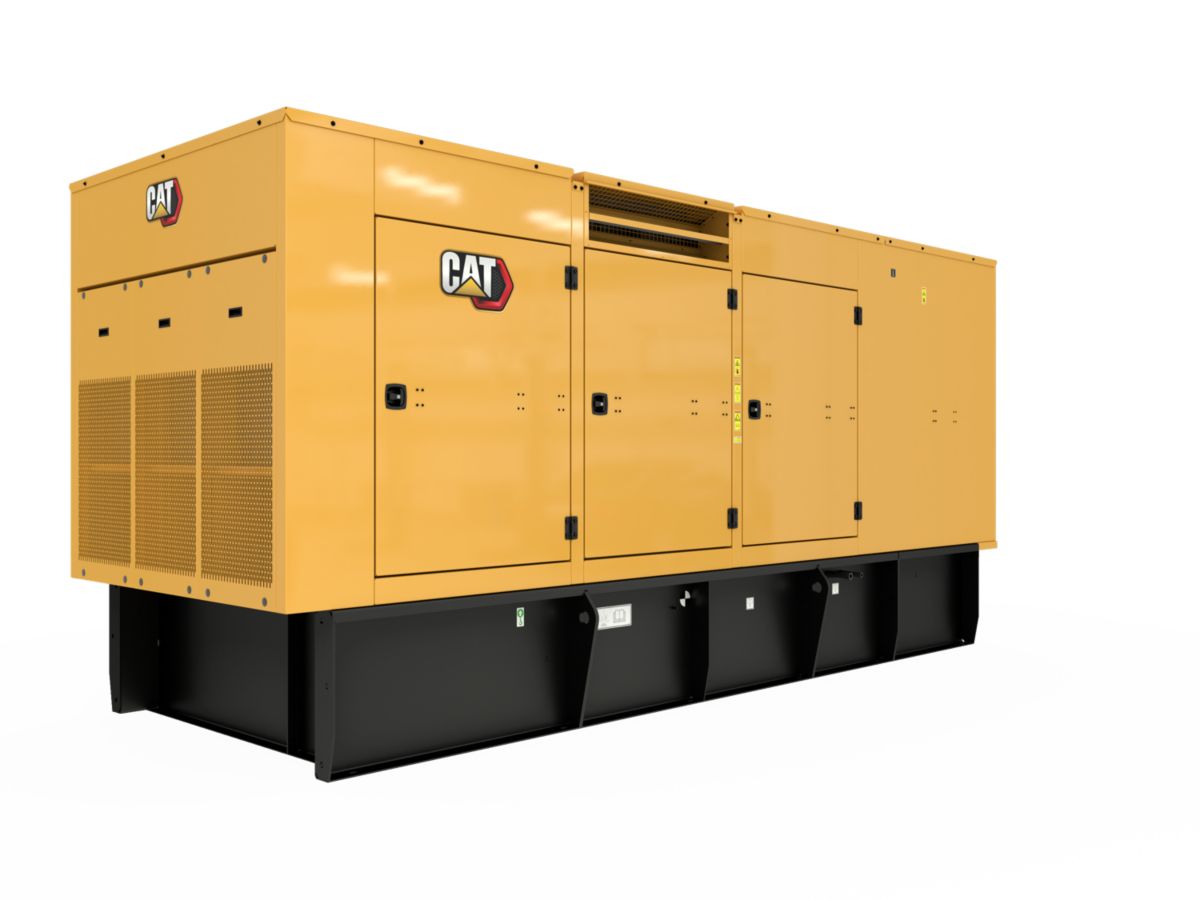

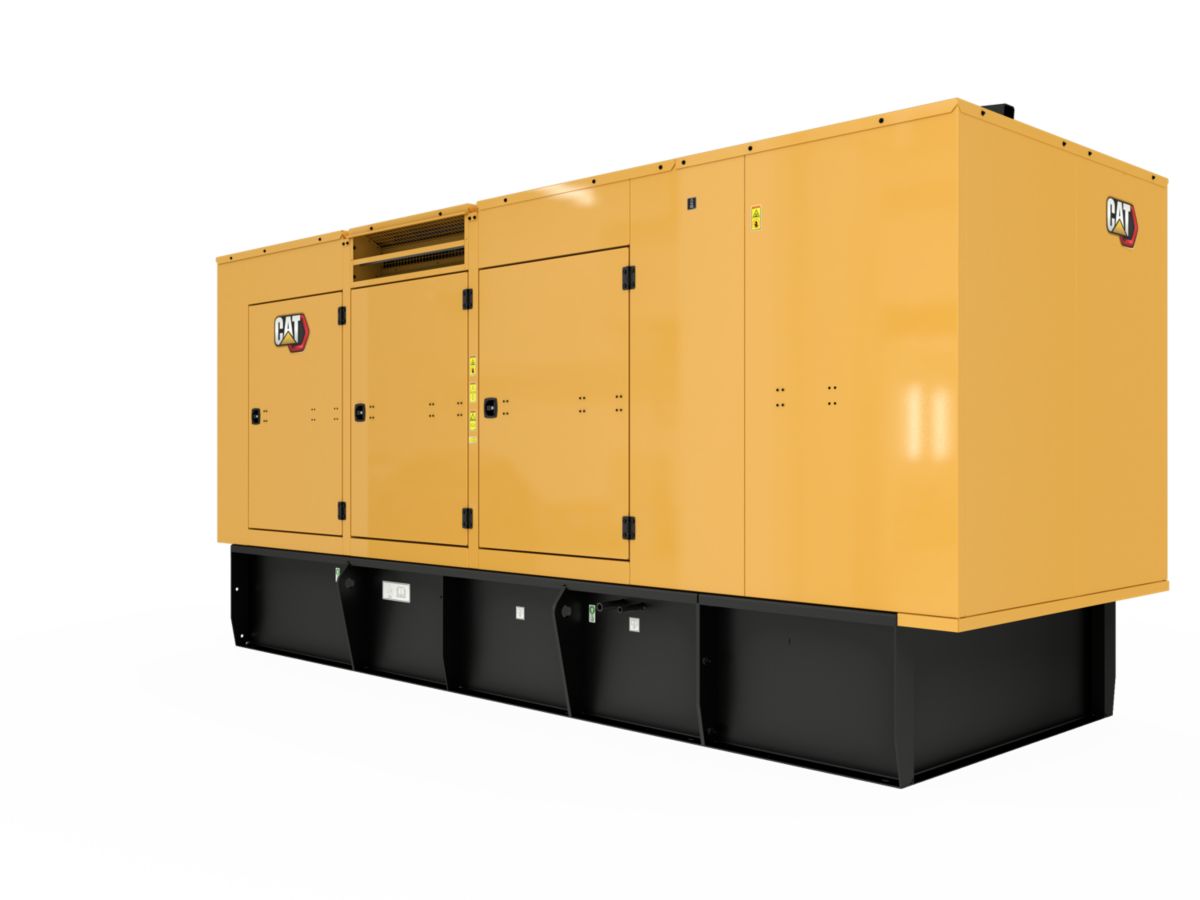

    • Sound Attenuated Level 2 Enclosure (White)
    • E-Stop
    • AC & DC Source Lights
    • Sound attenuated enclosure
  • Cooling System
    • Coolant heater
    • Stone guards
    • Jacket water heater with pump
  • Base / Fuel Tank
    • Audio & visual fuel alarm
  • Fuel System
    • Integral 8 hr tank base
  • Starting and Charging
    • Battery disconnect switch
    • Standard battery set
    • 5 Amp battery charger
    • Oversize battery set
  • Certifications
    • CSA 22.2
    • UL2200 Listed
    • Seismic
  • General
    • Generator Test Report
    • CSA Certification
    • UL2200 Certification
    • Extended Service Coverage
    • Tool set
  • Lube System
    • Manual sump pump
