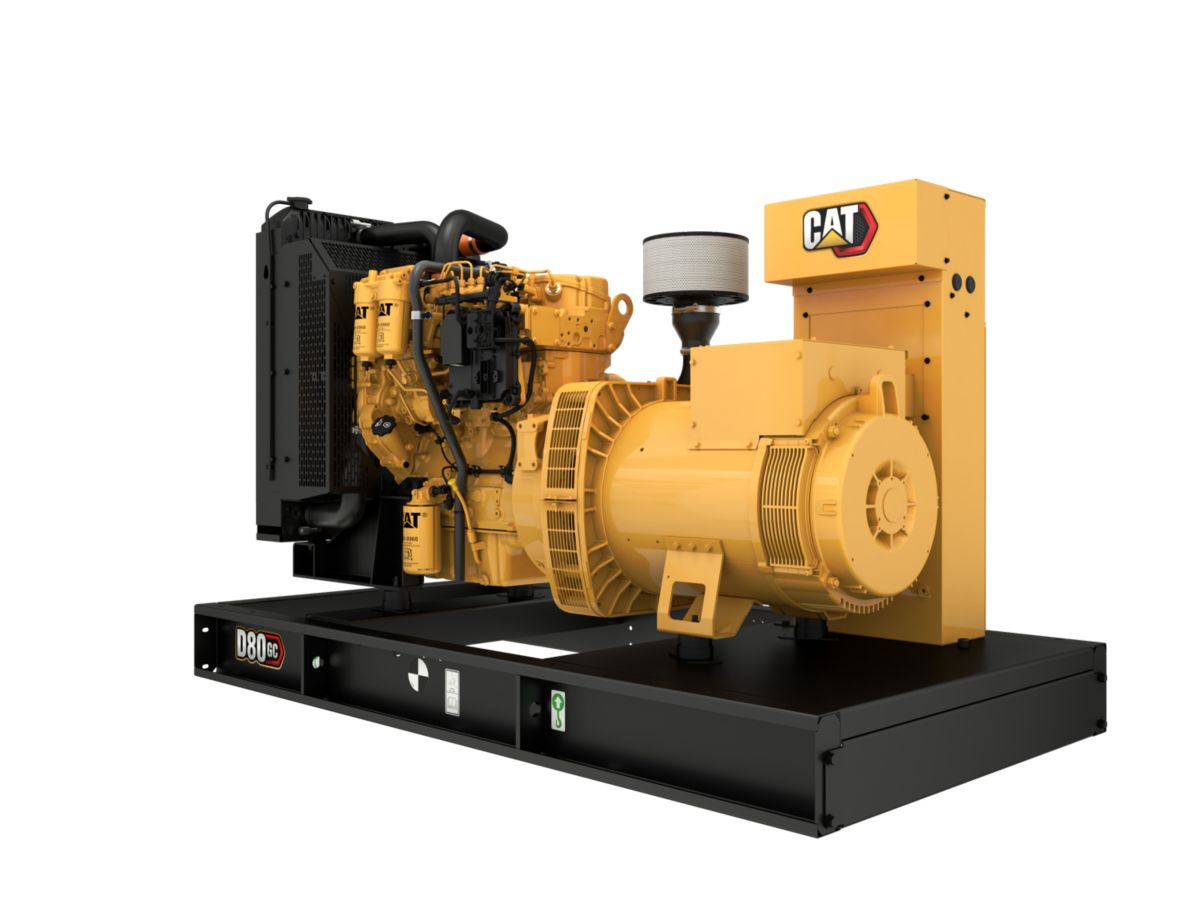

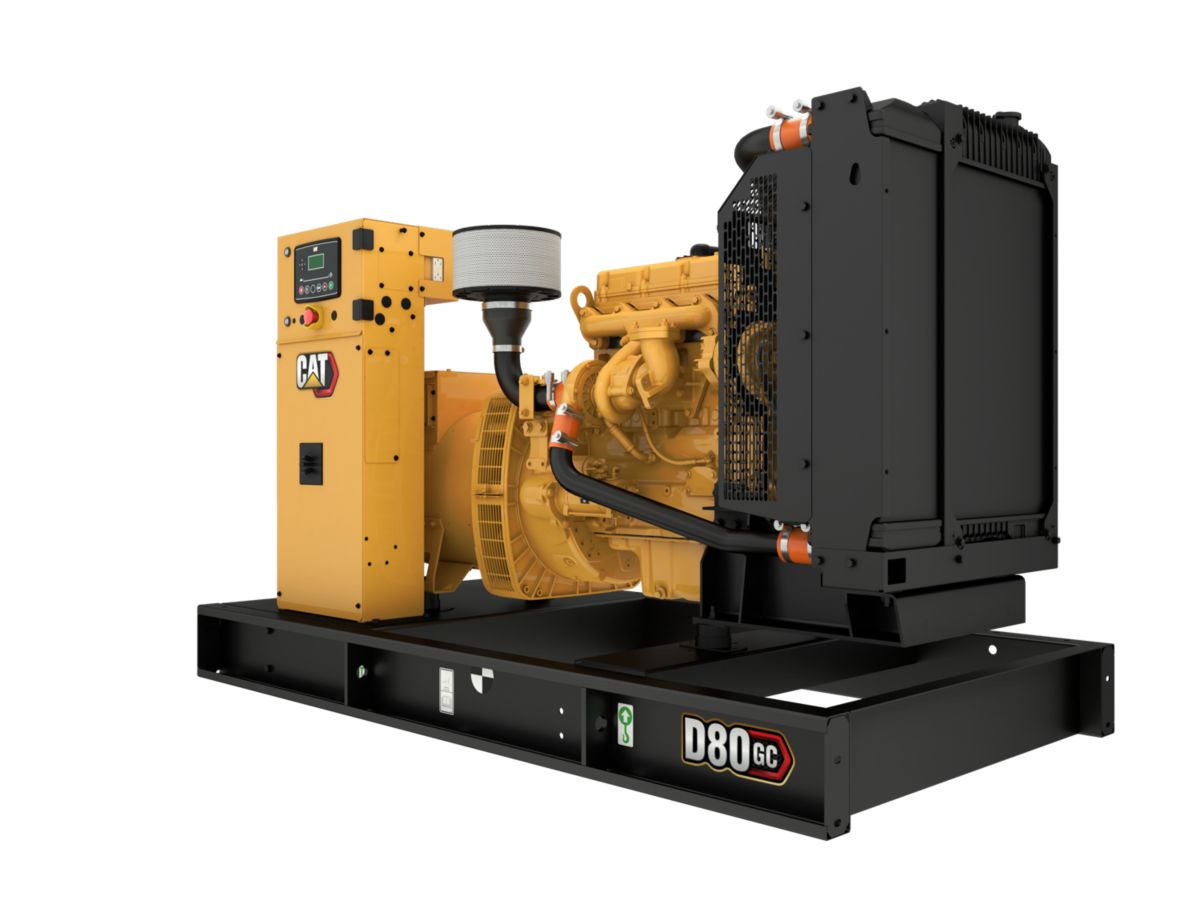

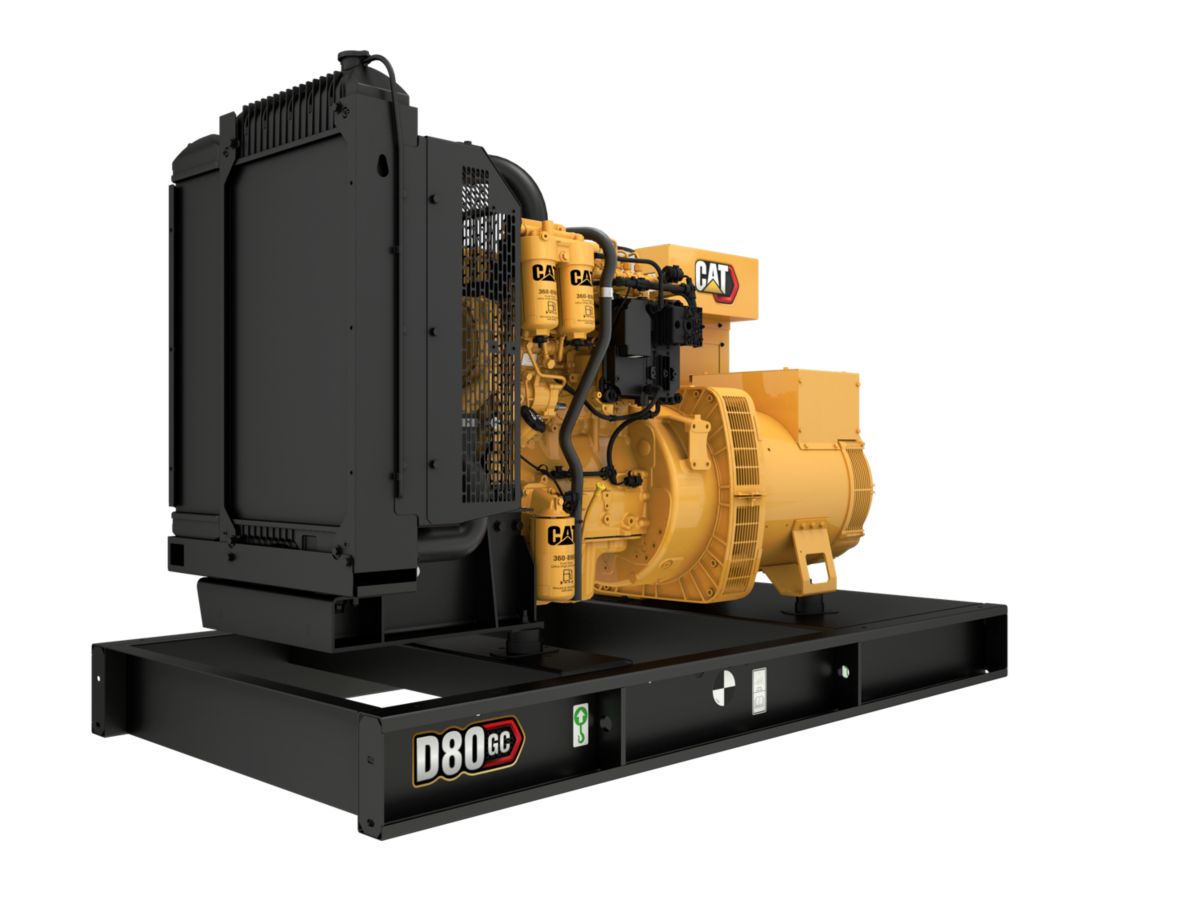

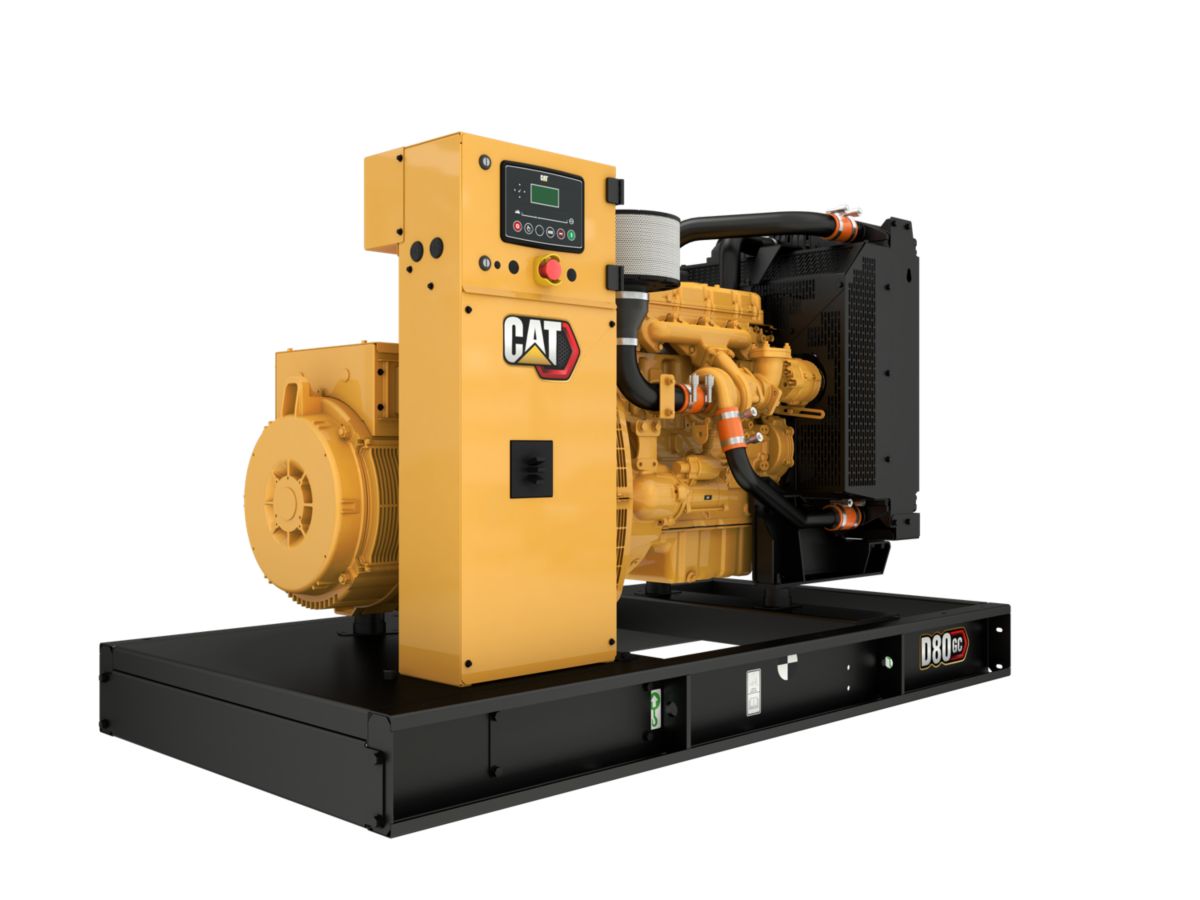

D80 GC Generator Set
US
Metric
Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Generator Set Specifications
Minimum Rating
80 ekW
Maximum Rating
80 ekW
Emissions/Fuel Strategy
U.S. EPA Cert., Tier 3
Voltage
208 to 600 Volts
Frequency
60 Hz
Speed
1800 rpm
Duty Cycle
Standby
Engine Specifications
Engine Model
C4.4, In-line 4, 4-cycle diesel
Bore
4.10 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
269.00 in³
4.40 l
Compression Ratio
16.7:1
Aspiration
Turbocharged
Fuel System
Common Rail
Governor Type
Mechanical, ADEM™A4
Generator Set Dimensions
Length - Maximum
82.60 in
2097.00 mm
Width - Maximum
43.30 in
1100.00 mm
Height - Maximum
52.90 in
1343.00 mm
Dry Weight - Genset (maximum)
950.00 lb
2095.00 kg
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
M-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.2 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- UL 2200 Listed
- ULC Certification Available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Standard Equipment
- Air Inlet System
- Air cleaner; light duty with disposable element
- Air Cleaner
- Cooling System
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
- Coolant drain line with valve
- Control Panel
- GCCP 1.2 Control panel
- Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose
- Fuel System
- Standard open set fuel tank / base supplied base, formed steel with single wall integral 24-hour fuel tank
- Generator
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- Voltage regulator (single phase sensing)
- IP23 protection
- Segregated low voltage (AC/DC) wiring panel
- 12 Leads
- Tower panel, IP22, bottom cable entry
- Governing System
- Mechanical and electrical governing system - model dependent
- Lube System
- Lubricating oil
- Oil drain line with valve
- Mounting System
- Includes lifting provision and drag points
- Termination points for coolant and lube oil drain lines
- Captive linear vibration isolators between base and engine-generator
- Starting/Charging System
- Batteries
- 24V battery with rack and cables
- General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
- Alternator System
- 3 Phase sensing
- Anti-condensation heater
- R frame auxilliary winding
- Permanent magnet
- Circuit Breakers
- Circuit Breaker Upgrades - 4 Pole circuit reaker to 250A, 400A and 630 A
- Cooling System
- Low coolant level shutdown
- Coolant heater
- Low coolant temp alarm
- Control Panel Options
- Earth fault (2 wire only)
- Overload shutdown via breaker
- Earth leakage (2 wire only)
- Volt free contacts
- Panel mounted audible alarm
- Battery charger
- GCCP 1.2 control panel
- Control panel heater
- Voltage adjust potentiometer
- Emergency stop with key
- Speed adjust potentiometer
- Enclosures

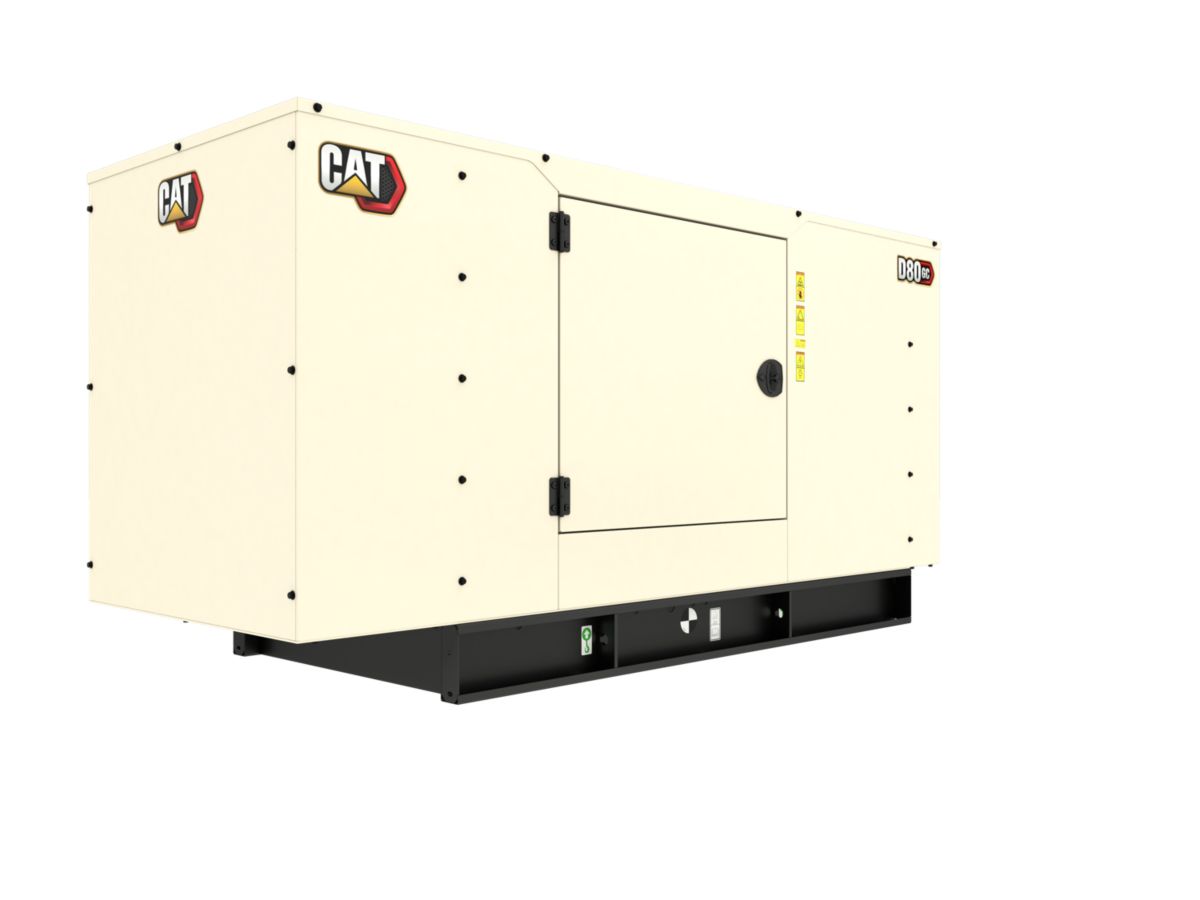

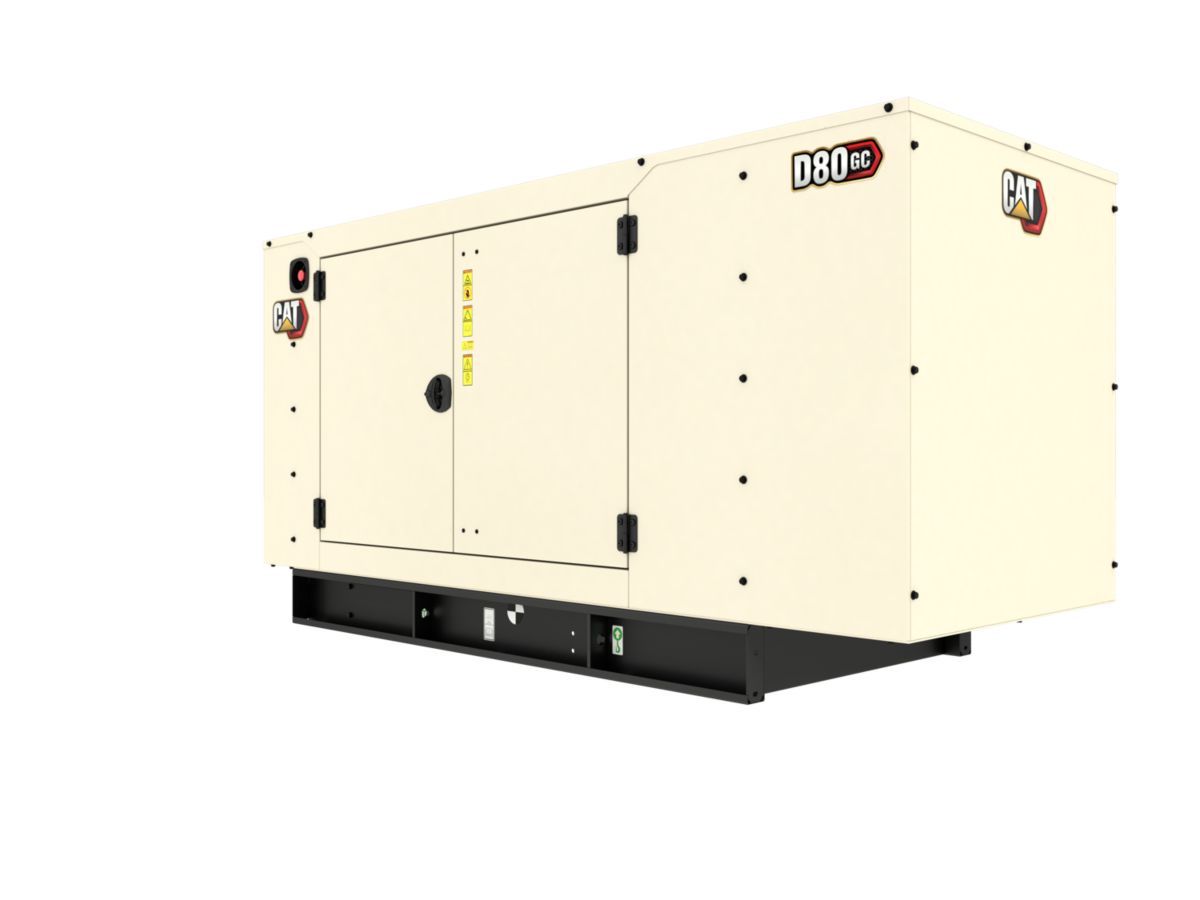

- Sound attenuated Level 2 enclosure
- Fuel System
- High fuel level alarm
- Open set narrow base
- Low fuel level alarm
- Bunded fuel tank
- Low fuel level shutdown
- Compact skidbase for open set
- Skidbase for CALG enclosure sets
- Global Certifications
- Certification for CIS
- Mounting Options
- Battery removal
- Industrial silencer
- Electronic governor
- External single point lift - enclosure
- Silencer installation kit
- Special Packing/Inspectons for Shipment
- PGS test report @ 1.0 power factor
- PGS test report @ 0.8 power factor
- General - Accessories / Miscellaneous
- Stone guards / rad trans flange
- Packing case - canopied set
- Packing case - compact set
