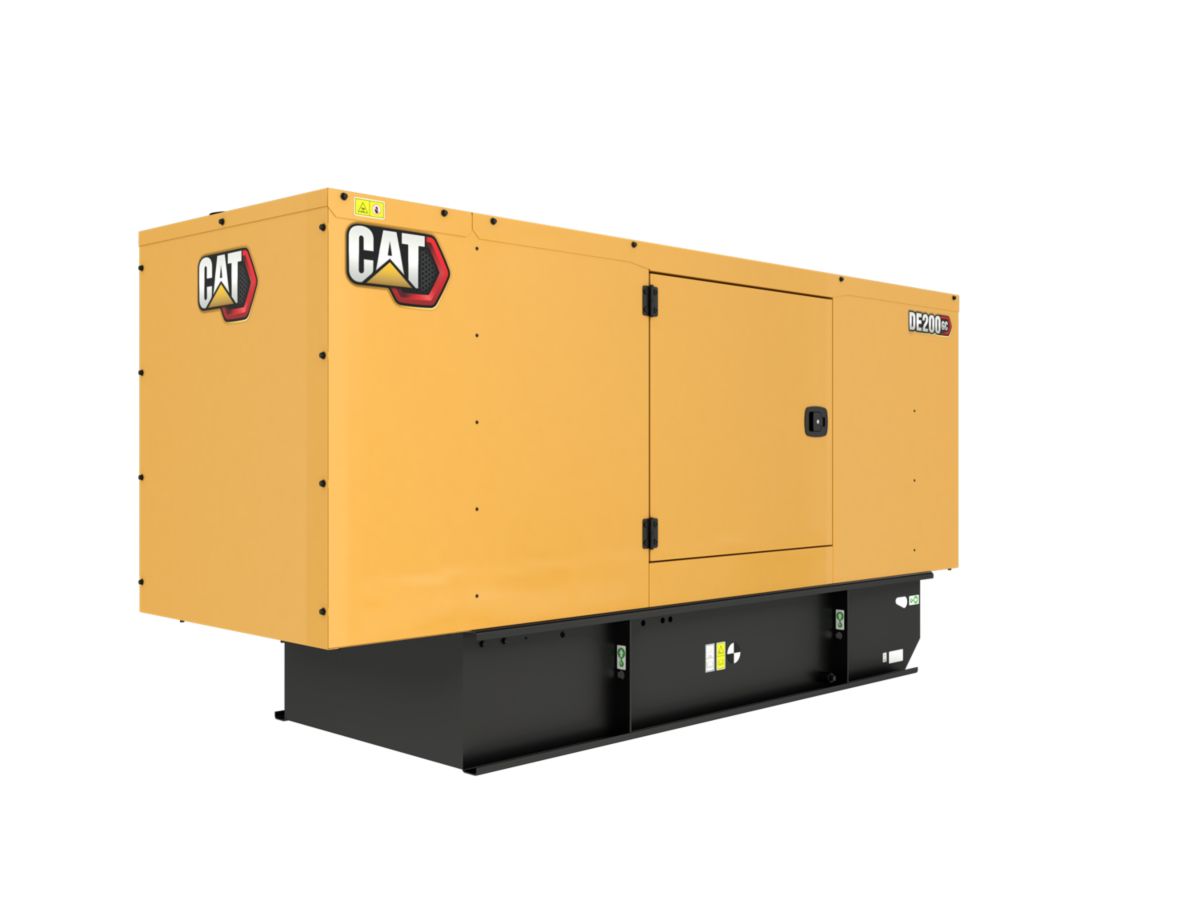

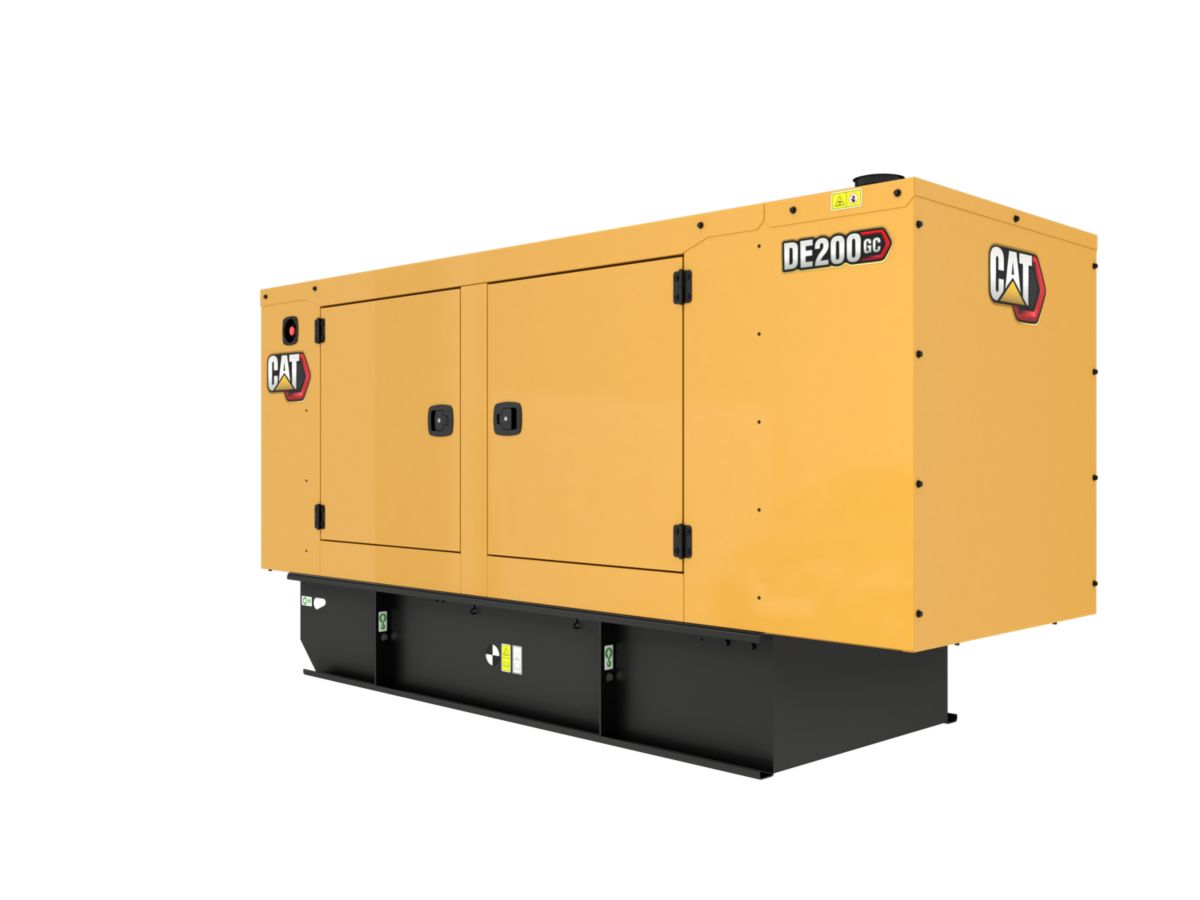

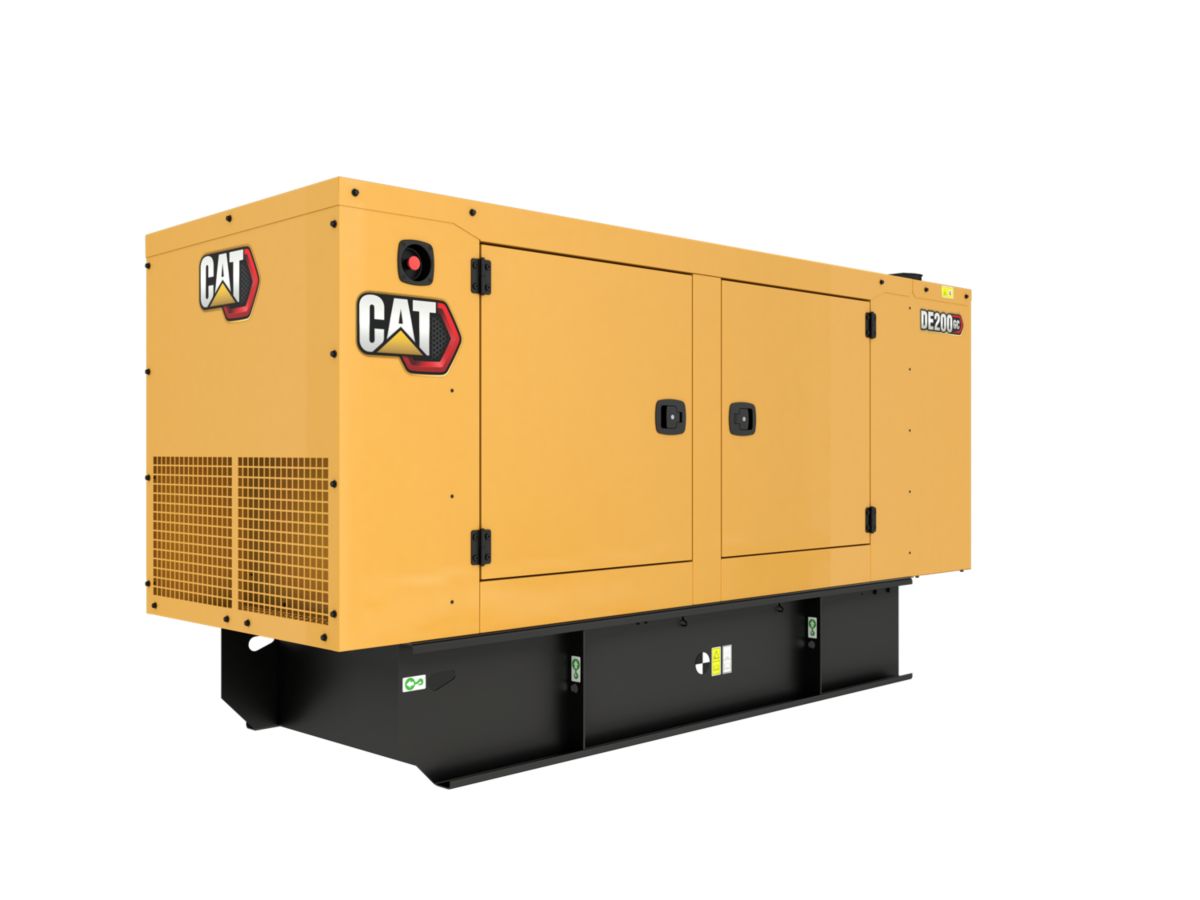

DE200 GC Generator Set (60 Hz)
US
Metric
Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Generator Set Specifications
Minimum Rating
175 ekW
Maximum Rating
175 ekW
Emissions/Fuel Strategy
Non Regulated
Voltage
220 to 480 Volts
Frequency
60 Hz
Speed
1800 rpm
Duty Cycle
Standby
Engine Specifications
Engine Model
C7.1 I-6, 4-Cycle Diesel
Bore
4.10 in
105.00 mm
Stroke
5.30 in
135.00 mm
Displacement
427.80 in³
7.00 l
Compression Ratio
16.0:1
Aspiration
Turbocharged Air To Air Charge Cooled
Fuel System
Inline
Governor Type
Mechanical
Generator Set Dimensions
Length - Maximum
130.90 in
3325.00 mm
Width - Maximum
44.60 in
1134.00 mm
Height - Maximum
65.60 in
1666.00 mm
Dry Weight - Genset (maximum)
4257.00 lb
1931.00 kg
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.1 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- CE Certification Available
- CIS Certification Available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Standard Equipment
- Engine
- C7.1, Inline 6 Cylinder, 4 Stroke Diesel
- Control Panels
- GCCP 1.1
- Enclosure
- Cat GC Enclosure
- Governor
- Mechanical Governor
- Alternator
- A Frame Standard Alternator
- Fuel Storage
- Single Wall 8 Hour Tank
- Air, Cooling & Exhaust
- Enclosure Silencer
- General
- Engine and alternator pre-paint, Caterpillar Yellow
Optional Equipment
- Certification
- Certificate of Conformance
- Australia, CIS, Gulf Certification
- Auxiliary Supply Voltage
- 120V
- Alternator Requirements
- Space Heater
- Genset Control
- Battery Charger
- Panel Mounted Audible Alarm
- Volt Free Contacts for Genset Running
- Volt Free Contacts for Common Alarm
- Earth Fault
- Emergency Stop with Key
- USB to RS485 Communications Device
- Coolant Heater
- Low Coolant Level Shutdown
- Battery
- Standby Pack (Smart Jacket Water Heater, Battery Charger)
- Fuel Storage
- Dual Wall 8 Hour Tank
- Single Wall Tank With Containment
- Low Fuel Level Shutdown
- Low Fuel Level Alarm
- High Fuel Level Alarm
- Testing & Packaging
- PGS Test Report @ 1.0PF
- PGS Test Report @ 0.8PF
- Circuit Breaker
- 3 Pole Circuit Breaker 630A
- 4 Pole Circuit Breaker 200A
- 4 Pole Circuit Breaker 250A
- 3 Pole Circuit Breaker 250A
- 3 Pole Circuit Breaker 200A
- 4 Pole Circuit Breaker 400A
- 4 Pole Circuit Breaker 630A
- Circuit Breaker Padlock
- Neutral Earth Link
- Overload via Alarm Switch on Breaker
- 3 Pole Circuit Breaker 400A
