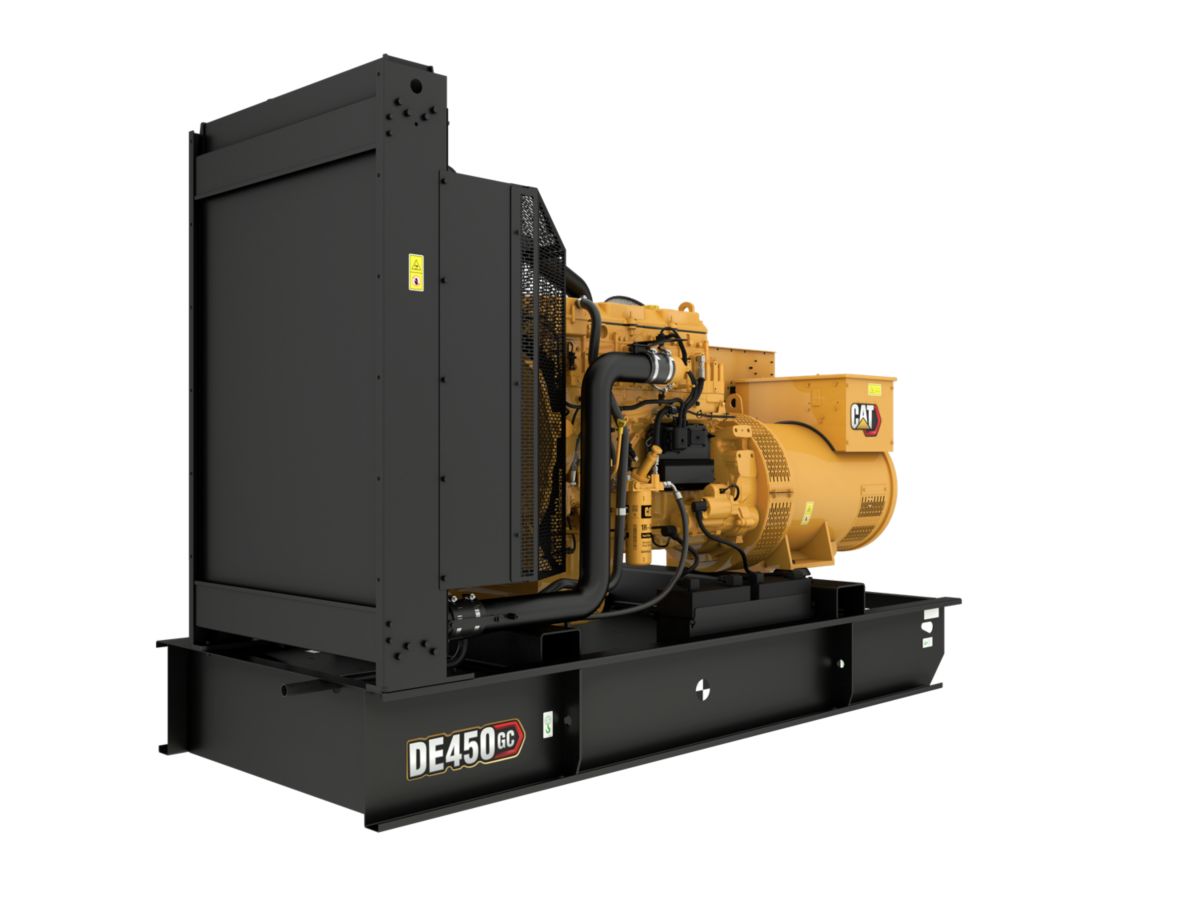

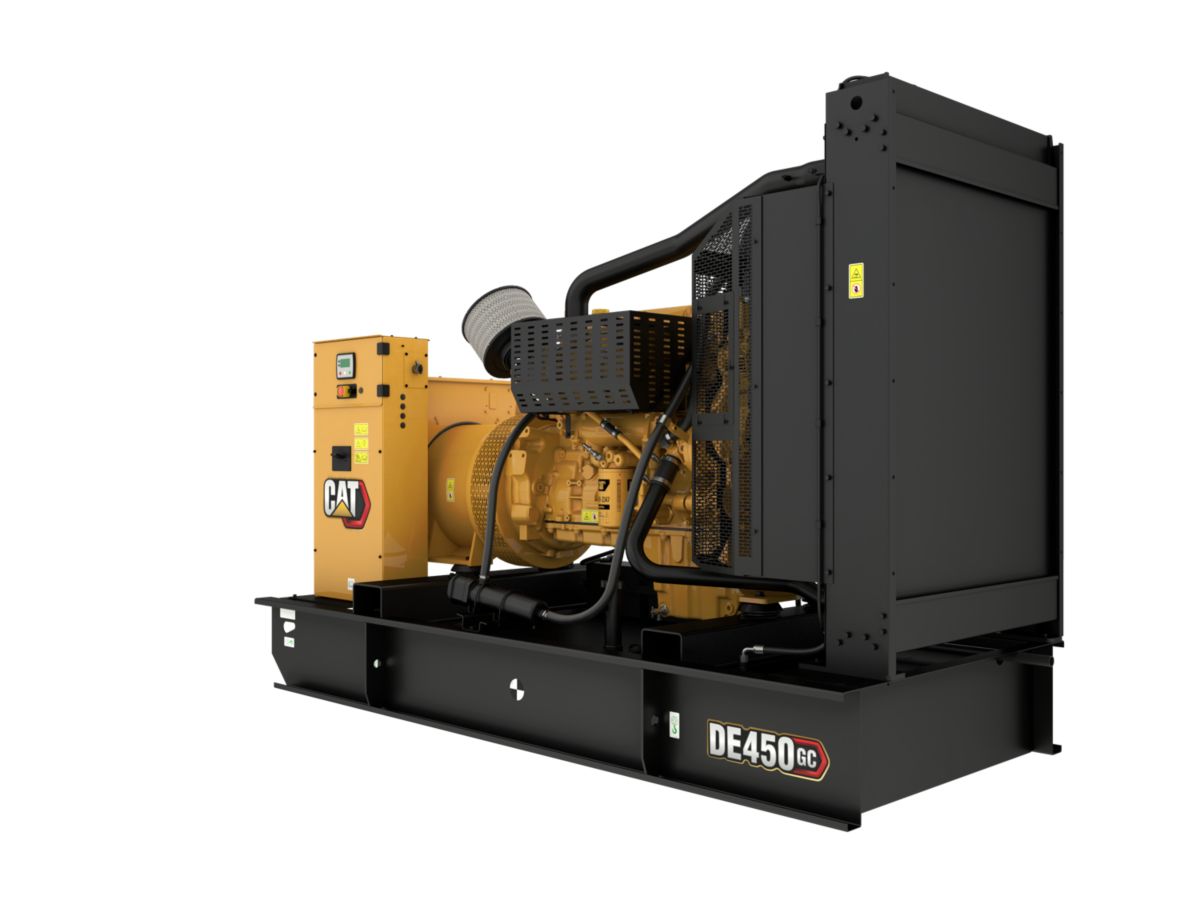

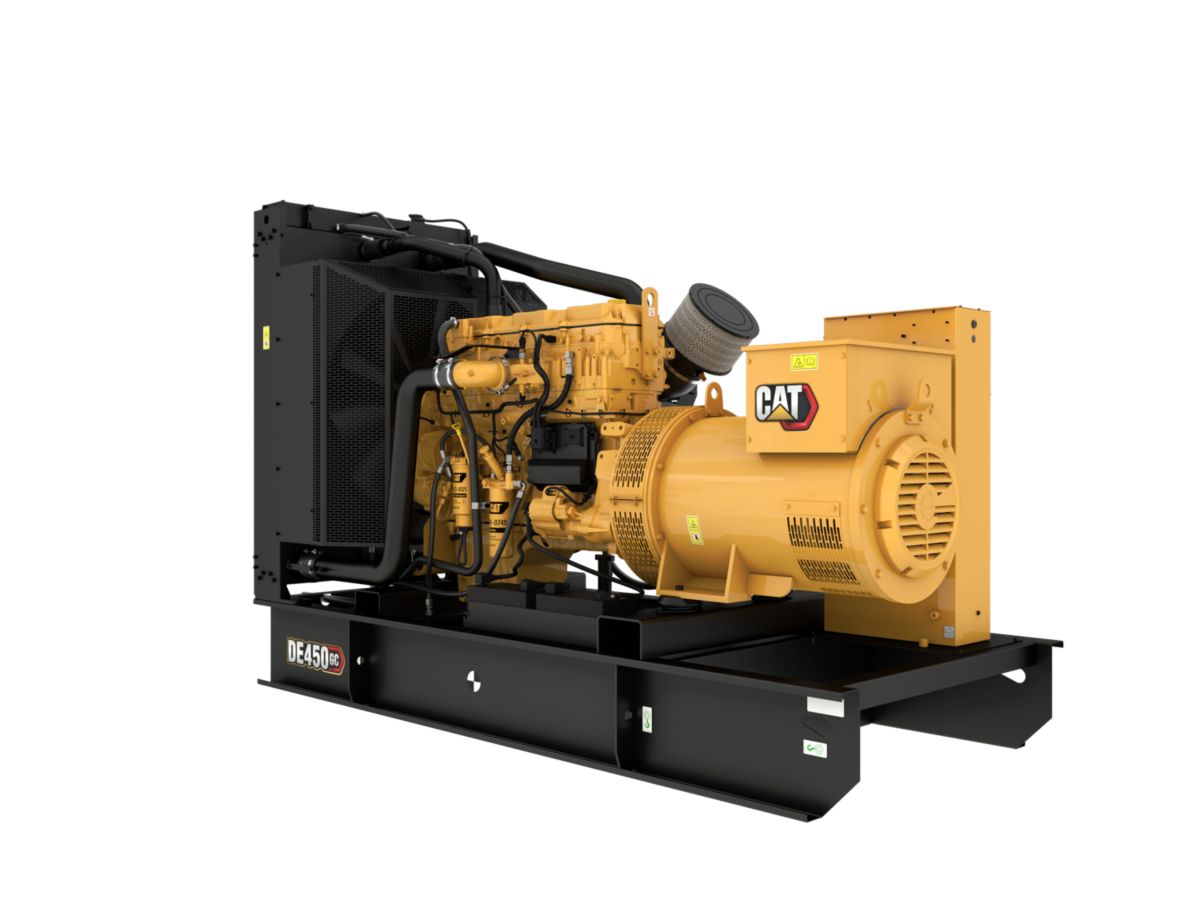

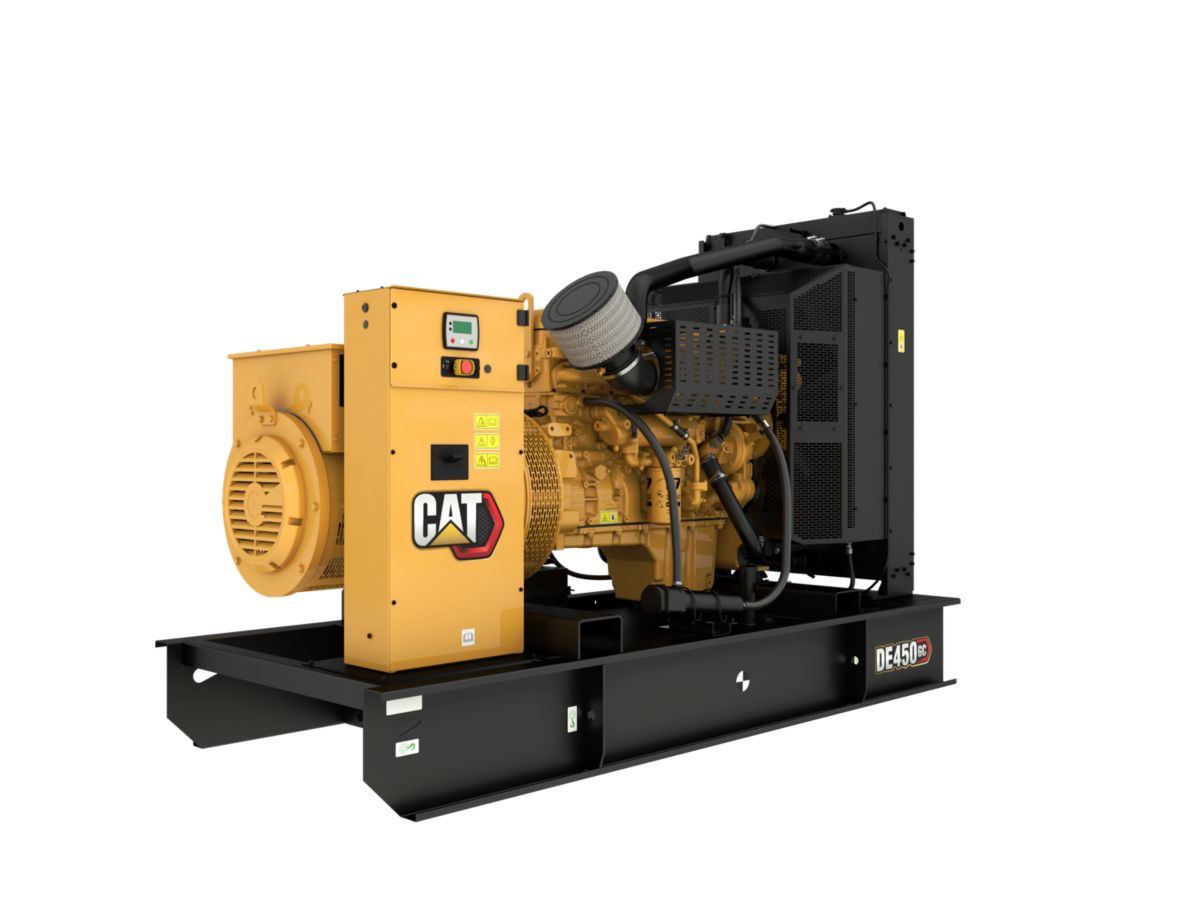

DE450 GC (50 Hz) Generator Set
US
Metric
Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Generator Set Specifications
Minimum Rating
450 kVA
Maximum Rating
450 kVA
Emissions/Fuel Strategy
Non Regulated
Voltage
380 to 415 Volts
Frequency
50 Hz
Speed
1500 rpm
Duty Cycle
Standby
Engine Specifications
Engine Model
C13 In-line 6, 4-cycle diesel
Bore
5.10 in
130.00 mm
Stroke
6.20 in
157.00 mm
Displacement
763.00 in³
12.50 l
Compression Ratio
15.8:1
Aspiration
Turbocharged Air-to-Air Aftercooled
Fuel System
EUI
Governor Type
Adem™A4
Generator Set Dimensions
Length - Maximum
122.00 in
3100.00 mm
Width - Maximum
52.70 in
1338.00 mm
Height - Maximum
83.40 in
2129.00 mm
Dry Weight - Genset (maximum)
6402.00 lb
2904.00 kg
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.1 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- CE Certification Available
- CIS Certification Available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Standard Equipment
- Engine
- Cat® C13 Inline 6 Cylinder, 4 Stroke Diesel
- Control Panels
- GCCP 1.1
- Governor
- Mechanical Governor
- Alternator
- A Frame Standard Alternator
- Fuel Storage
- Single Wall 8 Hour Tank
- Cooling System
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
- Electrical Options
- 3 Pole Circuit Breaker
- Neutral Earth Link
- 24 Volt battery with rack and cables
- Air inlet system
- Air cleaner; light duty with disposable element
- Lube system
- Lubricating oil
- Oil drain line with valve
- Mounting system
- Captive linear vibration isolators
- Lifting provision and drag points
- General
- Engine and alternator pre paint, Caterpillar yellow
Optional Equipment
- Control panel
- Speed and Voltage Adjust Potentiometers
- PLG 4G/3G/Ethernet
- Annunciator
- Emergency E-Stop
- Enclosure

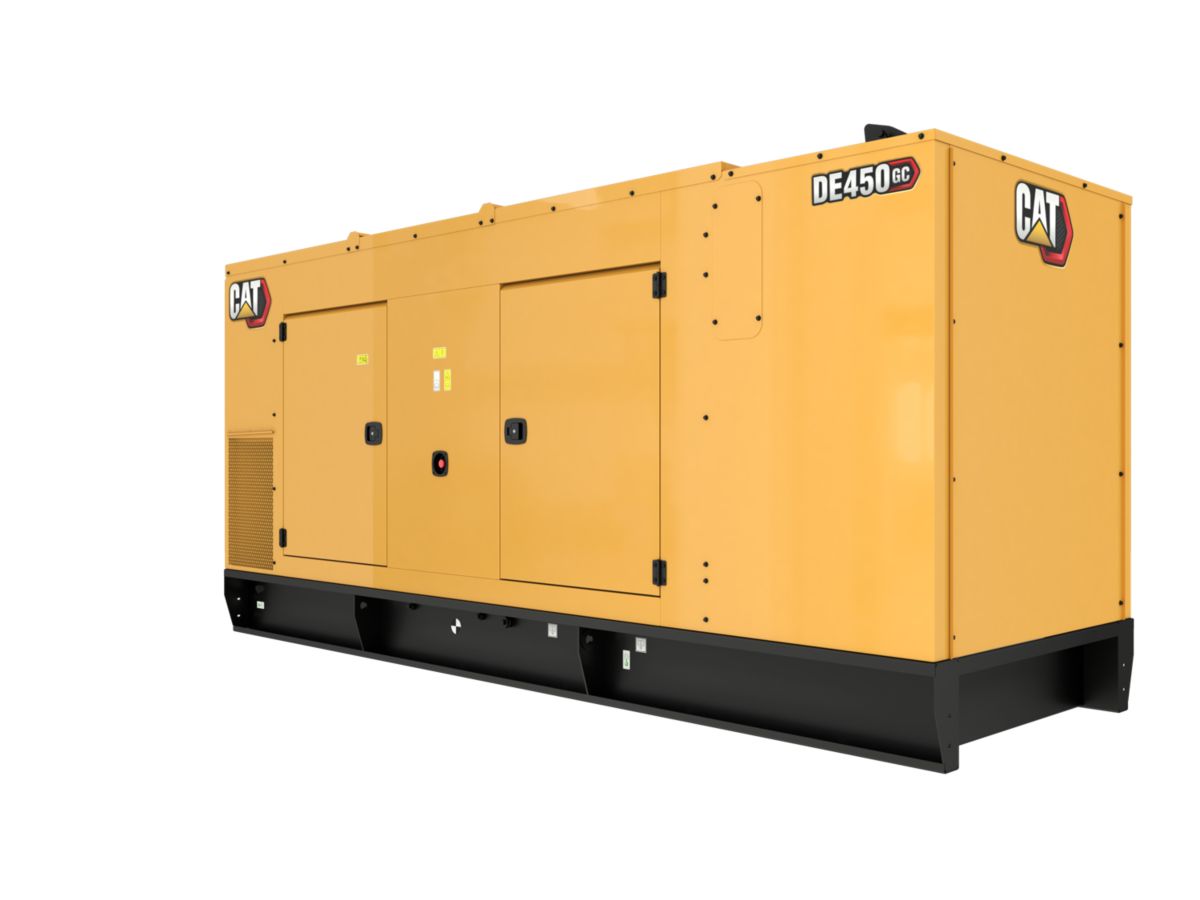

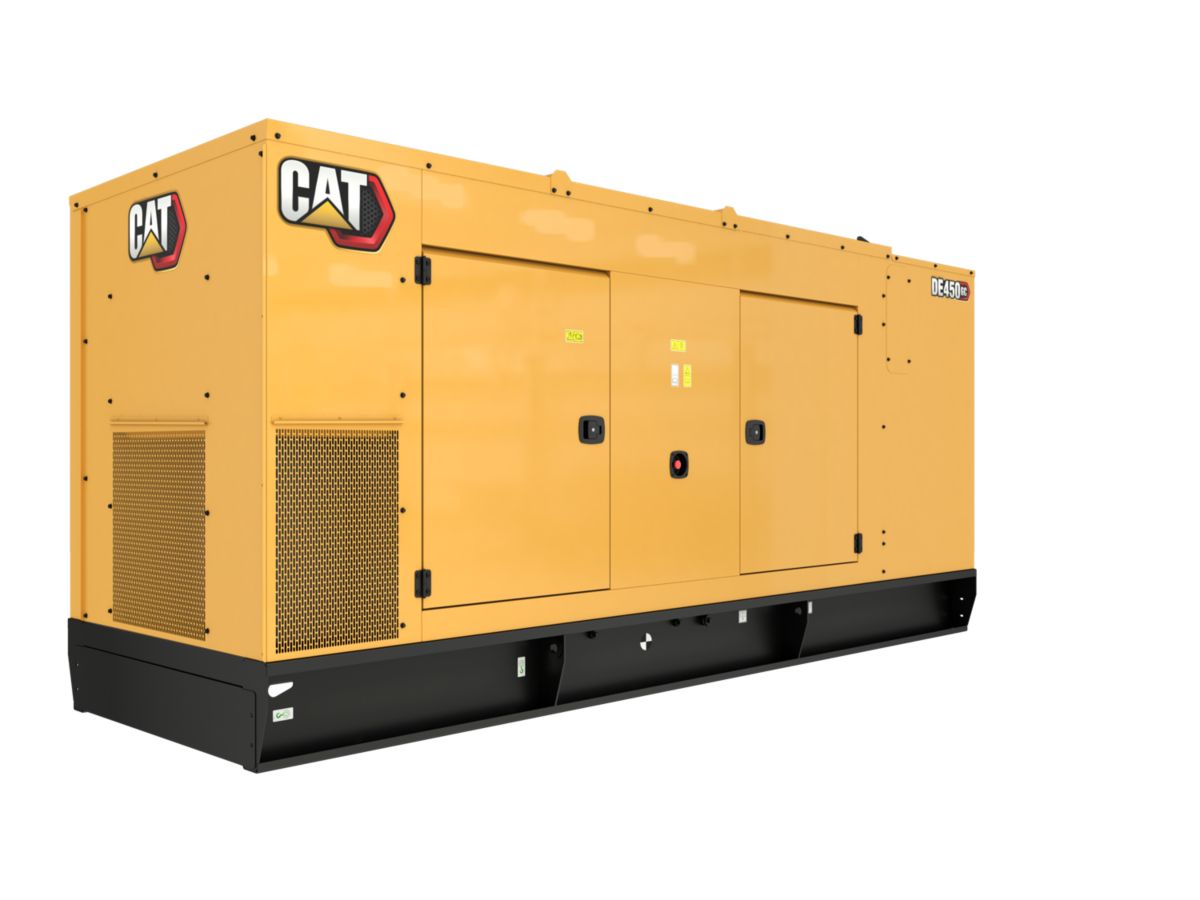

- Cat GC Enclosure
- Electrical Options
- 4 Pole circuit breaker
- Auxiliary Contacts
- Pad-lockable circuit breaker
- Battery Charger
- Wet Battery
- Alternator
- Space Heater
- AVR
- Fuel System
- Dual Wall 8Hr Fuel Tank
- Single Wall 8Hr Fuel Tank with Spill Containment
- Low Fuel Level Shutdown
- Low and High Fuel Level Alarms
- Exhaust System
- Industrial Silencer
- 10 dBA Attenuation silencer
- Air inlet system
- Single Stage Air Filter
- Dual Element Air Filter
- Certifications
- EU certificate of conformance
- EAC certification
- Extended service coverage
- 3, 4, 5 and 10 Years
