Fire Pump Engines

3406C Offshore Production Engine

Request A Quote
US
Metric

Overview

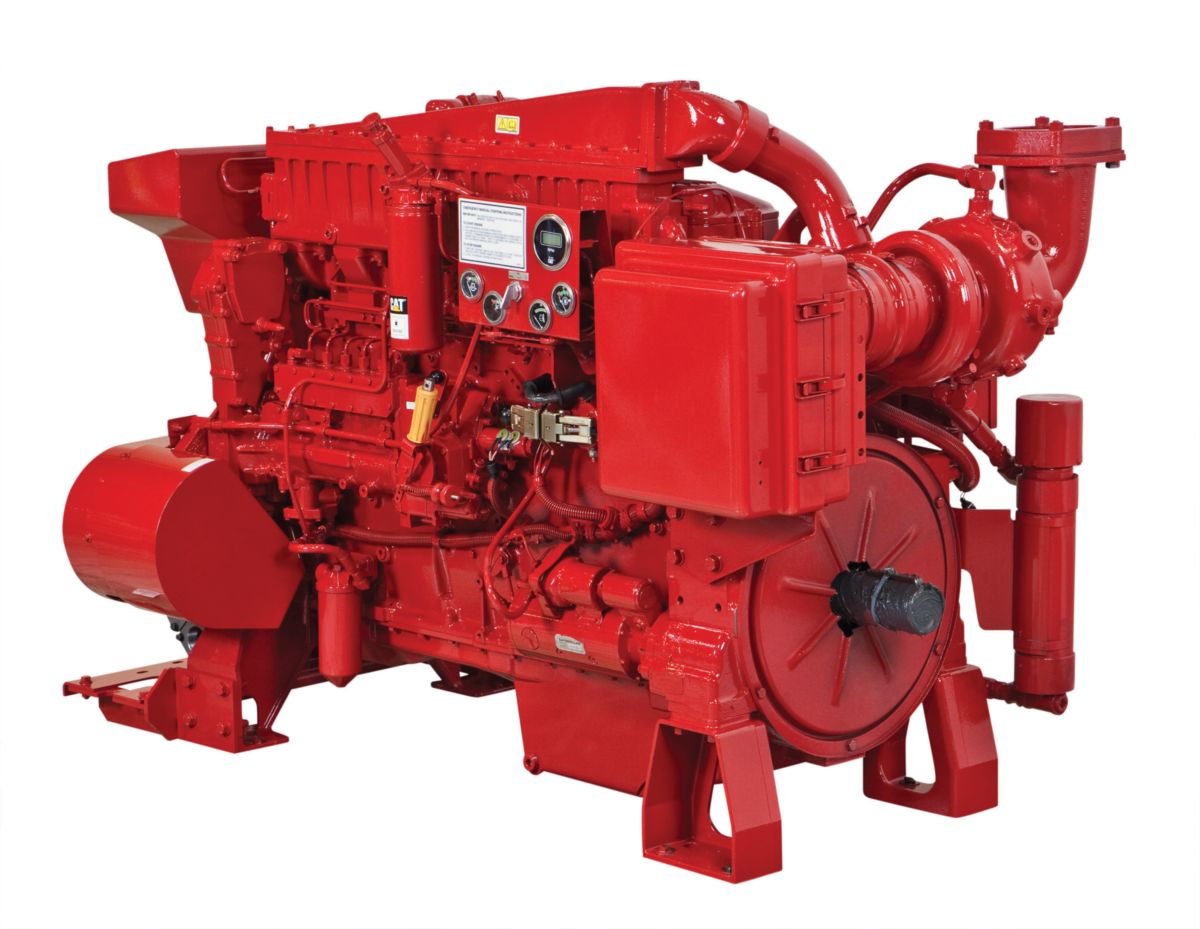

Cat 3406C Diesel Fire Pump Engine. Ratings: 218-359 bkW (292-482 bhp) @ 1750-2300 rpm are non-certified. Available for global non-regulated areas. FM Approved, UL Listed.

Engine Specifications

Minimum Rating
292.00 bhp
217.00 bkW
Maximum Rating
482.00 bhp
359.00 bkW
Emissions
Non-certified
Bore
5.40 in
137.00 mm
Stroke
6.50 in
165.00 mm
Displacement
891.00 in3
14.60 L
Aspiration
Turbocharged Aftercooled
Engine Weight - Net Dry
3278.00 lb
1487.00 kg
Oil Change Interval
250.00 h
250.00 h
Rotation (from flywheel end)
Counterclockwise
Flywheel and Flywheel Housing
SAE No. 1
Flywheel Teeth
113

Capacity for Liquids

Lube Oil System - Refill
9.00 gal (US)
34.00 l
Cooling System - Engine
6.00 gal (US)
23.00 l

Dimensions

Length
74.10 in
1883.00 mm
Width
46.30 in
1175.00 mm
Height
51.80 in
1315.00 mm

Engine Specifications

Minimum Rating
292.00 BHP
217.00 bkW
Maximum Rating
482.00 BHP
359.00 bkW
Emissions
Non-certified
Bore
5.40 in
137.00 mm
Stroke
6.50 in
165.00 mm
Displacement
891.00 in³
14.60 l
Aspiration
Turbocharged Aftercooled
Rotation from Flywheel End
Counterclockwise

Dimensions

Length
74.10 in
1883.00 mm
Width
46.30 in
1175.00 mm
Height
51.80 in
1315.00 mm
Features

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Quality

Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
  • Air Inlet System
    • Air cleaner. Regular duty, dry, panel type with service indicators, turbocharger, jacket water aftercooled.
  • Control System
    • Hydra-mechanical governor
  • Cooling System
    • Thermostats and housing
    • Jacket water pump, centrifugal
  • Exhaust System
    • Exhaust manifold, dry
    • Exhaust elbow, dry, 152 mm (6 in), 4 bolt flange
  • Flywheels and Flywheel Housing
    • SAE No. 1 flywheel
    • SAE No. 1 flywheel housing
    • SAE standard rotation
  • Fuel System
    • Fuel filter, LH
    • Fuel transfer pump
    • Fuel priming pump
  • Instrumentation
    • Instrument panel, LH
    • Engine oil pressure gauge
    • Fuel pressure gauge
    • Water temperature gauge
    • Service meter
  • Lube System
    • Crankcase breather
    • Oil cooler
    • Lube oil filter
    • Oil filler in valve cover and dipstick, both RH
    • Rear sump oil pan
  • Mounting System
    • Supports
  • General
    • Vibration damper
    • Lifting eyes
    • Paint: Caterpillar yellow, with optional colors available at request
