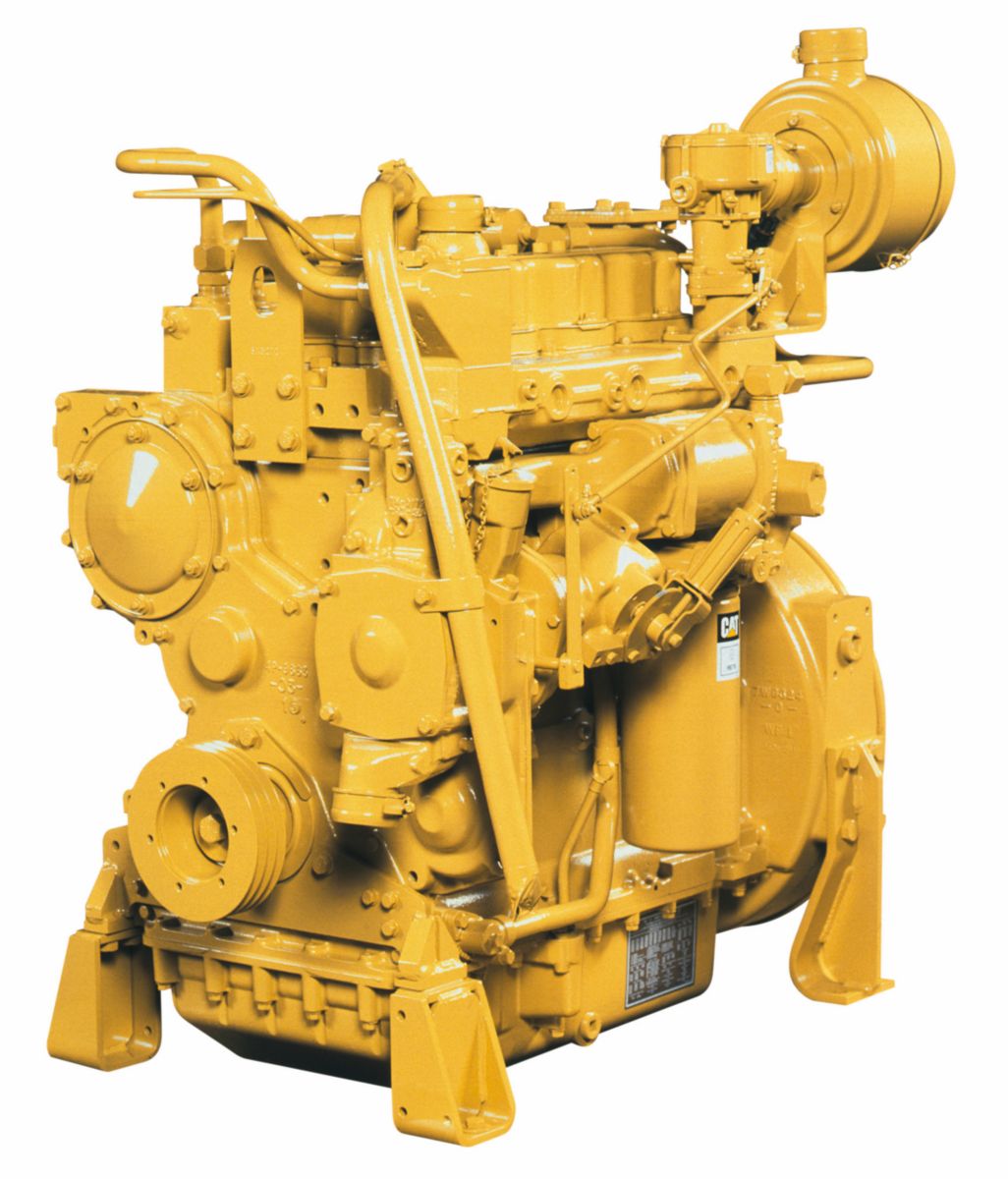

Cat® G3406 Industrial Gas Engine

Request A Quote
US
Metric

Overview

Cat® G3406 Industrial Gas Engine. Ratings: 160-242 bkW (215-325 bhp) @ 1800 rpm are NSPS site compliant capable with customer-supplied aftertreatment. Some ratings also have standard emission settings available for export only. For specific emission information, please consult your local Cat Dealer.

General

Bore
137 mm (5.4 in)
Stroke
165 mm (6.5 in)
Displacement
14 L (893 in³)
Aspiration
Naturally Aspirated (NA), Turbocharged Aftercooled (TA)
Engine Configuration
Engine - Continuous

Power Rating

Minimum Power
215.00 bhp
160.00 bkW
Maximum Power
325.00 bhp
215.00 bkW
Frequency
1800 rpm

Engine Dimensions - Approximate

Weight - Net Dry
1362 kg (3000 lb)

Engine Dimensions (Approximate. Final dimensions dependent on selected options)

Height
1433 mm (56 in)
Width
1270 mm (50 in)
Length
1934 mm (76 in)

Power Rating

Minimum Power
215.00 BHP
160.00 bkW
Maximum Power
325.00 BHP
215.00 bkW

General

Bore
137 mm (5.4 in)
Stroke
165 mm (6.5 in)
Displacement
14 L (893 in³)
Aspiration
Naturally Aspirated (NA), Turbocharged Aftercooled (TA)
Engine Configuration
Engine - Continuous

Engine Dimensions - Approximate

Height
1433 mm (56 in)
Length
1934 mm (76 in)
Width
1270 mm (50 in)
Width
1270 mm (50 in)
Features

Emissions

Ratings are NSPS site compliant capable with customer-supplied aftertreatment. Some ratings also have standard emission settings available for export only. For specific emission information, please refer to the engine spec sheet.

Engine Design

  • Proven reliability and durability
  • Ability to burn a wide spectrum of gaseous fuels
  • Robust diesel strength design prolongs life and lowers owning and operating costs
  • Broad operating speed range

Full Range of Attachments

Large variety of factory-installed engine attachments reduces packaging time

Quality

Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including S•O•SSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the CatIndustrial Service Distributor (ISD) program
Standard Equipment
  • Air Inlet System
    • Air cleaner — heavy-duty
    • Air cleaner rain cap
    • Service indicator
  • Control System
    • Governor — Woodward PSG mechanical
    • Governor locking — positive control
  • Cooling System
    • Thermostats and housing
    • Jacket water pump
    • Aftercooler water pump
    • Aftercooler core
  • Exhaust System
    • Watercooled exhaust manifolds
    • Dry exhaust elbow
  • Flywheel & Flywheel Housing
    • SAE No. 1 flywheel
    • SAE No. 1 flywheel housing
    • SAE standard rotation
  • Fuel System
    • Gas pressure regulator
    • Natural gas carburetor
  • Ignition System
    • Altronic III ignition system
  • Instrumentation
    • Service meter
  • Lube System
    • Crankcase breather — top mounted
    • Oil cooler
    • Oil filter — RH
    • Auxiliary oil reservoir
    • Oil pan — full sump
    • Oil filler in valve cover, dipstick — RH
  • Mounting System
    • Engine supports
  • Protection System
    • Shutoffs
  • General
    • Paint — Cat yellow
    • Crankshaft vibration damper and drive pulleys
    • Lifting eyes
Optional Equipment
  • Air Inlet System
    • Precleaner
  • Charging System
    • Battery chargers
    • Charging alternators
    • Charging alternators f/u/w c customer supplied shutoffs
    • Ammeter gauge
    • Ammeter gauge and wiring
    • Control mounting
  • Control System
    • PSG Woodward governor
  • Cooling System
    • Radiators
    • Non-sparking blower fan
    • Blower fans for customer supplied radiators
    • Fan drives for customer supplied radiators
    • ATAAC conversion
    • Aftercooler
    • Expansion tank
    • Heat exchangers
  • Exhaust System
    • Flexible fittings
    • Elbow
    • Flange
    • Pipe
    • Rain cap
    • Muffler
  • Fuel System
    • Fuel filter
    • Natural gas valve and jet kits
  • Ignition System
    • CSA shielded ignition
    • Wiring harness
  • Instrumentation
    • Gauges and instrument panels
  • Lube System
    • Auxiliary oil reservoir removal
    • Lubricating oil
  • Mounting System
    • Vibration isolators
  • Power Take-Offs
    • Auxiliary drive pulleys
    • Enclosed clutch and clutch support
    • Front stub shaft and flywheel stub shaft
  • Protection System
    • Gas valves
  • Starting System
    • Air starting motor
    • Electric air start control
    • Air pressure regulator
    • Air silencer
    • Electric starting motor— single 12- and 24-volt
    • Starting aids
    • Battery sets, cables, and rack
  • General
    • Damper guard
