Cat® G3520, G3520B Industrial Gas Engine

Request A Quote
US
Metric

Overview

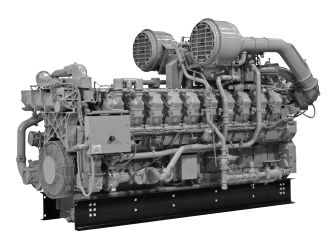

Cat® G3520 and G3520B Industrial Gas Engine. Ratings: 1104 bkW (1480 bhp) @ 1200 rpm and 1286 bkW (1725 bhp) @ 1400 rpm are NSPS site compliant capable with customer-supplied aftertreatment. For specific emission information, please consult your local Cat Dealer.

General

Bore
170 mm (6.7 in)
Stroke
190 mm (7.5 in)
Displacement
86.3 L (5263 in³)
Engine Configuration
Engien - Continuous

Power Rating

Minimum Power
1480.00 bhp
1104.00 bkW
Maximum Power
1725.00 bhp
1286.00 bkW
Frequency
1200-1400 rpm

Engine Dimensions - Approximate

Weight - Net Dry
11168 kg (24622 lb)

Engine Dimensions (Approximate. Final dimensions dependent on selected options)

Height
2385 mm (94 in)
Width
1755 mm (69 in)
Length
4180 mm (164 in)

Power Rating

Minimum Power
1480.00 BHP
1104.00 bkW
Maximum Power
1725.00 BHP
1286.00 bkW

General

Bore
170 mm (6.7 in)
Stroke
190 mm (7.5 in)
Displacement
86.3 L (5263 in³)
Engine Configuration
Engien - Continuous

Engine Dimensions - Approximate

Height
2385 mm (94 in)
Length
4180 mm (164 in)
Width
1755 mm (69 in)
Features

Engine Design

  • Built on G3500 LE proven reliability and durability
  • Ability to burn a wide spectrum of gaseous fuels
  • Robust diesel strength design prolongs life and lowers owning and operating costs
  • Broad operating speed range at lower site air densities (high altitude/hot ambient temperatures)
  • Higher power density improves fleet management
  • Quality engine diagnostics
  • Detonation-sensitive timing control for individual cylinders

Ultra Lean Burn Technology (ULB)

ULB technology uses an advanced control system, a better turbo match, improved air and fuel mixing, and a more sophisticated combustion recipe to provide: - Lowest engine-out emissions - Highest fuel efficiency - Improved altitude and speed turndown - Stable load acceptance and load rejection

Advanced Digital Engine Management

ADEM A3 engine management system integrates speed control, air/fuel ratio control, and ignition/detonation controls into a complete engine management system. ADEM A3 has improved: user interface, display system, shutdown controls, and system diagnostics.

Full Range of Attachments

Large variety of factory-installed engine attachments reduces packaging time.

Quality

Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
  • Air Inlet System
    • Axial Flow Air cleaner
    • Cleanable
    • Intermediate-duty with service indicator
  • Control System
    • ADEM A3 with integrated electronic throttle control
    • Control panel
  • Cooling System
    • Two-stage charge air cooling
    • Thermostats and housing
    • Engine-driven jacket and aftercooler water pump
    • Stainless steel aftercooler cores
  • Exhaust System
    • Dry exhaust manifolds
    • Dry exhaust elbow
  • Flywheels and Flywheel Housings
    • SAE No. 00 flywheel
    • SAE No. 00 flywheel housing
    • SAE standard rotation
  • Fuel System
    • 7-50 psi gas supply
    • Fuel system is sized for 800 to 1200 btu/scf (31.5 to 47.2 MJ/Nm3)
    • Electronic fuel metering valve
    • Gas pressure regulator
    • Gas shutoff valve (GSOV)
  • Ignition System
    • ADEM A3
  • Lubrication System
    • Crankcase breather — top mounted
    • Oil cooler
    • Oil filter — RH
    • Oil pan — 143 gal
    • Drain valve
    • Oil sampling valve
    • Turbo oil accumulator
  • Mounting System
    • Engine mounting rails - 330.2 mm (13 in) industrial-type
  • Power Take-Offs
    • Front housing — two-sided
    • Front lower LH, RH, and upper RH accessory drives
  • General
    • Paint — Cat yellow
    • Crankshaft vibration damper and guard
    • CSA Certification, Class 1 Division 2, Group D - electrical system and instrumentation - includes ADEM A3 and control panel
Optional Equipment
  • Air Inlet System
    • Round air inlet adaptors
  • Charging System
    • Charging alternator - CSA approved 24V, 65 A
  • Cooling System
    • Flexible connections
  • Exhaust System
    • Flexible fittings
    • Flange and expander
  • Fuel System
    • Gas filter
  • Instrumentation
    • Communications module
  • Lubrication System
    • Lubricating oil
    • Oil bypass filter
    • Air prelube pump
  • Power Take-Offs
    • Front stub shaft
    • Pulleys
    • Double damper
  • Protection System
    • Explosion relief valves
    • Secondary GSOV
  • Starting System
    • Air starting motor with controls (90 psi or 150 psi)
    • API B16.3 compliant piping
    • Jacket water heater
    • Barring group
  • General
    • Special paint
    • Torsional vibration analysis
  • EU Certification
    • EEC DOI certification
  • Support
    • Factory commissioning
