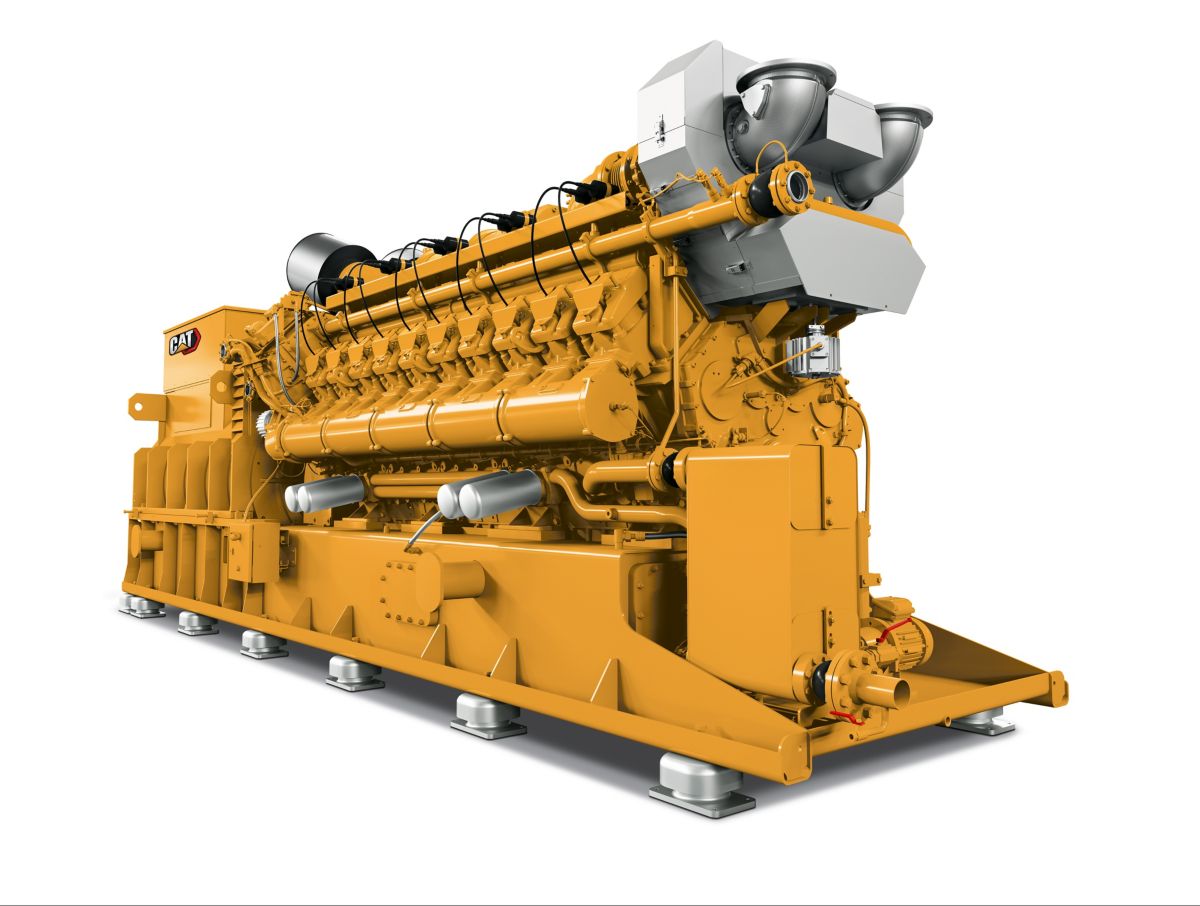

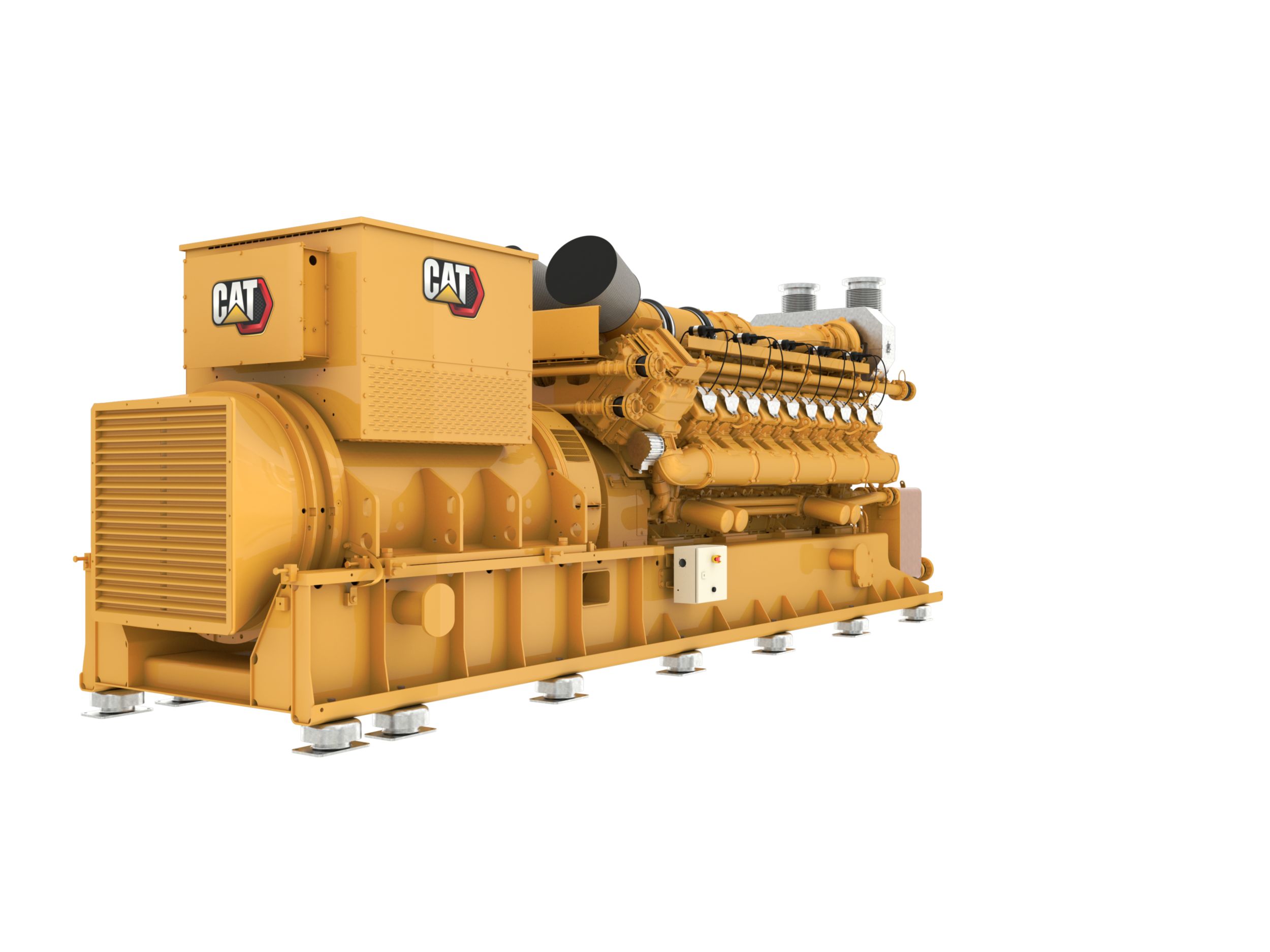

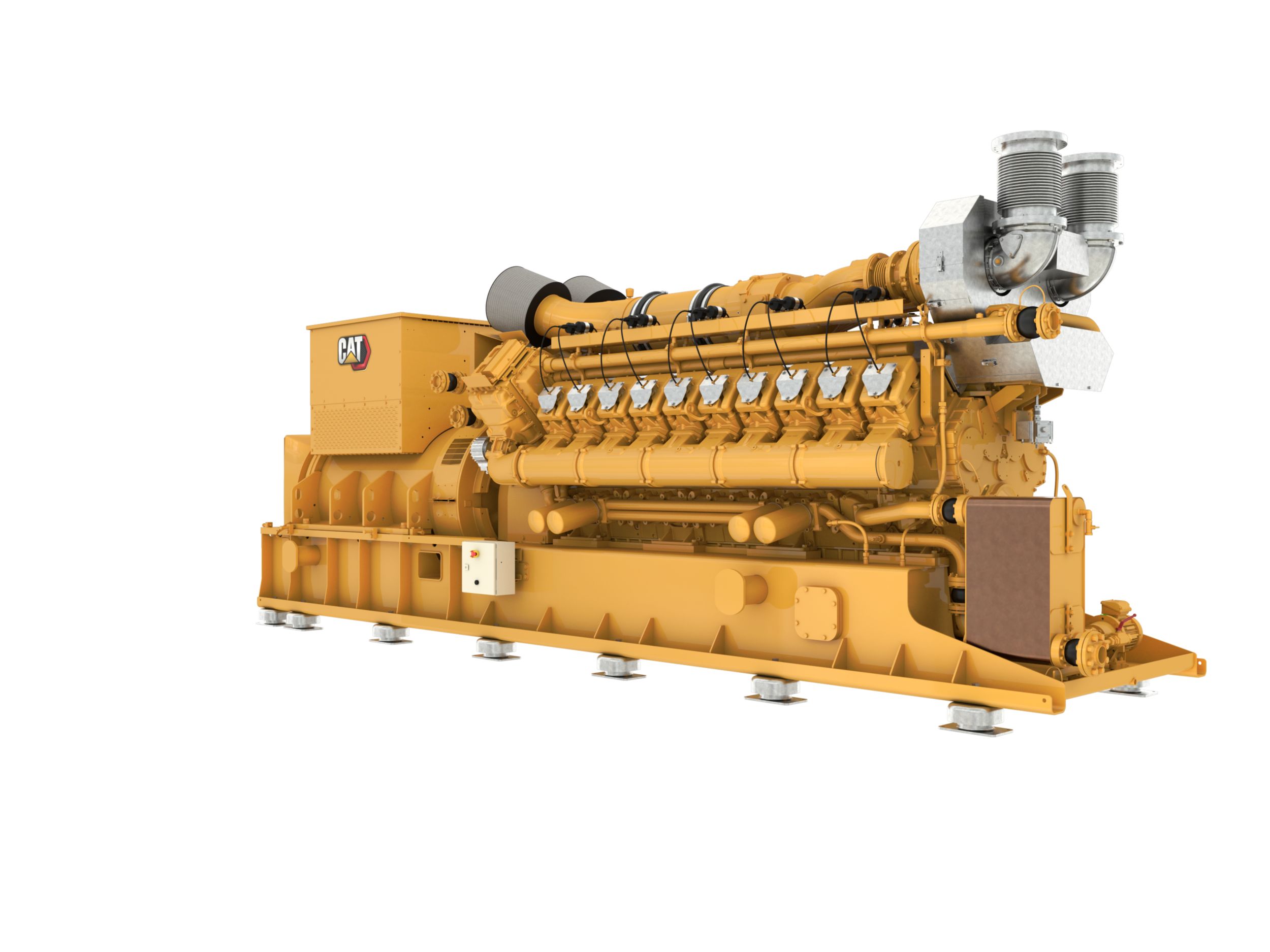

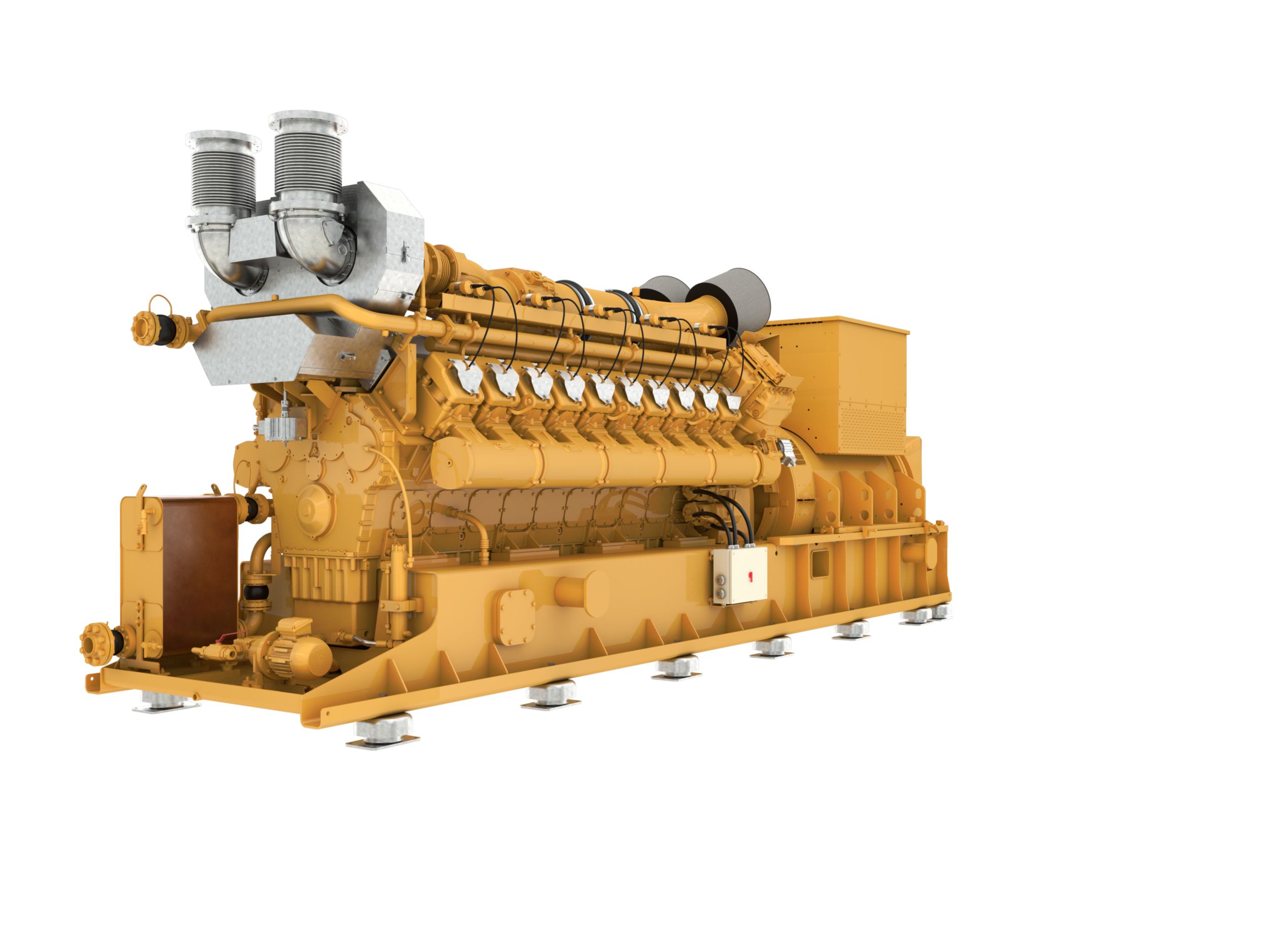

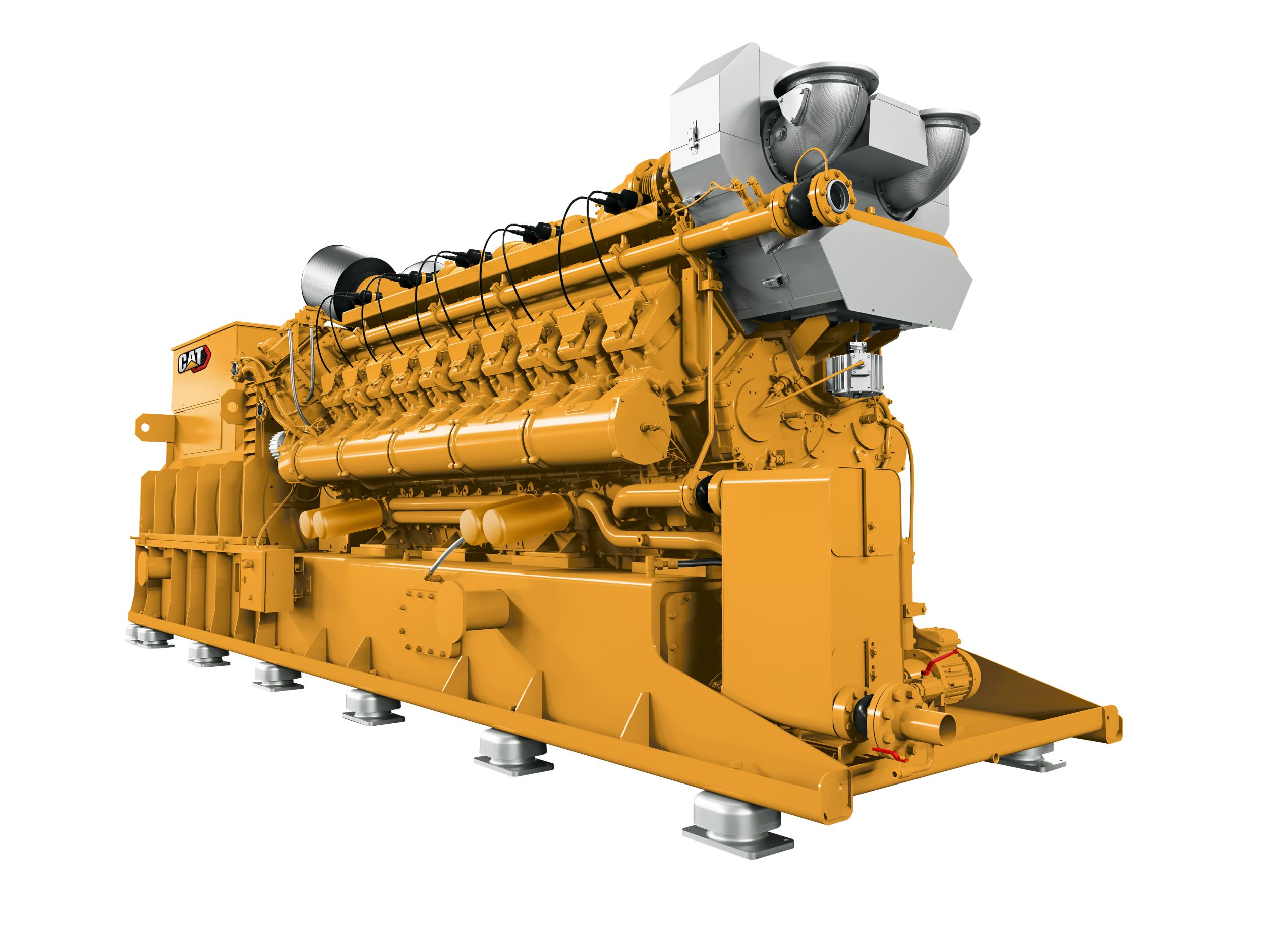

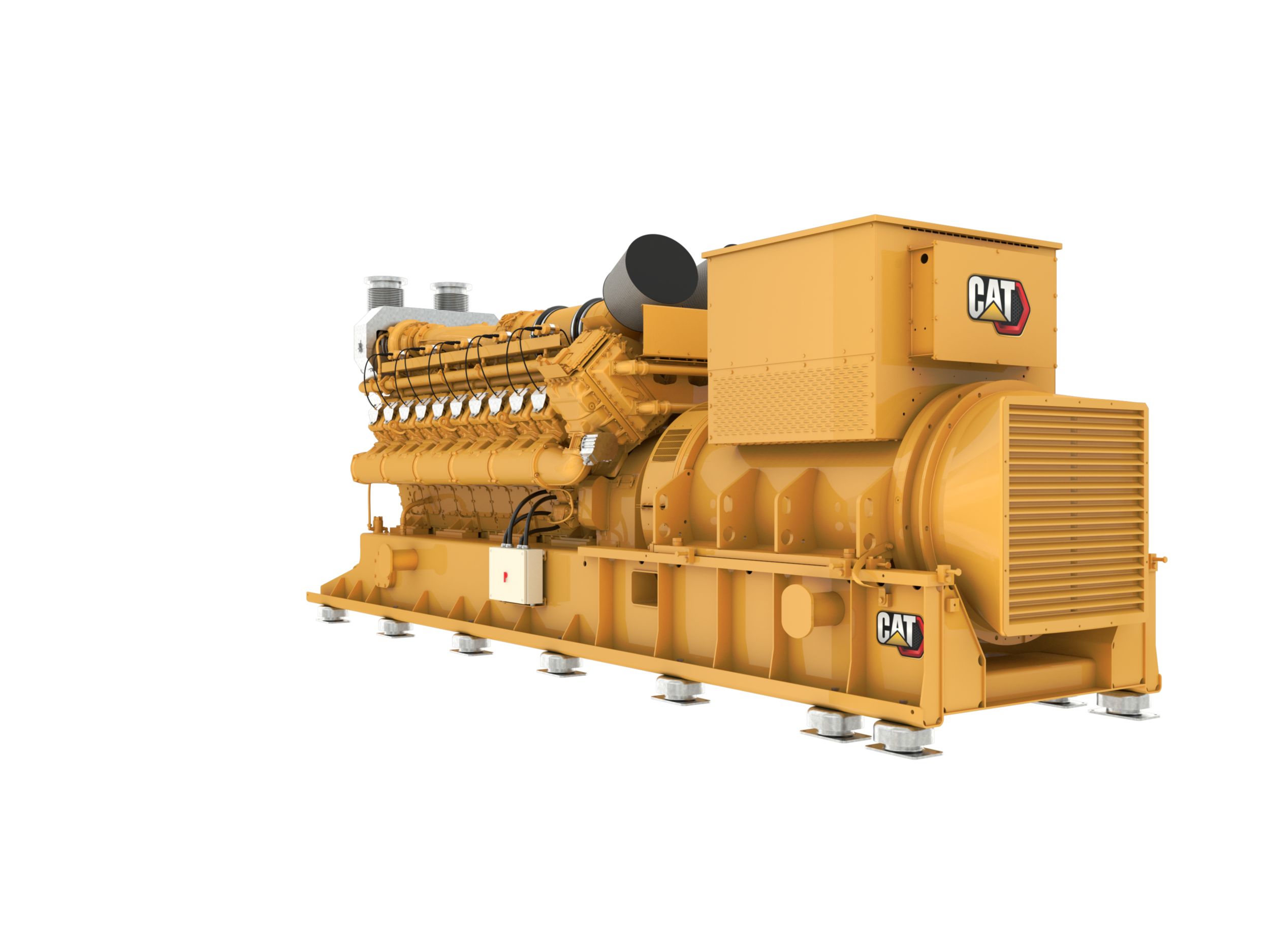

CG170-20B Gas Generator Set

Request A Quote
US
Metric

Overview

Generator Set Specifications

Continuous Rating
2300 ekW @1.0pf
Fuel Type
Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency
45.00%
Maximum Standby Rating
2300
Frequency
50/60 Hz
RPM
1500 rpm

Engine Specifications

Engine Model
CG170B-20
Aspiration
TA
Bore
6.70 in
170.00 mm
Stroke
7.70 in
195.00 mm

Generator Set Dimensions

Length
258.00 in
6556.00 mm
Width
67.00 in
1706.00 mm
Height
89.00 in
2263.00 mm
Dry Weight - Genset
47377.00 lb
21490.00 kg
Features

High Efficiency, Lower Operating Costs


  • Up to 45% electrical efficiency with Natural Gas
    •
  • 43.6% electrical efficiency with biogas
    •
  • Electrical output up to 2,300 kWel
    •
  • Reduced vibration and stress on components

Compact Size, High Profitability

  • Compact design that delivers up to 15% more power output at the same size as its predecessor
  • Long maintenance intervals (up to 80,000 hours)
  • Available in different applications, such as natural gas, biogas, wellhead- and propane gas operation
  • Maximum flexibility through different engine variants

Optimized Lubrication Consumption


  • Consumes ~0.15g/kWh
    •
  • Reduced lube oil temperature through better cooling performance
    •
  • Savings of up to 3,000 liters of lube oil per year compared to comparable gensets
Standard Equipment
  • Air Cleaner
    • Turbocharger with a water-cooled bearing case
    • 2 Single-stage, single-element intake air filters with service indicator
  • Cooling System
    • Flange connections for all fluids VG-type or ISO-flanges
  • Exhaust System
    • PEARL/Low resistence exhaust system
    • Exhaust wastegate
    • Closed crankcase ventilation system
  • Fuel System
    • Electronic fuel metering valve
    • Independently controlled cylinder monitoring and ignition system
    • Pre-chamber spark plugs
    • Zero pressure & Pre pressured gas train
  • General
    • External free standing combustion air preheating unit
  • Lubrication
    • Electric prelubrication pump
    • Electric preheating
  • Protection System
    • Explosion Relief Valves
    • Flame Arresters
  • Starting/Charging
    • 24V starting motors
    • Battery disconnect switch
  • Attachments
    • Anti-condensation space heater
    • Busbar connections: left or right
    • Winding temperature detectors
    • 3-phase sensing and KVAR/PF control
    • Reactive droop
    • Anti-condensation space heater
  • Control Panel
    • TPEM (Total Plant & Energy Management System)
  • Vibration Isolators
    • Spring Isolators
  • Certifications
    • 2006/42/EC & 2006/95/EC, Declaration of Incorporation, Eurasian Conformity (EAC), Turkey certification, Ukraine certification, Nigeria Soncap certificate, Uzbekistan certificate (all 50 Hz only)
Optional Equipment
  • Cooling System
    • CHP Module
    • Electrical jacket water and aftercooler coolant pump
    • Stainless steel mixture cooler
  • Exhaust System
    • Optional Exhaust Muffler
    • SCR-System
  • Fuel System
    • Gas treatment
    • Gas analysis device
    • Low Heating Value (LHV) Intake Air Throrrle Flap System - for gas with less than 4 heating value. (50 Hz only)
  • General
    • Crankshaft vibration damper and guard
  • Lubrication
    • Base frame with extended lubrication oil volume
    • 24V - Lubrication pump option
  • Attachments
    • Generator RTD module
    • Neutral Ground - LV
    • Cross-Current CT - HV
    • Differential CTs - HV
    • PTs - HV
  • Vibration Isolators
    • Seismic Isolators
  • Certifications
    • 50 Hz Grid Code
