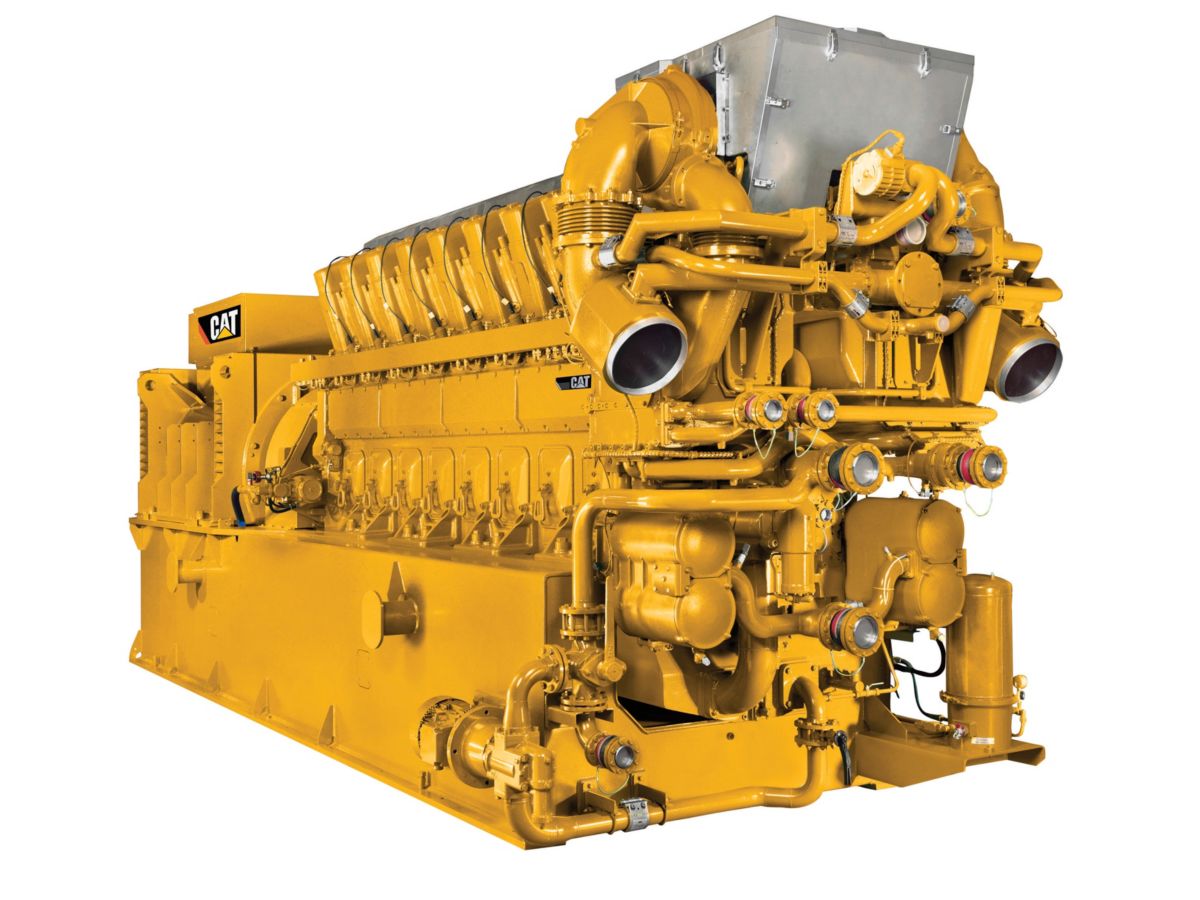

CG260-16 Gas Generator Set
US
Metric
Overview
Gas Generator Sets Specification
Maximum Continuous Rating
4500 ekW
Fuel Type
Natural Gas, Biogas, Coal Gas, Associated Gas, Synthesis Gas
Maximum Electrical Efficiency
44.6%
Maximum Standby Rating
4500 ekW
Frequency
50 or 60 Hz
RPM
1000 or 900
Engine Specification
Engine Model
CG260-16
Engine Specifications
Bore
10.20 in
260.00 mm
Stroke
12.60 in
320.00 mm
Displacement
16586.00 in³
271.80 l
Aspiration
TA
Generator Set Dimensions
Length
371.00 in
9420.00 mm
Width
110.00 in
2794.00 mm
Height
133.00 in
3390.00 mm
Dry Weight - Genset
117505.00 lb
53299.40 kg
Gas Generator Sets Specification
Maximum Electrical Efficiency
44.60%
Maximum Standby Rating
4500 ekW
Engine Specifications
Engine Model
CG260-16
