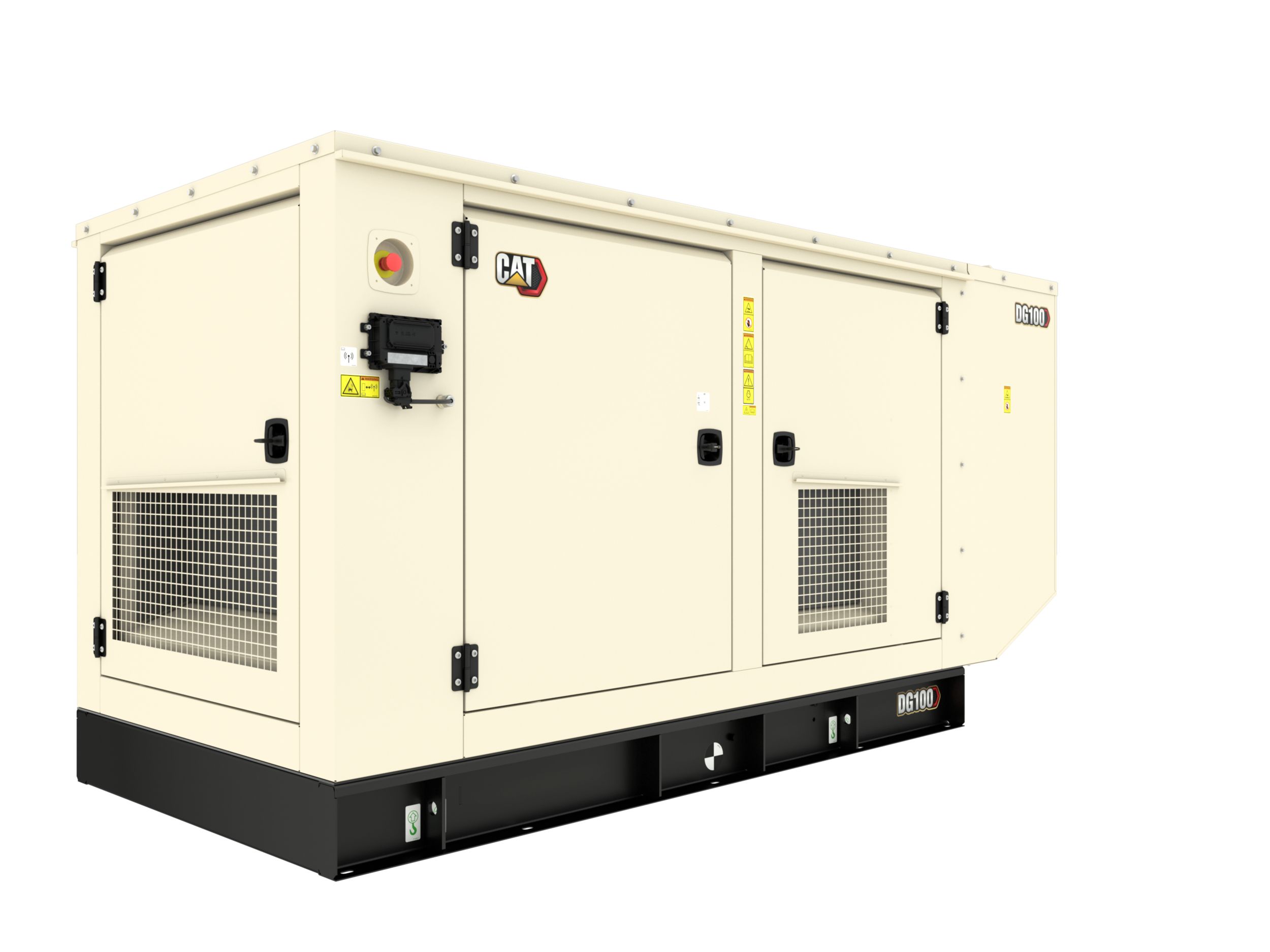

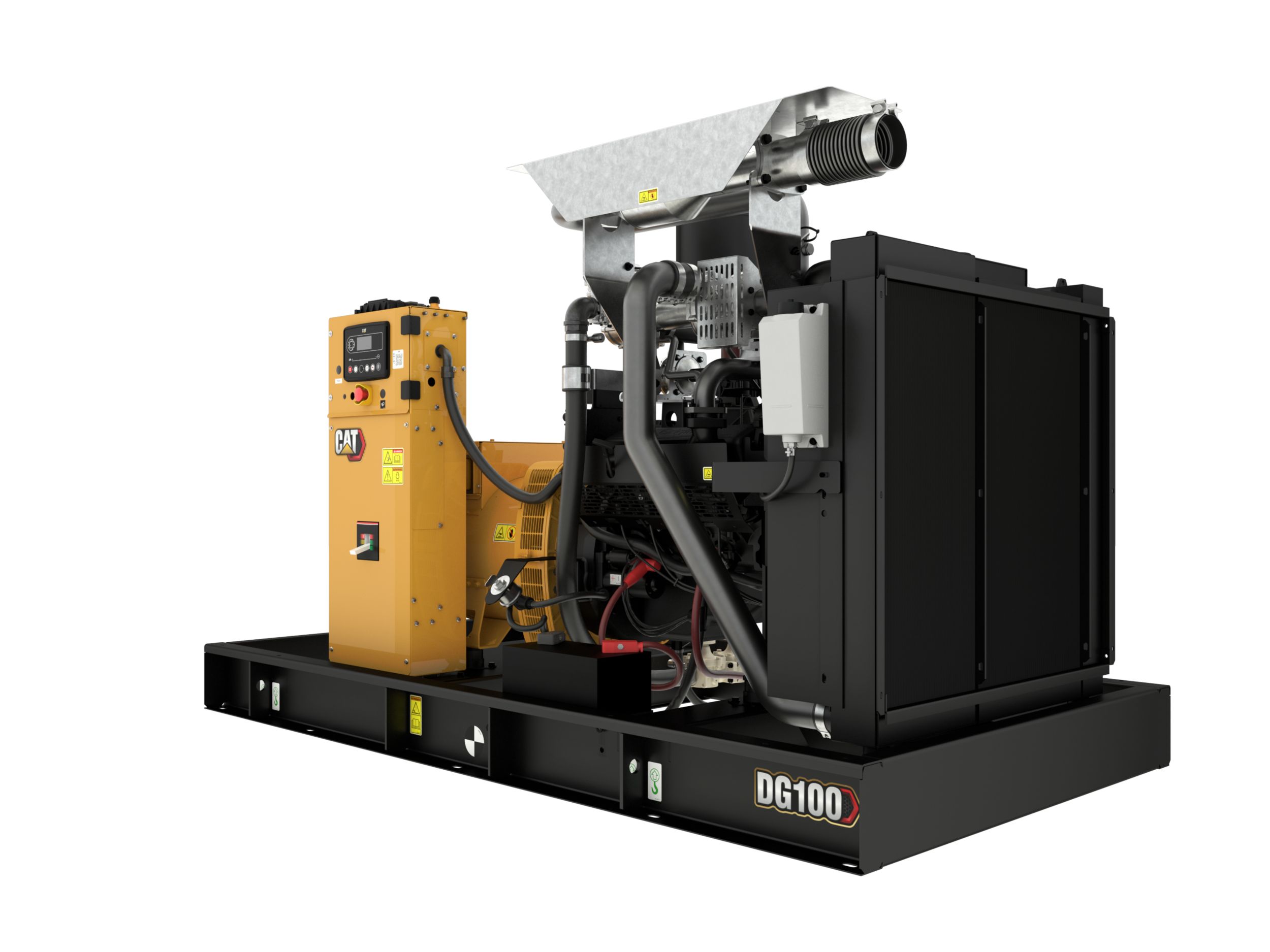

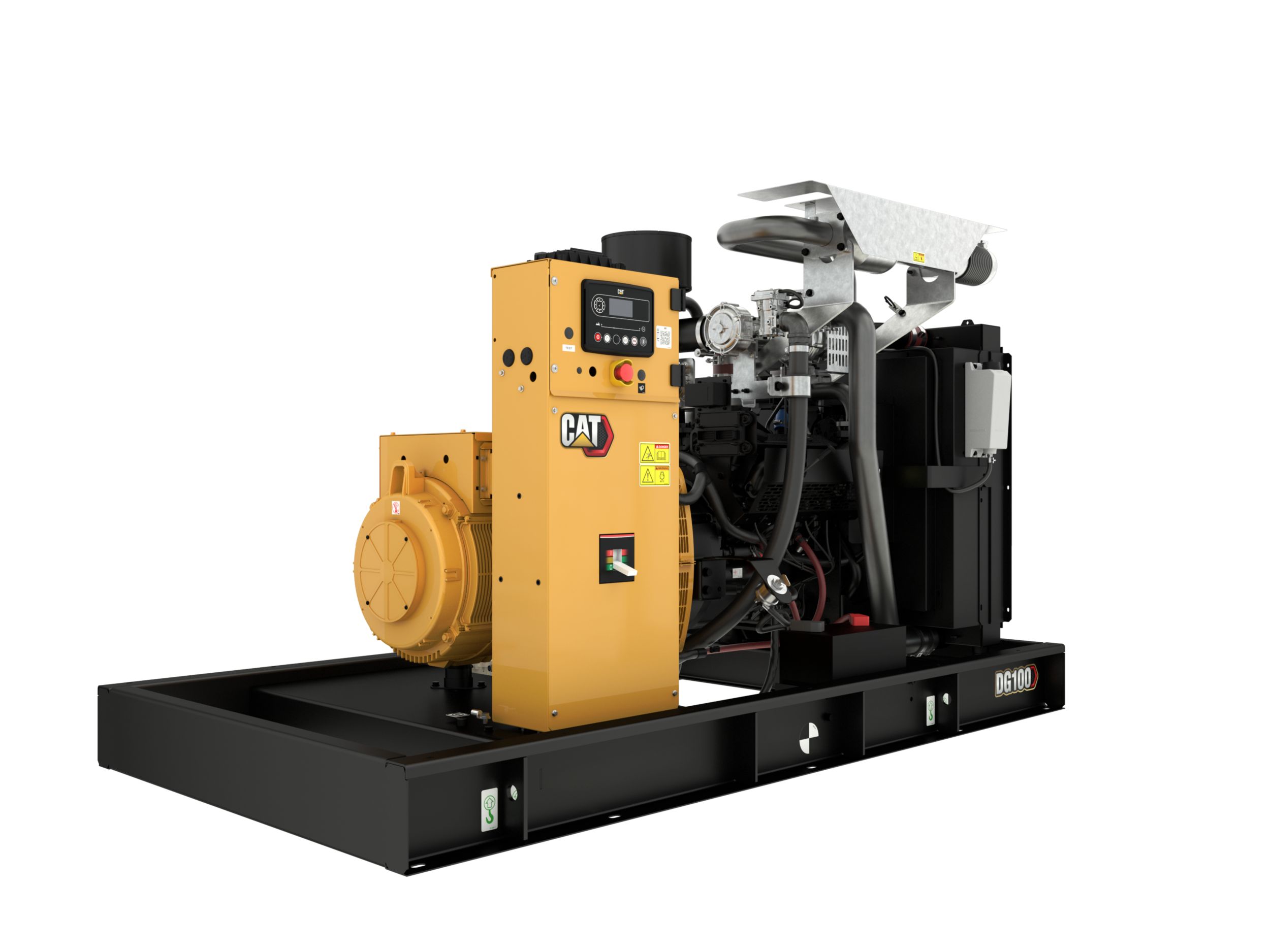

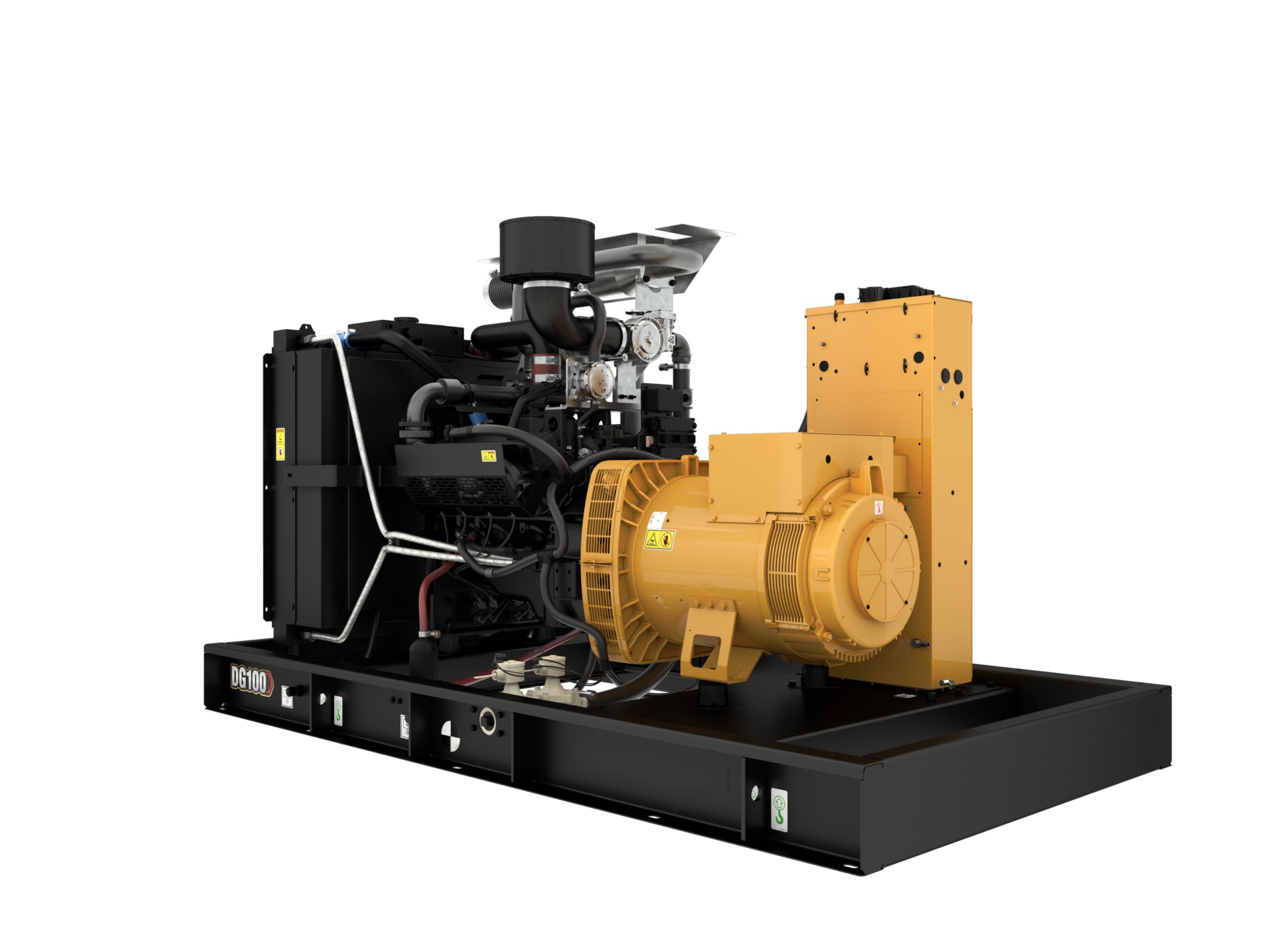

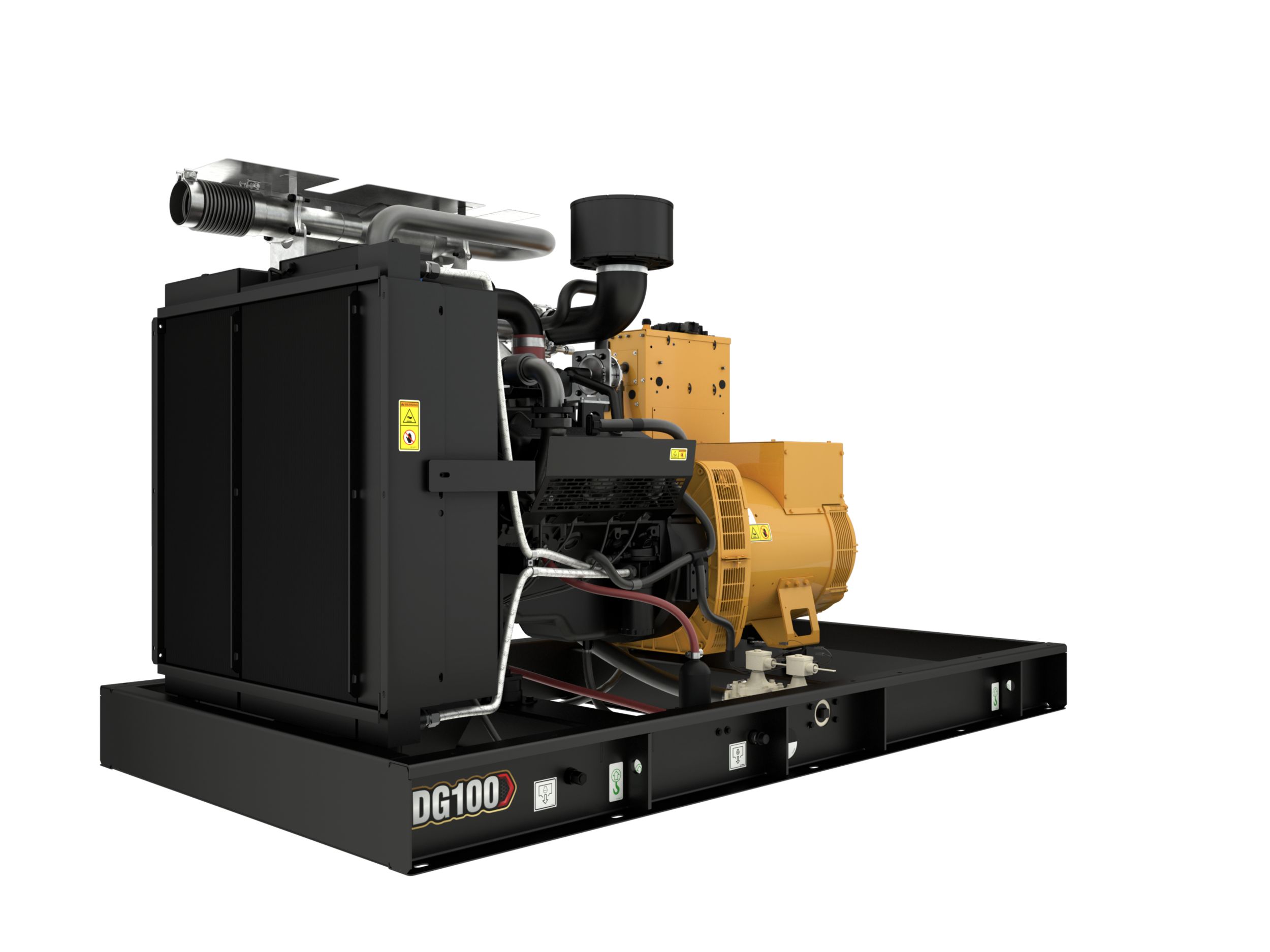

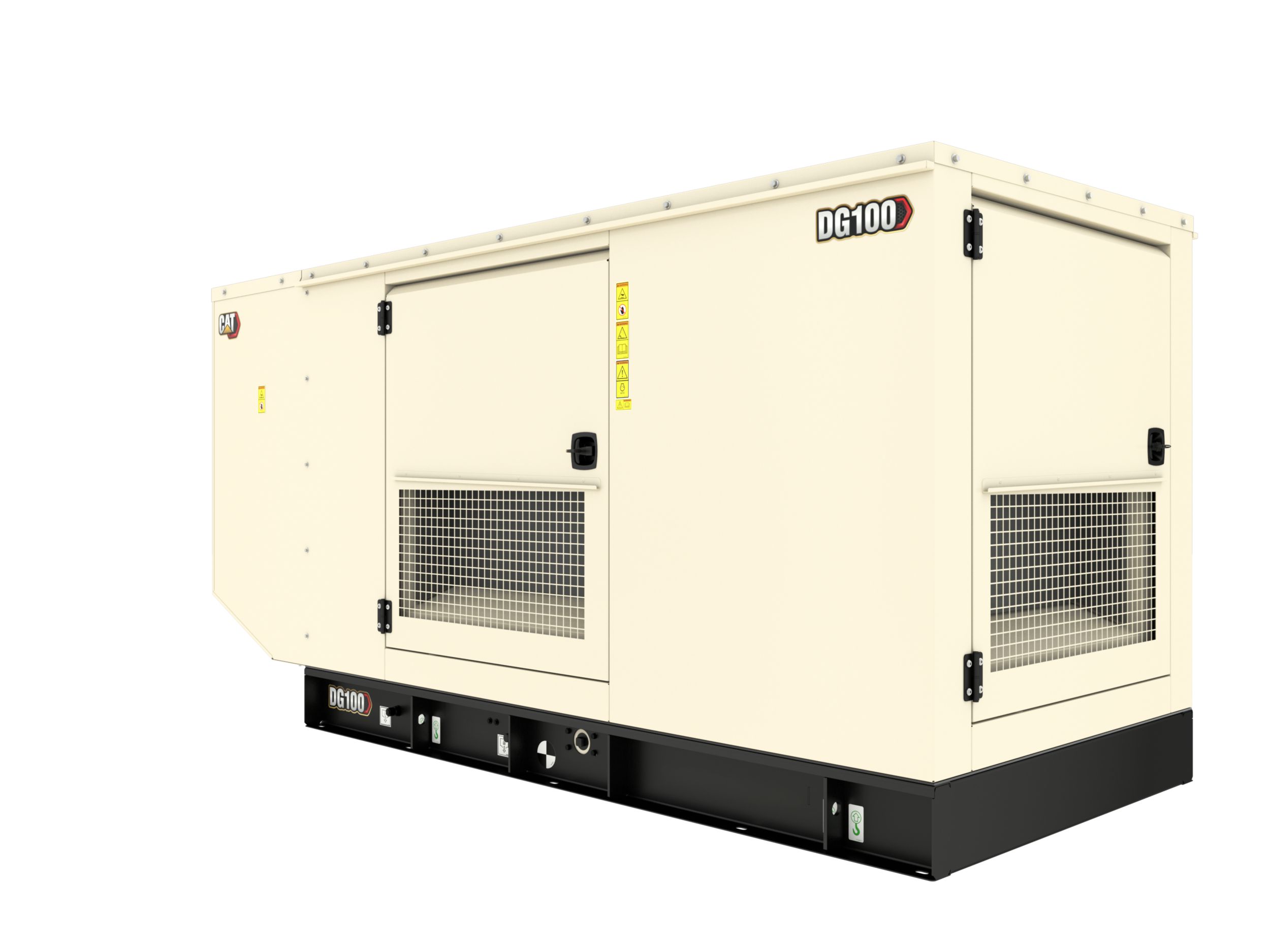

DG100 (60 Hz)
US
Metric
Overview
Generator Set Specifications
Frequency
60 Hz
Gas Standby Rating
100 ekW
Emissions/Fuel Strategy
U.S. EPA Certified for Stationary Emergency Application
Speed
1800 rpm
Voltage
208-600
Engine Specifications
Engine Model
V8, 6.2L TCAC
Stroke
3.75 in
95.30 mm
Displacement
378.30 in³
6.20 l
Compression Ratio
9.8:1
Fuel System
Electronic
Aspiration
TCAC
Bore
4.00 in
101.60 mm
Generator Set Dimensions
Length
96.00 in
2438.00 mm
Width
51.00 in
1295.00 mm
Height
57.00 in
1448.00 mm
Dry Weight - Genset
3007.00 lb
1364.00 kg
Features
6.2L spark-ignited engine
Turbocharged and aftercooled engine architecture delivers consistent performance for stationary power applications.
Automatic fuel changeover
Dual-fuel capability automatically shifts between natural gas and propane.
Lifetime product support
Cat dealer service, parts availability and warranty coverage support the generator set throughout its lifecycle.
Generator monitoring controls
Easy-to-use GCCP1.2 control panel supports generator set monitoring, with programmable settings for site-specific operating requirements.
Self-regulated alternator
Strong motor-starting performance helps reduce the need for alternator oversizing, while high-efficiency operation supports dependable power output.
VisionLink™ telematics
Remote monitoring provides access to generator set operating information to support equipment management.
Standard Equipment
- Control Panel
- GCCP1.2
- Remote monitoring software
Optional Equipment
- Starting/Charging
- Jacket water heater
- Fuel System
- Gas Regulator
- General
- Single element or dual element air cleaner
- Circuit breaker panel, based on regional and product configuration
