Gas Generator Sets

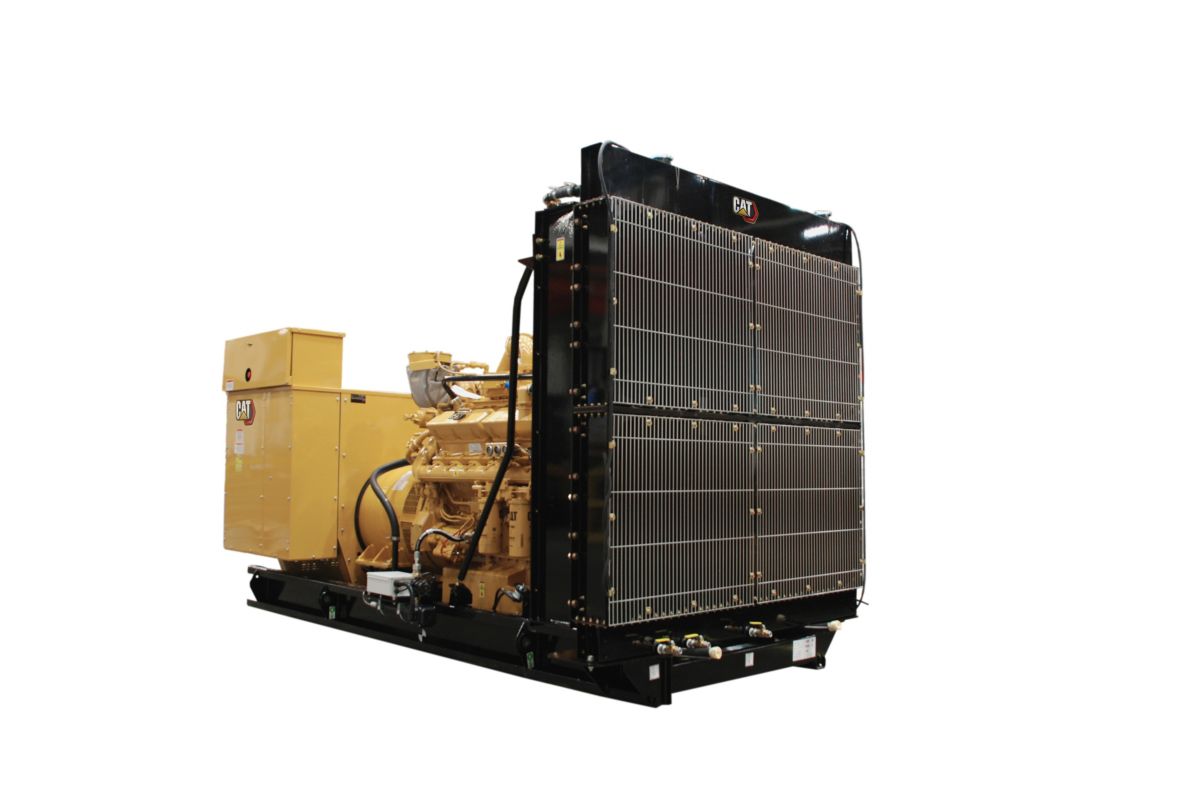

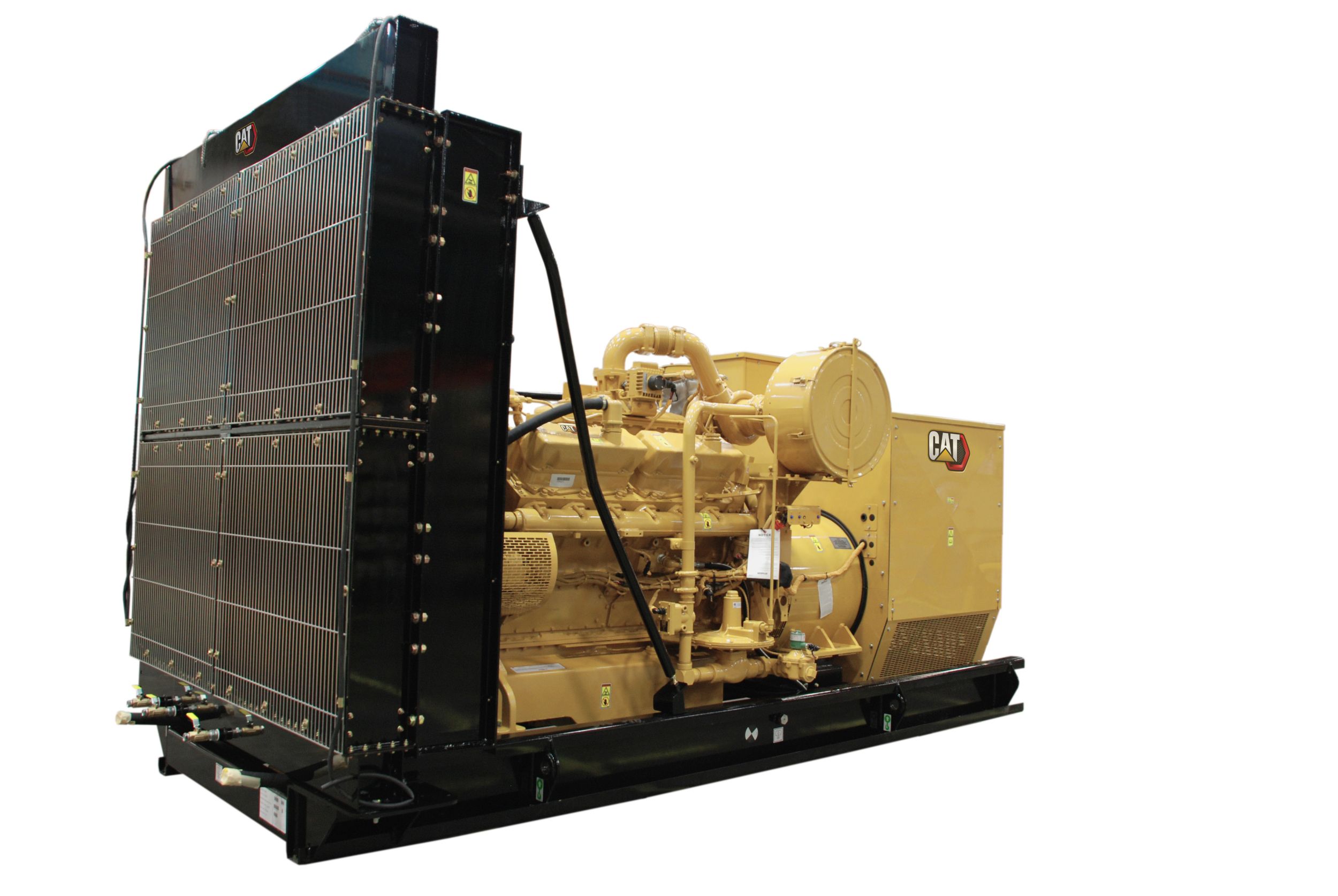

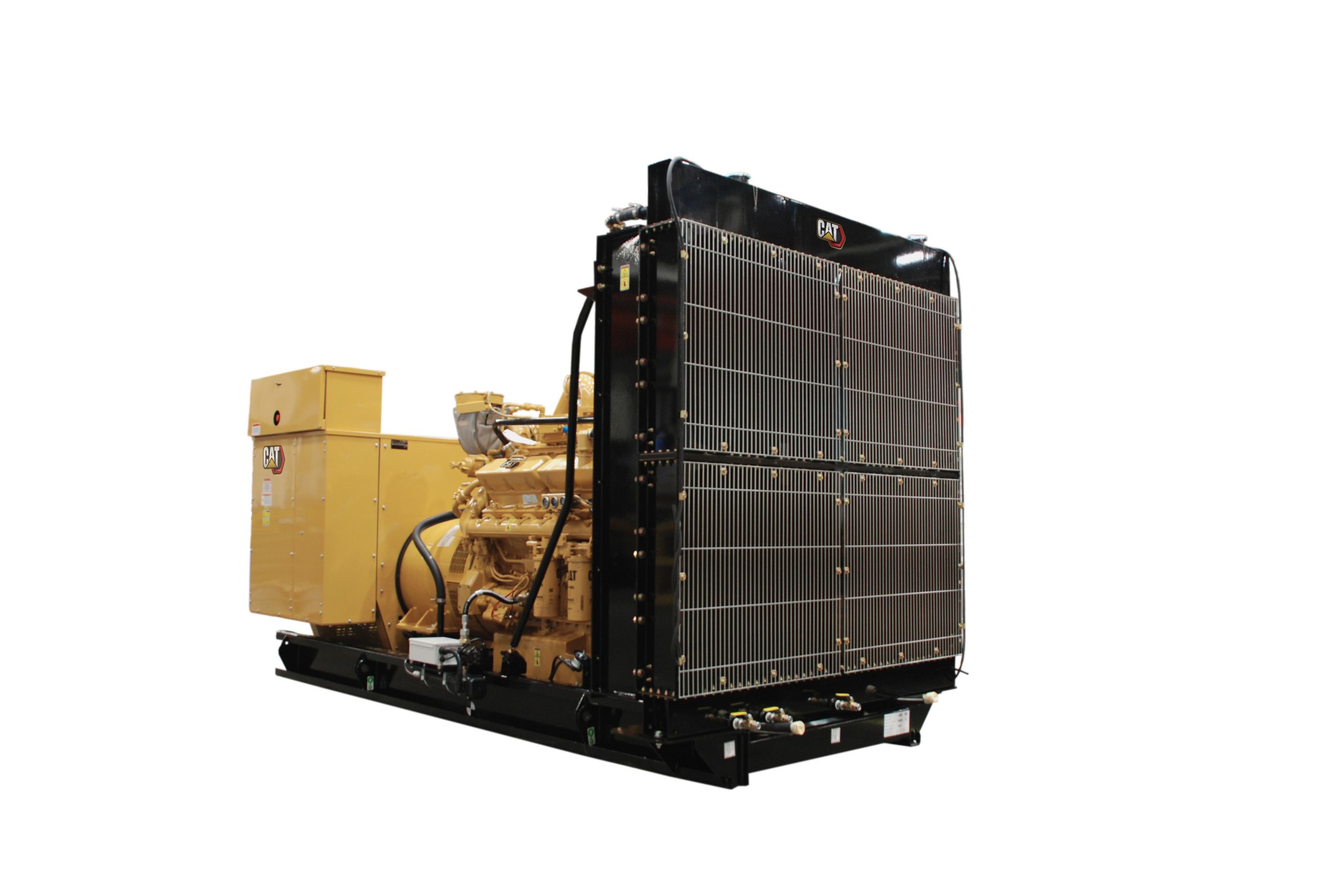

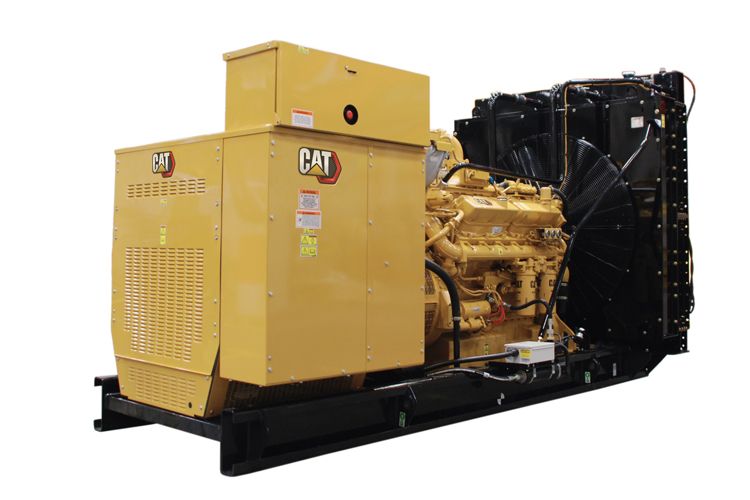

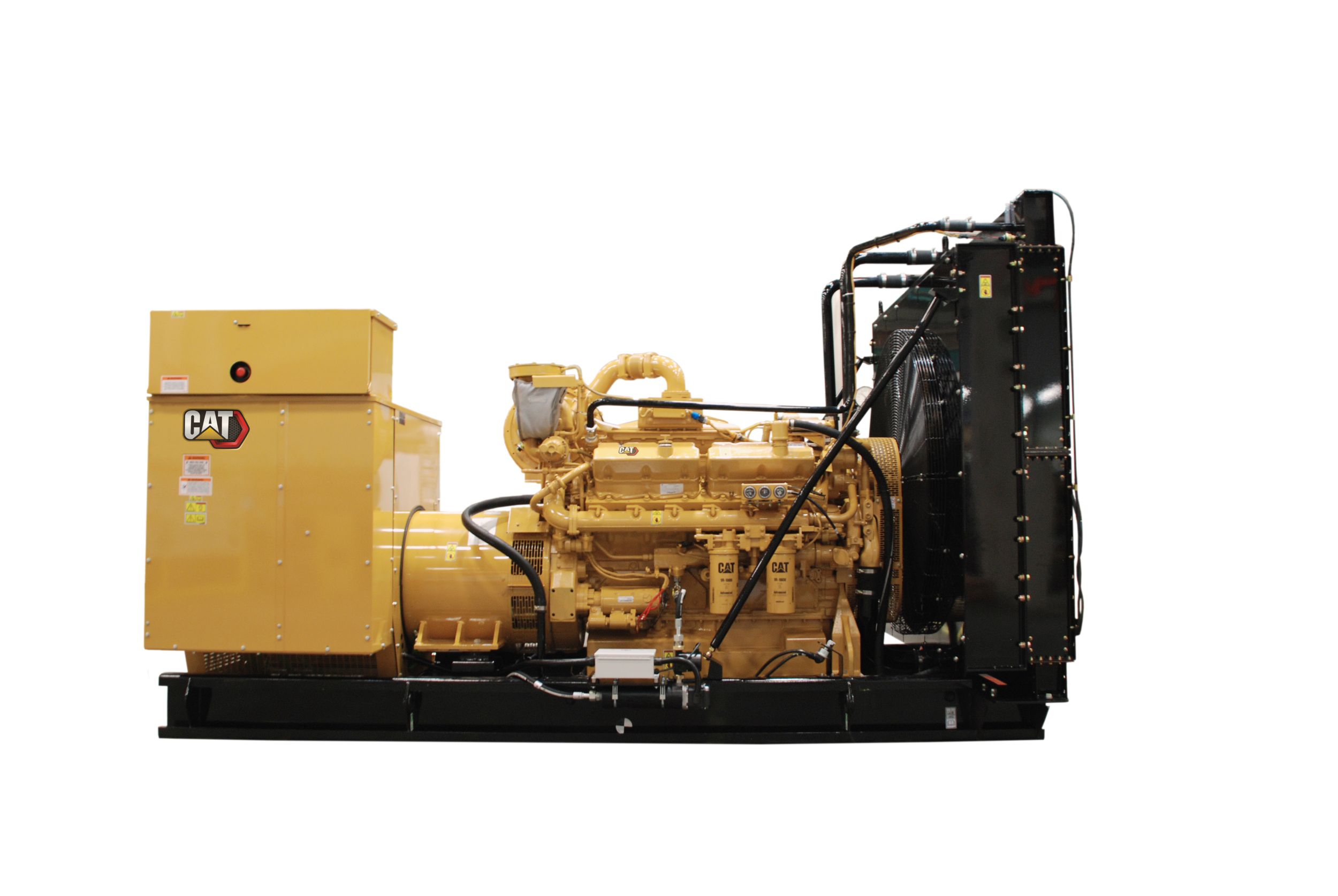

G3412 Gas Generator Set

Request A Quote
US
Metric

Overview

Generator Set Specifications

Maximum Continuous Rating
423 ekW @0.8pf
Fuel Type
Natural Gas, Biogas, Field Gas, Propane

Gas Generator Sets Specification

Maximum Electrical Efficiency
37.3%
Maximum Standby Rating
500

Generator Set Specifications

Frequency
50 or 60 Hz
RPM
1500 or 1800 rpm

Engine Specification

Engine Model
G3412

Engine Specifications

Bore
5.40 in
137.00 mm
Stroke
6.00 in
152.00 mm
Displacement
1649.00 in³
27.00 l
Aspiration
NA

Generator Set Dimensions

Length
179.00 in
4542.00 mm
Width
88.00 in
2238.00 mm
Height
86.00 in
2189.00 mm
Dry Weight - Genset
9664.00 lb
4384.00 kg

Generator Set Specifications

Maximum Electrical Efficiency
37.30%
Maximum Standby Rating
500 ekW @ 0.8pf

Engine Specifications

Engine Model
G3412
Features

Cat G3412 Gas Engine

  • Robust high speed block design provides prolonged life and lower owning operationg costs
  • Designed for maximum performance on low pressure pipeline natural gas
  • Simple open chamber combustion system for reliability and fuel flexibility
  • Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
  • One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection

SR4B Generator

  • Designed to match performance and output characteristics of Caterpillar gas engines
  • Industry leading mechanical and electrical design
  • High efficiency

Cat Electronic Control System

  • Simple user friendly interface and navigation
  • Digital monitoring, metering and protection setting
  • Fully-featured power metering and protective relaying
  • Remote control and monitor capability options

EMCP4.2 Control Panel

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements

Cooling System

  • Designed to operate in standard ambient temperatures up to 43°C (110°F)Contact your Cat Dealer for specific ambient and altitude capabilities

Emissions

  • Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment

Full Range of Attachments

  • Wide range of bolt-on system expansion attachments
  • Factory designed and tested
  • Flexible packaging options for easy and cost effective installation

Proven System

  • Field proven in a wide range of applications worldwide
  • Fully prototype tested
  • Certified torsional vibration analysis available

World Wide Product Support

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
