G3516C Gas Generator Set
US
Metric
Overview

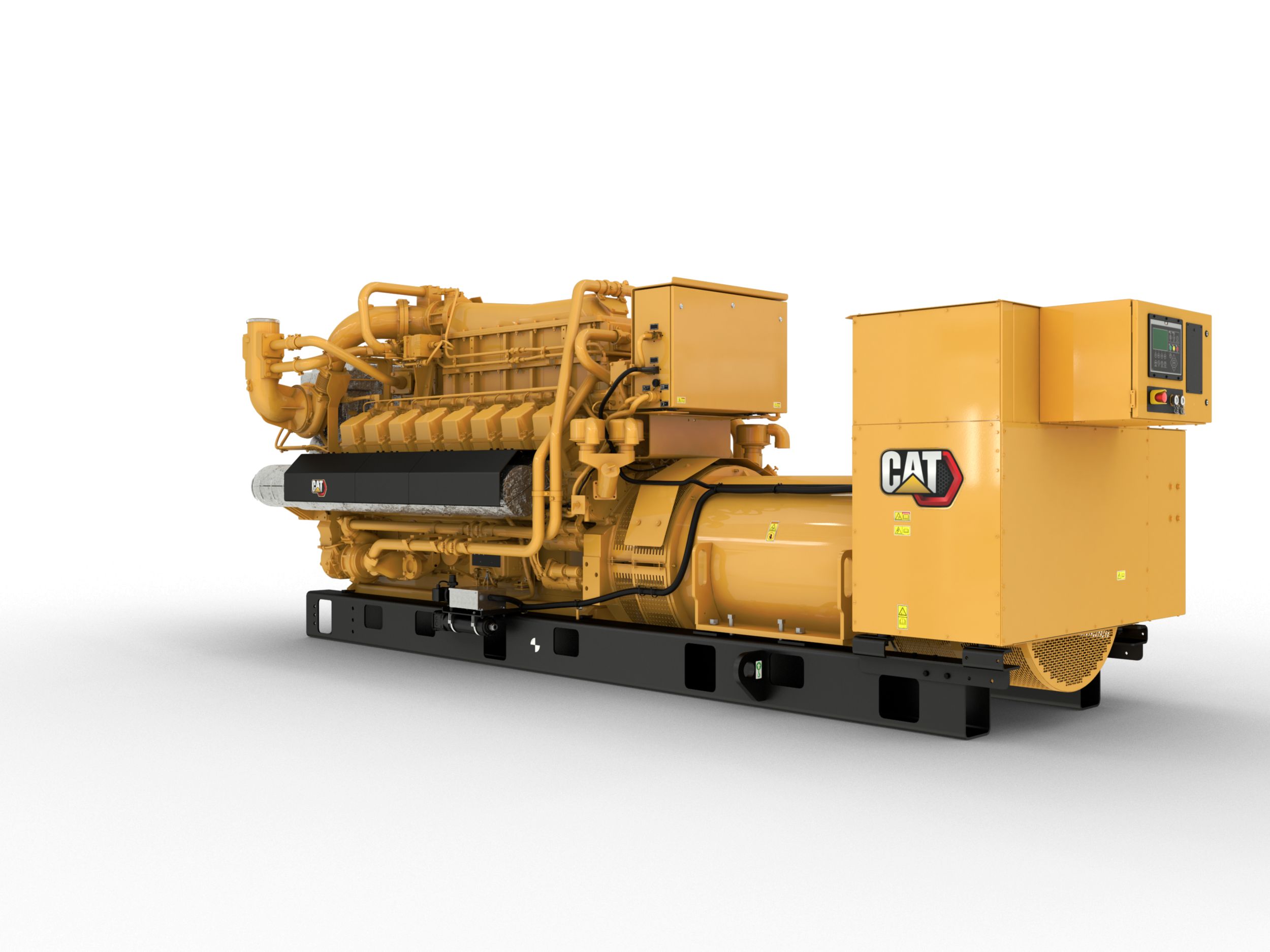

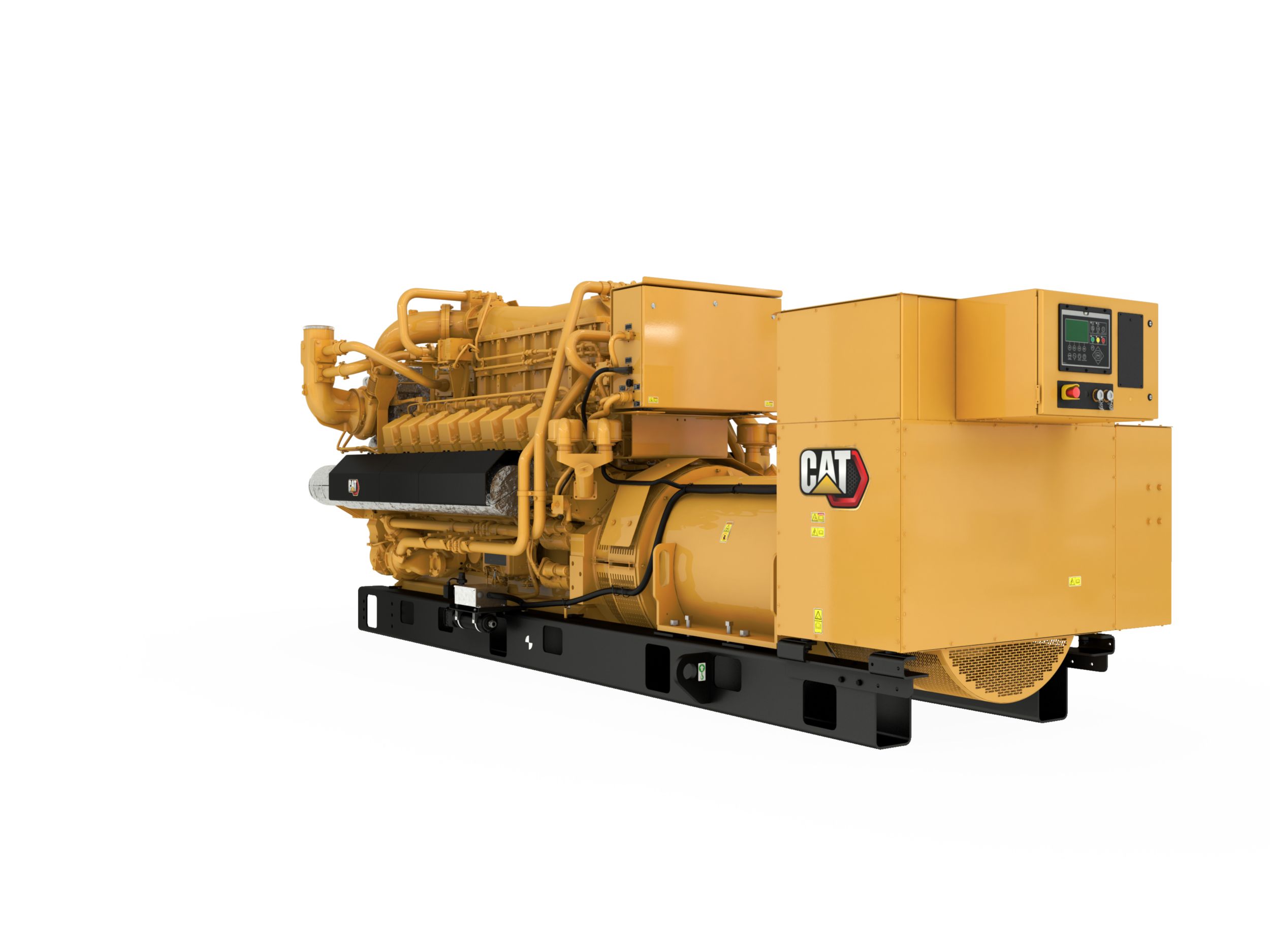

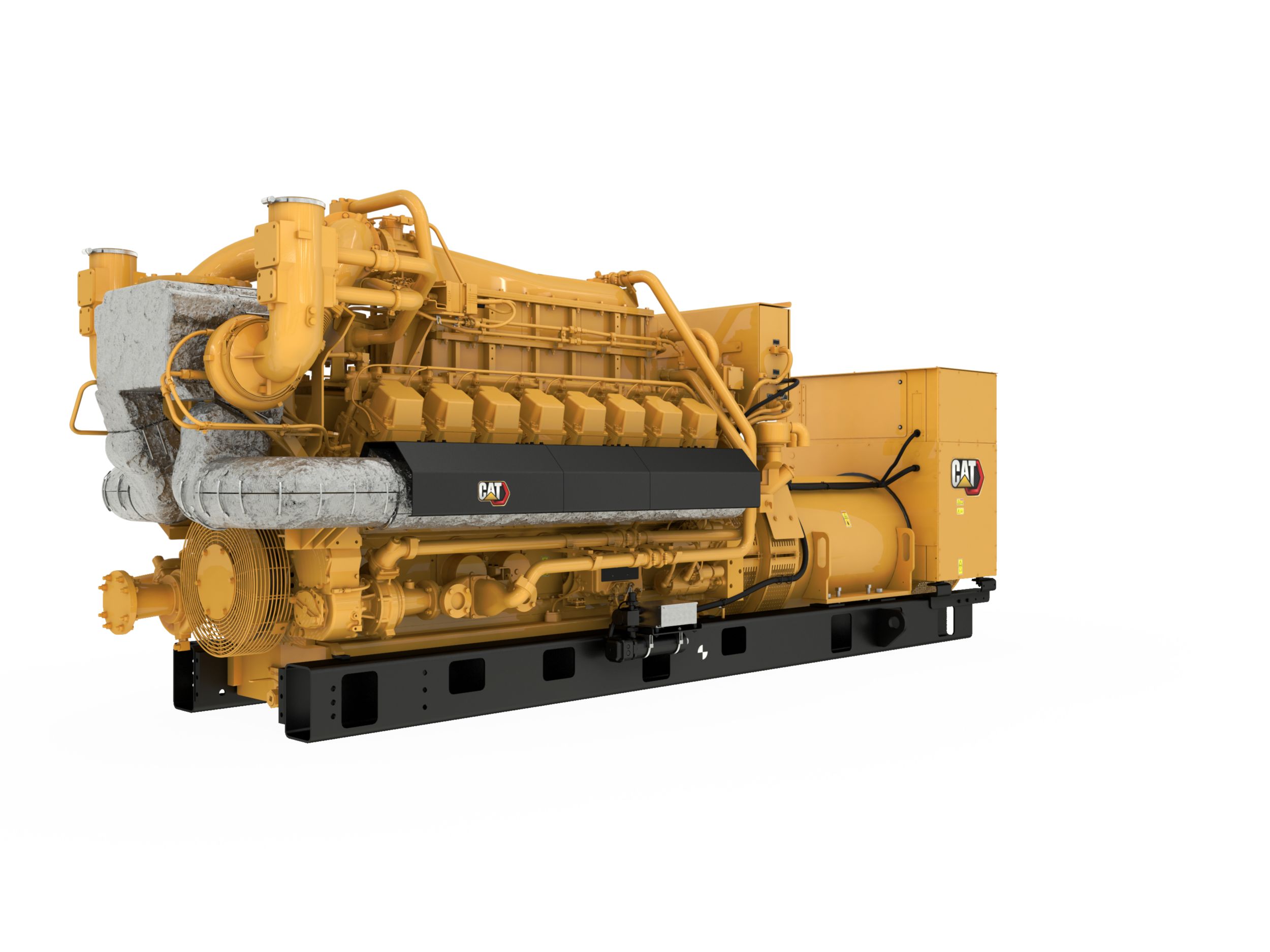

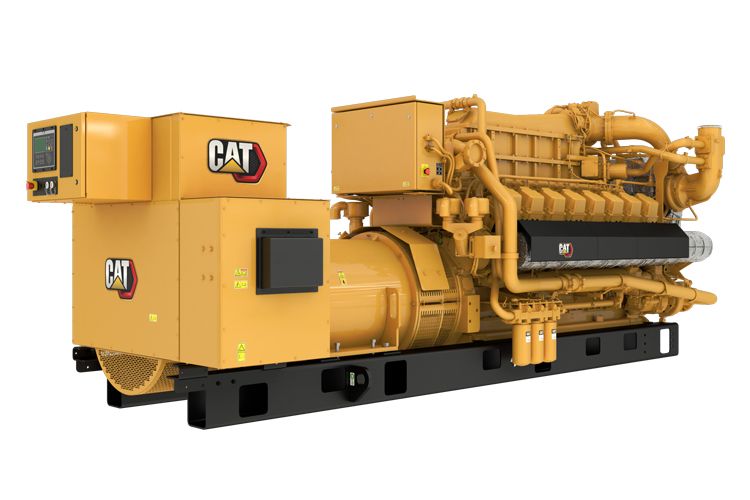

G3516C Generator Set
Generator Set Specifications
Maximum Continuous Rating
1660 ekW
Fuel Type
Natural Gas
Gas Generator Sets Specification
Maximum Electrical Efficiency
40.1%
Maximum Standby Rating
1500kW
Generator Set Specifications
Frequency
50 / 60 Hz
RPM
1500/1800
Engine Specification
Engine Model
G3516C
Engine Specifications
Bore
6.70 in
170.00 mm
Stroke
7.50 in
190.00 mm
Displacement
4210.00 in³
69.00 l
Aspiration
TA
Generator Set Dimensions
Length
219.00 in
5553.00 mm
Width
72.00 in
1828.00 mm
Height
92.00 in
2340.00 mm
Dry Weight - Genset
31226.00 lb
14161.00 kg
Generator Set Specifications
Maximum Electrical Efficiency
37.70%
Maximum Standby Rating
1500
Engine Specifications
Engine Model
G3516C
Aspiration
TA
Features
Cat G3516C Gas Engine
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
SR4B Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
EMCP 4.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cat Electronic Control System
- Simple user friendly interface and navigation
- Digital monitoring, metering and protection setting
- Fully-featured power metering and protective relaying
- Remote control and monitor capability options
Emissions
- Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Standard Equipment
- Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
- Control Panels
- EMCP 4.3
- Cooling
- Jacket water and SCAC driven pumps and bypass lines
- 2nd Stage SCAC-Cat Flange
- Engine driven water pumps for jacket water and aftercooler
- Jacket water and SCAC thermostats
- ANSI/DN customer flange connections for JW inlet and outlet
- Cat flanges on SCAC circuit
- Exhaust
- Integrated Sensing Module (ISM)
- Cat-flanged face outlet on turbocharger
- Provides exhaust port temperatures and stack temperature to customer supplied screen via CCM
- Dry exhaust manifolds, insulated and shielded
- Fuel System
- 24V ETR Gas Shutoff Valve
- Engine installed, fuel metering valve
- Throttle plate, 24V DC actuator, controlled by ECM
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- Fuel Filter
- Ignition System
- Individual Cylinder Detonation Sensitive Timing (DST)
- Electronic Ignition System (controlled by ECM)
- Fuel system
- Electronic fuel metering valve
- Generator
- Anti-condensation space heater
- Busbar connections
- Class H Insulation & Class F temperature rise
- Reactive Droop
- Permanent Magnet Excitation
- 3-phase brushless, salient pole
- Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
- SR4B
- Winding temperature detectors
- General
- RH Service
- Operation and maintenance manuals
- Crankshaft Vibration Damper and Guard
- Parts Book
- Starting/Charging
- 24V starting motors
Optional Equipment
- Air Inlet
- Vertical, horizontal dual element air cleaner
- Enclosure mounting brackets and piping
- Air cleaner with precleaner
- Control Panel
- Local NFPA99-110 Alarm Module w/LEDs
- Synchronizing Module
- Remote 24V 8/16 Light Annunciator
- Engine Failure Relay
- PL1000E/PL1000T Communications Module
- Custom 8-Light Alarm Module
- Cooling
- Inlet/Outlet connections
- Jacket water coolant heater
- Aftercooler air lines, aftercooler core replacement
- Exhaust
- Flexible Fittings
- 14" Flange Kit
- 406 mm Elbow Kits
- 406 mm flange kits
- Mufflers (15/18/25 dBA Attenuation) and spark-arresting muffler with ANSI companion flanges
- 16" Spark Arresting Muffler
- 356-406mm Flange and Exhaust Expander
- 15/18/25 dBA Muffler Attenuation
- Fuel System
- 207-276kPa, 30-40 psi gas knockdown regulator
- 14-69 kPa (2-10 psi) gas pressure regulator
- 24VDC Gas Shutoff Valve, Gas Knockdown Regulator
- Fuel Filter, Gas Filter
- Generator
- Cable access box
- 8.7/15 kV Cross, Differential, Current Transformers (CCCT, DCT, CT)
- Medium and high voltage generators and attachment
- 480/4160/13200 Volt Generator Options (60 Hz)
- Generator air filter
- Bearing temperature detectors
- European Bus Bars
- 415/400/380, 3300/6600/11000 Volt Generator Options (50 Hz)
- Annunciator Modules
- Generator Removal
- Low voltage extension box
- Governing System
- Load share module
- General
- Special paint order
- Tool set
- US AID Emblem
- Barring group
- Digital diagnostic tool
- Starting/Charging
- 60A, 24V charging alternator (requires engine driven pumps)
- Battery removal
- 20A battery charger
- Battery disconnect switch
- Battery with cables and rack (shipped loose)
