Overview

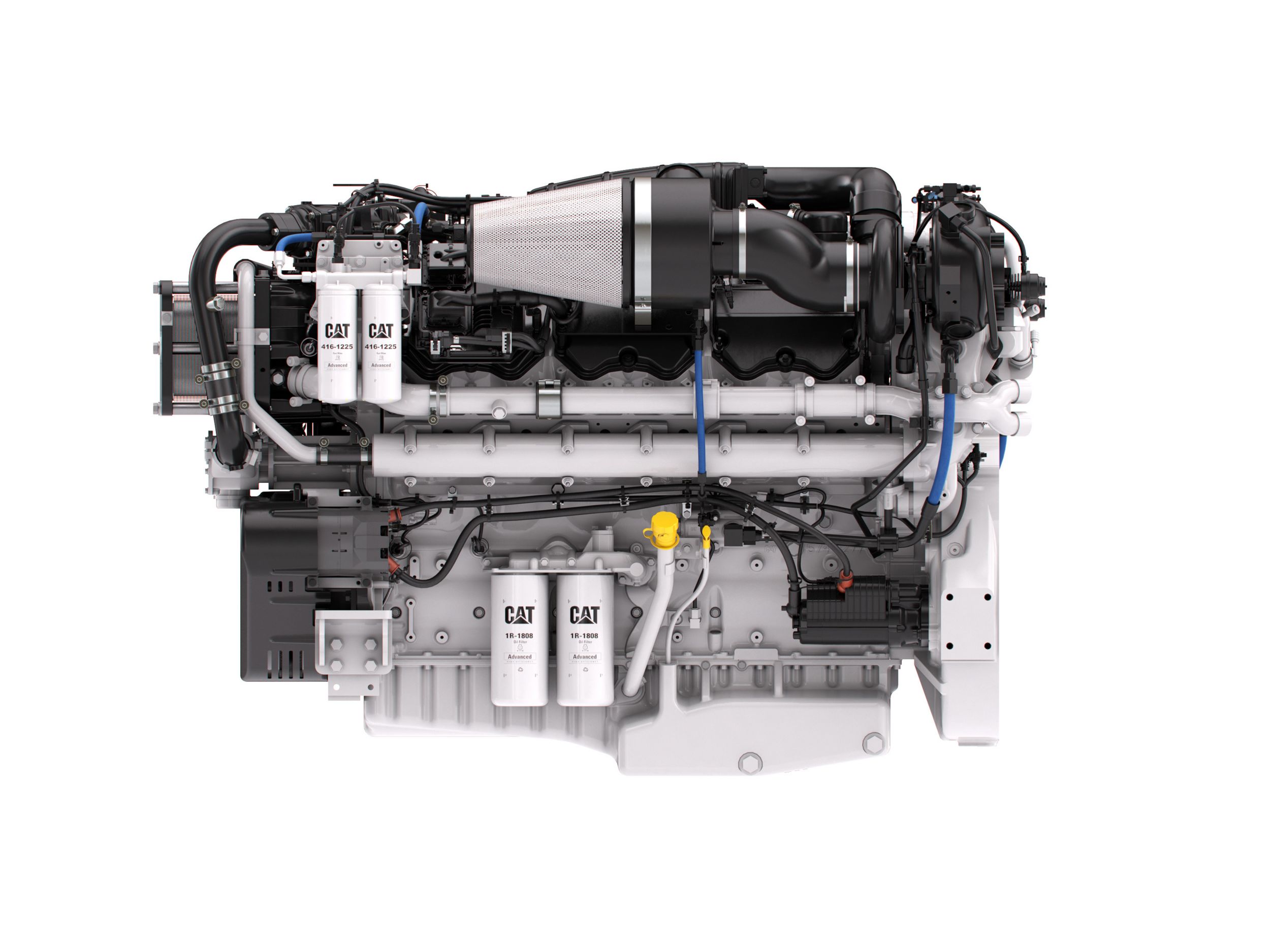

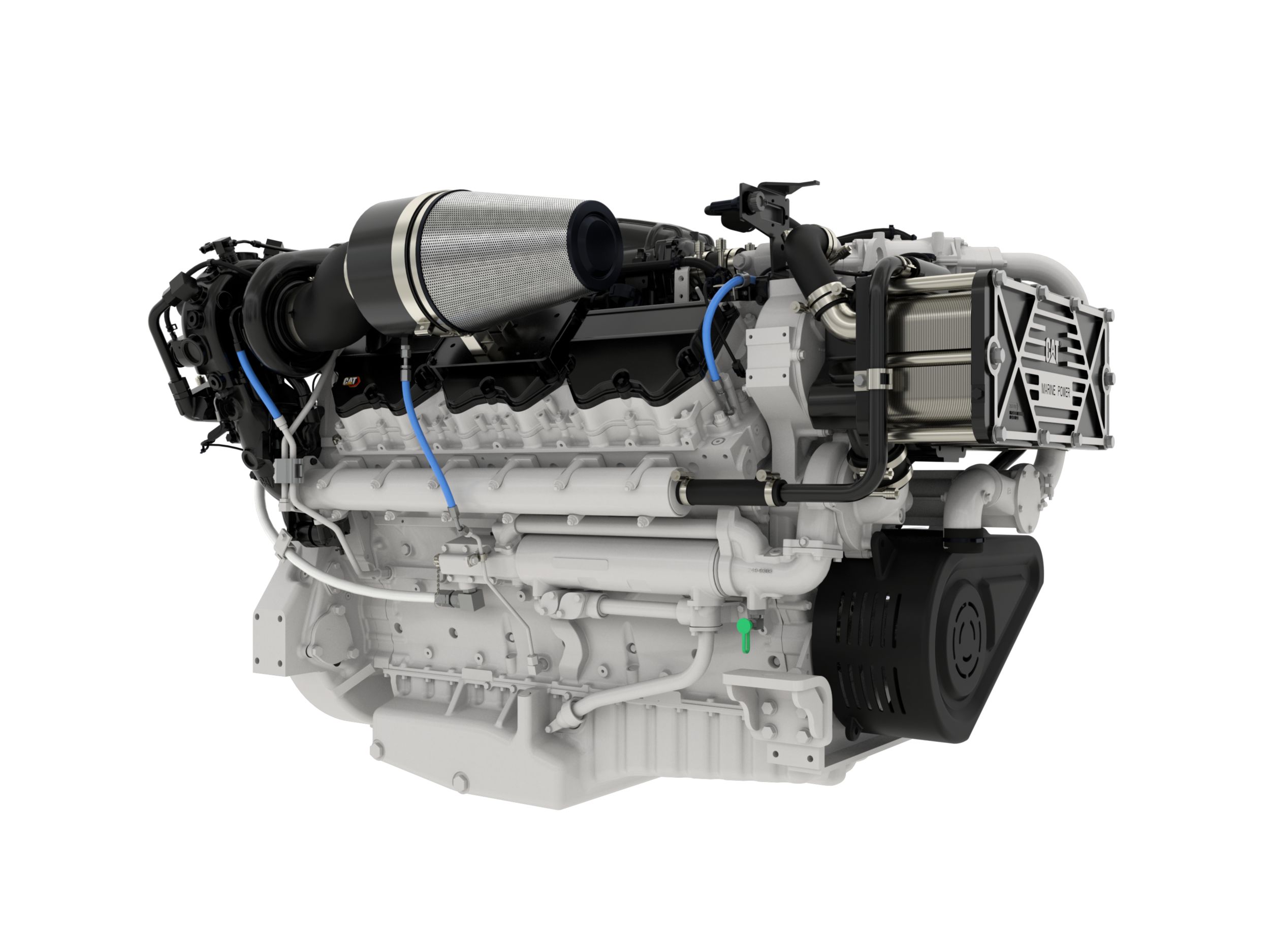

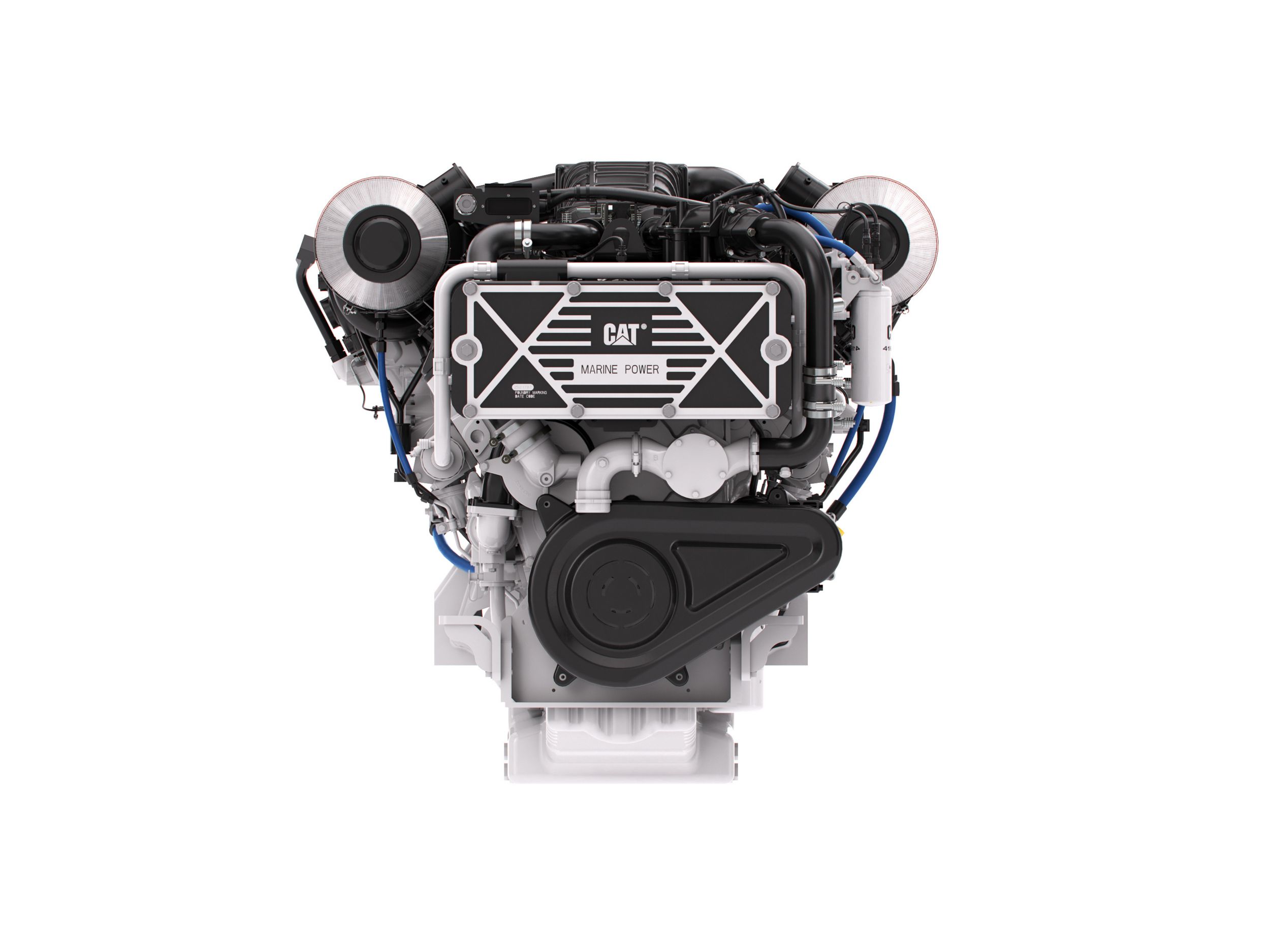

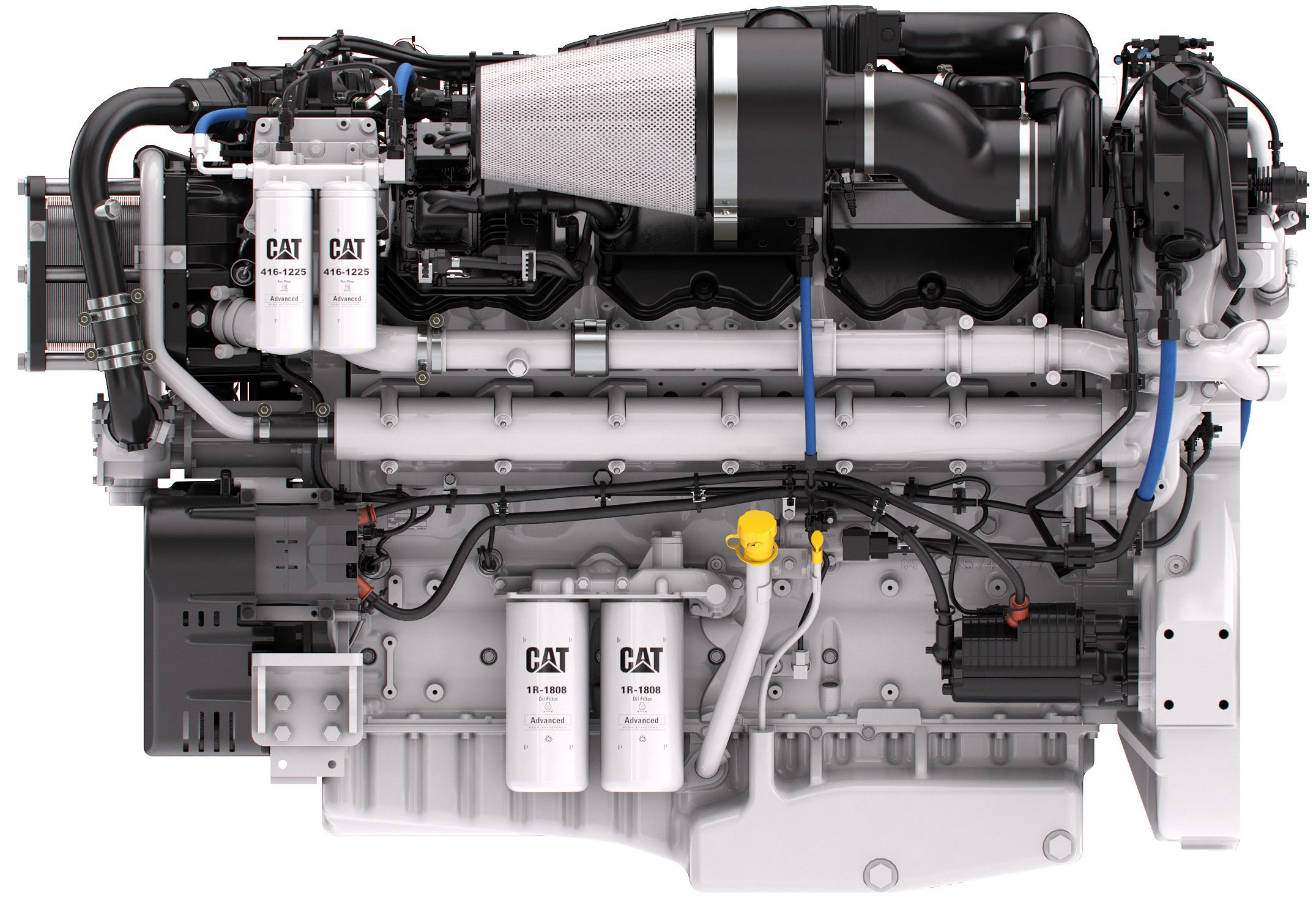

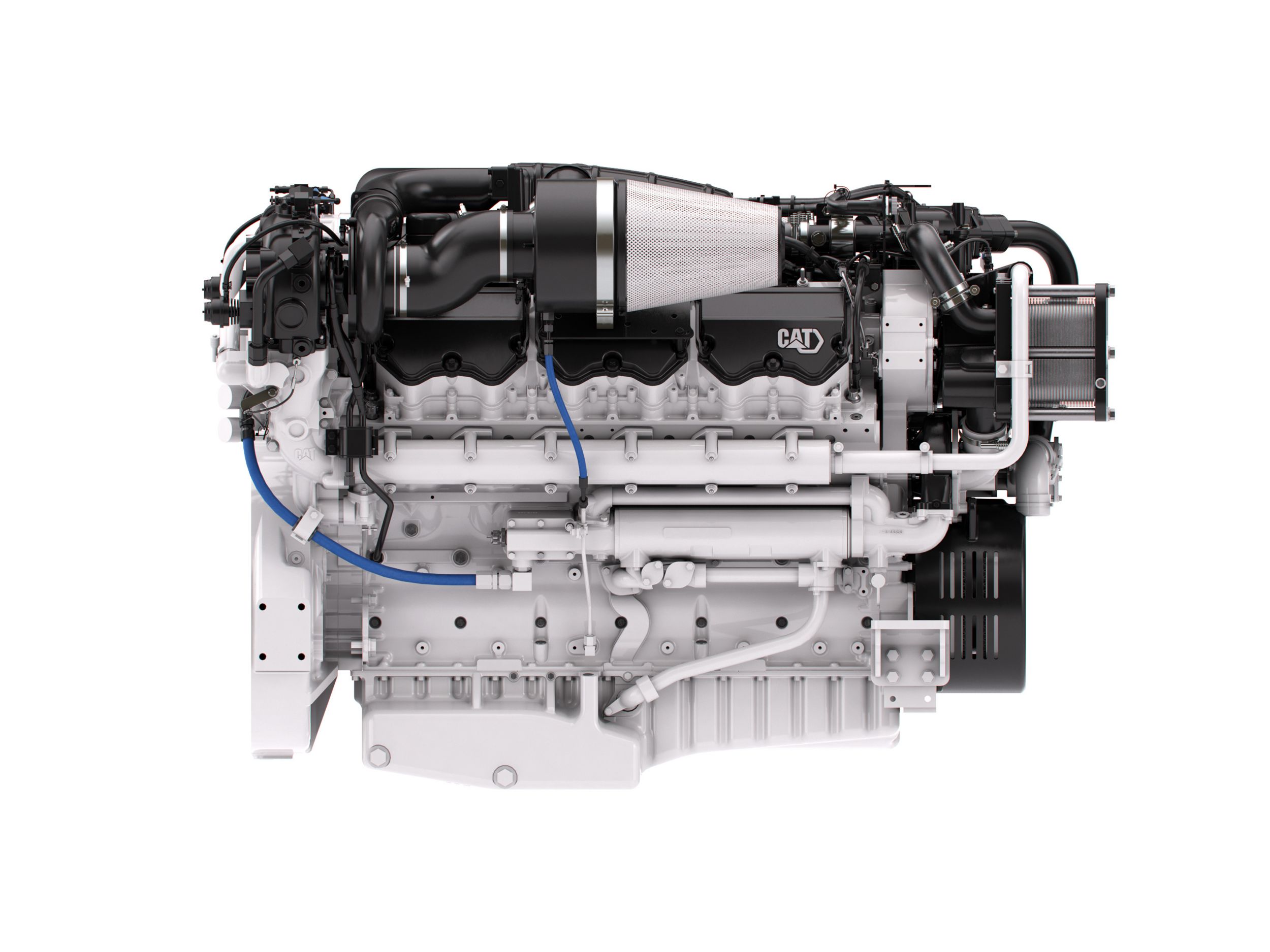

The Cat® C32B High Performance (HP) twin turbo engine is a powerful and versatile solution for commercial and high performance applications, offering a rated power range of 2000 bhp. It meets stringent emissions standards, including Tier 3 Recreational, EU RCD, and China Stage II. The Cat C32B engine has an optimized design to enhance power density, deliver more power without significantly increasing size or weight. Additionally, its improved durability* reduces maintenance needs and extends operational life, thereby lowering the total cost of ownership. This combination of high-power output, strict emissions compliance, and cost-effective durability makes the Cat C32B engine an excellent choice.
* Compared to previous C32 engines

Ratings

Power Range
2000 bhp (1491 bkW)

Engine Specifications

Application
Yachting

Engine

Speed Range
2300 rpm
Emissions
IMO II, U.S. EPA Tier 3 Recreational, RCD, China Stage II
Aspiration
TTA
Bore
5.71 in
145.00 mm
Stroke
6.38 in
162.00 mm
Displacement
1959.00 in³
32.10 l
Rotation from Flywheel End
Counterclockwise
Configuration
Vee 12, 4-Stroke-Cycle Diesel

Dimensions & Weights

Width
57.80 in
1469.00 mm
Dry Weight
6934.00 lb
3145.00 kg
Length
82.90 in
2106.00 mm
Height
56.90 in
1445.00 mm

Engine Specifications

Stroke
6.38 in
162.00 mm
Features

Key Features & Benefits

  • Electronically Governed and Controlled (ADEM VI ECM)
  • Noise Reduction at low engine speeds (MEUI-C Fuel System)
  • Improved Acceleration Capability
  • Gear-driven Jacket Water Pump and Sea Water Pump for Enhanced Reliability
  • MCS Certifications Available
  • Titanium Plate Heat Exchanger
  • LH and RH Service side options available
Standard Equipment
  • Standard Equipment
    • ADEM VI Electronic Control Module
    • Air Cleaner / Fumes Disposal
    • Electronic Diagnostics and Fault Logging
    • Engine and Transmission Monitoring
    • Sea Water Aftercooler
    • Titanium Plate Heat Exchanger with Expansion Tank
    • Gear-driven JW and SW pumps
    • Water-cooled Exhaust Manifolds and Turbochargers
    • MEUI-C Fuel System
    • Fuel Priming and Transfer Pump
    • 250-hr Oil Pan (Shallow Sump)
    • RH or LH Service Side Options
Optional Equipment
  • Optional Attachments
    • 120V or 240V Jacket Water Heater
    • SAE A or B PTO (LH or RH rear)
    • 75A or 105A Alternator
    • Spray Shielding
