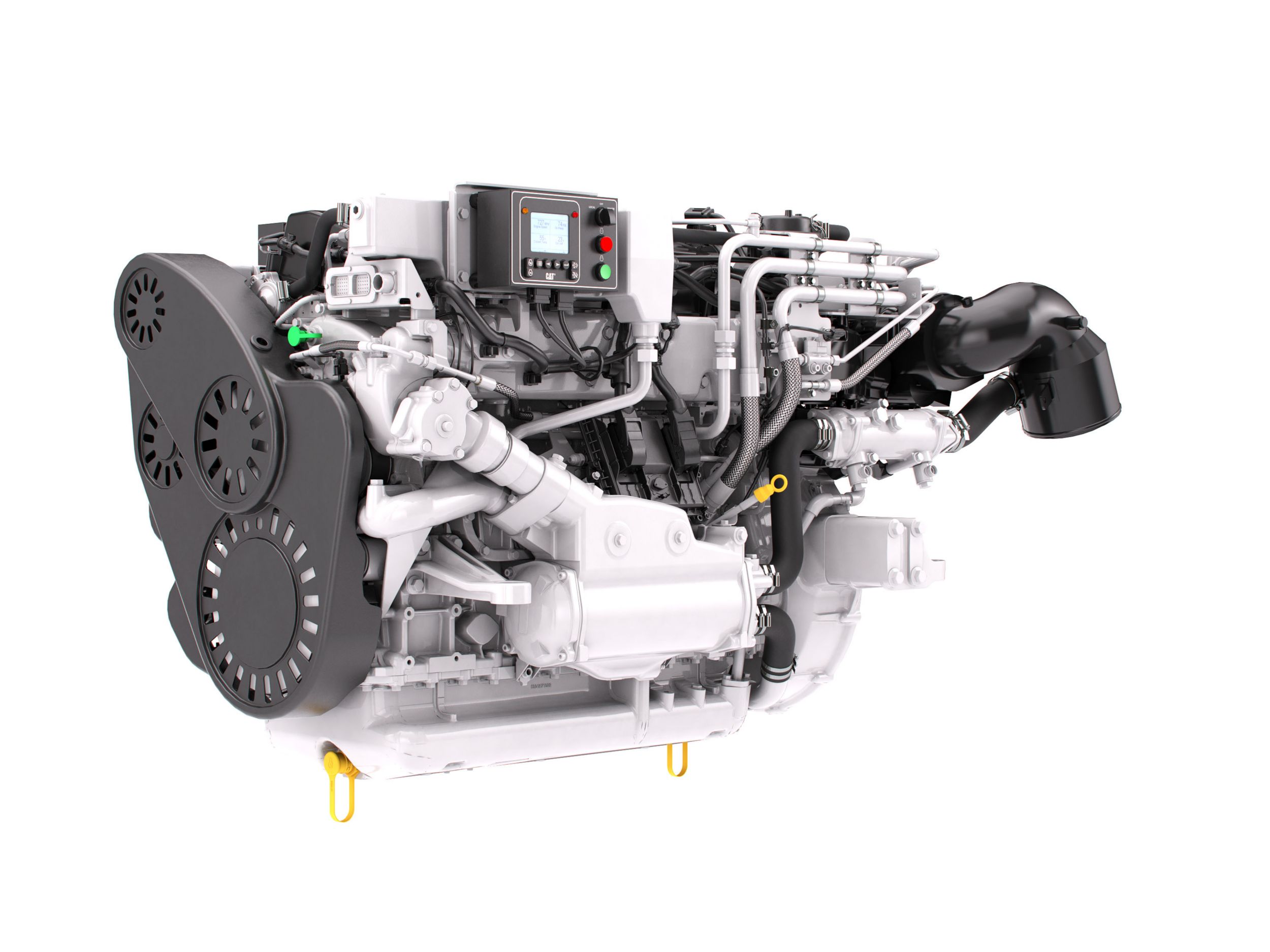

C8.7 High Performance Propulsion Engine
US
Metric
Overview
The C8.7's sophisticated fuel delivery system allows the use of a radial, belt-driven supercharger in addition to the conventional turbocharger; this feature eliminates smoke and reduces lugging, while delivering phenomenal low-end torque and impressive fuel economy. . FPT (Fiat Powertrain Technologies) Industrial's advancements in second-generation common rail fuel injection systems paired with an innovative air management system allows the compact C8.7 to develop an impressive 650 mhp @ 2300 rpm while meeting EPA Tier 3 Commercial, EPA Tier 3 Recreational, IMO II, and EU Stage IIIA (EU IW) emissions standards.
Ratings
Power Range
641.00 BHP
478.00 bkW
Engine Specifications
Speed Range
2300 rpm
Configuration
In-line 6, 4-Stroke-Cycle Diesel
Aspiration
TSA
Bore
4.60 in
117.00 mm
Stroke
5.30 in
135.00 mm
Displacement
531.00 in3
8.70 L
Rotation (from flywheel end)
Counterclockwise
Emissions
EPA Tier 3 Recreational & Commercial, IMO II, EU Stage IIIA (EU IW)
Dimensions & Weights
Length of Engine
47.90 in
1218.00 mm
Width of Engine
38.70 in
881.00 mm
Height
38.70 in
984.00 mm
Engine Dry Weight - Approximate
2295.00 lb
1041.00 kg
Engine Specifications
Aspiration
TSA
Bore
4.60 in
117.00 mm
Configuration
In-line 6, 4-Stroke-Cycle Diesel
Displacement
531.00 in³
8.70 l
Emissions
EPA Tier 3 Recreational & Commercial, IMO II, EU Stage IIIA (EU IW)
Rotation from Flywheel End
Counterclockwise
Speed Range
2300 rpm
Stroke
5.30 in
135.00 mm
Dimensions & Weights
Height
38.70 in
984.00 mm
Length - Engine
47.90 in
1218.00 mm
Width - Engine
38.70 in
881.00 mm
Features
Electronic Controlled Supercharger
Provides industry-leading torque and throttle response at low speeds, while maintaining fuel efficiency at high speeds
Closed Crankcase Ventilation System
Improves engine room cleanliness
Common rail fuel system
Enables optimum combustion and low emissions
Serviceability
Single access point improves serviceability
Grid Heater
Allows improved cold weather starting
Cat® displays
Compatibility with Cat® displays
Engine Control Panel
Available engine-mounted display panel with start, stop, and engine diagnostics
Electrical Advantages
12V or 24V electrical system
Remote Monitoring
gplink ready for remote monitoring
Standard Equipment
- AIR INLET SYSTEM
- Supercharger, electronically controlled belt driven
- Air cleaner/fumes disposal (closed system)
- Turbochargers, jacket water cooled
- Aftercooler condensate drain
- CONTROL SYSTEM
- Cold mode start strategy
- PWM secondary throttle
- Cold mode start strategy
- Electronic diagnostics and fault logging
- Engine and transmission monitoring (temperature, pressure)
- Electronic fuel/air ratio control
- Engine Protection Mode for extended ambient conditions
- Three types of throttle inputs (CAN, PWM, and 0-5V)
- 70-pin customer connector
- COOLING SYSTEM
- Sea water pump, bronze impeller, gear driven, for HEX cooled engines only
- Sea water aftercooled
- Jacket water pump, belt driven
- JW Heat Exchanger - Corrosion resistant shell and tube style
- Fuel cooler
- Expansion tank
- Thermostat housing (fully open temp 95 C)
- 63mm hose bead raw water inlet
- 50 mm hose bead raw water oulet
- EXHAUST SYSTEM
- Water-cooled exhaust manifold & turbocharger
- 90mm ID round flanged exhaust outlet
- FLYWHEELS & FLYWHEEL HOUSINGS
- Flywheel Housing, SAE No. 1 - With M10 Threads
- Flywheel, SAE 14, 149 teeth - With M12 Threads
- SAE standard rotation
- FUEL SYSTEM
- High Pressure Common Rail fuel system
- High pressure fuel system pump with integral low pressure fuel transfer pump
- Primary fuel filter, remote mounted with integrated electric priming pump
- Secondary fuel filter, Rear mounted for LH and RH Service
- LUBE SYSTEM
- Crankcase breather, closed crankcase ventilation
- Oil filter, cartridge style, Rear mounted for LH and RH service
- Oil cooler
- Oil pan, center sump
- Oil pump, gear driven
- Dipstick, RH service on Port, LH service on Starboard
- MOUNTING SYSTEM
- Front and rear support brackets
- GENERAL
- Front belt and damper guard
- Lifting eyes
- RH or LH service options
- Upper front-facing customer wiring connector and Service Tool connection
- PROTECTION SYSTEM
- Electronic Engine Monitoring System provides engine de-rate strategies to protect against adverse operating conditions
- PAINTS
- Engines are painted Matterhorn white with pleasure craft finish includes epoxy primer with polyurethane topcoat. Fuel lines, water lines and clamps and wiring harness will be unpainted. Standard decals and informational films will be installed. Shipped loose parts will be shipped as received from suppliers. Heat sensitive components have a textured black finish.
Optional Equipment
- CONTROL SYSTEM
- Instrument Panels
- INSTRUMENTATION
- Transmission Sensors
- MOUNTING SYSTEM
- Vibration isolation mounting
