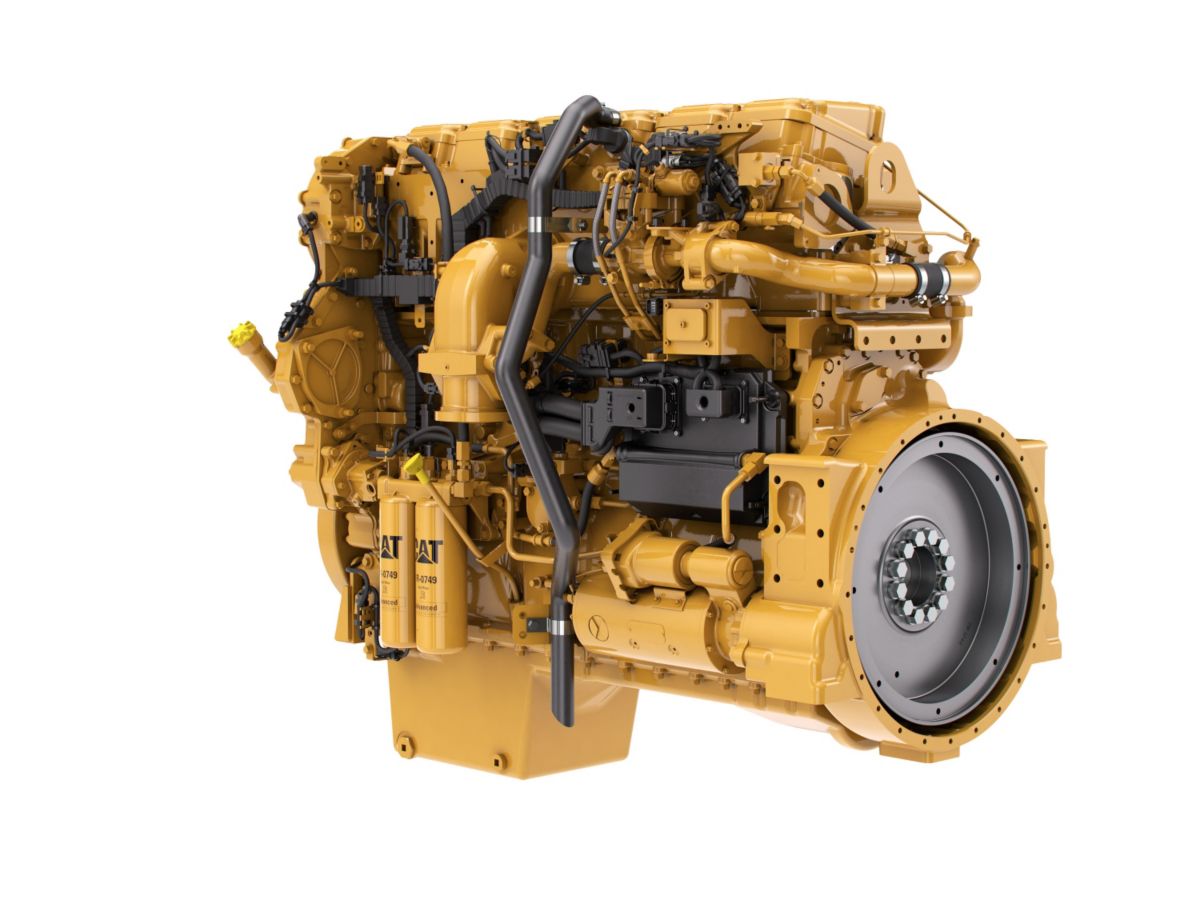

Cat® C15 ACERT™ Diesel Engine

Request A Quote
US
Metric

Overview

On construction sites and mining operations, in agriculture and forestry, and in a wide range of industries, Cat® C15 ACERT™ Industrial Diesel Engines deliver the power, performance and durability to take on the biggest challenges. More importantly, they're backed by the world-class Cat dealer network ready to service and support every Cat® industrial engine. Industries and applications powered by C15 ACERT engines include: Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Dredgers, Forestry, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Paving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers.

Power Rating

Minimum Power
475.00 bhp
354.00 bkW
Maximum Power
580.00 bhp
433.00 bkW
Rated Speed
1800-2100 rpm

Emission Standards

Emissions
U.S. EPA Tier 4 Final Nonroad, EU Stage IV Nonroad Emission Standards. Designed to meet proposed EU Stage V Nonroad Emission Standards. U.S. EPA Tier 4 Interim Nonroad Equivalent (Not Currently EPA Certified) and EU Stage IIIB Nonroad Equivalent (Non-Current for EU) Emission Standards

General

Engine Configuration
In-Line 6, 4-Stroke-Cycle Diesel
Bore
137 mm (5.4 in)
Stroke
171 mm (6.73 in)
Displacement
15.2 L (927.6 in³)
Aspiration
Turbocharged-Aftercooled (TA)
Compression Ratio
17.0:1
Combustion System
Direct Injection
Rotation (from flywheel end)
Counterclockwise
Cooling System Capacity
26.9 L (28.4 qt)
Lube System (refill)
38-72 L (40-76 qt)

Engine Dimensions (Approximate. Final dimensions dependent on selected options)

Length
1438 mm (56.6 in)
Width
943-969 mm (37.1-38.1 in)
Height
1239-1248 mm (48.8-49.1 in)
Weight - Net Dry (Basic Operating Engine Without Optional Attachments)
1542-1666 kg (3395.5-3673 lb)

Aftertreatment Dimensions (Approximate. Final dimensions dependent on selected options)

Length
1053-1153 mm (41.5-45.4 in)
Width
779.8-1112 mm (30.7-43.8 in)
Height
451.3-654 mm (17.8-25.7)
Weight
258-272 kg (569-600 lb)
Diameter
330.2-355.6 mm (13-14 in)

PETU Dimensions (Tier 4 Final, Stage IV Only)

Length
854 mm (33.6 in)
Width
287 mm (11.3 in)
Volume Capacity
48.4 L (51.1 qt)
Weight
19.42 kg (42.8 lb)
Height
551 mm (21.7 in)
Features

Emissions

Meets U.S. EPA Tier 4 Final, EU Stage IV emission standards. Designed to meet proposed EU Stage V emission standards (As of publishing date, Stage V regulations have not been finalized). U.S. EPA Tier 4 Interim, EU Stage IIIB configurations are also available using EPA or EU Flex Provisions.

Reliable, Quiet and Durable Power

World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

High Performance

Simple and efficient turbocharger with balance valve provides optimal air management and improved fuel efficiency.

Fuel Efficiency

Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Fuel & Oil

Tier 4 Interim or Tier 4 Final, Stage IIIB, Stage IV or Stage V engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 10 ppm sulfur (EU) and 15 ppm sulfur (U.S.), and new oil formulations to support the new technology. Cat® engines are designed to accommodate B20 biofuel. Your Cat dealer can provide more information regarding fuel and oil.

Broad Application Range

Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Package Size

Exceptional power density enables standardization across numerous applications. Multiple installation options minimize total package size. Ideal for equipment with narrow engine compartments.

Low Cost Maintenance

Worldwide service delivers ease of maintenance and simplifies the servicing routine. If applicable, minimum 5000-hour diesel particulate filter (DPF) ash service interval enables low-cost maintenance. Capable of optimal oil change intervals of up to 500-hours, depending on rating, application, operating conditions, and maintenance practices. Engine B10 life up to 10000 hours for Tier 4 Final, Stage IV. The S·O·SSM program is available from your Cat dealer to determine oil change intervals and provide optimal performance.

Quality

Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.

World-class Product Support Offered Through Global Cat Dealer Network

  • Scheduled maintenance, including S•O•S℠ sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Standard Equipment
  • Air Inlet System
    • Turbocharged
    • Air-to-Air Aftercooled
    • Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage IV)
  • Control System
    • Electronic control system
    • Over-foam wiring harness
    • Automatic altitude compensation
    • Power compensated for fuel temperature
    • Configurable software features
    • Engine monitoring system SAE J1939 broadcast and control
    • Integrated Electronic Control Unit (ECU)
    • Remote fan control
  • Cooling System
    • Thermostats and housing, vertical outlet
    • Centrifugal water pump
    • Guidance on cooling system design available through your dealer to ensure equipment reliability
  • Flywheels and Flywheel Housing
    • Choice of SAE No. 0 or SAE No. 1 flywheel housing
    • Available SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage IV).
  • Fuel System
    • MEUI injection
    • Primary fuel filter
    • Secondary fuel filters
    • Fuel transfer pump
    • Electronic fuel priming
  • Lube System
    • Open crankcase ventilation system
    • Oil cooler
    • Oil filler
    • Lube oil filter
    • Oil dipstick
    • Gear driven oil pump
    • Choice of front, rear or center sumps
    • Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage IV)
  • Power Take Off (PTO)
    • SAE A, SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
  • General
    • Paint: Caterpillar yellow, with optional colors available at request
  • U.S. EPA Tier 4 Interim, EU Stage IIIB Aftertreatment / Clean Emissions Control Equipment
    • Cat Regeneration System
    • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
    • NOx Reduction System (NRS)
    • Flex pipe connection kit with 90° rotatable elbows to attach to Cat Regeneration System Inlet
    • Available in 12 volt or 24 volt systems
  • U.S. EPA Tier 4 Final, EU Stage IV Aftertreatment
    • Cat Regeneration System
    • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
    • Aftertreatment Electronic Control Unit (ECU)
    • NOx Reduction System (NRS)
    • Pump Electronic Control Unit (PETU)
    • Selective Catalytic Reduction (SCR)
    • Available in 12V or 24V systems
